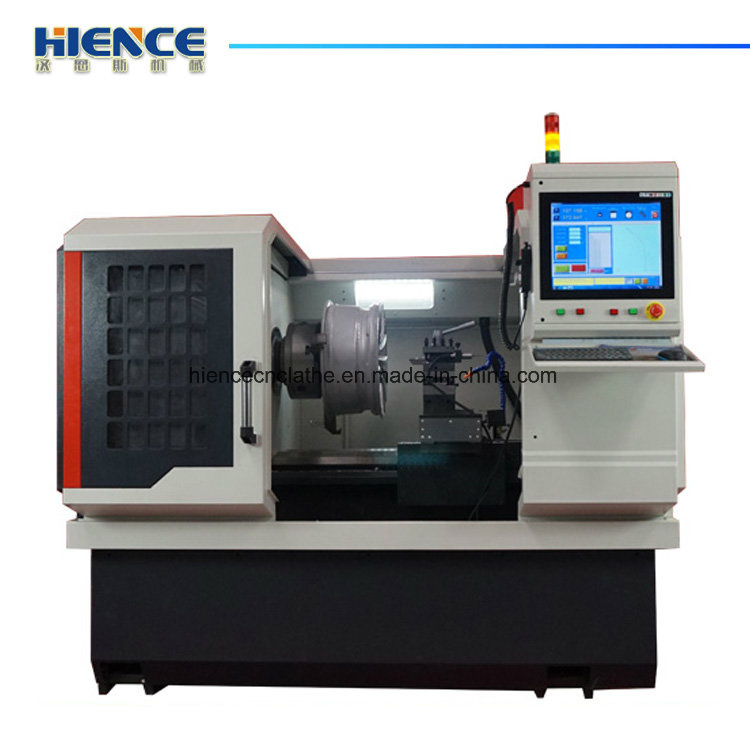

Alloy Wheel Repair CNC Lathe Diamond Cutting Machine Awr28hpc

Alloy Wheel Repair CNC Lathe Diamond Cutting Machine Awr28hpc
Price: US $ 14000-17000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: AWR28HPC
Colour: Blue or Black
Controller: CNC or PC
Voltage: 3 Phase 380 or Your Request Voltage
Cutting Effect: Rainbow Line or Cutting Line
Detection Way: Touch Ruby Probe System
Cutter: Special Diamond Cutter
Optimized Software: Designed for Optimize Program
Clamping Form: 3 Jaws Chuck
Max Wheel Size: up to 27 Inch,30 Inch,or 32 Inch
Oversea Service: Offer
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Alloy Wheel Repair CNC Lathe Diamond Cutting Machine Awr28hpc

Standard configuration

     1.  Wireless key&mouse 1 set                  2.  Diamond cutter 1 set inner
     3.  Diamond cutter 1 set outer                4.  Special ordered soft jaws 1 set
     5. High precision prob system 1 set        6. 4 station tool which can adjust X stroke
     7.  light system                                        8.  Automatic lubrication system
     9.  Cooling system(standard)                 10.  Full cover safety door
     11.  Tool case                                        12.  Training videos

Specification list
ITEMS

AWR28H-PC

Max. swing over bed (mm)(inch)

Φ770(30')

Max. Diameter of wheel(mm) (inch)

Φ710(28')

Max. Stroke of the X-axis(mm)

390

Max. Stroke of the Z-axis (mm)

880

Width of the rail (mm)

300

Length of the rail (mm)

1320

Size of the three-jaw chuck (inch)

13'

Range of spindle speed (RPM)

50-2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Taper of spindle nose

A2-10

Adjustable stroke of carrier in X direction

100mm

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

    (Z) long    0.001mm,    (X) cross   0.001mm

Moving speed of post

    (Z) long     8m/min,     (X) cross    6m/min

Motor power

7.5KW

Machine size

(L/W/H) (mm)

2200/1620/1870

Package size

2300/1720/2170

Net weight

2400KGS


B. Descriptions of PC controller:
  B1. Hardware:
        1.  17 inch touch screen industry integrated machine (stable Intel chipset industrial solutions)
        2.  Quad core CPU/ SSD hard stick/large capacity DRR3 memory/ USB3.0/WIFI module
        3.  10-point touch capacitive screen/1000:1high contrast/16.7M dynamic color/1280×1024
        4.  Metal casing cover, low power consumption(no fan), dust proof, Anti interference, high and low temperature.
        5.  Wireless key&mouse are set up and the mouse can be used together with the touch screen.
        6.  One year warranty.

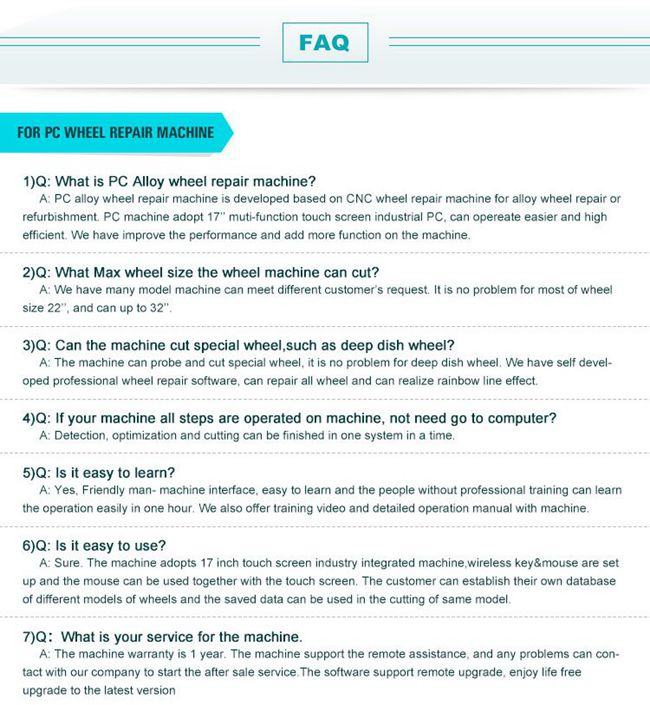

  B2. Software:
        1.  Self developed professional wheel repair software.
        2.  Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour.
        3.  Detection, optimization and cutting can be finished in one system in a time.
        4.  The software can support the repair of curves by parts, make the surface of wheel perfect by cutting minimum cutting quantity.
        5.  The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
        6.  Support the remote assistance, and any problems can contact with our company to start the after sale service.
        7.  Software support remote upgrade, enjoy life free upgrade to the latest version
        8.  Training video of the operation.

C. Optional configuration:
     1.  Longer diamond cutter(100mm longer than common cutter, to fulfill the cutting of special cutting of the wheel hub)
     2.  Special clamp of wheel which comes through the spindle to set position.
     3.  Electromagnetic lock device for protective door(can not open the door while running)
     4.  The cooling device can be blowing device while cutting
     5.  360 degree camera to remote communicate easily.
     6.  Power engraving and milling system (adding a set of dynamic milling system, can change the wheel hub to achieve personalized custo
D.  Highlights
     1. Repair software with proprietary intellectual property rights
2. Different repair effects are obtained by changing the cutting parameters of the controller.
3. Support for the local modification of the wheel, to achieve the perfect repair of the smallest cutting quantity, to ensure safety;
4. Support manual modification process data, in order to achieve a variety of special shaped wheel repair
5. By adjusting the tool carrier in the X stroke, can choose any point as the starting point to cut the wheels.
6 Free upgrade for a life of the software, and ensure the latest version























Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
