Aluminium-Alloy Suspension Clamp for Overhead Transmission Line Project (MGH-SC009)
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MGH-SC009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| We Can Design And Provide Every Type: |
According to Client Requirements |
| Material: |
Metal |
| Structure: |
Suspension Clamp |
| Standard: |
Standard |
| Usage: |
Suspension Clamp for Power Fitting |
| Brand: |
According to Client Requirements |
Product Description

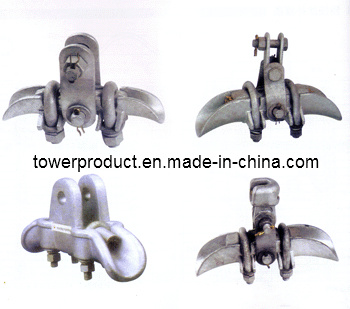

MEGATRO provide every type of suspension clamps with specification as follow:
1. Material: Cotter pins is stainless steel, other parts hot-DIP galvanized steel;
2. Weight: 1.5-3.5kg
3. Size: As per clients design or Chinese standard size
Origin: Qingdao. Shandong, China
Payment: TT; L/C
Lead time: 10-15 days against deposit
we also provide some below technial specification:
1 Suspension Clamps (Trunnion Type)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| h | L | R |
| XGU-1 | 5.0-7.0 | 78 | 180 | 4.0 | 40 | 1.4 |
| XGU-2 | 7.1-13.0 | 75 | 200 | 7.0 | 40 | 1.8 |
| XGU-3 | 13.1-21.0 | 91 | 220 | 11.0 | 40 | 2.0 |
| XGU-4 | 21.1-26.0 | 96 | 250 | 13.5 | 40 | 3.0 |
2 Suspension Clamps (Wish Socket-clevis)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| h | L | R |
| XGU-5A | 23.0-33.0 | 140 | 300 | 17 | 70 | 5.7 |
| XGU-6A | 34.0-45.0 | 140 | 300 | 23 | 70 | 6.1 |
3 Suspension Clamps (With Clevis)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| h | L | R |
| XGU-5B | 23.0-33.0 | 120 | 300 | 17 | 70 | 5.4 |
| XGU-6B | 34.0-45.0 | 120 | 300 | 23 | 70 | 5.8 |
| XGU-7B | 45.0-48.7 | 130 | 300 | 26 | 70 | 6.2 |
4 Suspension Clamps (Abrasion-proof Type)
4-1| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | h | R | C |
| XGU-1F | 5.0-7.0 | 180 | 70 | 4.0 | 18 | 40 | 1.7 |
| XGU-2F | 7.1-13.0 | 200 | 70 | 7.0 | 18 | 40 | 2.1 |
| XGU-3F | 13.1-21.0 | 220 | 90 | 11.0 | 18 | 40 | 2.4 |
| XGU-4F | 21.1-26.0 | 250 | 90 | 13.5 | 18 | 40 | 3.4 |
| XGU-5F | 23.0-33.0 | 300 | 90 | 17.0 | 40 | 70 | 5.5 |
| XGU-6F | 34.0-45.0 | 300 | 70 | 23.0 | 40 | 70 | 6.0 |
4-2| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | d | h | R |
| XDU-1A | 5.0-7.0 | 180 | 16 | 70 | 4.0 | 50 | 1.8 |
| XDU-2A | 7.1-13.0 | 200 | 16 | 67 | 7.0 | 50 | 2.3 |
| XDU-3A | 13.1-21.0 | 220 | 16 | 63 | 11.0 | 50 | 2.5 |
4-3| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | C | h | R |
| XDU-2B | 7.1-13.0 | 200 | 16 | 20 | 116 | 7.0 | 50 | 2.9 |
| XDU-3B | 13.1-21.0 | 220 | 16 | 20 | 121 | 11.0 | 50 | 2.9 |
| XDU-4B | 21.0-26.0 | 250 | 16 | 20 | 132 | 13.5 | 50 | 3.9 |
| XDU-5B | 23.0-33.0 | 300 | 16 | 20 | 136 | 17.0 | 65 | 4.2 |
| XDU-6B | 34.0-45.0 | 300 | 16 | 20 | 142 | 23.0 | 65 | 4.6 |
4-4| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | C | h | R |
| XDU-3C | 13.1-21.0 | 220 | 16 | 20 | 111 | 11.0 | 50 | 2.8 |
| XDU-4C | 21.0-26.0 | 250 | 16 | 20 | 122 | 13.5 | 50 | 3.8 |
| XDU-5C | 23.0-33.0 | 300 | 16 | 20 | 126 | 17.0 | 65 | 4.1 |
| XDU-6C | 34.0-45.0 | 300 | 16 | 20 | 132 | 23.0 | 65 | 4.4 |
4-5| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | h | R |
| XDU-3D | 13.1-21.0 | 220 | 16 | 129 | 11.0 | 50 | 3.0 |
| XDU-4D | 21.1-26.0 | 250 | 16 | 140 | 13.5 | 50 | 4.0 |
| XDU-5D | 23.0-33.0 | 300 | 16 | 144 | 17.0 | 65 | 4.3 |
| XDU-6D | 34.0-45.0 | 300 | 16 | 150 | 23.0 | 65 | 4.6 |
5,Suspension Clamps (XGT Type)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | C | h | R |
| XGT-1 | 5.0-7.0 | 180 | 16 | 18 | 52 | 4.0 | 40 | 3.3 |
| XGT-2 | 7.1-13.0 | 200 | 16 | 18 | 68 | 7.0 | 40 | 4.9 |
| XGT-3 | 13.1-21.0 | 220 | 16 | 27 | 53 | 11.0 | 40 | 5.6 |
| XGT-4 | 21.0-26.0 | 250 | 16 | 27 | 61 | 13.5 | 40 | 6.5 |
| XGT-5 | 23.0-33.0 | 300 | 16 | 38 | 64 | 17.0 | 60 | 8.7 |
| XGT-6 | 34.0-45.0 | 300 | 16 | 46 | 43 | 23.0 | 60 | 9.8 |
6 Suspension Clamps for Twin Jumper Conductors
| Catalog No. | Fig | (mm)Conductor Dia. | (mm)Dimensions | (kg) Weight |
| L | B | R | h | M | C | b | φ |
| XTS-1 | 1 | 24.0 | 200 | 50 | 13 | 77 | 16 | 19 | - | - | 4.5 |
| XTS-2 | 2 | 28.0 | 210 | 60 | 16 | 100 | 16 | 20 | 12 | 18 | 6.3 |
| XTS-3 | 2 | 30.0-37.0 | 210 | 70 | 20 | 80 | 16 | 20 | 12 | 18 | 6.4 |
7 Suspension Clamps (Type XGJ)
| Catalog No. | Fig | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | C | M | h | R |
| XGJ-2 | 1 | 11.0-13.0 | 300 | 19 | 18 | 52 | 8.0 | 100 | 4.4 |
| XGJ-3 | 2 | 13.1-18.0 | 300 | 18 | 16 | 190 | 9.0 | 70 | 4.8 |
| XGJ-4 | 2 | 21.1-23.0 | 300 | 18 | 16 | 190 | 11.5 | 70 | 4.9 |
| XGJ-4T | 3 | 30.0-45.0 | 380 | 26 | 18 | 160 | 22.0 | 80 | 9.0 |
| XGJ-5 | 3 | 23.0-43.0 | 390 | 24 | 22 | 121 | 22.0 | 120 | 8.8 |
| XGJ-5A | 3 | 23.0-43.0 | 476 | 24 | 22 | 180 | 22.0 | 120 | 9.1 |
| XGJ-5B | 3 | 23.0-43.0 | 476 | 24 | 24 | 180 | 22.0 | 160 | 13.4 |
| XGJ-5T | 3 | 30.0-45.0 | 380 | 26 | 24 | 160 | 23.0 | 160 | 9.1 |
8,(500kV) Suspension Clamps for 500Kv T L (Carrisd-up Type)
| Catalog No. | Fig | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | C | M | h | R |
| XGF-5KB | 1 | 23.0-32.0 | 290 | 34 | 16 | 62 | 16 | 60 | 3.40 |
| XGF-5K | 2 | 23.0-34.0 | 300 | 24 | 16 | 55 | 17 | 70 | 2.38 |
| XGF-4208K | 2 | 34.0-44.0 | 310 | 24 | 16 | 60 | 22 | 80 | 3.80 |
9,(500kV) Suspension Clamps for 500kV T L (Hang-dwon Tape)
| Catalog No. | Fig | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| C | M | h | R |
| XGF-4X | 1 | 23.0-26.0 | 28 | 16 | 64 | 14 | 60 | 3.2 |
| XGF-5XB | 2 | 23.0-34.0 | 42 | 16 | 65 | 16 | 60 | 3.5 |
10,(500kV) Suspension Clamps for 500kV High Elevation T
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| C | M | h | R |
| XGF-4X/GH | 23.0-26.0 | 28 | 16 | 64 | 14 | 70 | 3.4 |
| XGF-5X/GH | 24.0-30.0 | 34 | 16 | 68 | 17 | 70 | 3.6 |
| XGF-9X/GH | 35.0-44.0 | 48 | 18 | 70 | 22 | 90 | 4.6 |
| XGF-12X/GH | 35.0-44.0 | 48 | 22 | 70 | 22 | 120 | 4.7 |
| XGF-15X/GH | 35.0-44.0 | 48 | 24 | 72 | 22 | 150 | 4.9 |
11,(500kV) Suspension Clamps for 500Kv T L
11-1| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | C | R | h | M |
| XGF-5X | 24.0-34.0 | 300 | 18 | 17 | 130 | 16 | 70 | 3.5 |
| CGF-40C-8 | 23.0-37.0 | 310 | 22 | 20 | 140 | 16 | 80 | 6.1 |
| CF-4010C | 30.0-37.0 | 310 | 22 | 20 | 145 | 18 | 100 | 6.5 |
11-2| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| C | R | h | h1 | M |
| CGF-54100C | 45.0-52.0 | 22 | 27 | 147 | 70 | 18 | 100 | 7.5 |
| CF-54150C | 45.0-52.0 | 26 | 27 | 183 | 100 | 24 | 150 | 8 |
| CGF-15C | 35.0-46.0 | 28 | 23 | 167 | 100 | 18 | 150 | 7.2 |
12,(330kV) Suspension Clamps for 330Kv T L
12-1| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | C | R | h | M |
| XGF-3XB | 16.0-19.0 | 210 | 20 | 11.5 | 118 | 16 | 40 | 2.8 |
12-2| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | C | R | h | M |
| CGF-4 | 19.0-22.0 | 230 | 26 | 13 | 52 | 16 | 40 | 3.4 |
13,(750kV) Suspension Clamps for 750Kv T L
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| C | R | h | h1 | M |
| CGF-10034 | 24.0-33.0 | 22 | 17 | 148 | 80 | 18 | 100 | 9.0 |
| CGF-13044 | 36.0-42.0 | 22 | 22 | 163 | 95 | 22 | 130 | 10.0 |
14,Suspension Clamps for Twin Clamps of Vertical Arrange
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | C | h | h1 | R |
| XCS-4 | 21.0-26.0 | 250 | 16 | 20 | 400 | 90 | 13.5 | 40 | 10.2 |
| XCS-5 | 23.0-33.0 | 300 | 16 | 38 | 400 | 90 | 17.0 | 70 | 14.6 |
| XCS-5-10 | 23.0-33.0 | 300 | 18 | 38 | 400 | 90 | 17.0 | 100 | 15.0 |
| XCS-5-12 | 23.0-33.0 | 300 | 22 | 40 | 400 | 121 | 17.0 | 120 | 15.2 |
| XCS-6B | 34.0-45.0 | 300 | 16 | 38 | 400 | 90 | 23.0 | 100 | 15.0 |
| XCS-6-10 | 34.0-45.0 | 300 | 18 | 38 | 400 | 90 | 23.0 | 100 | 15.3 |
15, Aluminium Alloy Suspension Clamps for Twin Conductor Energy Saving Type)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight | Link Fitting |
| L | M | C | h | h1 | R |
| CCSJ-3 | 13.1-21.0 | 210 | 16 | 22 | 400 | 54 | 11.0 | 40 | 5.5 | W-7A |
| CCSJ-4 | 21.1-26.0 | 250 | 16 | 27 | 400 | 62 | 13.5 | 40 | 6.8 | W-0724 |
| CCSJ-5 | 23.0-33.0 | 280 | 16 | 36 | 400 | 66 | 17.0 | 70 | 7.5 | W-1032 |
| CCSJ-6 | 34.0-45.0 | 290 | 16 | 48 | 400 | 72 | 23.0 | 70 | 8.2 | WS-10 |
16, Aluminum Alloy Suspension Clamps(Envelope Type)
| Catalog No. | (mm)Conductor Dia. | (mm)Dimensions | (kN) Rated Failure Load | (kg) Weight |
| L | M | C | h | R |
| CGL-2 | 7.0-13.0 | 190 | 16 | 14 | 48 | 7.0 | 40 | 1.4 |
| CGL-3 | 13.1-21.0 | 210 | 16 | 22 | 54 | 11.0 | 40 | 2.3 |
| CGL-4 | 21.1-26.0 | 250 | 16 | 27 | 62 | 13.5 | 40 | 2.9 |
| CGL-5 | 23.1-33.0 | 280 | 16 | 36 | 66 | 17.0 | 70 | 3.1 |
| CGL-6 | 34.0-45.0 | 290 | 16 | 48 | 72 | 23.0 | 70 | 3.8 |
17, Anti-Corona Suspension Clamp ( Envelope Type)
| Catalog No. | Suitable Conductor | (mm)Dimensions | (kg) Weight | |
| c | d | h | l | r | |
| CGF-300 | LGJ-300/40 | 24 | 16 | 60 | 250 | 13.0 | 3 | |
| CGF-6 | LGJ-500/45 | 63 | 300 | 18.0 | 4.2 | |
| CGF-7 | LGKK-590 LGKK-900 | 65 | 300 | 26.5 | 4.5 | |
| |
| CGF-1400 | LGKK-1400 | 65 | 300 | 24.0 | 4.5 | |
18, Suspension Clamps for Jumper Conductors
| Catalog No. | Fig | Suitable Conductor | (mm)Dimensions | (kg) Weight |
| L | L1 | L2 | L3 | Φ1 | b | b1 |
| XTF4-35150 | 1 | LGJ-150/25 | 350 | 200 | - | - | 18 | 10 | 16 | 6.5 |
| XTF4-50300 | 1 | LGJ-300 | 500 | 240 | 165 | - | 18 | 10 | 16 | 11.0 |
| XTF4-45300 | 1 | LGJ-300 | 450 | 240 | 165 | - | 18 | 10 | 16 | 8.6 |
| XTF4-45400 | 1 | LGJ-400 | 450 | 240 | 165 | - | 18 | 10 | 16 | 8.6 |
| XTF4-4549300 | 1 | LGJ-300 | 450 | 240 | 165 | 490 | 18 | 10 | 16 | 8.7 |
| XTF4-4549400 | 1 | LGJ-400 | 450 | 240 | 165 | 490 | 18 | 10 | 16 | 8.7 |
| XTF4-45500 | 1 | LGJ-500 | 450 | 240 | 165 | - | 18 | 10 | 16 | 8.6 |
| XTJ-630 | 1 | LGJ-630/55 | 500 | 240 | 165 | - | 18 | 10 | 16 | 8.8 |
| XTJ-720 | 2 | LGJ-720/50 | 500 | 240 | 165 | - | 26 | 10 | 18 | 8.8 |
| XT4-45300 | 2 | LGJ-300 | 5E+05 | 240 | - | - | 18 | 10 | 16 | 6.6 |
| XT4-45400 | 2 | LGJ-400 | 450 | 240 | - | - | 18 | 10 | 16 | 6.6 |
| XT4-4549300 | 2 | LGJ-300 | 450 | 240 | - | 490 | 18 | 10 | 16 | 7.5 |
| XT4-4549400 | 2 | LGJ-400 | 450 | 240 | - | 490 | 18 | 10 | 16 | 7.5 |
Qingdao Megatro Mechanical and Electrical Equipment Co., Ltd.Is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, forged products, casting, power fitting, conductor fabrication& export& import company.MEGATRO headquarter are located in Qingdao city, Shandong province, and plants located in Qingdao city of Shandong Province.

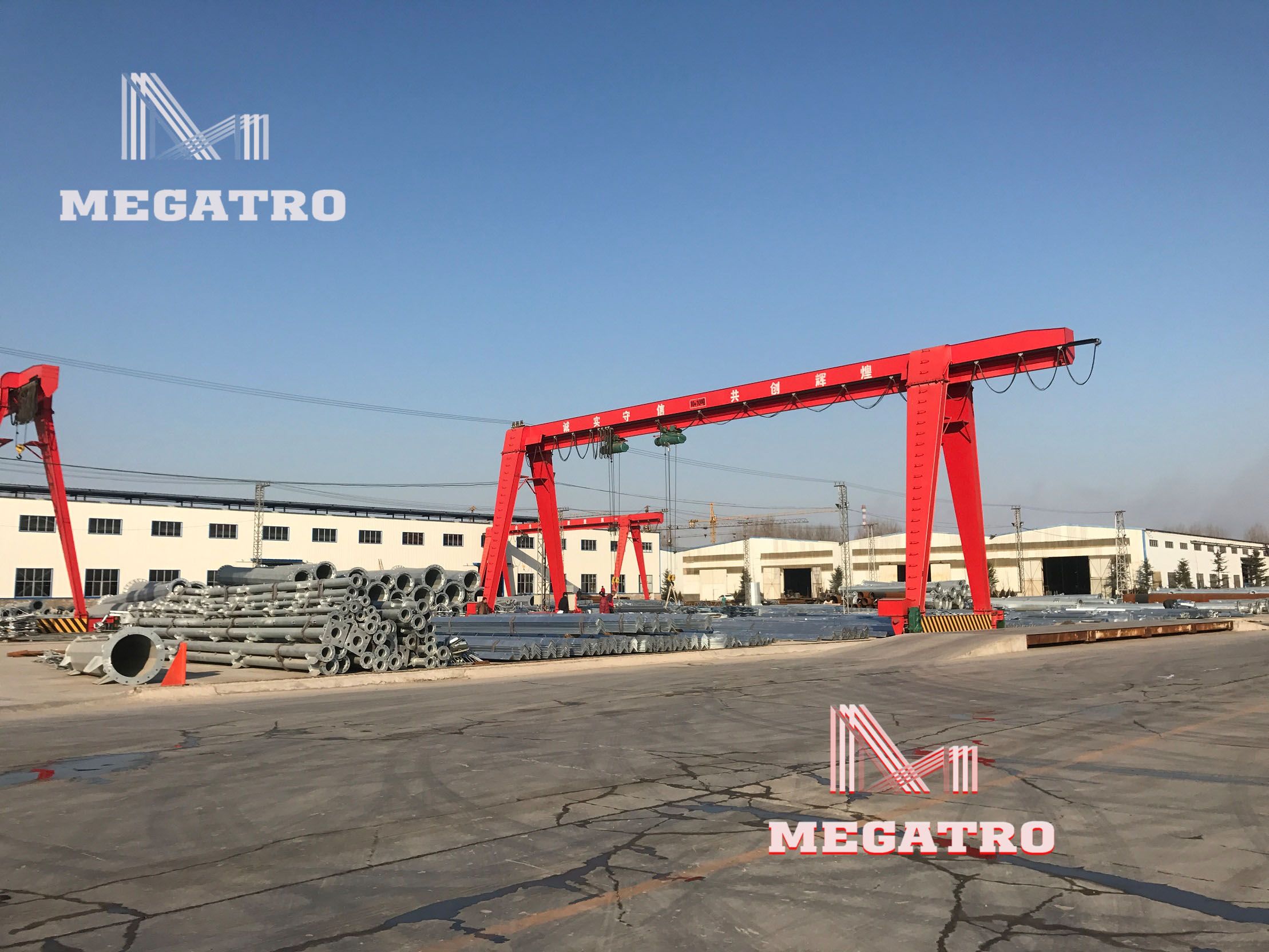

MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff.MEGATRO adheres to the principles of "We provide goods every time, and we offer you good all the time!", "Good Quality Management" and committed to "Heath, Safety and Environment" standard.These values had made our plants certified ISO 9001:2008;ISO 14001:2004 and OHSAS18000:2007 company.
