Aluminium Expanded Metal Mesh for Decoration Ceiling Building
| Price: |
US $ 10-100/Square Meter |
| Min Order: |
500/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Alloy: 1100, 1050, 1060, 3003, 5005 |
| Hole Type: |
Round, Square, Rectangular, Slotted Holes |
| Hole Die Pitch: |
Customize, Such as 5X10, 3X5, 10X15 |
| Process: |
Mould, Piercing, Cutting, Leveling, Clean, . |
| Perforation By: |
Both Coils or Sheet Ok |
| Certification: |
EN, ASTM, RoHS, ISO9001, GB |
| Technique: |
DC |
| Grade: |
1050 1060 1100 3003 5005 5052 |
| Temper: |
O - H112 |
| Alloy: |
Alloy |
| Surface Treatment: |
Mill Finish, Anodized, Powder Coated, PVDF Coating |
| Application: |
Decorations, Transportation Tools, Facade Curtain Wall, Ceiling, Building, Screen |
Product Description
1.Product Information:| perforated Aluminium sheet |
| Aluminium Alloy | A1050,A1060,A1100,A3003,A3105,A5052,A5005, |
| Temper | H14,H16,H24,H26 ETC |
| hope shape | round,square ,oval,slot ,diamond ,triangle,rectangular ,rhombus,hexagonal,scale hexagonal or as per customer drawing |
| Thickness | 0.3-100mm |
| hole diameter | 0.3-10mm |
| Customerize size | standard size : 1x2m,3'x8',4x8'3x10',4'x10'
Size can be produced as per clients requirement |
| hole dia pitch(mm) | customize ,such as 5x10,3x5,10x15 etc |
| Surface treatment | Mill finish ,Anodized ,powder coated ,PVDF coating ETC
Anodizing thickness :5-25 miron ,one side or two sides as per customer requirement
anodizing color : black ,silver ,gold ,copper ,etc |
| process | mold ,stamping ,leveling ,cutting ,bending ,reeling ,welding ,shaping ,cleaning and surface treatment |
| Quality Standard | ASTM B209,EN573-1 |
| MOQ per size | 500 square meters |
| Payment Terms | TT OR LC OR DP at sight |
| Delivery time | Within 25 days after receipt the lc or deposit |
| Material Quality | Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents |
| scratches etc ,A+++ quality, production process passed sgs and bv inspection |
| Application | Cladding and facade decoration curtain wall ,ceiling ,building ,inside and outsdie decoration ,screen and partition etc |
| Packing | Standard export worthy wooden pallets,and standard packing is about 2 tons/pallet |
| Pallet weight also can be as per client's requirement |
2. production standard :
as per international standard ASTM OR EN standard ,all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al |
| Single | Total |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.6 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.15 | ≥99 |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 |
| _ | 0.1 | 0.05 | 0.05 | 0.15 | ≥99 |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | 0.1 | _ | 0.05 | 0.15 | Remainder |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | 0.4 | 0.1 | 0.05 | 0.15 | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | 0.25 | _ | 0.05 | 0.15 | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | _ | 0.05 | 0.15 | Remainder |

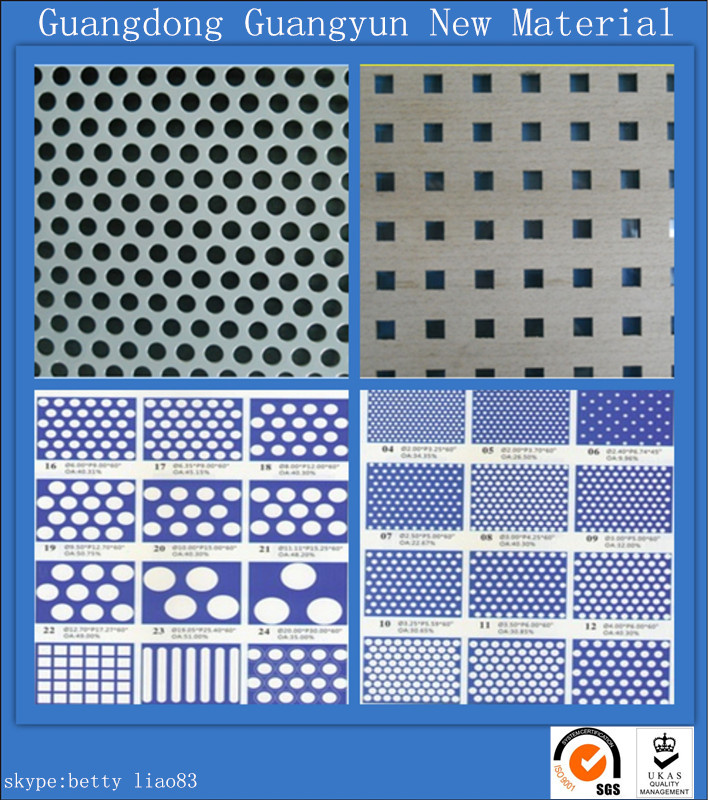

3. Product and packing picture
(it's just part of our perforation pattern ,we can do any perforaton according to customer requirement)

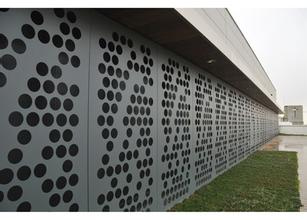

Application :
4.Quality Assurance :

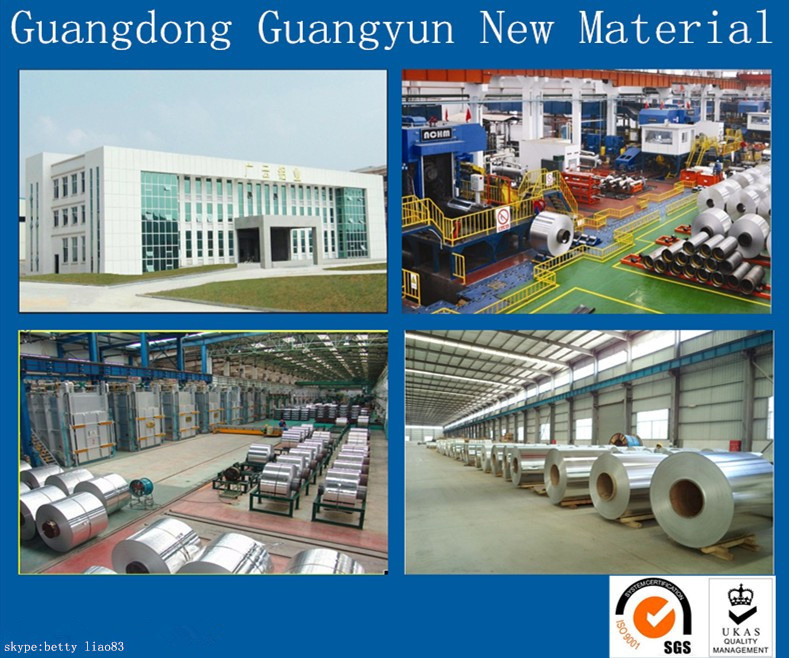

We have strictly quality control system from aluminium ingot to finish aluminium products,to make sure that only qualified product will be deliveried to clients .And our production process is approved by SGS and BV .5.Factory Information:Guangdong Guangyun New Material Co.ltd is the largest aluminium manufacturer in south part of china ,with monthly production volume about 15,000 tons of different aluminium sheets and coils varies from 1xxx series to 8xxx series ,and we can produce any size according to client requirment with width up to 2620 mm .
6.Why Choose for Guangyun New Material :
1. Verified supplier :We are made-in-china gold member and also verified supplier, with quality assurance. Production process is approved by sgs and Bv .
2. Price Competitive : factory cost price
3. Customized size :we can produce any size according to clients requirement .
and We further provide clients with aluminium sheet /coil further process,such as anodizing ,brush ,polish ,stucco emboss ,corrugation ,mirror ,color coating etc
4. Fast delivery : about 25 days after receipt client lc or deposit
5. existing clients reference : our aluminium products are exported to all over the world ,we can give you our existing customer name in your region for you to check our company and our quality .
6. Free samples available for test at first .
7. After sales service : have good reputation for all customer ; If any quality problem with third party inspection report, We will take full responsibility.
7. Contact :( We confirm our best attention for your inquiry and our reply is within 24 hours )Guangdong Guangyun New Material Co.ltd
No.971 Huangpu Dadao Dong,Guangzhou,China
TEL:0086 20 82281888-8074 FAX:0086 20 82286251
Website:www.gdgyal.com
Located in Yunfu High-tech Development Zone, Guangdong Guangyun New Material Co., Ltd is a large private enterprise. It mainly processing and selling galvanized steel and aluminum sheet strip and foil and so on metal materials and occupies quite big market share and high reputation in the same industry, even in the South of China.
It has advanced equipments and production line, including 6 new production lines (FATA) of continuous casting machine, 2 cold rolling lines, tension leveled line, cutting and slitting, aluminum foil slitter and all other imported equipments along with the international competitive modernized aluminum processing lines. Therefore, it can flexibly supply and process galvanized steel and aluminum foil products with different kinds of models and annual capacity reach about 300, 000.00 metric tons. Its products including galvanized steel, aluminum sheet, aluminum sheet for curtain panel, aluminum coil, aluminum foil, aluminum sheets for PCB, aluminum sheets for bottle caps, aluminum circle, aluminum tread plate, aluminum embossed sheet and coil, imported aluminum sheet, aluminum corrugated sheet for roofing, aluminum coating sheet and coil and so on are favored among customers from different countries all over the world...
With well-funded financial background, Guangdong Guangyun New Material Co., Ltd have built friendly relations and cooperation with dozens of large steel plate and aluminum processing enterprises from home and abroad for a long term. Complete models and high quality make its goal-powerful alliances to achieve a win-win situation -comes true.
In the future, we will firmly adhere to our principle of "Establish Company Image by Creating Our Own Brand, Strive To be The Best by Providing High Quality Service", and it is our sincerest wish to hand in hand and create brilliance with you!
