| Prod Model: |
TH 520 H57 |
| Frequency: |
50 & 60Hz |
| Protection: |
IP54 |
| Insulation Grade: |
F |
| OEM: |
Accepted |
| Customized: |
Accepted |
| Material: |
Aluminum |
| Flow Direction: |
Axial Flow |
| Pressure: |
High Pressure |
| Certification: |
TUV |
| Usage: |
Provide Vacuum and Pressure |
Product Description
SCB Ring Blower Specifications
| Model | stage | Frequency | Power | Vortage | Current | MAX | Rated | Rated |
| Air Flow | Suction | Discharge |
| | | Hz | KW | V | A | m3/h | mbar | mbar |
| TH 520 H57 | double | 50 | 4 | 345-415△600-720Y | 10.0△/5.8Y | 230 | -390 | 490 |
| 60 | 4.6 | 380-480△660-720Y | 9.9△/5.71Y | 275 | -410 | 480 |

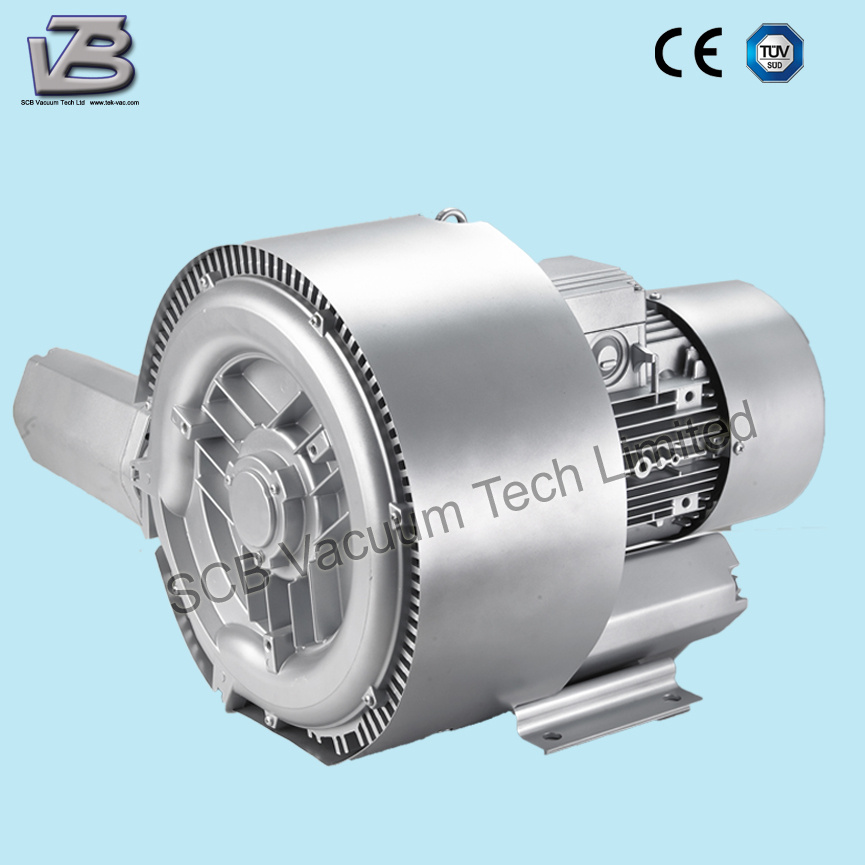

Model: TH 520 H57 Brand: TEK/ SCB
Frequency: 50/60Hz Motor: IE2 / IE3
Power: 4 / 4.6 kw Voltage: 345-415/Y600-720
Air flow: 230m3/h Pressure: 490 / -390mbar
Packages: Packed in cartons Weight: 43 kg
Installation ways: vertical and Horizontal Dimension: 560*460*480mm
SCB Ring Blower Characteristic & Advantages
★ Energy Saving
★ IE2 And IE3 Motor
★ Easy to install
★ Oil free and low noise
★ Competitive Price
★ Durable and Long time warrenty

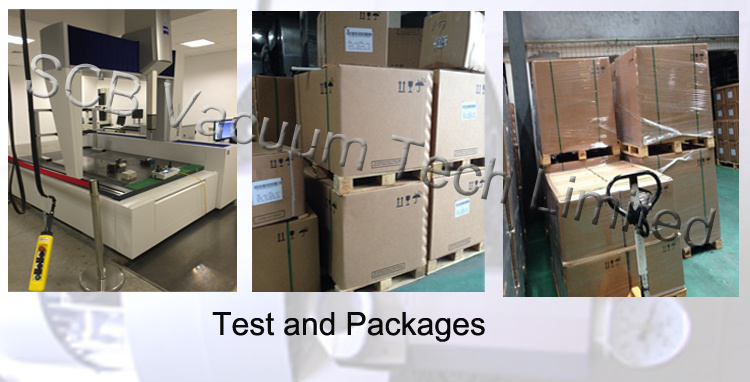

SCB Ring Blower Test and Shippmen

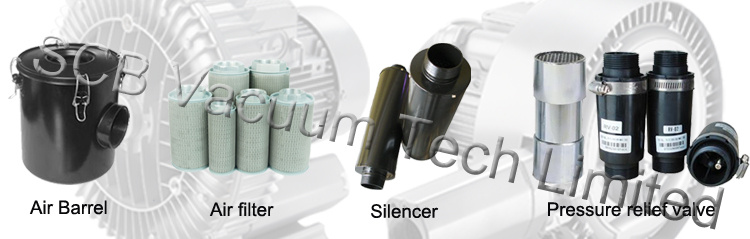

SCB Ring Blower Fittings

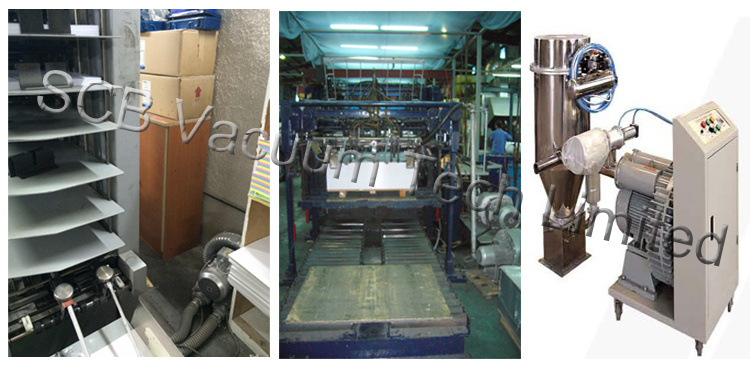

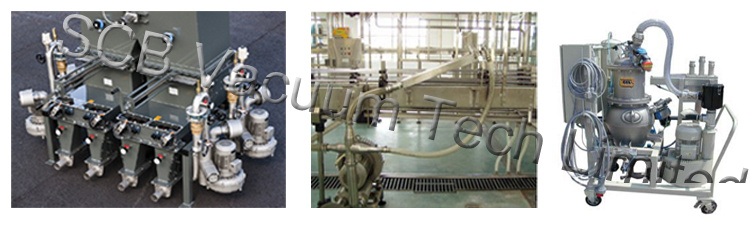

SCB Ring Blower Photos From Customers

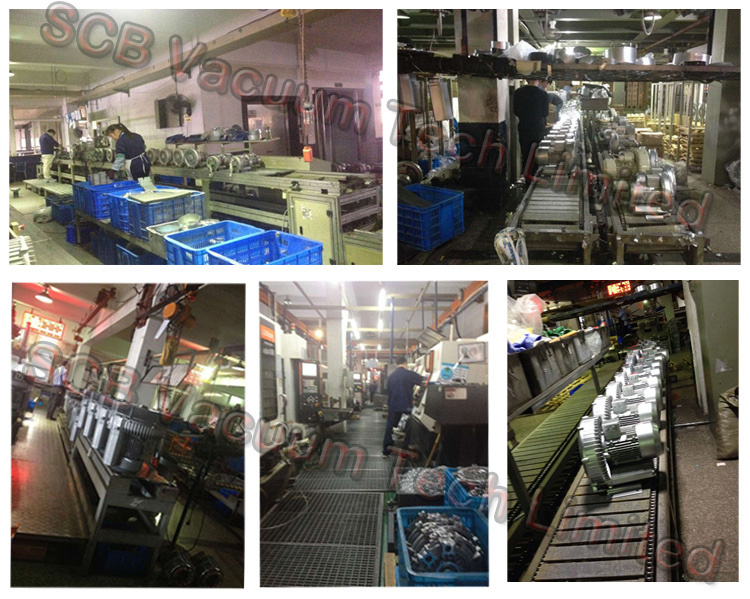

SCB Ring Blower Factory
Welcome contact us to get the latest datas and price!
SCB Ring Blower Introduction
SCB Vacuum are a company which develop blower for some years. Our main products is ring blower, side channel blower, gas blower, regenerative blower, air blower, belt-driven blower and all parts. The full range models will support you much well in the market.
Ring blowers are using Die-casting technique, to make sure provide all blowers with stable the capacity and peformance.
The terms we appreciate is FOB, CFR, CIF and EXW etc.
Welcome contact us for more technical information and competitive price!
| SCB | | Mei |
| SCB Vacuum Tech Limited |
Add: Room2114, Tenglong business center, Nancheng, Dongguan, Guangdon Province |
| Web: www.scbvacuum.com |
SCB vacuum was created in 2005, we are mainly in developing and selling blowers and fittings. During this 10 years developing, we have served more than 300 customers in different kinds of lines around the world. That's also the important way for we get much experience from customer discussing and supporting! It is much helpful for us develop more technical and new blowers.
Now, our products range are: Side channel blower, belt-driven blowers, super blowers, silencers, pressure relief
Valves, air filters etc. Air Blowers & vacuum pumps are widely used inseawage treatment, desalination plant,
Hospital surgical operation, vacuum lifting & transportation & conveying, vacuum cleaner, Air knives etc.
SCB group not only help you saving the vacuum problem, but also help you save more production cost!
Various kinds of products also let you have more choice with much competitive price! With years developing, we
Also have good relationship with all blowers other part, like transportation! Now we can served more customers with
Free sea transporting part!
SCB will be your best choose, Let we growing and benefits together!
