| Prod Model: |
TQL-LCY620-4115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: |
500-3000W |
| Laser Type: |
Imported Fiber Laser |
| Cooling Way: |
Water Cooling |
| Price: |
Best |
| Carving Material: |
Stainless Steel |
Product Description

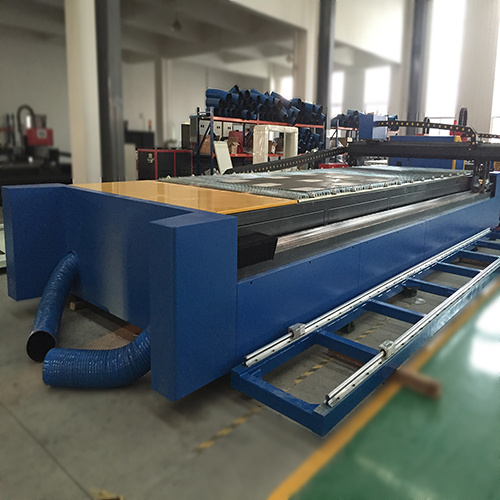

Metal Pipe Laser Cutting Machines
TQL-LCY620-4115
Machine features:
1. Laser power: 620W
2. Max cutting size: 4100mm*1500mm
3. Laser line with: 0.2mm
4. Cutting thickness: 0.1mm-8mm
5. Cutting material: Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe
6. High precision: An precise cutting for various precision part, arts and crafts.
7. Fast speed: 100 times higher than linear cutting
8. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
9. High performance/price ratio: The price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
10. Low use cost: Only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
11. Low follow-up maintenance cost: Only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
12. Steady performance: As a mature laser apparatus, the YAG laser cutting machine is suitable for most metal manufacturing and processing industry
13. Steel plate cutting thickness: 0.1mm-8mm
Application Field:The exchange of cutting methods between metal pipe and metal sheet can be achieved by our metal pipe laser cutting machine.

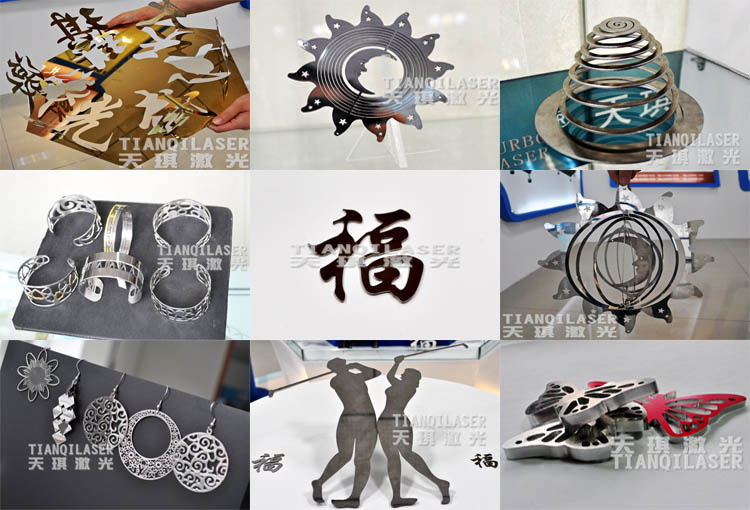

Cutting Sample:
Service :Tianqi Laser set up a marketing management center, 16 offices across our domestic country and 3 branches worldwide, resident technical engineer provide comprehensive pre-sale, after sales support and service. We provide one year warranty and lifetime maintenance. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.
Our Strength
Technical parameters
| Model: | TQL-LCY620-4115 |
| Processing scale(length*width): | 4100mm*1500mm |
| Cutting thickness: | 0.1mm-8mm |
| Max. output power: | 620W |
| Laser wavelength: | 1064nm |
| Pulse frequency: | 1--300HZ |
| Min. line width: | 0.15mm |
| Electrical source: | 380V/50HZ/100A |
| X,Y,Z axis geometric positioning accuracy: | ≤±0.08mm/1000mm |
| X,Y,Z axis re-orientation accuracy: | ≤±0.04mm |
| Machine weight: | 4200kg |
| Cooling mode: | 7P water-cooling |
| Max. cutting speed: | 35mm/s |

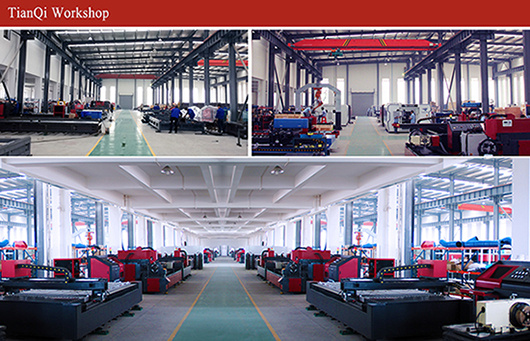

Company Shows
Package and Shipping:Wooden Case
Tianqi Laser is a world-famous metal laser cutting machine manufacturer which is specializing in R&D, manufacturing and selling of YAG and fiber laser cutting machine. Our group has our own import and export rights. We are the R&D Manufacturing Base of Hubei Province, Laser Optical Institute Listed Corporation of Hubei Province, Key High-Tech Enterprise of Hubei Province, Standing Committee Member of China Optical Society and R&D Base for China USTC Optoelectronics Postgraduates. We have strategic cooperation with Tianjin University, Hefei Optical Institute and other famous universities.
Products
Tianqi Laser main product YAG laser cutting machine, fiber laser cutting machine, laser welding machine, laser marking machine, robot machine. More than 30 kinds of industrial laser products and so on. It has been widely used to manufacture sheet metal processing, metal processing, advertising, kitchen utensils, automobile, lamps and lanterns, saws blade, electrical switch gear, metal handicrafts, textile machinery, food machinery, glasses manufacture, aerospace, medical equipment, meters and so on...Especially in sheet metal processing industry has replaced the traditional processing method, deeply industry users favor.
Tianqi Group' S newest development of six series fiber metal laser cutting machine is in the leading position in China, it has excellent beam quality, high conversion efficiency, fast cutting speed and low cost, strong mobility, suitable for various flexible cutting processing.
Design Features
Tianqi Laser, through continuous self-development, has developed the laboratory device into a 24-hour stable operation laser processing equipment. We have our own patent technology of ND: : YAG laser.
Quality
In order to guarantee the performance and quality of our products, Tianqi Laser strictly controls all processes, including processing, assembly and delivery.
Service
Tianqi Laser has established 28 domestic offices and 6 office abroad, resident marketing team and technical service personnel, to provide comprehensive pre-sale, sale and after-sale support and service.
In 2008, Tianqi Group became the Long-term OEM Supplier for the US McQuay Company, JP Daikin Corporation, Wuhan Iron and Steel Company and many other multinational companies. Each year, there are products worth $40 million are exported to 78 countries worldwide...
Now for the company continuously developing, we are looking for an agent with the high quality products, perfect mechanism, competitive price and good platform. We will provide the agent for perfect training and support, including technical service and target market analysis.
