| Prod Model: |
HZF-035 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

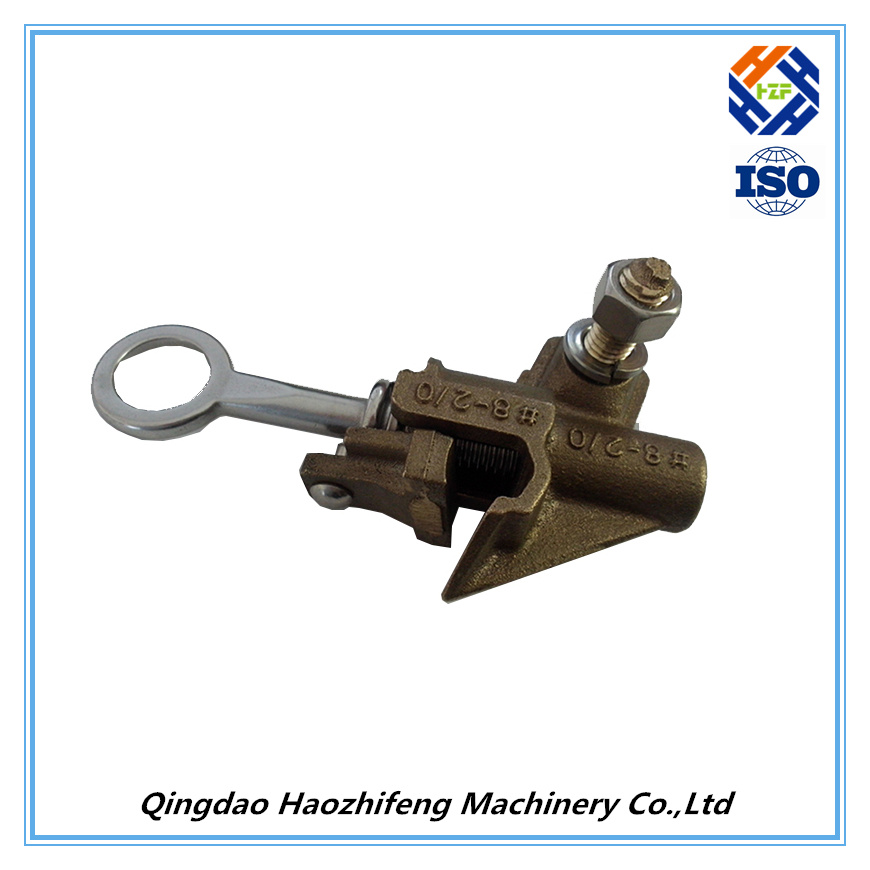

Aluminum Hot Line Clamp |
| Size: |
as Drawing |
| Delivery Date: |
15-30 Days |
| Port: |
Qingdao |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Type: |
Cable Clamp |
Product Description
Hot line Clamps 1.Products Details:Products details and specification :
We have varies sizes for option .

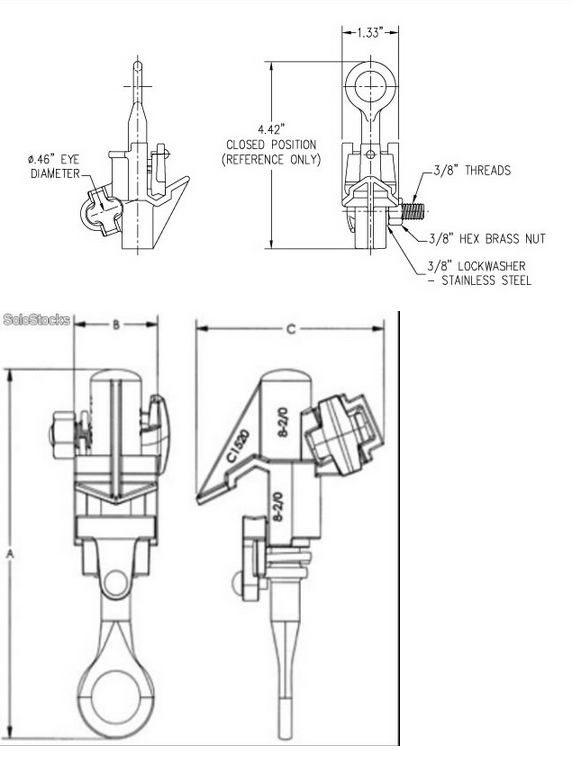

Item Number | Connection Type Run | Connection Type Tap | Run Dia. | Run | Tap Dia. | Tap | A | B | C | Tap Nut | Standard Pack |
|
| C1520 | CU | CU | 0.128"-0.414" | #8 sol-2/0 str | 0.128"-0.414" | #8 sol-2/0 str | 4.50 | 1.25 | 2.75 | 9 | 25 |
| C1520P | CU | CU | 0.128"-0.414" | #8 sol-2/0 str | 0.128"-0.414" | #8 sol-2/0 str | 4.50 | 1.25 | 2.75 | 9 | 25 |
| C1520A | AL | AL | 0.128"-0.414" | #8 sol-2/0 str | 0.128"-0.414" | #8 sol-2/0 str | 4.50 | 4.50 | 2.75 | 9 | 25 |
| C1520AP | AL | AL | 0.128"-0.414" | #8 sol-2/0 str | 0.128"-0.414" | #8 sol-2/0 str | 4.50 | 4.50 | 2.75 | 9 | 25 |
| C1530 | CU | CU | 0.162"-0.745" | #6 sol-400MCM | 0.152"-0.682" | #6 sol-4/0 str | 6.50 | 1.75 | 2.50 | 3 | 25 |
|
| C1530P | CU | CU | 0.162"-0.745" | #6 sol-400MCM | 0.152"-0.682" | #6 sol-4/0 str | 6.50 | 1.75 | 2.50 | 3 | 25 |
|
| C1530A | AL | AL | 0.162"-0.745" | #6 ACSR-336.4MCM | 0.152"-0.682" | #6 sol-4/0 str | 6.50 | 1.75 | 2.50 | 3 | 25 |
|
| C1530AP | AL | AL | 0.162"-0.745" | #6 ACSR-336.4MCM | 0.152"-0.682" | #6 sol-4/0 str | 6.50 | 1.75 | 2.50 | 3 | 25 |
|
| C1540 | CU | CU | 0.502"-1.031" | 4/0 ACSR-800MCM | 0.198"-0.703" | #4 sol-350MCM | 6.50 | 2.00 | 3.00 | 3 | 25 |
|
| C1540P | CU | CU | 0.502"-1.031" | 4/0 ACSR-800MCM | 0.198"-0.703" | #4 sol-350MCM | 6.50 | 2.00 | 3.00 | 3 | 25 |
|
| C1540A | AL | AL | 0.502"-1.031" | 4/0 ACSR-800MCM | 0.198"-0.703" | #4 sol-350MCM | 6.50 | 2.00 | 3.00 | 3 | 25 |
|
| C1540AP | AL | AL | 0.502"-1.031" | 4/0 ACSR-800MCM | 0.198"-0.703" | #4 sol-350MCM | 6.50 | 2.00 | 3.00 | 3 | 25 |
|

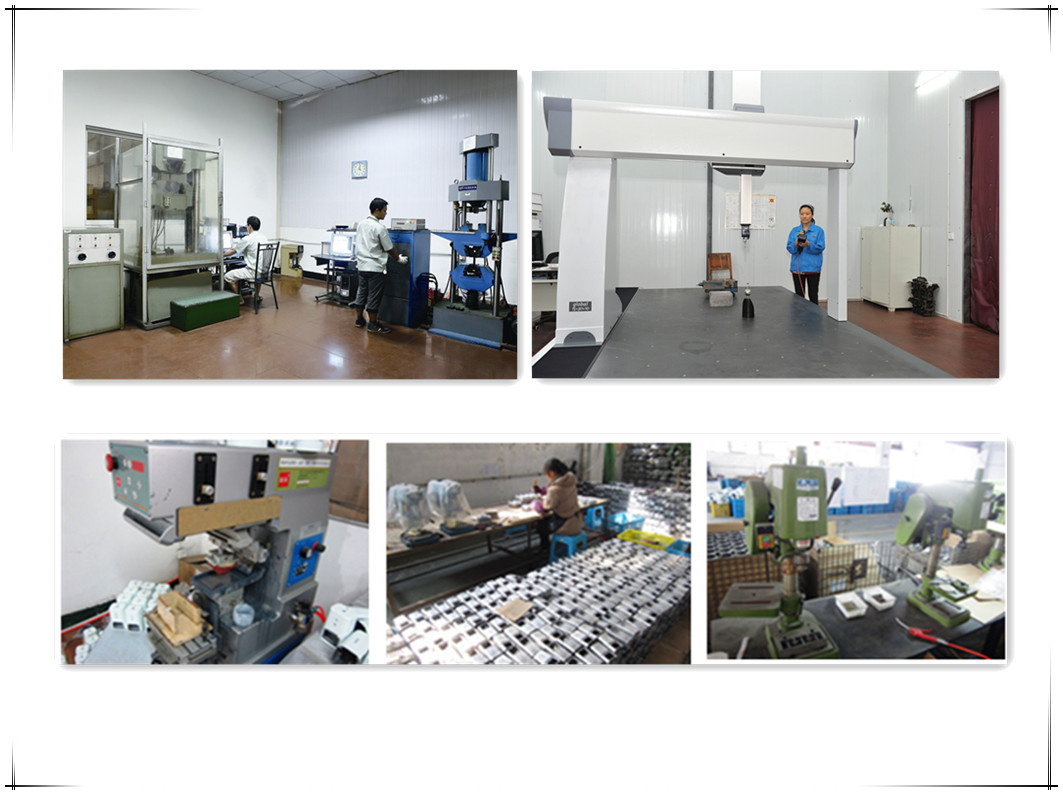

2. Inspection:
3.Shipment
FAQ1. How can I get the quotation?Please send us information for quote : drawing, material, weight, quantity and request. 2. How long will be taken for sample production ?Sample: 20-30 days for making mold and sample production . The accurate time depends on your product.3. Can you accept Mini order ?Yes . Mini order and trial order can be acceptable .4. What is your Payment Term ?Mold cost : 100% TT advanced.Main order: 40% deposit, balance 60% to be paid against the copy of B/L . Contact us Today :
Qingdao Haozhifeng Machinery Co., Ltd is a professionally managed hardware company with more than10 years experience in exporting business. It has five Branches which specializes in Casting parts, Auto parts, Forging parts, Stamping parts, and Machining parts. The company owns two factories besides of 100 close cooperated subcontractors. We have the capability to ship up to 80 20FT containers per month to Europe and the United States.
ISO9001, achieved in 2008, ensures that orders are carefully and expertly handled by our team of graduate engineers who understand the importance of timetable, the quality of the goods and the quality of the packing.
Our administration department is very efficient so from the time you order until the time you receive the goods we monitor the order progress and give our customers regular feedback.
You can order the complete range and get one stop service from us, as we have an advanced warehouse storage system.
Choosing Qingdao Haozhifeng as your supplier will be a good choice for you just as it is for our many exisiting international customers
