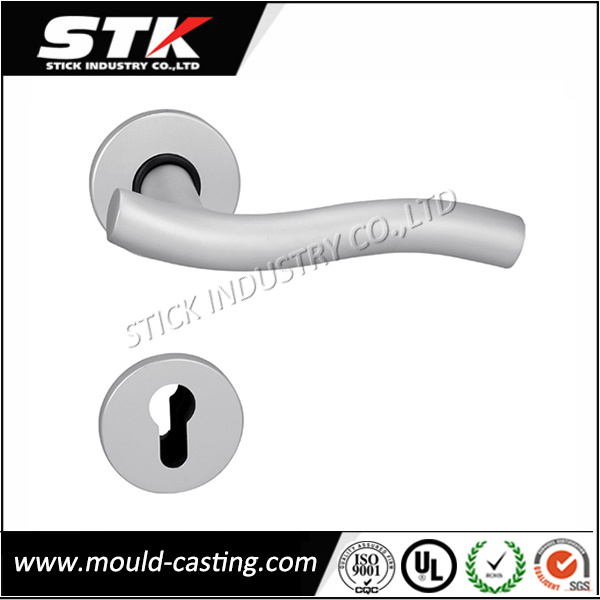

Aluminum Lever Handle on Rose for Door

Aluminum Lever Handle on Rose for Door
Price: US $ 2-2.5/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: A1006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material: ADC10,ADC12, A380, 383, B390 (Yl117), Yl112, Yl104
Process: Precision Die Casting
Service: Casting, Machining, Fabrication, Stamping etc
Usages: Auto Parts, Medical Appliance, Electronies
Machine Size: 25-800 Tons
Surface Finish: Deburring,Polishing, Plating, Painting, etc
Tolerance: 0.05mm
Certificate: ISO9001
Inspection: Strict Injection
Weight Available: 0.02 Kg to 10 Kgs

Product Description

Aluminum Die Casting Alloys:

*  Lightweight

*  High dimensional stability for complex shapes & thin walls

*  Good Corrosion Resistance & Mechanical Properties

*  High Thermal & Electrical Conductivity

*  High Strength at High Temperatures

At STK, all Aluminum die casting tooling is designed and built in-house to meet both the customer's and STK's own exacting standards. Production processes for each project are carefully planned, documented and monitored utilizing various statistical process control techniques.

Production Capabilities:

  • Automated equipment can handle high volume casting jobs of up to 100,000 pieces per week
  • Manual machines for low volume jobs of as little as 500 pieces per year
  • Can cast from 0.02 to 10kgs
  • Single to Multiple Cavities
  • Most Aluminum die casting alloys are offered such as ADC10, ADC12, A380, 383, B390 (YL117), YL112, YL104
  • 10 die casting & gravity casting lines. Each with an individual aluminum furnace which allows us to cast multiple alloys
  • 7 sets of Cold Chamber Die Casting Machines. Range from 125 Tons to 800 Tons. And 3 sets of Gravity Machines.

EQUIPMENT LIST

CAPACITY

QTY

COLD CHAMBER DIE CASTING MACHINE

125 TONS

2 SETS

COLD CHAMBER DIE CASTING MACHINE

250 TONS

2 SETS

COLD CHAMBER DIE CASTING MACHINE

350 TONS

1 SET

COLD CHAMBER DIE CASTING MACHINE

650 TONS

1 SET

COLD CHAMBER DIE CASTING MACHINE

800 TONS

1 SET

GRAVITY MACHINE

750mm*630mm

3 SETS

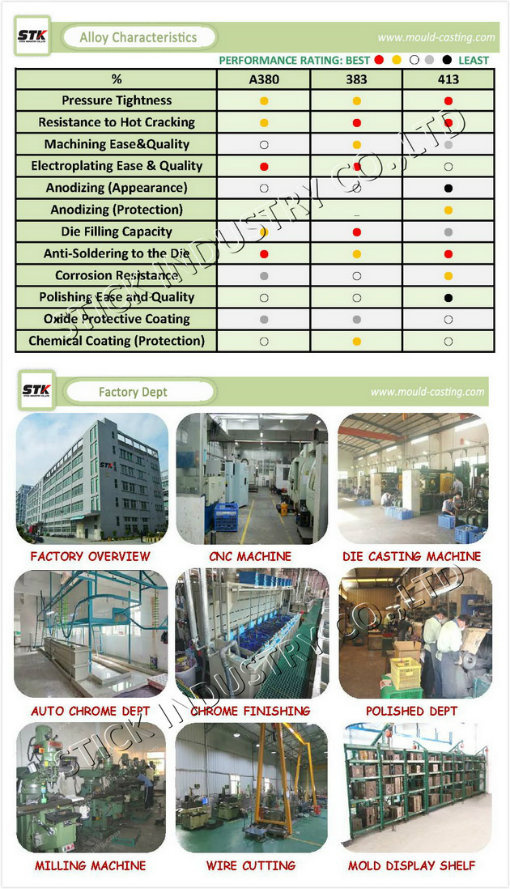

%A380383413
Beryllium___
Copper3.0-4.02.0-3.01.0(max)
Iron (max)1.31.32
Magnesium0.1(max)0.1(max)0.1
Manganese0.5(max)0.5(max)0.35
Phosphorus___
Silicon7.5-9.59.5-11.511.0-13.0
Zinc (max)3.03.00.5
Nickel(max)0.50.30.5
Tin0.35(max)0.15(max)0.15
Titanium___
Others0.5(total)0.5(total)0.25(total)
Aluminumremainderremainderremainder


Production Process:

Tooling Leadtime: 3-6 weeks
Tooling Lifetime:50000 shots to 500000 shots
Weight per unit:Can cast from 0.02 to 5kgs per piece
Tolerance:+/-0.05mm (secondary machining is available for tight tolerance)
Materials Applied:ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104
Zinc Casting Process:1)Aluminum Die Casting
2) Machining: CNC turning, milling, drilling, grinding, cutting, reaming and threading
3) Surface Treating
4) Quality Checking and packaging
Surface Finish:Shot blasting
Parting line removal
Bright/Matt Chrome Plating
Nickle Plating
Brushed Nickle
Golden Plating
Zinc Plating
Powder coating
Painting
PVD
Our Advantage:1. In house tooling design and fabrication
2. Owned die casting, polishing and plating workshops
3. Advanced equipment and excellent R& D Team
4. A broad variety of ODM& OEM product range
5. Strict quality Control System

Molds Created On-Site

  • Stick Industry is a full-service mold manufacturing facility
  • Stick Industry offers in-house tooling design and production.
  • Stick Industry creates a custom mold on-site, then transfers the mold to die-casting area.
  • Stick Industry is capable to obtain the relevant data to produce molds and product samples according to the latest3-D solid model and a simple sketch or a sample part.
  • Stick Industry uses the most modern multi-axis CNC machine tools for optimum precision and accuracy in tooling.

Our Advantage:

l  In house tooling design and fabrication

l  Owned die casting, polishing and plating workshops

l  Advanced equipment and excellent R& D Team

l  A broad variety of ODM& OEM product range

l  Strict quality Control System

State-of-the-Art Cast Finishing
The STK facility offers a complete in-house, independent machining facility with the latest CNC mills and lathes to provide fully machined castings. Our sanding and surface finishing capabilities include:

u  Short Blasting

u  Parting Line Removal

u  Chrome Plating

u  Powder Coating

u  Painting

u  Anodizing

u  Passivation

u  E-Coating

u  T-Coating

Ms Ivy Lo
XIAMEN STICK INDUSTRY CO., LTD
Unit 05C,5th Floor,Hai Fu Business Center,
A 597 Shi Shui Road,Xiamen,China. Post Code:361008
Pho: (86)592-5209671, Fax: (86)592-5209672
Web: www.stickindustry.com www.mold-custom.com



We believe that the best way to ensure our success is by providing our customers consistent quality in a timely fashion and at a fair price.

Stick Industry was established in 2004, with factory located in Haicang district, Xiamen city, South East of China. The company has been in business for over 10 years, beginning as a small plastic mold and die casting mold workshop growing into an industrial leading, multi-plant molder with factory size over 10000 square meters and employees about 150.

Conveniently located in the south of China, our ISO 9001-2000 Certified facility economically services markets throughout the world including USA, Russia, Canada, Mexico, Brazil, Germany, Spain, Italy, Poland etc

In addition to outstanding growth in our die cast and injection molding department, our secondary machining operations have continued to grow to meet the varied needs of our customers, including: Drilling, tapping, turning, boring, milling, sanding, shot blasting, vibratory finish, and more.

From concept to final production, from mechanical and electronic design to components sourcing, and from prototype manufacturing to mold design, our engineer team can jump in at any stage to complete your valuable project on time.

Our service include: Moulds, plastic injection molding, Aluminum/Zinc Die casting, CNC Machining, Sheet Metal Forming, Surface Treatments, Assembly and packaging.

We will pay great attention to your any question or enquiry.

If any questions, please feel free to contact us at any time.

Tel: 86-592- 5209671

Fax: 86-592- 5209672

Ms. Anna Lin

Website: Www. Stickindustry. COM / www. Mould-casting. COM
