Product Description
Code principle
Material | Aluminium Oxide | Silicon carbide | Diamond electroplating | Resin-based diamond | Metal -based diamond |
---|
Signs | A | S | DP | DR | DM |
---|
Example: A602515
A: Alumina Oxide
60: For Hardness HRC 60 metal
25: The outer diameter
15: The thickness

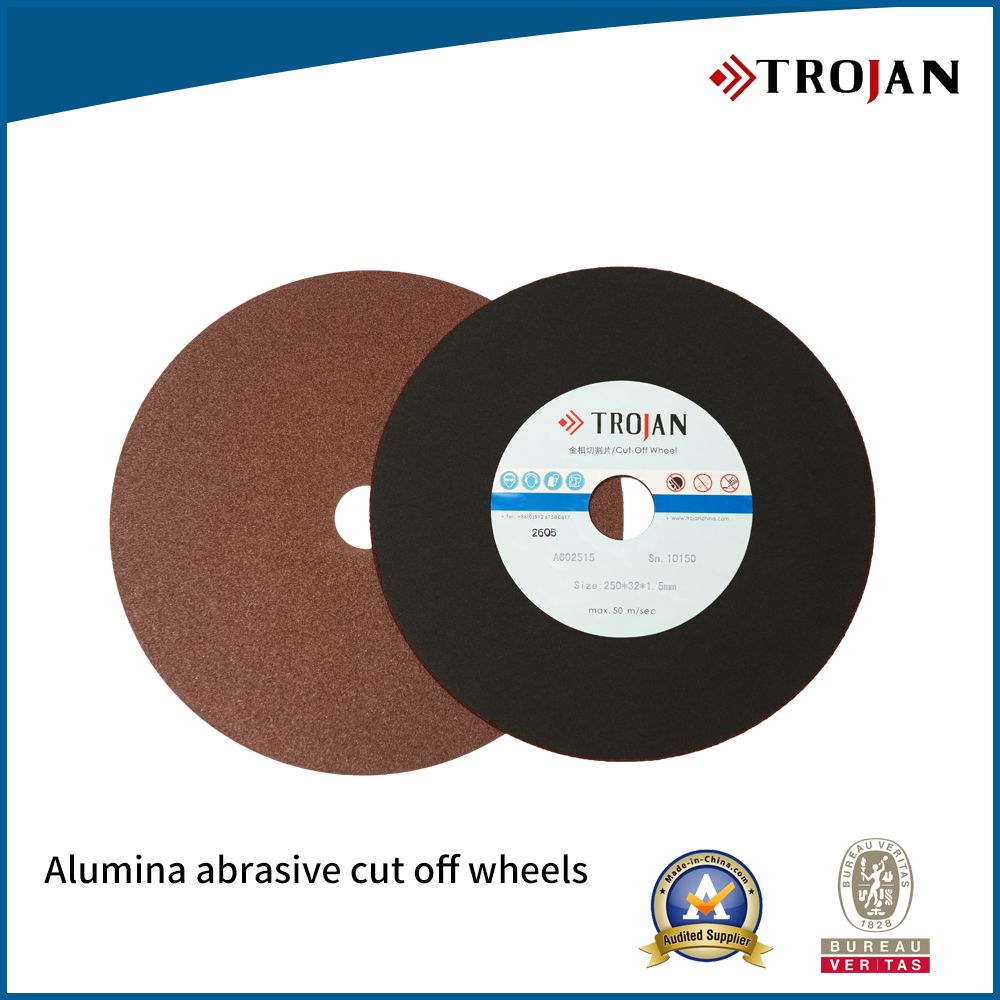

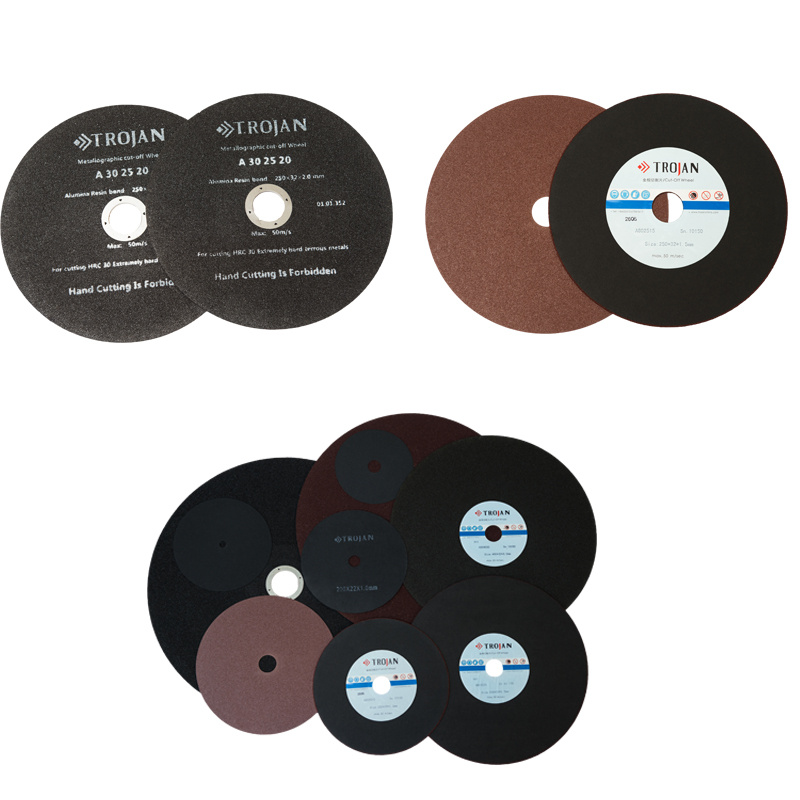

HRC 60 extremely hard alumina abrasive cut off wheels
For cutting hard ferrous metals HRC50-60, aluminium oxide material, resin bond.
No. | Code | Spec (mm) | Package |
---|
10112 | A601505H | 150*12.7*0.5 | 50pcs/box |
10115 | A601810 | 180*12.7*1.0 | 10pcs/box |
10120 | A602010 | 200*32*1.0 | 10pcs/box |
10130 | A602312 | 230*32*1.2 | 10pcs/box |
10150 | A602515 | 250*32*1.5 | 10pcs/box |
10160 | A603020 | 300*32*2.0 | 10pcs/box |
10170 | A603525 | 350*32*2.5 | 10pcs/box |
10180 | A604030 | 400*32*3.0 | 10pcs/box |
10190 | A605040 | 508*50.8*4.0 | 10pcs/box |
HRC 50 medium hard alumina oxide abrasivecut off wheels
For cutting medium hard ferrous metals HRC 40-50, aluminium oxide material, resin bond.
No. | Code | Spec (mm) | Package |
---|
10212 | A501505H | 150*12.7*0.5 | 50pcs/box |
10215 | A501810 | 180*12.7*1.0 | 10pcs/box |
10220 | A502010 | 200*32*1.0 | 10pcs/box |
10230 | A502312 | 230*32*1.2 | 10pcs/box |
10250 | A502515 | 250*32*1.5 | 10pcs/box |
10260 | A503020 | 300*32*2.0 | 10pcs/box |
10270 | A503525 | 350*32*2.5 | 10pcs/box |
10280 | A504030 | 400*32*3.0 | 10pcs/box |
10290 | A505040 | 500*50*4.0 | 10pcs/box |
HRC30 soft alumina abrasivecut off wheels
For cutting soft ferrous metals HRC > 20-40, aluminium oxide material, resin bond.
No. | Code | Spec (mm) | Package |
---|
10312 | A301505H | 150*12.7*0.5 | 50pcs/box |
10315 | A301810 | 180*12.7*1.0 | 10pcs/box |
10320 | A302010 | 200*32*1.0 | 10pcs/box |
10330 | A302312 | 230*32*1.2 | 10pcs/box |
10350 | A302515 | 250*32*1.5 | 10pcs/box |
10360 | A303020 | 300*32*2.0 | 10pcs/box |
10370 | A303525 | 350*32*2.5 | 10pcs/box |
10380 | A304030 | 400*32*3.0 | 10pcs/box |
10390 | A305040 | 500*50*4.0 | 10pcs/box |
HRC 20 silicon carbide abrasivecut off wheels
For cutting the very soft non-ferrous metals HV < 200, silicon carbide material, Resin bond.
No. | Code | Spec (mm) | Package |
---|
10412 | S201505H | 150*12.7*0.5 | 50pcs/box |
10415 | S201810 | 180*12.7*1.0 | 10pcs/box |
10420 | S202010 | 200*32*1.0 | 10pcs/box |
10430 | S202312 | 230*32*1.2 | 10pcs/box |
10450 | S202515 | 250*32*1.5 | 10pcs/box |
10460 | S203020 | 300*32*2.0 | 10pcs/box |
10470 | S203525 | 350*32*2.5 | 10pcs/box |
10480 | S204030 | 400*32*3.0 | 10pcs/box |
10490 | S205040 | 500*50*4.0 | 10pcs/box |
Payment & ShipingRFQ1, Min. Order Quantity
1 piece is OK.
2. How about your technical team construction?
We have professional technicians team with 10 years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer, owns our factory in Suzhou.
7, Can you accept OEM or ODM?
Of course,Logo is also acceptable
8, What is the delivery time?
No special requirements, can be delivered within 3 days. For customized models, delivery time shall be discussed and confirmed according to order
