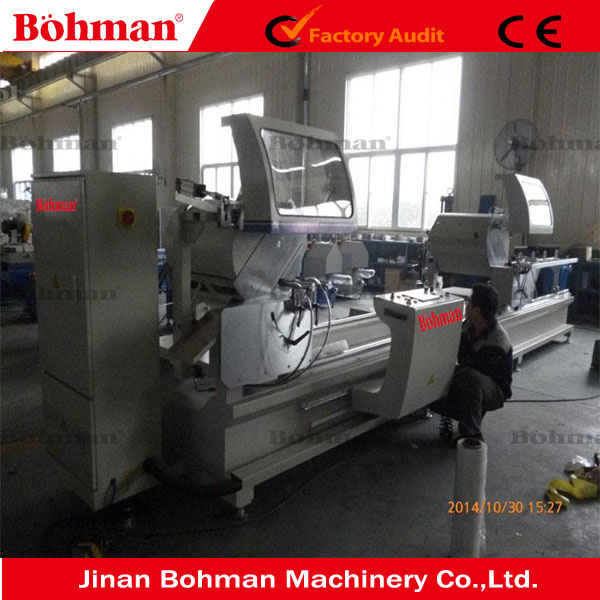

Aluminum Profile CNC Multi-Function Double-Head Cutting Saw
| Price: |
US $ 20000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
LJDGN2BS-500*5000 |
| Input Power: |
5.9kw |
| Power Supply: |
380V/50Hz |
| Air Pressure: |
0.6-0.8MPa |
| Saw Blade Specification: |
500*30mm*4.4 |
| Cutting Angle: |
45-90-135 |
| Cutting Length: |
580-5000mm |
| Cutting Width*Height: |
160*155mm |
| Weught: |
1800kg |
Product Description
Features:

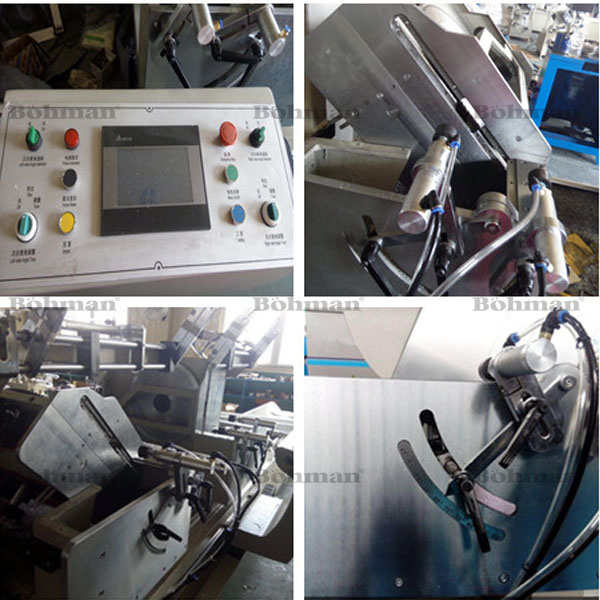

♦The two saw head independent sawing angle,adopt cylinder driving, set up three common angle that is - 45° 90 ° +45 °.
♦Set up Manually positioning position at arbitrary anglefunction within - 45° to 90 °, the
knob to the positioning position, make the pendulum angle position change .
♦When saw head sawing to 45° ,the front protection hood automatically to two saw head of intermediate mobile, which increase the reliablitity of afrty produttion.
♦Large cutting range,cutting 160~220mm when 90 °,cutting 160~155mm when 45°.(Profile width les than 160mm, the corresponding heihgt increase).
♦The right saw head follow-up material carrying frame length is 1800mm.
