| Prod Model: |
KTR Rotex 19, 24, 28, 38, 42, 48, 55, 65, 75, 90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
| 92 Sh A: |
Yello Elastomer |
| 95/98 Sh A: |
Red Elastomer |
| 64 Sh D-F: |
Green Elastomer |
Product Description

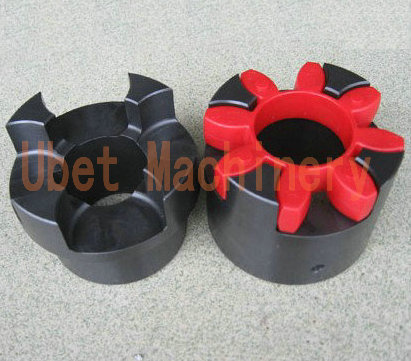

Ubet Jaw couplings are designed as three piece comination, including two hubs and one elastomer made of polyurethane. The cuved jaw fits onto the spider, which minimizes shock to the motor and other sensitive equipment.
Widely used in various mechanical and hydraulic fields
High precision in transmission and high rotating speed.
Suitable for wide range of environment, with the higest temperature 280 degree
Good elasticity, hight strength, corrosion resistant, wearable
No need to lubricate,quiet operation
Quick and easy mounting and disassembly

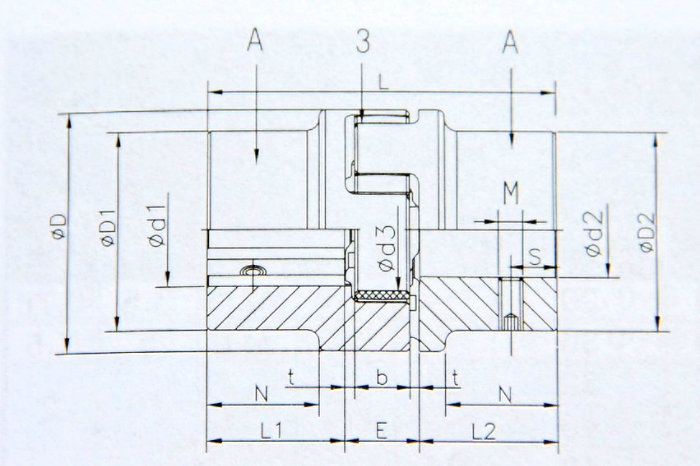

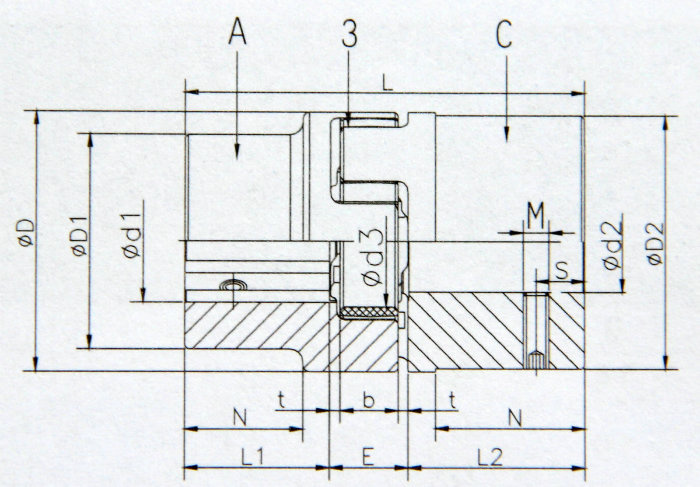

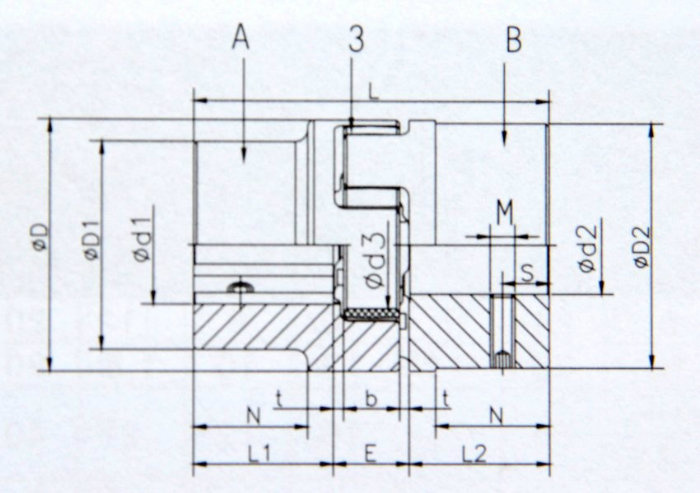

| Item No. | Finished bore range | Outside Diameter | Nominal Torque Nm |
| UTJC-14 | 0-16 | 30 | 15 |
| UTJC-19 | 0-25 | 40 | 20 |
| UTJC-24 | 0-35 | 55 | 70 |
| UTJC-28 | 0-40 | 65 | 190 |
| UTJC-38 | 0-48 | 80 | 380 |
| UTJC-42 | 0-55 | 95 | 530 |
| UTJC-48 | 0-62 | 105 | 620 |
| UTJC-55 | 0-74 | 120 | 820 |
| UTJC-65 | 0-80 | 135 | 1250 |
| UTJC-75 | 0-95 | 160 | 2560 |
| UTJC-90 | 0-110 | 200 | 4800 |
Ubet Jaw coupling grooving type is backlash free, using screws after slotting to eliminate the clearance. This grooving type coupling is suitable for power transmission on main shaft, elevating platform and machine tool.
Material: Alluminum for size below 42
Steel for size over 42
Finish: Natural or Anodizing
Size Range: 19 to 75
Finished bore: according to ISO fit H7
Keyway width: according to DIN 6885/1The Tolerance of keyway is Js9Ubet Machinery is also competetive on these power transmission components.
Ubet Machinery is a global supplier for Mechanical Power Transmission Parts. It is aimed to provide best quality products at best price. With many years of experience in this industry, it can offer customers practical value.

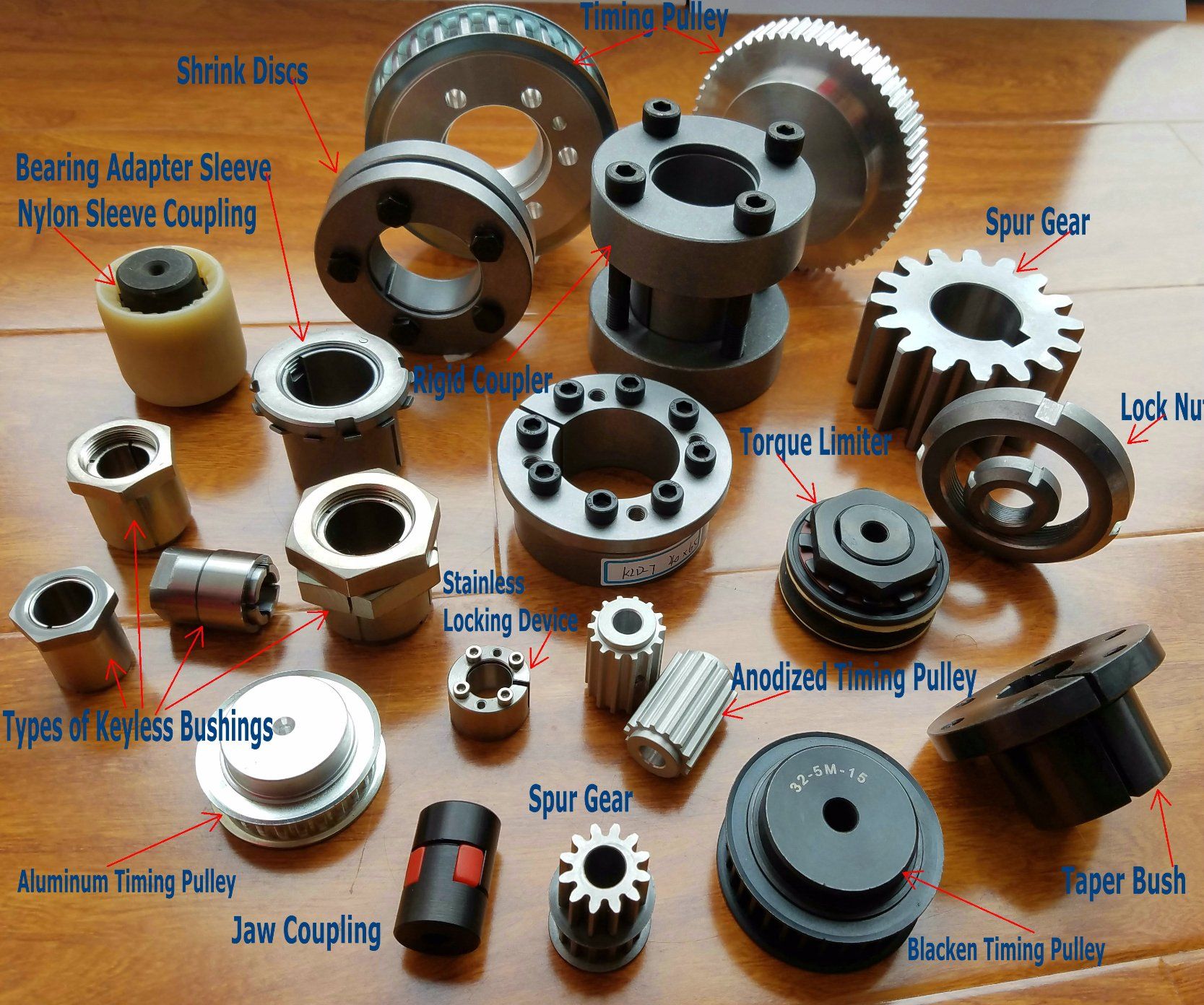

It focuses mainly on Keyless Locking Devices, Timing Belt Pulleys, Nylon Sleeve Couplings/ Curved-tooth Gear Couplings, Jaw Couplings, Gears and other parts. It boasts a team with rich experience in this industry, focusing on global market. Customers are mostly from Europ, North America, South America, Southeast Asia and other regions.
