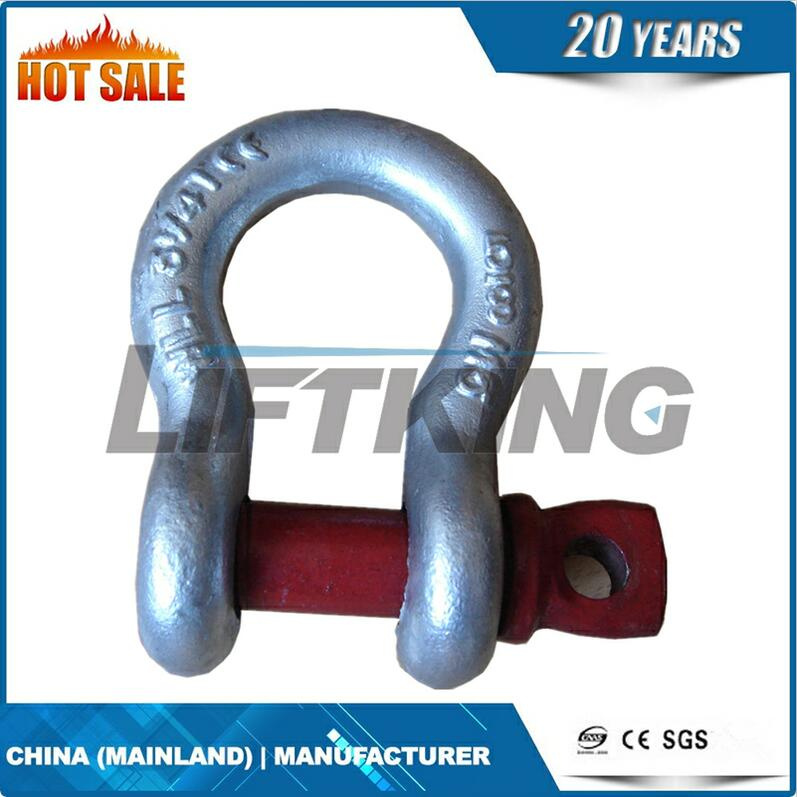

American Type G-209 Bow Type Screw Pin Anchor Shackle
| Price: |
US $ 2.4-2.5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
G-209 |
| Model: |
American Type |
| Pin Color: |
OEM |
| Max Size: |
2-1/2 |
| Min Size: |
3/16 |
Product Description
American Type G-209 Bow Type Screw Pin Anchor ShackleProduction Standards: American standard, Japanese standard, German standard, European
Surface: Galvanized (hot dip and electroplating), painting, self colored, zinc plated
Process: Drop forged
Packing: Gunny bag, wooden case, plastic drum.

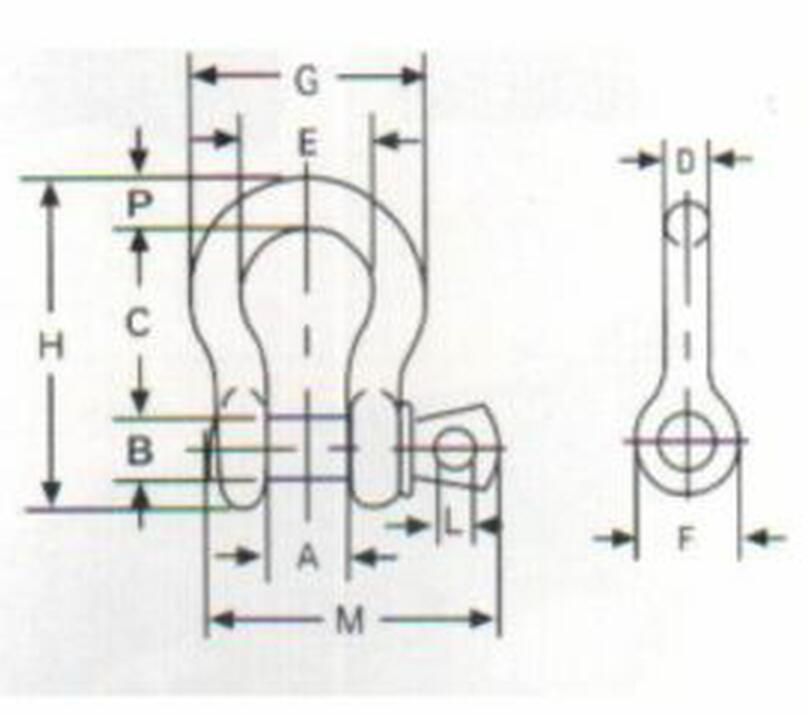

| NOMINAL SIZE (IN) | WORKING LOAD LIMIT(T) | WEIGHT EACH (KG) | DIMENSIONS(MM) |
| A | B | C | D | E | F | G | H | L | M | P |
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 24.90 | 37.30 | 4.06 | 28.40 | 4.85 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 4.85 | 35.10 | 6.35 |
| 5/16 | 3/4 | 0.09 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 5.60 | 42.20 | 7.85 |
| 3/8 | 1 | 0.14 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 6.35 | 51.50 | 9.65 |
| 7/16 | 1-1/2 | 0.17 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 7.85 | 60.50 | 11.20 |
| 1/2 | 2 | 0.33 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 9.65 | 68.50 | 12.70 |
| 5/8 | 3-1/4 | 0.62 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 106.00 | 11.20 | 85.00 | 17.50 |
| 3/4 | 4-3/4 | 1.07 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 12.70 | 101.00 | 20.60 |
| 7/8 | 6-1/2 | 1.64 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 12.70 | 114.00 | 24.60 |
| 1 | 8-1/2 | 2.28 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 14.20 | 129.00 | 26.90 |
| 1-1/8 | 9-1/2 | 3.36 | 46.00 | 31.80 | 108.00 | 29.50 | 74.00 | 68.50 | 131.00 | 190.00 | 16.00 | 142.00 | 31.80 |
| 1-1/4 | 12 | 4.31 | 51.50 | 35.10 | 119.00 | 32.80 | 82.50 | 76.00 | 146.00 | 210.00 | 17.50 | 156.00 | 35.10 |
| 1-3/8 | 13-1/2 | 6.14 | 57.00 | 38.10 | 133.00 | 36.10 | 92.00 | 84.00 | 162.00 | 233.00 | 19.10 | 174.00 | 38.10 |
| 1-1/2 | 17 | 7.8 | 60.50 | 41.40 | 146.00 | 39.10 | 98.50 | 92.00 | 175.00 | 254.00 | 20.60 | 187.00 | 41.10 |
| 1-3/4 | 25 | 12.6 | 73.00 | 51.00 | 178.00 | 46.70 | 127.00 | 106.00 | 225.00 | 313.00 | 25.40 | 231.00 | 57.00 |
| 2 | 35 | 20.4 | 82.50 | 57.00 | 197.00 | 53.00 | 146.00 | 122.00 | 253.00 | 348.00 | 31.00 | 263.00 | 61.00 |
| 2-1/2 | 55 | 38.9 | 105.00 | 70.00 | 267.00 | 69.00 | 184.00 | 145.00 | 327.00 | 453.00 | 35.10 | 330.00 | 79.50 |
