| Prod Model: |
ppr pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technique Standard: |
DIN8077-8078 |
| Certificate: |
CE ISO Certificate |
| Raw Materials: |
Yuhwa RP2400 |
| Material: |
PPR |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Color: |
Color |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
Product Description

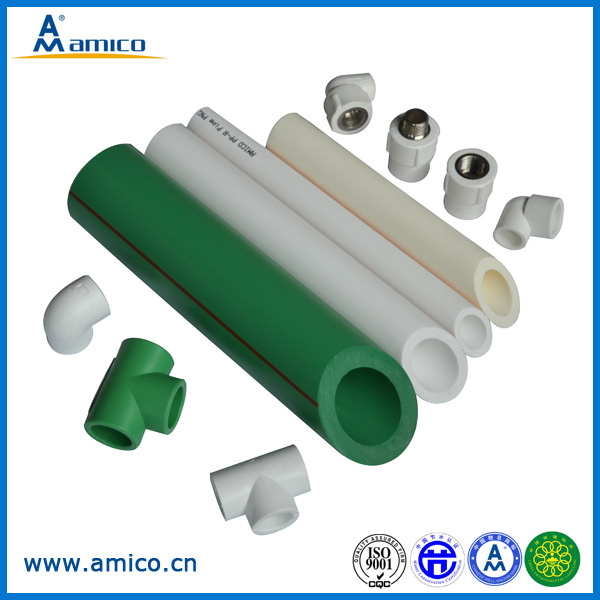

AMICO PPR
Features:
Material: KOREA RP2400 Polypropylene
Sizes: 20 to160mm
Pressure Rating: 1.0MPa, 1.25MPa, 1.6MPa ,2.0MPa
Colors: light grey, white or other colors on request
Connection: socket fusion joint, electro fusion joint or transition joint
Certification: CE ISO9001, ISO14001,
Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation
Advantages:
High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Corrosion Resistant: resist chemical matters or electron chemical corrosion
Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
Long Life: more than 50 years under normal conditions
Recycled and Environment-friendly
PP-R Water Supply Pipe
PN 1.0MPa
PN 1.25MPa
PN 1.6MPa
PN 2.0MPa
Outer
Diameter
dn(mm)
Wall
Thickness
en (mm)
Wall
Thickness
en(mm)
Wall
Thickness
en(mm)
Wall
Thickness
en(mm)
20
2
2.3
2.8
3.4
25
2.3
2.8
3.5
4.2
32
2.9
3.6
4.4
5.4
40
3.7
4.5
5.5
6.7
50
4.6
5.6
6.9
8.3
63
5.8
7.1
8.6
10.5
75
6.8
8.4
10.1
12.5
90
8.2
10.1
12.3
15
110
10
12.3
15.1
18.3
160
14.6
17.9
21.9
26.6
WHO IS AMICO GROUP?
1.We are factory,more than 60 years history in Ningbo,China
2.Two Amico industry towns,more than 20 factories.
3.We are the biggest valves production and export base in China
4.Products including valves,faucets,water meter,kitchen sink,sanitaryware products and plastic pipe and fittings around water etc.
OEM ODM WELCOME
TRIAL ORDER WELCOME
More information, pls freely contact Emily
Amico Group Co., Ltd is a professional manufacturer in China, which established in 6th, June. 1954. There are more than 900 employees in our company now, more than 450 of whom are professional technicians of different types, and more than 200 employees which have college Education Degree. Our company have eight production bases, the largest one is Amico industrial town covering 210, 000 square meters, which located in Luotuo street, Zhenhai District. Our main products which including " AM" Brand PPR pipe, HDPE pipe, PEX pipe. PERT pipe, PPR-AL-PPR pipe, PEX-AL-PEX pipe, brass fitting, brass valves, hot-water heating equipments, water meters, pipes and fittings, stainless steel products, sanitary wares, shower room etc, more than 3200 varieties on the whole products, annual production exceeding 25 million pieces (suits). We are also as vice president of China Hardware Products Association and directorate institution of National Valve and Hot-water Heating Toilet Wares Industrial Association for a long time.
We acquired ISO9001: 2000 quality control system, ISO14001 environment control system certificates since 1994. With rapid development of science and technology in recent years, we have adopted internationally advanced technologies for product design, high precision special machine tools for processing and a complete set of product management system. Innovative techniques, vast, highly skilled and experienced work team make Amico's products keep improving and become popular and favorite of customers. Amico products are selected by many famous buildings and some national important construction projects. Amico's products spread all over China and sell well in the world.
Main representing engineering: The National Stadium (bird's nest), The National Aquatic Center (Water Cube), The National Grand Theater, The Foreign Affairs Mansion, National Grand Hall, Shanghai F1 Autodrome etc.
