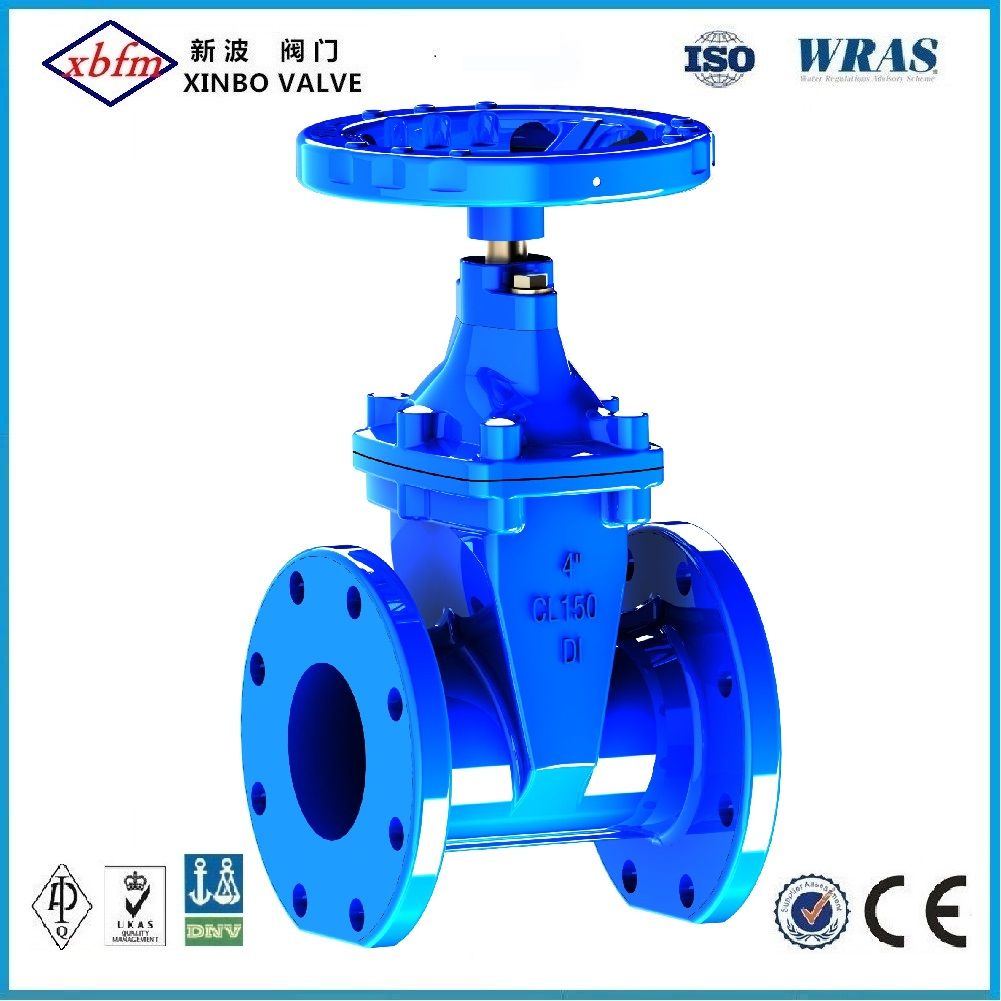

ANSI-125/150 Cast Iron Gate Valve (Non Rising Stem)
| Price: |
US $ 24-25/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CGV05 |
| Size: |
Dn40-Dn600 |
| Certificate: |
API.ISO.Ce.Ts, |
| HS Code: |
8481804090 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description
ANSI-125/150 Cast Iron Gate Valve(Non Rising Stem) ,cast iron gate valve,JIS-10k/16k cast iron gate valve, JIS-10k/16k cast iron gate valve rising stem
About us:
Our factory is specialized in valves' production. As one of the biggest and most professional manufacturer and exporter majored in valves, we assure that we can provide our products with cheapest price, good quality and best service. If you like, welcome to our factory and have a look!
Details as below:
Item: ANSI-125/150 Cast iron gate valve(rising stem)
Standard: ANSI
Body: Cast iron or Ductile iron
Seatring: Cast iron/Cast bronze/stainless steel
Disc: Cast iron or Ductile iron
Stem: Stainless steel
Bonnet: Cast iron or Ductile iron
Packing: Not asbestos
Glad: Ductile iron
Handwheel: Cast iron or Ductile iron
Size: DN40~DN400
Nominal pressure: 125PSI, 150PSI
Aplication:
1. Face to face is according to ANSI B16.10
2. Flange drilled is according to ANSI B16.1
OEM is welcomed!
Any questions or more details, please feel free to contact me!
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | | 500 |
| | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | | 20" |
| L | 140 | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 | | 350 |
| H | 255 | 247 | 276 | 293 | 334 | 448 | 448 | 549 | 617 | 724 | 830 | 890 | | 1000 |
| D(PN10) | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 | 505 | 565 | | 570 |
| D(PN16) | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | | 715 |

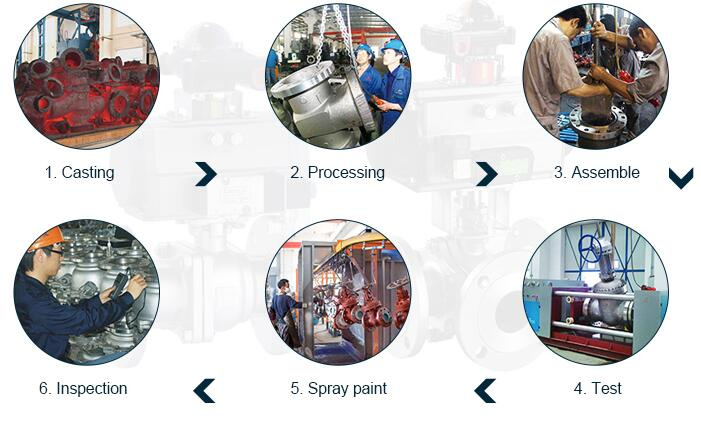

Machining Process

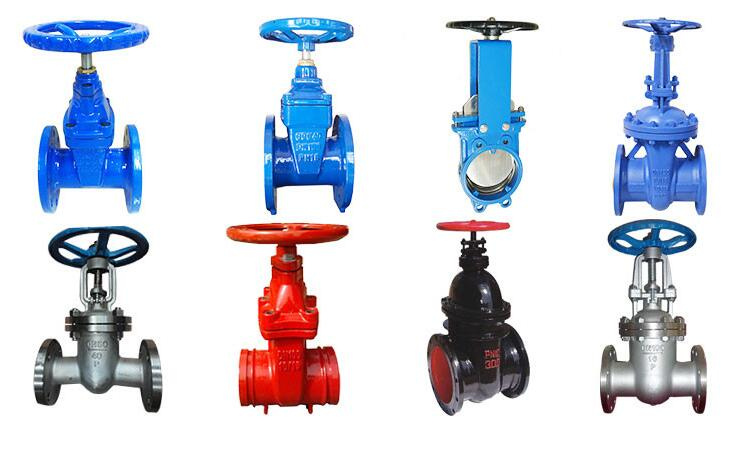

Other products
Why Choose USWe control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.Contact to this supplier
http: www.junyuan-group.com www.xbvalve.net

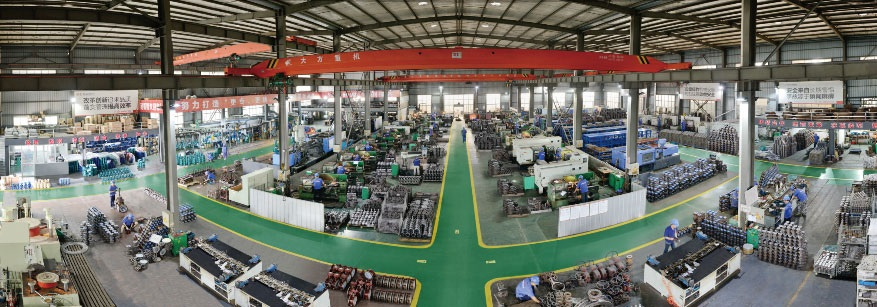

Wenling Xinbo valve Co., Ltd. is a production, sales and service as one of the factories specializing in the production of valves. Foundry companies in the production of 2600 tons a cupola, the strict implementation of the processing plant standards ISO9001 quality system to organize production and management. The company also actively introduce advanced technology, continuous innovation. Products have been widely used in water conservancy construction users, petrochemical, metallurgy, electric power, military and engineering supporting industries such as pipelines. Products are exported to Southeast Asia, the United States, the Middle East and other places. Reasonable as a result of product design, advanced technology, reliable performance and stable quality, well received by the user's reliance on and praise.
The Company has always been the spirit of "quality-oriented, technology-first" business purpose, and constantly develop new products, expanding services, dedicated to provide customers with quality products and good pre-sales and after-sales service, warmly welcome new and old customers and our company to establish long-term stable cooperative relations, and join hands in creating brilliant tomorrow!
