ANSI 4" 300lb Wcb Peek Sealed Ball Valve (Q41PEEK-300LB-4")
| Price: |
US $ 388/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Q41PEEK-300lb-DN100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trim: |
316 Stainless Steel |
| Bore: |
Full Bore |
| Ball: |
Floating Ball |
| Usage: |
Wog |
| Certification: |
API 6D, Ce, ISO9001:2008,Ks.Kc |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Wcb A216 |
Product Description

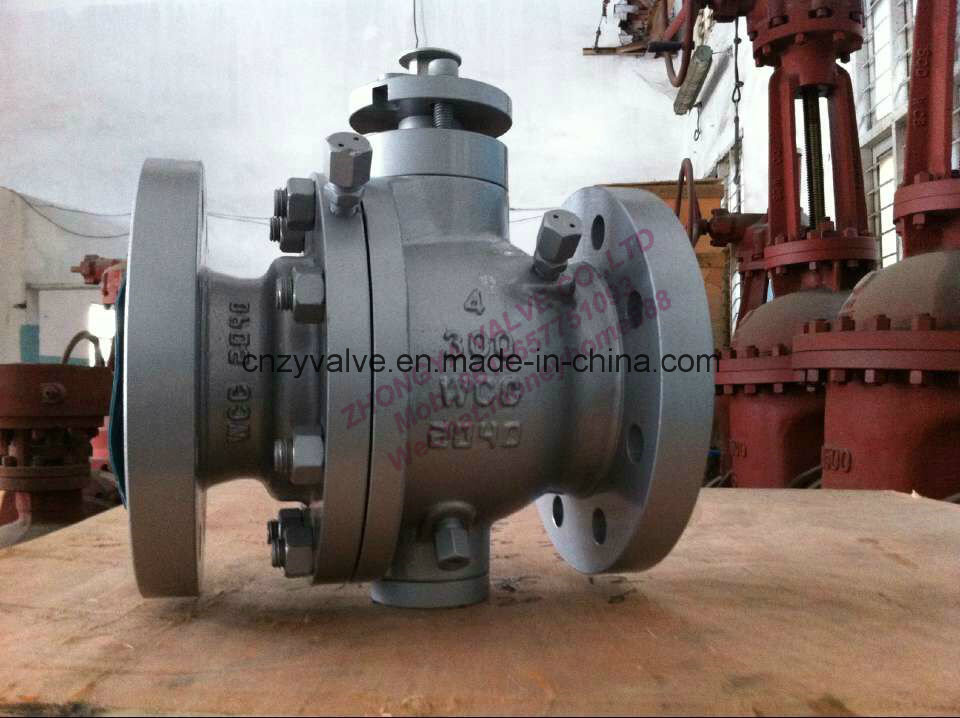

ANSI 4" 300LB WCB Peek Sealed Ball Valve(Q41PEEK-300LB-4")
1). Sizes: 1/2" - 20"
2). Rating: 10K~20K, 150LB~300LB
3). Material: Stainless Steel, Carbon Steel
4). End Connection: Flange, Screw, Weld, Wafer
5). Operation: Handle Lever, Gear, Pneumatic, hydraulic and Electric actuator.
6). Applicable medium: Water, Oil, Gas, etc
| basic information | |
| size range | DN15~200mm (1/2"~8") |
| working pressure | 10K, 20K |
| suitable temperature | -10~150°C |
| Suitable medium | water, gas, oil |
| | CF8(304): suitable for nitric acid |
| | CF8M(316): suitable for acetic acid |
| Technical Standard | |
| Design Standard | ASME B16.34, API 608 |
| Fireproof test | API 607 4th 1993 |
| Face to face standard | JIS B2002 |
| End flange Std | JIS B2212~B213 |
| Test Standard | JIS B2003, API 6D |
| Material | WCB, CF8(304), CF8M(316) |
| Operated way | Manual, Gearcase, Pneumatic, Electric |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in No. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
