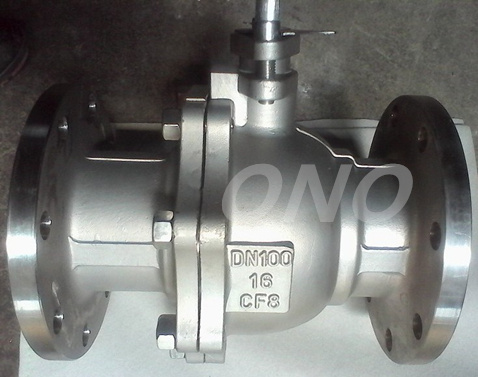

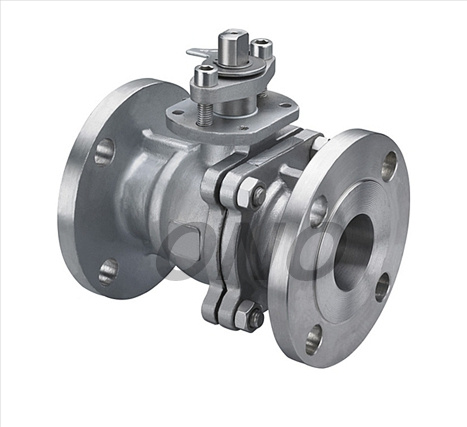

ANSI Carbon Steel Lever Open Float Ball Valve with Flange

Name: ANSI Carbon Steel Lever Open Float Ball Valve with Flange
Brand: tool-buy.com
SKU: 710693302
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Ono Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	Q41F
Material:	Stainless Steel
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Application:	Household Usage

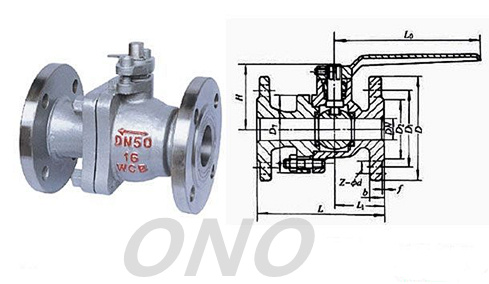

Product Description

Main material	WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect.
Pressure rating	Class 150 to Class 2500 (PN2.5 to PN 420)
Standards applied	API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc.
Operative temperature	-196 °C to 980 °C ( -320.8 °F to 1796 °F)
Optional operation	Manual, Gear, Electric, Pneumatic, Hydraulic.

TRUNNION BALL VALVE Class 150Lb

DN		2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24	28	32	36	40
d1		51	64	76	102	127	152	203	254	305	337	387	438	489	591	686	781	876	978
L	RF	178	191	203	229	356	394	457	533	610	686	762	864	914	1067	1245	1372	1524	1753
L	BW	216	241	283	305	381	457	521	559	635	762	838	914	991	1143	1346	1524	1727	1880
H		102	114	127	152	184	219	273	360	395	430	470	550	580	700	800	950	1100	1200
	H1	107	125	152	178	300	330	398	495	580	625	670	698	840	1050	1100	1150	1247	1374
	E	-	-	-	-	-	-	116	116	171	171	257	257	257	150	83	83	123	123
	F	-	-	-	-	-	-	350	350	420	420	400	400	400	410	650	650	735	735
	W	230	400	400	650	1050	150	600	600	800	800	800	800	800	800	800	800	800	00
	Wt(Kg)	12	16	22	35	58	74	205	322	460	576	864	1280	1600	3540	4500	5940	7540	9320
	H2	-	-	-	-	-	554	600	652	760	770	830	-	940	1020	1115	-	-	-
	L1	-	-	-	-	-	235	235	235	259	400	400	-	410	410	410	-	-	-
	H3	274	379	389	479	552	666	736	926	159	1127	1393	1468	1538	1370	1450	-	-	-
	L2	270	405	405	576	576	776	776	776	1060	1060	1360	1360	1360	2840	2840	-	-	-

TRUNNION BALL VALVE Class 300Lb

DN		2	21/2	3	4	5	6	8	10	12	14	16	18	20	24	28	32	36	40
d1		51	64	76	102	127	152	203	254	305	337	387	438	489	591	686	781	876	978
L	RF	216	241	283	305	381	403	502	568	648	762	838	914	991	1143	1346	1524	1727	1880
L	BW	216	241	283	305	381	457	521	559	635	762	838	914	991	1143	1346	1524	1727	1880
H		102	114	127	152	184	219	273	360	395	430	470	550	580	700	800	950	1100	1200
	H1	107	125	152	178	300	330	398	495	580	625	670	698	840	1050	1100	1150	1247	1374
	E	-	-	-	-	-	-	116	116	171	171	257	257	257	150	83	83	123	123
	F	-	-	-	-	-	-	350	350	420	420	400	400	400	410	650	650	735	735
	W	230	400	400	650	1050	1050	600	600	800	800	800	800	800	800	800	800	800	800
	Wt(Kg)	15	24	30	55	87	118	255	370	533	640	1030	1524	2100	4200	5300	7860	8684	10300
	H2	-	-	-	-	-	235	235	400	400	410	410	-	420	690	690	-	-	-
	L1	-	-	-	-	-	74	350	350	420	420	400	-	400	410	650	-	-	-
	H3	340	379	452	479	646	666	814	1002	1059	1150	1205	1250	1295	1390	1470	-	-	-
	L2	405	405	574	574	756	756	1060	1060	1060	1360	1360	2840	2840	3300	3300	-	-	-

TRUNNION BALL VALVE Class 400Lb

DN		2	2 1/2	3	4	6	8	10	12	14	16	20	24	28
d1		51	64	76	102	152	203	254	305	337	387	489	591	686
L	RF	292	330	356	406	495	597	673	762	826	902	1054	1232	1397
L	BW	295	333	359	410	498	600	676	765	829	905	1060	1241	1410
H		114	124	133	159	250	294	395	445	500	530	660	800	900
650735	H1	108	155	197	235	300	374	445	512	550	615	810	1010	1180
	E	116	116	116	116	116	171	171	257	257	257	150	83	123
	F	350	350	350	350	350	420	420	400	400	400	410	650	735
	W	600	600	600	600	600	800	800	800	800	800	800	800	800
	Wt(Kg)	23	35	49	91	192	355	640	880	1100	1540	2800	530	5700
	H2	-	-	-	-	554	574	931	771	867	805	979	1085	1147
	L1	-	-	-	-	235	235	400	400	410	410	420	690	690
	H3	340	-	-	576	666	895	1002	1059	1160	1250	1320	1470	1520
	L2	405	-	-	479	756	1060	1060	1360	1360	2840	2840	3300	3300

TRUNNION BALL VALVE Class 600Lb

DN		2	2 1/2	3	4	6	8	10	12	14	16	20	24	28
d1		51	64	76	102	152	203	254	305	337	387	489	591	686
L	RF	292	330	356	432	559	660	787	838	889	991	1194	1397	1549
L	BW	295	333	359	435	562	664	791	841	892	994	1200	1407	1562
H		114	124	133	159	250	294	395	445	500	530	660	800	900
	H1	108	155	197	235	300	374	445	512	550	615	810	1010	1180
	E	116	116	116	116	116	171	171	257	257	257	150	83	123
	F	350	350	350	350	350	420	420	400	400	400	410	650	735
	W	600	600	600	600	600	800	800	800	800	800	800	800	800
	Wt(Kg)	35	38	55	102	232	390	710	960	1700	1970	3250	5800	6700
	H2	-	-	-	-	569	658	694	765	825	917	998	1098	1185
	L1	-	-	-	-	235	259	400	410	410	420	690	690	690
	H3	340	-	-	479	666	895	1002	1059	1160	1250	1320	1470	1520
	L2	405	-	-	576	756	1060	1060	1360	1360	2840	2840	3300	3300

TRUNNION BALL VALVE Class 900Lb

DN		2	2 1/2	3	4	6	8	10	12	14	16	18	20	24
d1		51	64	76	102	152	203	254	305	327	375	426	473	572
L	RF	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
L	BW	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
H		217	241	259	297	360	322	420	470	510	600	700	720	810
	H1	126	158	191	216	270	394	502	572	675	762	866	894	965
	E	116	116	116	116	171	171	257	257	150	150	180	180	220
	F	350	350	350	350	420	420	400	400	410	410	650	650	735
	W	600	600	600	600	800	800	800	800	800	800	800	800	800
	Wt(Kg)	50	60	80	125	270
