Prod Model: |
GADZ41H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design: |
ANSI B16.34,JIS B2083 |
Size: |
1/2"-24" |
Pressure Rating: |
150-800lb |
Body Mateirial: |
Lcb,Lf2 |
Material: |
Carbon Steel |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Industrial Usage |
Product Description

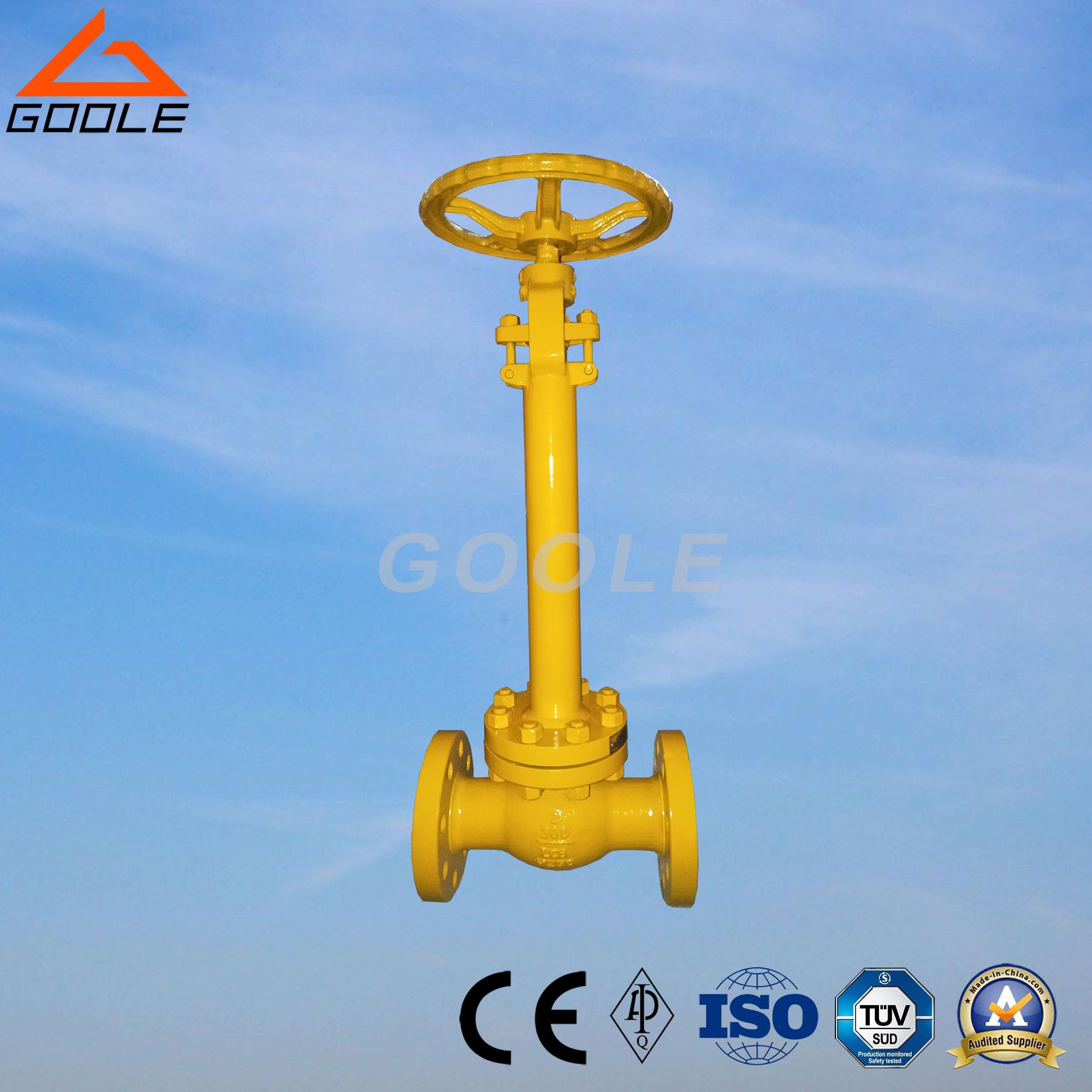

Class 150~600 Cryogenic Gate Valve Bolted bonnet, extended stem, Threaded or welded seat ring
Full bore, OS&Y, rising stem, flexible wedge, pressure relief hole on seat, Stainless trim
ASTM A352 LCB, LC1, LC2, LC3, LC4, A351 CF8, A351 CF8M
Standards compliance Design and Manufacture: API 600, API 6D, BS1414
Face to face (end to end): ANSI B16.10, API 6D
Flanged connection: 2~24 inches to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D

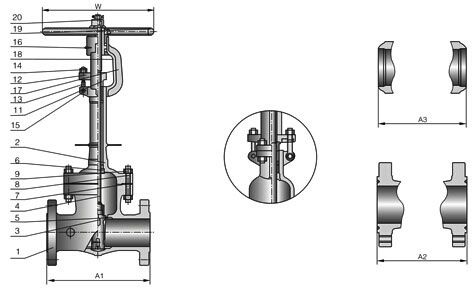

Main Parts and Material. No | Part Name | Material |
1 | Body | A352 LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
2 | Bonnet | A351 LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
3 | Wedge | A351 LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
4 | Stem | A182 F304 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
5 | Seat Ring | A182 F304 | / | / | / | / |
6 | Back Seat | A276 304 | / | / | / | / |
7A | Gasket | 304+graphite | 304+graphite | 316+graphite | 304L+graphite | 316L+graphite |
7B | Gasket | Soft steel | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
8 | Bolt | A193 L7 | A193 B8 | A193 B8M | A193 B8 | A193 B8M |
9 | Nut | A194 4 | A194 8 | A194 8M | A194 8 | A194 8M |
10 | Packing | Graphite | Graphite/PTFE | Graphite/PTFE | Graphite/PTFE | Graphite/PTFE |
11 | Gland | A276 410 | A276 304 | A276 316 | A276 304L | A276 316L |
12 | Gland flange | A352 LCB | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 |
13 | Eyebolt | A193 L7 | A193 B8 | A193 B8 | A193 B8 | A193 B8 |
14 | Nut | A194 4 | A194 8 | A194 8 | A194 8 | A194 8 |
15 | Pin | A276 410 | A276 304 | A276 304 | A276 304 | A276 304 |
16 | Grease fitting | / | / | / | / | / |
17 | Stem nut | Bronze | Bronze | Bronze | Bronze | Bronze |
18 | Nut | Carbon steel | Stainless steel |
19 | Handwheel | Iron | Iron |
20 | Nut | Carbon steel | Carbon steel+Zn |
Main Dimensions and Weight.Class 150.Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 36 | 40 | 42 | 48 | 52 |
mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 | 1000 | 1050 | 1200 | 1300 |
A1 | in | 7.0 | 7.5 | 8.0 | 9.0 | 10.5 | 11.5 | 13.0 | 14.0 | 15.0 | 16.0 | 17.0 | 18.0 | 20.0 | 24.0 | 24.0 | 28.0 | 30.0 | 31.0 | 34.0 | 36.0 |
mm | 178 | 190 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 | 610 | 610 | 711 | 762 | 813 | 864 | 914 |
A3 | in | 8.5 | 9.5 | 11.12 | 12.0 | 15.87 | 16.5 | 18.0 | 19.75 | 22.5 | 24.0 | 26.0 | 28.0 | 32.0 | 36.0 | 36.0 | 40.0 | 42.0 | 43.0 | 46.0 | 54.0 |
mm | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 | 914 | 914 | 1016 | 1067 | 1092 | 1168 | 1372 |
H | in | 15.4 | 16.7 | 18.1 | 22.8 | 30.6 | 38.4 | 46.4 | 54.6 | 60.0 | 68.7 | 79.1 | 91.7 | 109.6 | 127.4 | 134.5 | 161.8 | 183.9 | 174.4 | 217.5 | 227 |
mm | 390 | 425 | 461 | 580 | 776 | 976 | 1178 | 1387 | 1523 | 1745 | 2010 | 2330 | 2748 | 3236 | 3417 | 4109 | 4670 | 4430 | 5525 | 5766 |
W | in | 7.9 | 7.9 | 7.9 | 9.8 | 11.8 | 14.0 | 17.7 | 17.7 | 19.7 | 22.0 | 13.8 | 17.7 | 17.7 | 22.0 | 22.0 | 27.9 | 31.5 | 31.5 | 35.4 | 35.4 |
mm | 200 | 200 | 200 | 250 | 300 | 355 | 450 | 450 | 500 | 560 | 350 | 450 | 450 | 560 | 560 | 710 | 800 | 800 | 900 | 900 |
WT(kg) | RF | 22 | 25 | 30 | 45 | 85 | 134 | 202 | 290 | 370 | 534 | 669 | 810 | 1430 | 2067 | 2189 | 3563 | 4703 | 4600 | 7110 | 8500 |
BW | 20 | 21 | 28 | 42 | 73 | 111 | 181 | 265 | 340 | 504 | 619 | 770 | 1513 | 2157 | 2259 | 3633 | 4733 | 4625 | 7050 | 8550 |
Class 300.Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 36 | 40 | 42 | 48 |
mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 | 1000 | 1050 | 1200 |
A1 | in | 8.5 | 9.5 | 11.12 | 12.0 | 15.88 | 16.5 | 18.0 | 19.75 | 30.0 | 33.0 | 36.0 | 39.0 | 45.0 | 53.0 | 55.0 | 68.0 | 76.0 | 78.0 | 87.2 |
mm | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1397 | 1727 | 1930 | 1981 | 2215 |
A3 | in | 8.5 | 9.5 | 11.12 | 12.0 | 15.88 | 16.5 | 18.0 | 19.75 | 30.0 | 33.0 | 36.0 | 39.0 | 45.0 | 53.0 | 55.0 | 68.0 | 76.0 | 78.0 | 87.2 |
mm | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1397 | 1727 | 1930 | 1981 | 2215 |
A2 | in | 9.12 | 10.12 | 11.75 | 12.62 | 16.55 | 17.12 | 18.62 | 20.37 | 30.62 | 33.62 | 36.62 | 39.75 | 45.88 | 54.0 | 56.0 | 69.12 | / | / | / |
mm | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | 1372 | 1422 | 1756 | / | / | / |
H | in | 16.2 | 17.7 | 19.0 | 23.7 | 32.0 | 40.2 | 48.8 | 56.8 | 66.1 | 78.4 | 85.9 | 93.5 | 112.6 | 130.0 | 148.5 | 169.8 | 188.6 | 198.1 | 217.4 |
mm | 412 | 450 | 483 | 601 | 813 | 1020 | 1239 | 1443 | 1679 | 1993 | 2181 | 2376 | 2860 | 3302 | 3772 | 4312 | 4791 | 5032 | 5522 |
W | in | 7.9 | 7.9 | 8.8 | 9.8 | 14.0 | 15.7 | 17.7 | 19.7 | 17.7 | 17.7 | 22.0 | 22.0 | 27.9 | 35.4 | 35.4 | 30.0 | 30.0 | 30.0 | 30.0 |
mm | 200 | 200 | 224 | 250 | 355 | 400 | 450 | 500 | 450 | 450 | 560 | 560 | 710 | 900 | 900 | 760 | 760 | 760 | 760 |
WT(kg) | RF | 29 | 40 | 48 | 74 | 142 | 220 | 327 | 496 | 694 | 984 | 1306 | 1546 | 2360 | 3660 | 4350 | 6850 | 8460 | 9500 | 12400 |
BW | 24 | 35 | 37 | 64 | 122 | 172 | 232 | 391 | 644 | 834 | 1051 | 1226 | 1910 | 3010 | 3460 | 4990 | 6160 | 6800 | 9000 |
Class 600Size | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 30 | 36 | 40 | 42 |
mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 750 | 900 | 1000 | 1050 |
A1 | in | 11.5 | 13.0 | 14.0 | 17.0 | 22.0 | 26.0 | 31.0 | 33.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 | 61.0 | 65.0 | 82.0 | 94.0 | 98.0 |
mm | 292 | 330 | 356 | 432 | 556 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1594 | 1651 | 2083 | 2387 | 2489 |
A3 | in | 11.5 | 13.0 | 14.0 | 17.0 | 22.0 | 26.0 | 31.0 | 33.0 | 35.0 | 39.0 | 43.0 | 47.0 | 55.0 | 61.0 | 65.0 | 82.0 | 94.0 | 98.0 |
mm | 292 | 330 | 356 | 432 | 556 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1594 | 1651 | 2083 | 2387 | 2489 |
A2 | in | 11.62 | 13.12 | 14.12 | 17.12 | 22.12 | 26.12 | 31.12 | 33.12 | 35.12 | 39.12 | 43.12 | 47.25 | 55.38 | 61.5 | 65.5 | 82.62 | / | / |
mm | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1406 | 1562 | 1663 | 2098 | / | / |
H | in | 18.5 | 19.5 | 22.1 | 26.7 | 37.2 | 43.7 | 52.1 | 65.9 | 72.1 | 82.9 | 98.0 | 104.8 | 116.9 | 140.2 | 152.8 | 179.5 | 207.6 | 240.0 |
mm | 471 | 495 | 561 | 677 | 944 | 1110 | 1323 | 1675 | 1832 | 2106 | 2489 | 2662 | 2970 | 3562 | 3880 | 4560 | 5273 | 6098 |
W | in | 8.8 | 8.8 | 9.8 | 11.8 | 17.7 | 19.7 | 24.8 | 22.0 | 22.0 | 27.9 | 27.9 | 31.5 | 35.4 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 |
mm | 224 | 224 | 250 | 300 | 450 | 500 | 630 | 560 | 560 | 710 | 710 | 800 | 900 | 512 | 512 | 512 | 512 | 512 |
WT(kg) | RF | 43 | 60 | 70 | 134 | 285 | 448 | 680 | 1068 | 1286 | 1841 | 2585 | 3108 | 4688 | 6050 | 6945 | 9740 | 10550 | 10950 |
BW | 28 | 45 | 60 | 104 | 205 | 313 | 535 | 973 | 1166 | 1511 | 2150 | 2558 | 3898 | 4980 | 5710 | 8140 | 8540 | 8770 |

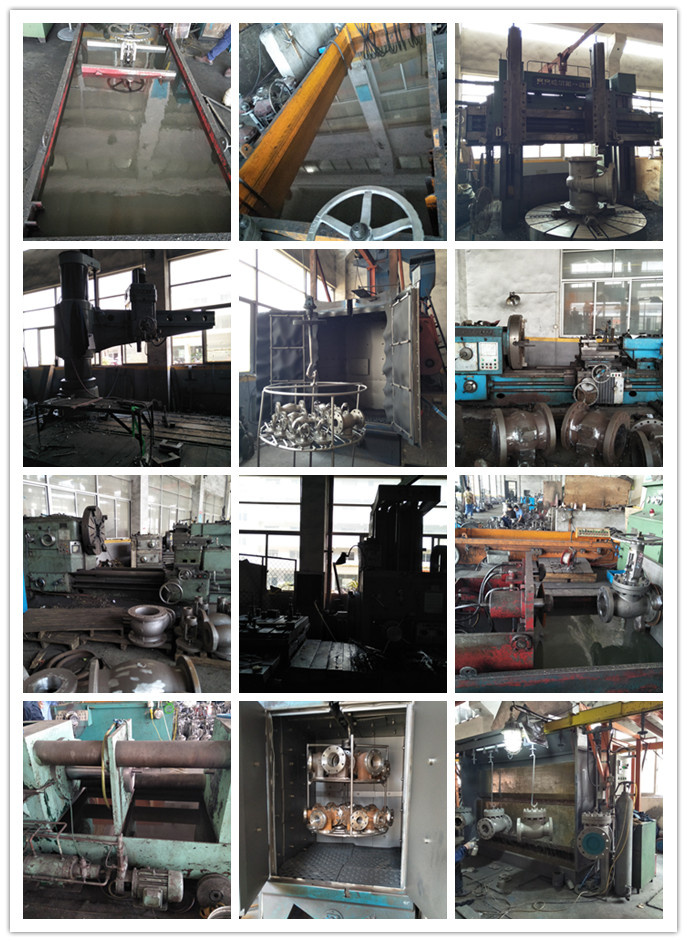

Our Equipments.
Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.
We manufacture and offer:
Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...
Control Valve: Electric Control Valve, Pneumatic Control Valve, Self-operated control valve, Globe control valve, 3-way control valve. etc.
Ball Valve: Floating Ball Valve, Trunnion Mounted Ball Valve, DBB Ball Valve, Full Welded Ball Valve., etc.
Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.
Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.
DIN Bellow sealed globe valves, Y Type Strainer
Besides, Other valves and pipe fittings also can be offered by us.
Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.
Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.
We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
