| Prod Model: |
End cap seal |
| HS Code: |
84849000 |
| Material: |
NBR |
| Standard: |
Standard |
| Application: |
Engine, Transmission, Rear Axle |
| Performance: |
Corrosion Temperature Wear High Pressure |
| Shape: |
Customized |
Product Description

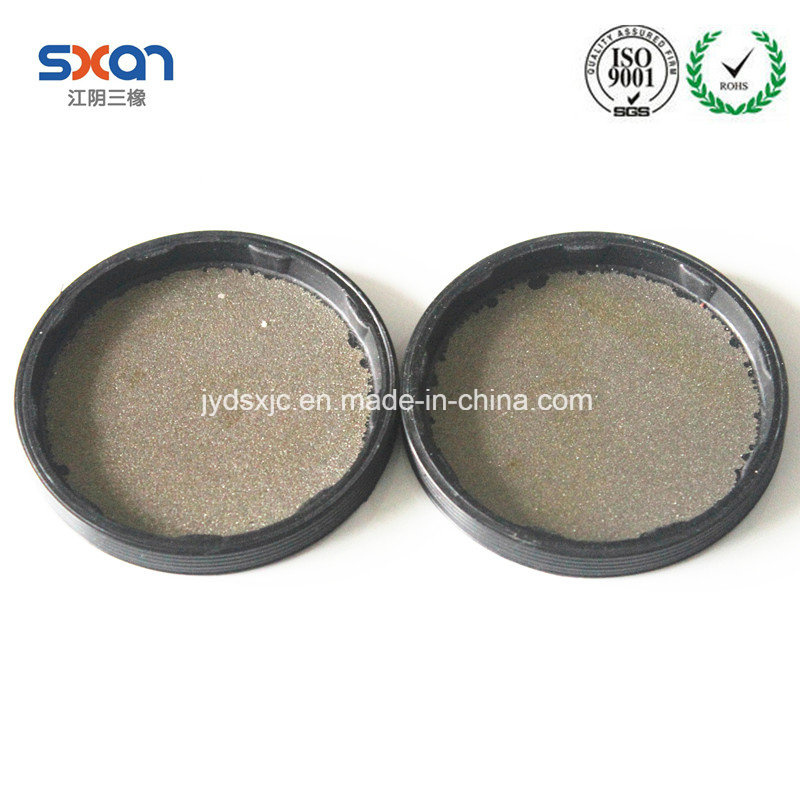

Anti leakage rubber End Cap Seal suitable for construction machinery
Advantages
1. good static sealing
2. compensation for different thermal expansion
3. there is no risk of exposure to corrosion
4. effective protection against air side pollution
5. allows higher surface roughness of steel holes
6. installed in the split groove
| Name | End cap seal |
| Material Type | EPDM |
| Hardness Range | 30-85 Shore A |
| Size | All Size |
| Material Characteristic | Wear resistance,Water resistance,Oil resistance,Adhesion to metal |

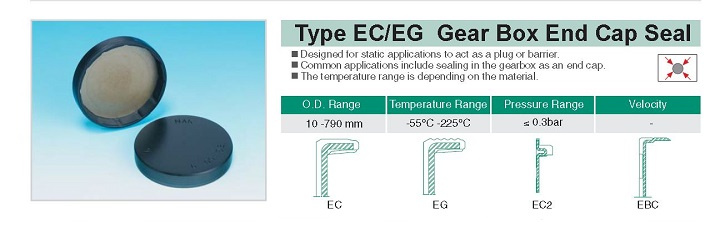

| Application | It is mainly used for the orifice, the core opening and the bearing of an oil seal, which is particularly used as a substitute for an end flange or an end cover in a gear box, and the rubber layer at the outer diameter ensures the oil leakage in the oil seal seat. At the same time, it also strengthens the neatness and beauty of the cabinet. |
| OEM / ODM | Available |
| Packing Details | PE plastic bags then to the carton / as per your request |
| Production Capacity & Lead Time |
| Production Capacity | 300000PCS/Month |
| Lead Time | 7-15 days after payment |
| Shipping & Payment Terms |
| Port of Loading | Shanghai/Ningbo Port |
| Shipping Method | SEA,AIR,DHL,UPS,FEDEX,TNT, etc. |
| Payment Terms | T/T, L/C, Paypal, Western Union |
| Rubber Specification & Inspection Standard |
| Quality Acceptance Criteria | BS/ISO 3601-3:2008 |
| NO. | SIZE(D*H) | NO. | SIZE(D*H) | NO. | SIZE(D*H) | NO. | SIZE(D*H) |
| 1 | 8*5 | 29 | 37*5 | 57 | 65*8 | 85 | 115*12 |
| 2 | 16*4 | 30 | 37*7 | 58 | 68*8 | 86 | 118*13.5 |
| 3 | 18*4 | 31 | 38*7 | 59 | 70*10 | 87 | 120*12 |
| 4 | 19*6 | 32 | 40*4.5 | 60 | 72*10 | 88 | 125*12 |
| 5 | 19*7 | 33 | 40*7 | 61 | 72*7 | 89 | 128.6*12 |
| 6 | 20*4 | 34 | 42*6 | 62 | 72*9 | 90 | 130*12 |
| 7 | 21*4 | 35 | 42*7 | 63 | 75*10 | 91 | 130*8 |
| 8 | 22*5 | 36 | 42*9.5 | 64 | 75*12 | 92 | 140*13 |
| 9 | 22*7 | 37 | 47*10 | 65 | 75*5 | 93 | 140*15 |
| 10 | 24*5 | 38 | 47*6.5 | 66 | 75*7 | 94 | 150*13 |
| 11 | 24*7 | 39 | 47*7 | 67 | 80*12 | 95 | 150*15 |
| 12 | 25*4 | 40 | 47*7.5 | 68 | 80*7 | 96 | 160*15 |
| 13 | 25*7 | 41 | 47*8 | 69 | 80*8 | 97 | 160*16 |
| 14 | 26*4 | 42 | 48*7 | 70 | 85*10 | 98 | 168*12 |
| 15 | 26*6.5 | 43 | 50*10 | 71 | 85*12 | 99 | 16815 |
| 16 | 28*5 | 44 | 50*7 | 72 | 85*8 | 100 | 170*13 |
| 17 | 28*7 | 45 | 52*10 | 73 | 90*10 | 101 | 170*15 |
| 18 | 30*4 | 46 | 52*6.5 | 74 | 90*12 | 102 | 180*12 |
| 19 | 30*6 | 47 | 52*7 | 75 | 90*8 | 103 | 190*12 |
| 20 | 30*7 | 48 | 55*10 | 76 | 92*10 | 104 | 200*13 |
| 21 | 30*8 | 49 | 55*7 | 77 | 95*10 | 105 | 210*15 |
| 22 | 32*5 | 50 | 55*8 | 78 | 95*12 | 106 | 215*15 |
| 23 | 32*7 | 51 | 56*7 | 79 | 98*6 | 107 | 220*15 |
| 24 | 32*9.5 | 52 | 58*9 | 80 | 100*10 | 108 | 225*14 |
| 25 | 35*6.5 | 53 | 60*10 | 81 | 100*12 | 109 | 230*14 |
| 26 | 35*7 | 54 | 60*7 | 82 | 105*10 | 110 | 240*15 |
| 27 | 35*8 | 55 | 60*8 | 83 | 110*10 | 111 | 250*15 |
| 28 | 37*10 | 56 | 62*10 | 84 | 110*12 | 112 | |

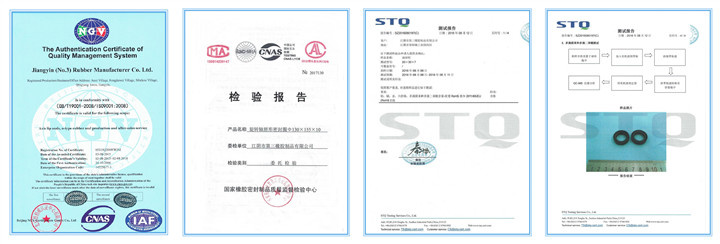

Certificate

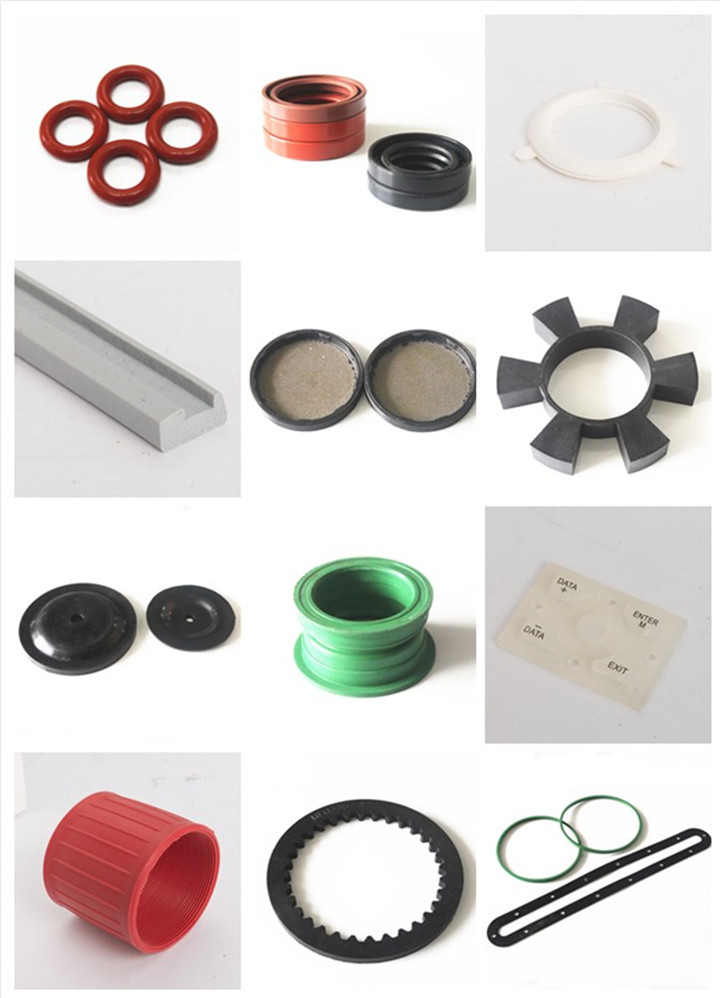

Related Products

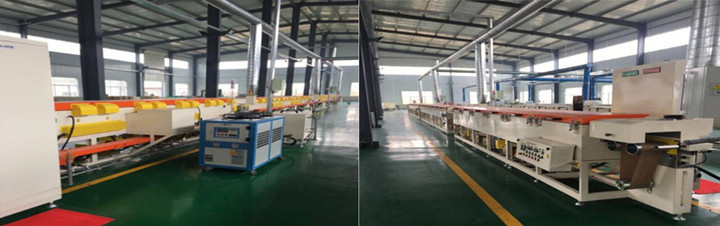

Equipment
Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 3-7 days for standard sealing products; and 15-20 days for big order and custom non-standard products.
Q: Do you provide free samples?
A: Yes, we offer free sample while customer need pay for the freight charge.
Q: Which Payment way is workable?
A: Irrevocable L/C, Cash, PayPal, Credit card and T/T money transfers.
B: 30% T/T deposit in advance, 70% balance before shipment after presentation of ready cargo.
C: L/C ( Irrevocable LC at sight: Order amount over USD10,000)
Q: What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q: How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your needs while keeping material costs in mind.
Q: Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q: Can you supply different color materials?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, VITON(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
