Apa-200 C Type Power Press

Name: Apa-200 C Type Power Press
Brand: tool-buy.com
SKU: 634927025
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	US $ 20000-25000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

SJR Machinery Limited

Showroom Product Company Profile

Prod Model:	APA-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Apa-200
Voltage:	380V
Power(W):	18000, 18kw
Type:	High-Speed Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	Precision

Product Description

Specifications

C-frame, mechanical power press machine. High precision press machine, Punching press, Stamping press.

Features:

APA Series High Precision Compact Power Press Machine
With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
Crank, gear. connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
The precision of mold adjusting up to 0.1mm, safety, reliable and convenient.
Used reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision fo slider running and stop andsafe production fo the machine.
Reasonable structural design, is benefit for automation produclion and reduce cost, improve efficiency.
Advanced design principle, low noise, low consumption, low cost, save energy.

Main parameters:

Model		11353	11354	11355		11356		11357		11358		11359		11360		11361		11362		11363		11364
		APA-15	APA-25A	APA-25		APA-35		APA-45		APA-60		APA-80		APA-110		APA-160		APA-220L		APA-200		APA-260
Model		V	V	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	15	25	25		35		45		60		80		110		160		200		200		260
Rated tonnage point	mm	1	3.2	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6		6	3	7	3.5
Speed changing	x.p.m	120-180	60-140	60-140	130-200	40-120	110-180	40-100	110-150	35-90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50		20-50	50-70	20-40	40-50
Stable speed	mm	130	110		110		85	75		65		65		50		35		35		35		30
Stroke	mm	60	80	70	30	70	40	80	50	120	60	150	70	180	80	200	90	200		200	110	250	150
Die height	mm	220	195	195	215	220	235	250	265	310	340	340	380	360	410	460	510	460		460	510	500	550
Slide adjustment	mm	50	50		50	55		60		75		75		80		100		100		110		120
Slide area	mm	330×220×50	300×220×50	300×220×50		360×250×50		400×300×60		500×360×70		500×420×70		650×470×80		700×550×90		700×500×90		850×630×90		950×700×100
Bolster area	mm	680×330×70	680×300×65	680×300×65		800×400×70		850×440×80		900×500×80		1000×550×90		1150×600×110		1250×800×140		1350×800×140		1400×820×160		1500×840×180
Shank hole	mm	Φ38.1	Φ38.1	Φ38.1		Φ38.1		Φ38.1		Φ50		Φ50		Φ50		Φ65		Φ50		Φ65		Φ65
Main motor	kw	2.2	3.7	3.7		3.7		5.5		5.5		7.5		11		15		18.5		18		22
Slide adjust device	HP	Manual operation Electrical driving
Air pressure	kg/cm²	6	6	6		6		6		6		6		6		6		6		6		6
Presses precision		GB(JIS)1CLASS	GB(JIS)1CLASS	GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS
Presses dimension	mm	1236×830×1920	1280×850×2200	1280×850×2200		1380×900×2400		1380×900×2400		1600×1000×2800		1800×1180×2800		1900×1300×3200		2300×1400×3800		2500×1500×3800		2615×1690×4075		2780×1850×4470
Presses weight	Ton	1.8	2.1	2.1		3		3.8		5.6		6.5		9.6		16		18T		23		32
Die cushion capacity	Ton					2.3		2.3		3.6		3.6		6.3		10		10		14		14
Stroke	mm					50		50		70		70		80		80		80		100		100
Die cushion effective area	mm²					300×230		300×230		450×300		450×310		500×350		650×420		650×420		710×480		810×480

Model		11353	11354	11355		11356		11357		11358		11359		11360		11361		11362		11363		11364
		APA-15	APA-25A	APA-25		APA-35		APA-45		APA-60		APA-80		APA-110		APA-160		APA-220L		APA-200		APA-260
Model		V	V	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	15	25	25		35		45		60		80		110		160		200		200		260
Rated tonnage point	mm	1	3.2	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6		6	3	7	3.5
Speed changing	x.p.m	120-180	60-140	60-140	130-200	40-120	110-180	40-100	110-150	35-90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50		20-50	50-70	20-40	40-50
Stable speed	mm	130	110		110		85	75		65		65		50		35		35		35		30
Stroke	mm	60	80	70	30	70	40	80	50	120	60	150	70	180	80	200	90	200		200	110	250	150
Die height	mm	220	195	195	215	220	235	250	265	310	340	340	380	360	410	460	510	460		460	510	500	550
Slide adjustment	mm	50	50		50	55		60		75		75		80		100		100		110		120
Slide area	mm	330×220×50	300×220×50	300×220×50		360×250×50		400×300×60		500×360×70		500×420×70		650×470×80		700×550×90		700×500×90		850×630×90		950×700×100
Bolster area	mm	680×330×70	680×300×65	680×300×65		800×400×70		850×440×80		900×500×80		1000×550×90		1150×600×110		1250×800×140		1350×800×140		1400×820×160		1500×840×180
Shank hole	mm	Φ38.1	Φ38.1	Φ38.1		Φ38.1		Φ38.1		Φ50		Φ50		Φ50		Φ65		Φ50		Φ65		Φ65
Main motor	kw	2.2	3.7	3.7		3.7		5.5		5.5		7.5		11		15		18.5		18		22
Slide adjust device	HP	Manual operation Electrical driving
Air pressure	kg/cm²	6	6	6		6		6		6		6		6		6		6		6		6
Presses precision		GB(JIS)1CLASS	GB(JIS)1CLASS	GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS		GB(JIS)1CLASS
Presses dimension	mm	1236×830×1920	1280×850×2200	1280×850×2200		1380×900×2400		1380×900×2400		1600×1000×2800		1800×1180×2800		1900×1300×3200		2300×1400×3800		2500×1500×3800		2615×1690×4075		2780×1850×4470
Presses weight	Ton	1.8	2.1	2.1		3		3.8		5.6		6.5		9.6		16		18T		23		32
Die cushion capacity	Ton					2.3		2.3		3.6		3.6		6.3		10		10		14		14
Stroke	mm					50		50		70		70		80		80		80		100		100
Die cushion effective area	mm²					300×230		300×230		450×300		450×310		500×350		650×420		650×420		710×480		810×480

Machine configuration

Item	Brief Description
Machine Body	Basic Parts	Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging treatment)
Bolster	basic parts	Made from Casting HT200,through annealing treatment
Crank	Basic Parts	Made from Forging, through flaw detection ,surface quenching, nitriding processing
Fly Wheel	Basic Parts	Casting HT200,Through Annealing Treatment
Worm	Basic Parts	Zinc-based alloys
Worm Gear	Basic Parts	Made from 45# steel
Connecting Rod	Basic Parts	Made from Ductile iron, cast iron, and throughnormalizing treatment
Ball Head and Screw	Basic Parts	Made From 45# steel, surface by Nitriding treatment
Balance Cylinder	Parts	Cylinder Body Inside Through Honing Processing

Machine body	Steel metal machine body, iron cast working table
Gears	Forging die gear grinding with Germany N1LES grinding machine;
Inverter	TECO ( Taiwan )
Motor `	TECO ( Taiwan )
Double-solenoid valve	TACO ( JAPAN )
CLUTCH	OMPI ( Italy )
Over-load protector	KINGAIR ( Taiwan )
Bearing	NSK ( Japan )
Oil seals	NOK ( Japan )

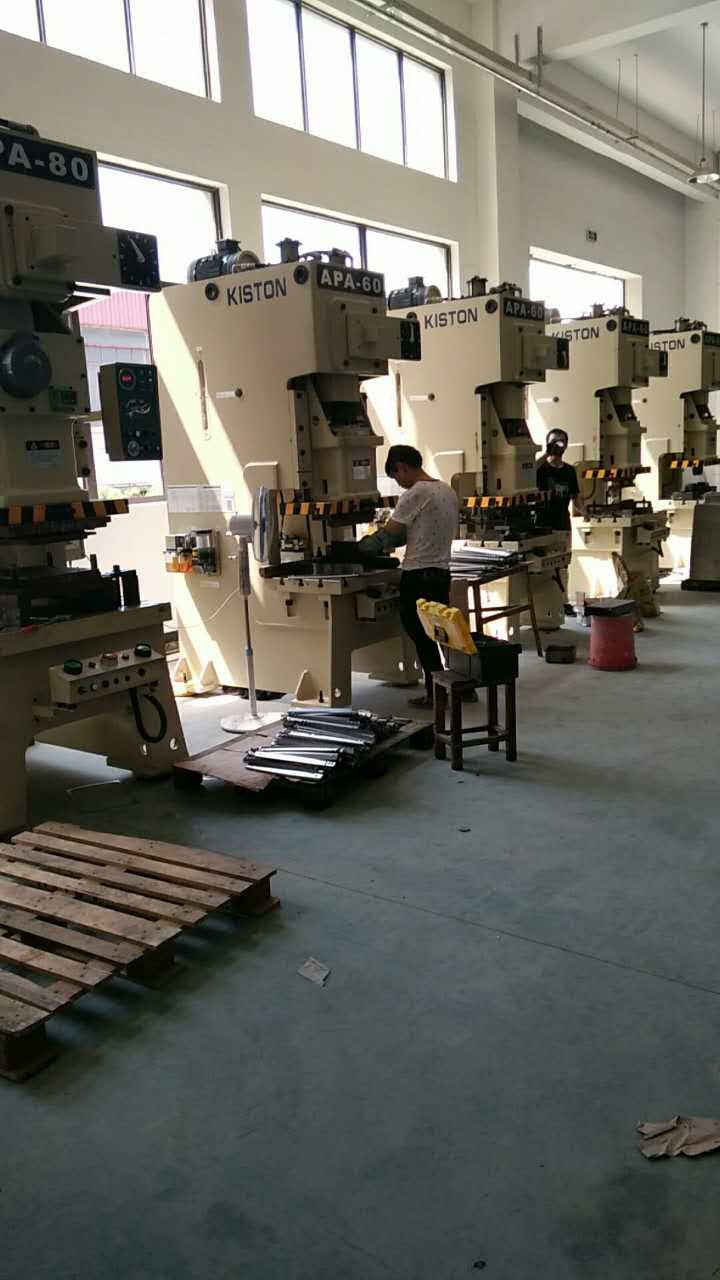

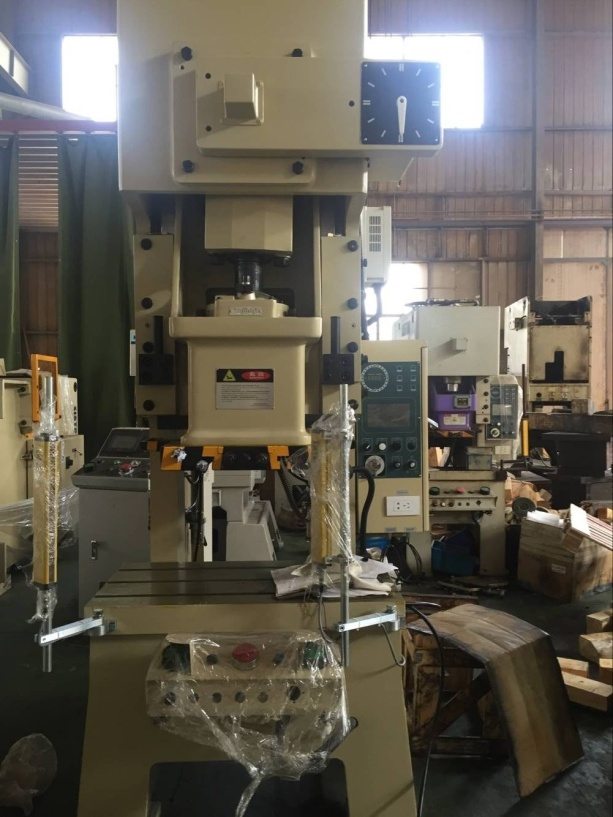

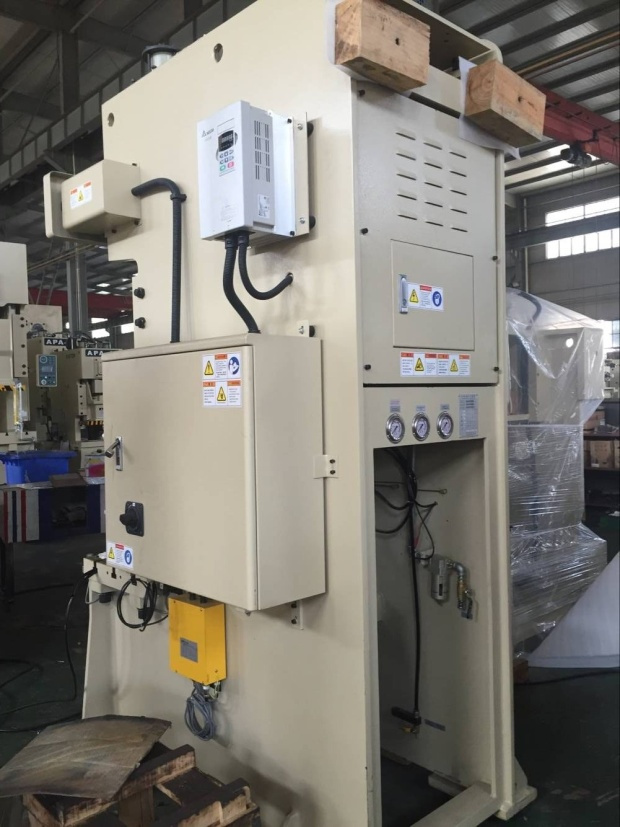

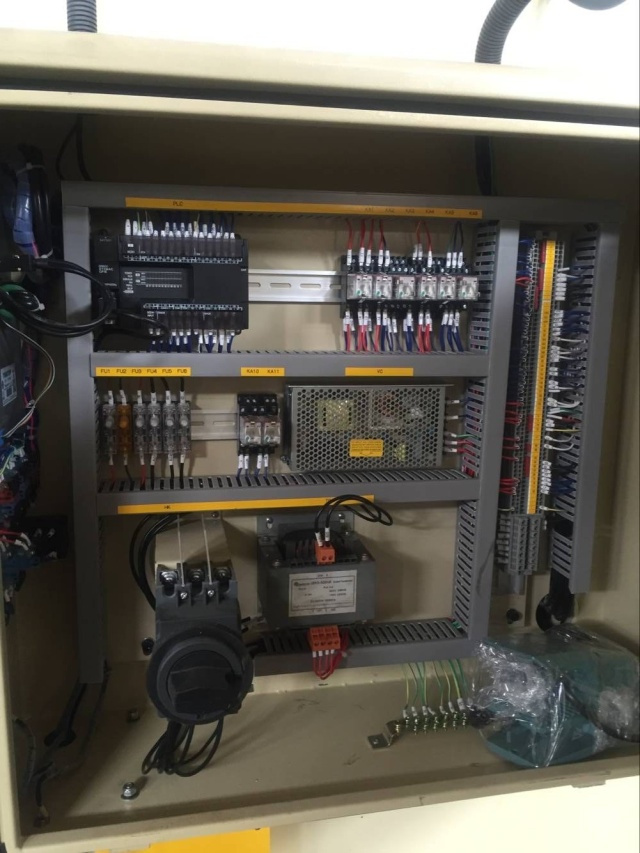

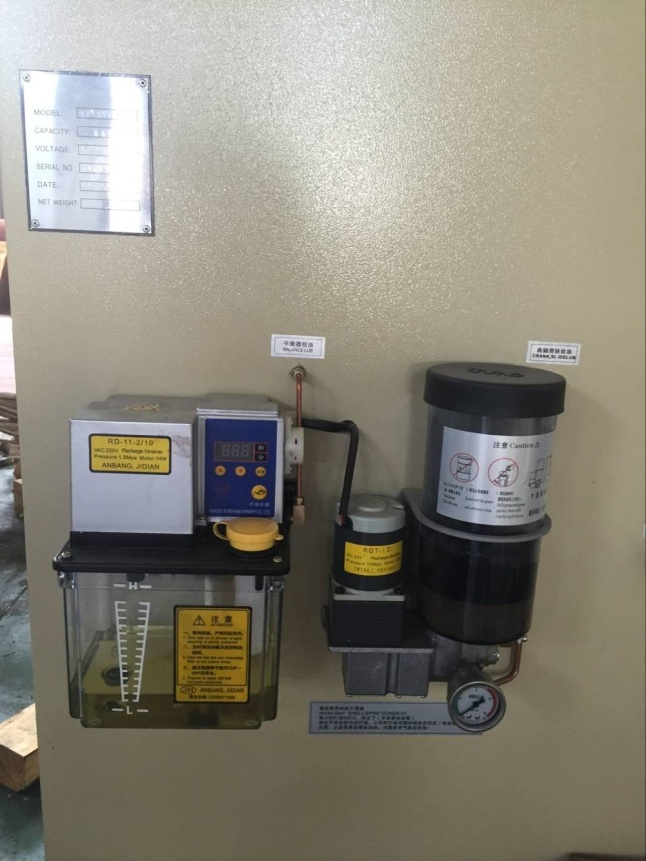

More pictures:
