| Prod Model: |
ROS 22" |
| Name: |
Tricone Rotary Drill Bits |
| Bits Sales: |
Tricone Drill Bits for Sale |
| Well Drilling: |
Tricone Bit for Well Drilling |
| TCI Bits: |
Tricone Bit Weight |
| Tricone Bit: |
Used Tricone Bits Craigslist |
| Sales: |
Tricone Bits for Sale |
| Model: |
TCI Tricone Bit |
| Model Name: |
Hughes Tricone Bits |
| Series: |
Tricone Drill Bit |
| Item: |
Tricone Rock Bits |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Packaging & Delivery
Packaging Details
Wooden case for API 22" TCI drill bit, water well drilling rotary rock bits, tungsten carbide insert tricone roller bits
Delivery Time
10~15 days
API 22" TCI drill bit, water well drilling rotary rock bits, tungsten carbide insert tricone roller bits
These tungsten carbide insert bits are used to drill soft formation with low compressive strength and high drill ability, such as shale, clay, sandstone and soft limestone, etc.
1. Tungsten carbide insert tooth, sealed and gage protection journal bearing,hardfaced head bearing surface. cone bearing inlaid with friction reducing alloy and then silver plated. the load capacity and seizure resistance of the bearing is greatly improved
2.O- ring seal is made of the more wear resistance high saturated buna-N with the section and precissely designed sealing flange in the cone sealing area increased the reliability of the seal.
3.The bit bearing is ball which can be applied to high rotary speed drilling.
4.All rubber compensator is used which can provides the bearing system with good assurance of lubrication
5.New type of grease that can sustain high temperature up to 250C is utilized.
6.High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high touhness in combination with optimized comjpact numbers and rows, the exposure height and special shaped compacts.
7.Meet strictly of API standard
8.Manufacturer of TCI tricone bits, steel tooth tricone bits and PDC bits
9.High quality, reasonable price and best service.
10.Delivery on time
11.Good feedback of the clients
12.Be used for water well, oil field, underground, construction, geothermal well,etc
Size Available:
From 3 7/8"(98.4mm) to 26"(660.4mm)
Note:
Sizes and types that are not shown above can be customized according to specific drilling requirements.
Benefits
- Complete tool-change system can be replaced
- Individual components (drill bits) can be replaced
- Runs with minimal vibration thanks to optimised
shape of tool-changer arms
- Larger free cut means reduced wear on the
steering head
- Less wear on the tool-changer arms thanks to
geometrically optimum shape of the components
- Big cost benefit from reusable components
- Excellent value for money
Roller bits are mainly divided into two types:
i) Metal sealed roller bits
ii) Rubber sealed roller bits
Metal sealed roller bits main applications:
a) Adopted high-speed bearing metal sealed technology, long working life under the screw drilling condition.
b) High efficiency cutting edge and structure to improve drilling speed.
c) Cutter shell self-protection shape to reduce abrasion of detritus and unbreakable rock.
d) Best choice for directional well, horizontal drainhole and horizontal branch wells.
| Size (inch) | Connection (API REG) |
| 5 7/8",6",6 1/2",6 3/4" | 3 1/2" |
| 7 7/8",8 1/2",8 3/4" | 4 1/2" |
| 9 1/2",9 5/8",9 7/8",12 1/4",12 1/2",13 1/8",13 5/8" | 6 5/8" |
| 16",17 1/2" | 7 5/8" |
Rubber sealed roller bits main applications:
a) Adopted new alloy welding technology to improve abrasion and working life.
b) Multiple gauge structure, weld trimming teeth on the edge to enhance gauge protection ability.
c) High precision with radial sliding, two thrust rubber sealed bearing and optimized anti-seizure ability to avoid bits peel off.
| Bit Size (inch) | Standard Pin Size (API REG) |
| 5 1/2",5 7/8",6",6 1/2",6 3/4" | 3 1/2" |
| 7 1/2",7 7/8",8 1/2",8 3/4" | 4 1/2" |
| 9 1/2",9 5/8",9 7/8",12 1/4",12 1/2",13 1/8",13 5/8" | 6 5/8" |
| 14 3/4",15",15 1/2",16",17 1/2",20",26" | 7 5/8" |
| IADC Code | Formation Description | Rock Type | Compressive
Strength (Mpa) | Rate of drilling(m/h) |
|
| 417/527 | Medium soft: | Caly rock | 50~75 | 5~15 |
| Low compressive | Marlstone |
| strength and layered | Lignite, |
| soft to medium formations | sandstone |
| | Siltstone |
| | Anhydrite |
| | Tuff |
| 517/537 | Medium: | Mud rock | 75~100 | 2~6 |
| High compressive strength | Limestone |
| and abrasive thin interbedded | Shaly |
| medium to hard formation | |
| 537/617 | Medium hard: | Limestone | 100~200 | 1.5~3 |
| High compressive strength | Argillite |
| and medium abrasive hard | Anhydrite |
| and compact ground | Sandstone |
| | Dolomite |

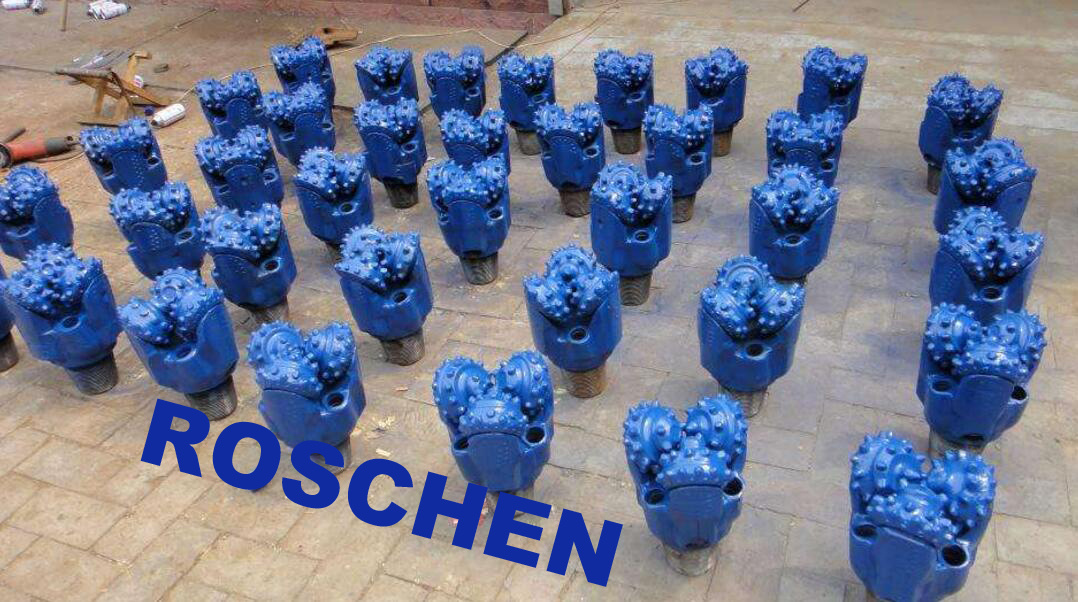

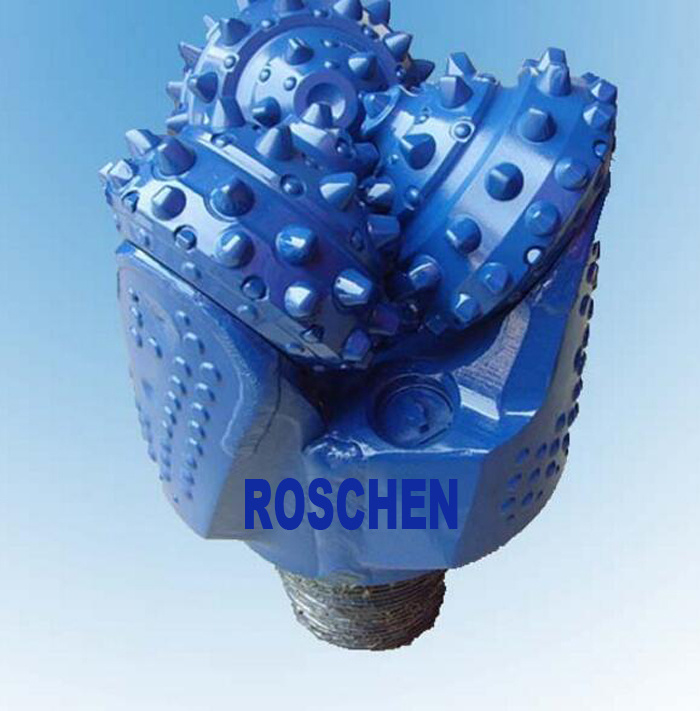

Roller Bits Images:
