API Electric Actuator Parallel Double Disc Gate Valve
Price: |
US $ 500-50000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
deca-1 |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Seal Surface: |
Parallel Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Industrial Usage |
Product Description
The Z42 model parallel double disc gate valve developed by our company is a new generation fast shut-off gate valve that is independently designed and successfully researched and developed after introducing and absorbing advanced technologies from abroad. The pneumatic parallel double disc gate valve has been identified as a High-tech Product in Zhejiang Province, and been granted many national patents (patent No.: ZL2010 1 0282929.5, ZL2010 1 0246138.1). The product has been checked to be up to standard by the inspection center designated by General Administration of Quality Supervision, Inspection and Quarantine of the Peopleˇs Republic of China. We have also been issued the manufacturing license of special equipment (pressure pipe parts) of the Peopleˇs Republic of China, and been fire-safe certified to API 6FA by TUV SUD.
Replacing the traditional wedge disc with the parallel floating round disc sealing assembly, the parallel double disc gate valve exhibits its great superiority and greatly improves its sealing performance and prolongs its service life. Featured by fast opening and closing, labor saving, low vibration, safe operation and simple maintenance, it is very suitable for shut-off or discharging in transportation pipes of gas and liquid media, and shows its excellence especially in shut-off and remote automatic control in transportation pipes of gas and liquid media. With no leakage, it can meet the requirements of high temperature, high pressure, explosion-proof and anticorrosive service conditions. It is widely applied in such industries as petroleum, chemical industry, oil refining, light industry, metallurgy, electric power, etc. With successful application and excellent service over the years, it has won trust and comment from users.
1. Nominal pressure (MPa): 1.6, 2.0, 2.5, 4.0, 5.0, 6.3, 10.0, 11.0
2. Applicable temperature: low temperature type (-46~+345ºC), normal temperature type (-29~+250ºC), medium temperature type (-29~+425ºC), high temperature type (+425~+600ºC)
3. Applicable media: water, steam, gas, oil
4. Bonnet type: standard type (-20~+300ºC), high temperature (cooling fin) type (+300~+600ºC) low temperature (extension) type (-60~-20ºC)
5. Valve shut-off class: hard seal V class, soft seal VI class (Hard seal VI class is for special order.) conforming to GB/T4213 and ASME B16.104 Standard | Design and manufacture | Length of the structure | Flange size | Pressure temperature rating | Inspection and testing | Leakage level |
National Standards With industry standards | GB/T 12234 GB/T 19672 | GB/T12221 | JB/T 79 GB/T 9113 HG/T 20592~20635 SH 3406 | GB/T 9124 GB/T 12224 | JB/T 9092 GB/T 13927 | GB/T4213 |
American Standard | API 6D API 600 | ASME B16.10 API 6D | ASME B16.5 ASME B16.47 | ASME B16.34 | API 598 API 6D | ANSI/FCI 70-2 ASME B16.104 |
Nominal Pressure | Nominal diameter | Face-to-face dimensions | Flange connection dimensions | RF Sealing surface | Opening height | (kg) Reference weight |
NPS | DN | L | D | K | n-L | C | d | f1 | H |
Class 150 | 11/2 | 40 | 165 | 125 | 98.4 | 4-16 | 15.9 | 73.0 | 2 | 630 | 42 |
2 | 50 | 178 | 150 | 120.7 | 4-18 | 17.5 | 92.1 | 2 | 640 | 45 |
21/2 | 65 | 190 | 180 | 139.7 | 4-18 | 20.7 | 104.8 | 2 | 690 | 55 |
3 | 80 | 203 | 190 | 152.4 | 4-18 | 22.3 | 127.0 | 2 | 750 | 68 |
4 | 100 | 229 | 230 | 190.5 | 8-18 | 22.3 | 157.2 | 2 | 780 | 80 |
5 | 125 | 254 | 255 | 215.9 | 8-22 | 22.3 | 185.7 | 2 | 850 | 110 |
6 | 150 | 267 | 280 | 241.3 | 8-22 | 23.9 | 215.9 | 2 | 940 | 130 |
8 | 200 | 292 | 345 | 298.5 | 8-22 | 27.0 | 269.9 | 2 | 1120 | 220 |
10 | 250 | 330 | 405 | 362.0 | 12-26 | 28.6 | 323.8 | 2 | 1330 | 270 |
12 | 300 | 356 | 485 | 431.8 | 12-26 | 30.2 | 381.0 | 2 | 1530 | 370 |
14 | 350 | 381 | 535 | 476.3 | 12-30 | 33.4 | 412.8 | 2 | 1710 | 510 |
16 | 400 | 406 | 595 | 539.8 | 16-30 | 35.0 | 469.9 | 2 | 1880 | 650 |
18 | 450 | 432 | 635 | 577.9 | 16-33 | 38.1 | 533.4 | 2 | 2160 | 1150 |
20 | 500 | 457 | 700 | 635.0 | 20-33 | 41.3 | 584.2 | 2 | 2360 | 1380 |
24 | 600 | 508 | 815 | 749.3 | 20-36 | 46.1 | 692.2 | 2 | 2660 | 1520 |
28 | 700 | 610 | 835 | 795.3 | 40-22 | 43.0 | 762 | 2 | 3350 | 2390 |
32 | 800 | 660 | 940 | 900.1 | 48-22 | 44.6 | 864 | 2 | 3860 | 2890 |
36 | 900 | 711 | 1055 | 1009.6 | 44-26 | 50.9 | 972 | 2 | 4280 | 3620 |
Nominal Pressure | Nominal diameter | Face-to-face dimensions | Flange connection dimensions | RF Sealing surface | Opening height | (kg) Reference weight |
NPS | DN | L | D | K | n-L | C | d | f1 | H |
Class 300 | 11/2 | 40 | 190 | 155 | 114.3 | 4-22 | 19.1 | 73.0 | 2 | 640 | 45 |
2 | 50 | 216 | 165 | 127.0 | 8-18 | 20.7 | 92.1 | 2 | 650 | 50 |
21/2 | 65 | 241 | 190 | 149.2 | 8-22 | 23.9 | 104.8 | 2 | 690 | 70 |
3 | 80 | 283 | 210 | 168.3 | 8-22 | 27.0 | 127.0 | 2 | 750 | 80 |
4 | 100 | 305 | 255 | 200.0 | 8-22 | 30.2 | 157.2 | 2 | 800 | 100 |
5 | 125 | 381 | 280 | 235.0 | 8-22 | 33.4 | 185.7 | 2 | 910 | 180 |
6 | 150 | 403 | 320 | 269.9 | 12-22 | 35.0 | 215.9 | 2 | 1000 | 210 |
8 | 200 | 419 | 380 | 330.2 | 12-26 | 39.7 | 269.9 | 2 | 1160 | 250 |
10 | 250 | 457 | 445 | 387.4 | 16-30 | 46.1 | 323.8 | 2 | 1350 | 420 |
12 | 300 | 502 | 520 | 450.8 | 16-33 | 49.3 | 381.0 | 2 | 1620 | 590 |
14 | 350 | 762 | 585 | 514.4 | 20-33 | 52.4 | 412.8 | 2 | 1820 | 870 |
16 | 400 | 838 | 650 | 571.5 | 20-36 | 55.6 | 469.9 | 2 | 1930 | 1180 |
18 | 450 | 914 | 710 | 628.6 | 24-36 | 58.8 | 533.4 | 2 | 2150 | 1380 |
20 | 500 | 991 | 775 | 685.8 | 24-36 | 62.0 | 584.2 | 2 | 2350 | 1980 |
24 | 600 | 1143 | 915 | 812.8 | 24-42 | 68.3 | 692.2 | 2 | 3060 | 2380 |
28 | 700 | 1346 | 920 | 857.2 | 36-36 | 87.4 | 787 | 2 | 3400 | 3300 |
32 | 800 | 1524 | 1055 | 977.9 | 32-42 | 101.6 | 902 | 2 | 4400 | 6400 |
36 | 900 | 1727 | 1170 | 1089 | 32-45 | 101.6 | 1010 | 2 | -- | -- |
Nominal Pressure | Nominal diameter | Face-to-face dimensions | Flange connection dimensions | RF Sealing surface | Opening height | (kg) Reference weight |
NPS | DN | L | D | K | n-L | C | RF | RJ | H |
RF | RJ | d | f1 | P | E |
Class 600 | 11/2 | 40 | 241 | 241 | 155 | 114.3 | 4-22 | 22.3 | 73.0 | 7 | 90.5 | 6.35 | 650 | 60 |
2 | 50 | 292 | 295 | 165 | 127.0 | 8-18 | 25.4 | 92.1 | 7 | 108 | 7.92 | 650 | 70 |
21/2 | 65 | 330 | 333 | 190 | 149.2 | 8-22 | 28.6 | 104.8 | 7 | 127 | 7.92 | 710 | 95 |
3 | 80 | 356 | 359 | 210 | 168.3 | 8-22 | 31.8 | 127.0 | 7 | 146 | 7.92 | 765 | 110 |
4 | 100 | 432 | 435 | 275 | 215.9 | 8-26 | 38.1 | 157.2 | 7 | 175 | 7.92 | 820 | 180 |
5 | 125 | 508 | 511 | 330 | 266.7 | 8-30 | 44.5 | 185.7 | 7 | 210 | 7.92 | 960 | 270 |
6 | 150 | 559 | 562 | 355 | 292.1 | 12-30 | 47.7 | 215.9 | 7 | 241 | 7.92 | 1050 | 330 |
8 | 200 | 660 | 664 | 420 | 349.2 | 12-33 | 55.6 | 269.9 | 7 | 302 | 7.92 | 1250 | 620 |
10 | 250 | 787 | 791 | 510 | 431.8 | 16-36 | 63.5 | 323.8 | 7 | 356 | 7.92 | 1450 | 980 |
12 | 300 | 838 | 841 | 560 | 489.0 | 20-36 | 66.7 | 381.0 | 7 | 413 | 7.92 | 1720 | 1360 |
14 | 350 | 889 | 892 | 605 | 527.0 | 20-39 | 69.9 | 412.8 | 7 | 457 | 7.92 | 2040 | 1720 |
16 | 400 | 991 | 994 | 685 | 603.2 | 20-42 | 76.2 | 469.9 | 7 | 508 | 7.92 | 2150 | 2150 |
18 | 450 | 1092 | 1095 | 745 | 654.0 | 20-45 | 82.6 | 533.4 | 7 | 575 | 7.92 | 2320 | 2980 |
20 | 500 | 1194 | 1200 | 815 | 723.9 | 24-45 | 88.9 | 584.2 | 7 | 635 | 9.52 | 2650 | 3400 |
24 | 600 | 1397 | 1407 | 940 | 838.2 | 24-51 | 101.6 | 692.2 | 7 | 749 | 11.13 | 3150 | 4700 |
Zhejiang DECA Control Valve Meter Co., Ltd., a High-tech Enterprise in Zhejiang Province, specializes in designing, developing, producing and selling control valves, including control valves, gate valves, ball valves, butterfly valves and other special valves. Our company is a first-tier supplier of SINOPEC, an approved material supplier of CNPC, an approved supplier of CNOOC, an approved material and equipment supplier of CNAF, an approved supplier of CHEMCHINA, and a network member of National Chemical Automation Design Center.

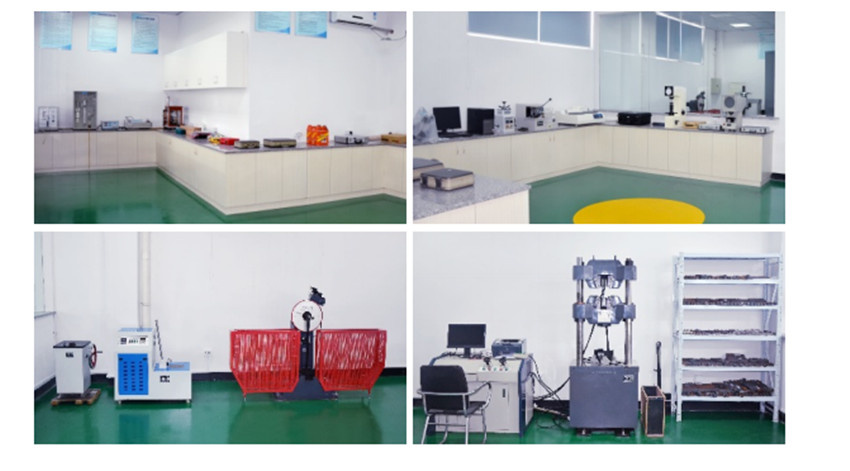

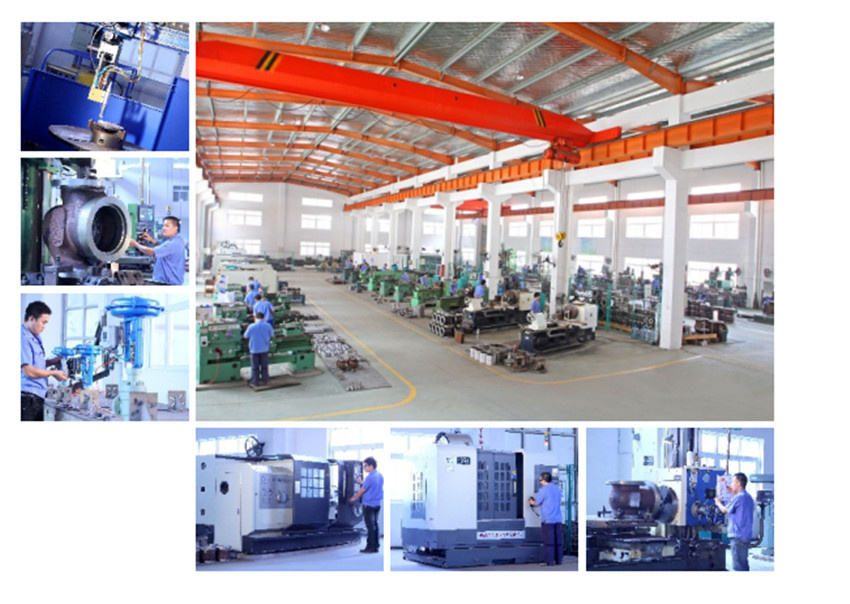

Located in Juyu Town Industrial Park, Wencheng County, Wenzhou City, our company now has a plant area of 19, 000 m2 and a construction area of 20, 000 m2. With perfect control valve production, machining, inspection and testing equipment, we have established the CAD design center and physical & chemical inspection center to effectively ensure product quality and improve production efficiency. In addition, we have a powerful technical team, as well as a skilled and efficient management team. Over the years, on the basis of introducing advanced technologies from abroad, we have kept enterprising, pioneering and innovating to successively develop a series of new control valves that represent international advanced level.

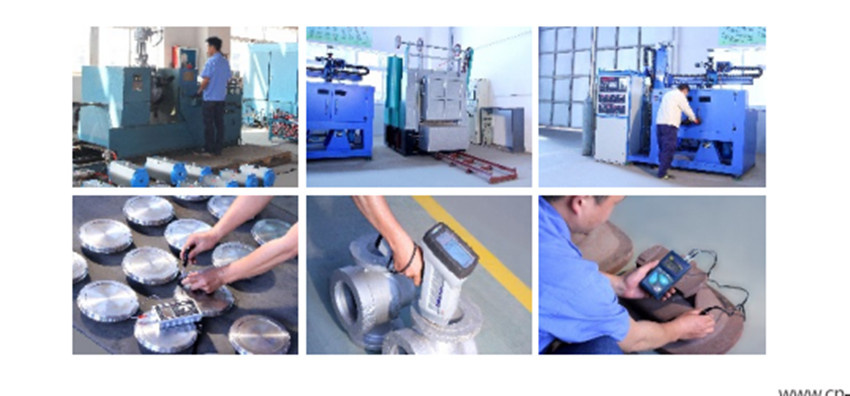

Our company has successively obtained the ISO9001 international quality system certification, API 6D and API609 certification, API607 and API6FA valve fire-safe test certification, HSE health safety environmental management system certification, safe production standardization certification and class A manufacturing license of special equipment (pressure pipe parts) of the People's Republic of China. Our products have been awarded 15 national patents and 2 scientific and technological progress prizes in Ruian City. 1 new product has been included into the technology planning in Ruian City and 7 products have passed the new product appraisal in Zhejiang Province. In addition, our company is one of China's Top 500 Quality Enterprises and a Class AAA Bank Creditable Enterprise.
Our control valves are sold well in various industries such as petroleum, natural gas, chemical industry, power station, metallurgy, light industry, pulp & paper, medicine, food, urban construction, environmental protection, etc., winning high comment from users with good achievements. In addition, our products are also exported to MID East, Iran, Kazakhstan and other countries and areas.
For years, by sticking to the road of "human oriented, booming the business by science and technology", our company has established extensive and close cooperation with relevant petrochemical design institutes and industrial automation instrument research institutes in China to provide old and new users with high quality control valves and excellent after-sales service. By following the consistent principle of "user foremost, quality first and sincere service", we warmly provide users with technical consultation, technical lectures, product model selection guidance, etc. We also undertake the obligation of three-guarantee and maintenance. We will constantly improve technology and increase equipment, and continue to cooperate with customers sincerely to seek mutual benefit and jointly create a brilliant future.
