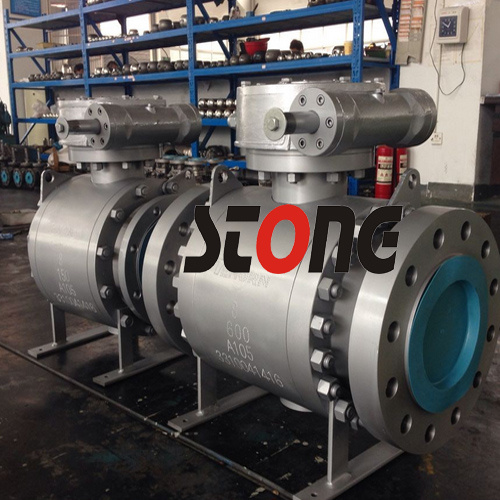

API Forge Steel Trunnion Mount Ball Valve of A105 600lb
| Price: |
US $ 500-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
QF |
| Operation: |
Lever or Gear |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
| Material: |
A105 |
Product Description
API 3pcs Side Entry Forge Steel Trunnion Mounted ball valve of 600LBFULL BORE
Application Trunnion mounted ball valves are suitable for use on various kinds of pipelines of Class 150~Class 2500, PN16~PN160, JIS10K~JIS20K to cut off or turn on the pipeline medium, of which the operation types include worm gear, manual, pneumatic or electric actuators, being in general of flange connection, and butt welding ends connection as well. Construction and features Urgent grease injection device Double-block and bleed functions Fire safe design Self-relief in the body cavity The Bi-sealing design structure,i.e. seat sealing in front of the ball and seat sealing behind the ball Blow-out proof stem Anti-static design Mounting pad provided Standards and specifications Design & Manufacture:API 6D?API 608?ASME B16.34?ANSI/AWWA C507?MSS SP-72?BS 5351?BS 6364?BFCI 70-2?ISO 5211?NACE MR0175 . Connection Ends:ASME B16.5?ASME B16.47?API 605?MSS SP-44?ISO 7005-1?JIS B2238?BS 12627?ASME B16.25?ASME B16.11?BS 12760 . Face to Face Dimension:ASME B16.10,ISO 5752,BS 558,BS 12982 Testing & Inspection:API 598?API 6D?API 607?API 6FA?BS 6755?BS 12569?MSS SP-82?MSS SP-61 Normal Pressure or Rating:Class 150 ~ Class 2500?JIS 10K ~ 20K?PN 10 ~ PN 160 Normal Diameter or Bore:NPS4~NPS36?DN50~DN900 Applicable Temperature:-196?~540Operation Type:Manual, worm gear, pneumatic, electric
Remarks

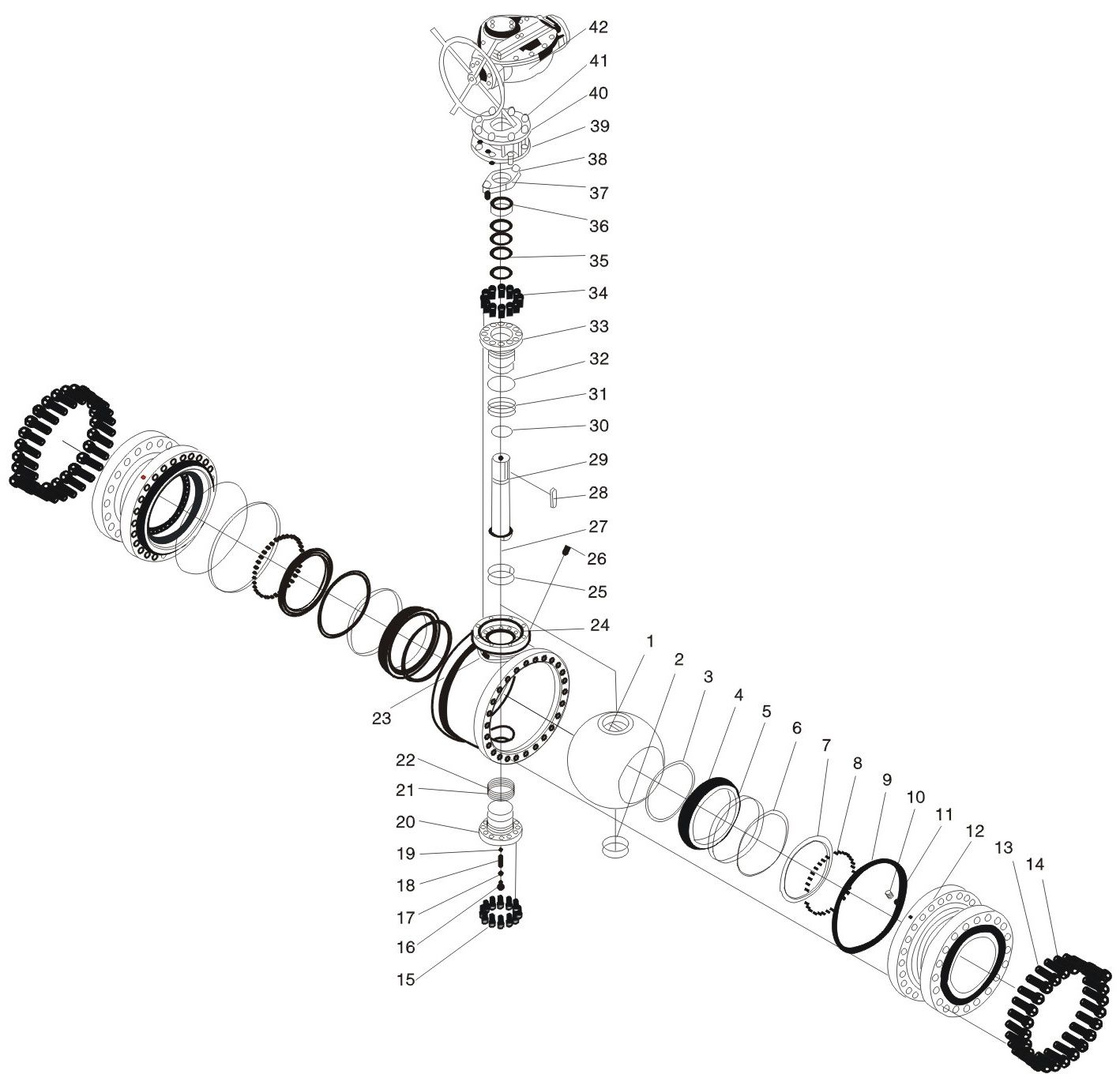

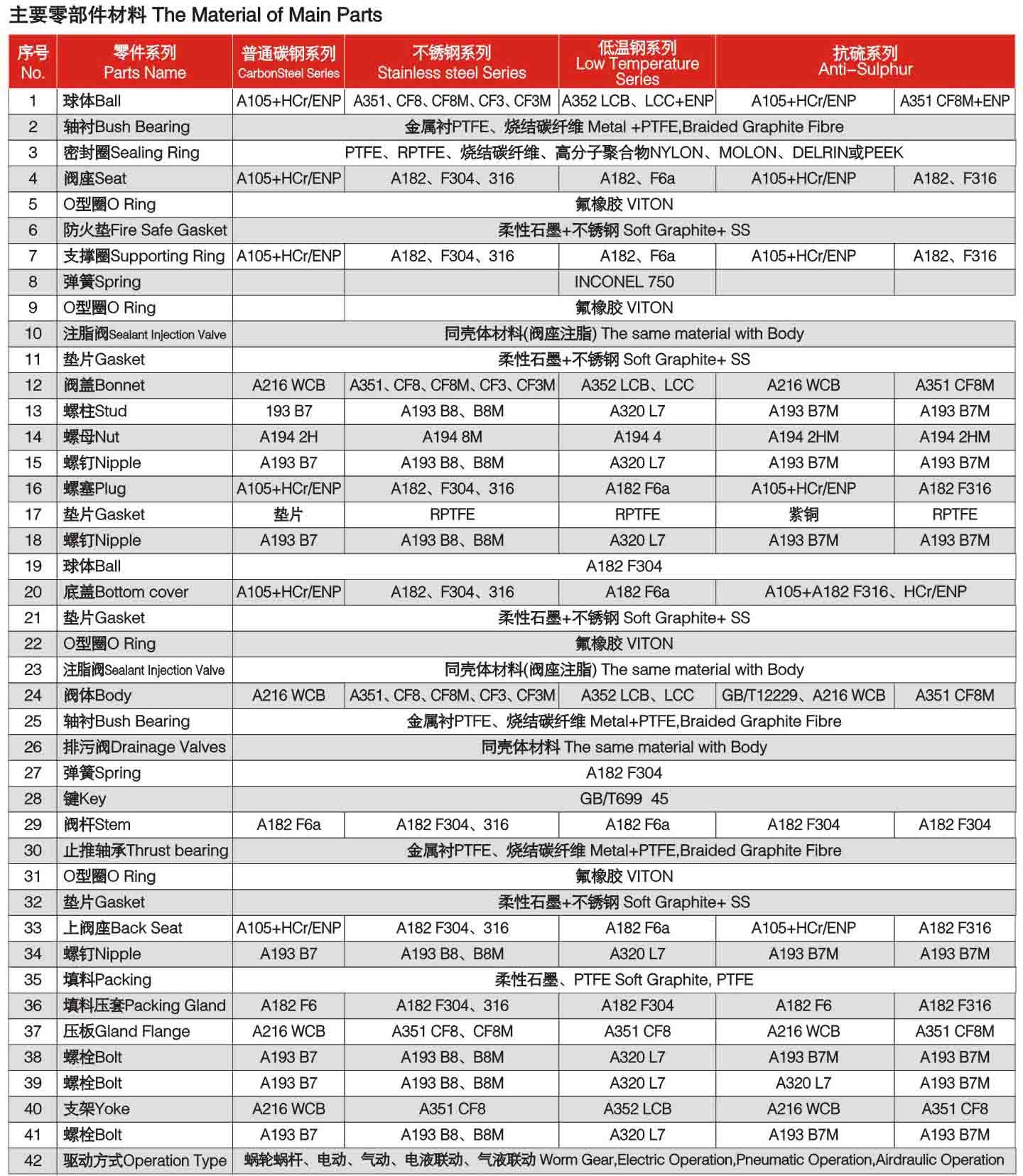

• Body Material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, MONEL etc. • Seat Material: PTFE, Nylon, PEEK, PPL, Molon, Develon, Delrin, RPTFE • O-ring Seals: NBR, Viton A, Viton AED, EPDM, Viton B • Stem/Ball/Seat Ring: 304, A105+ENP, 17-4PH, 4140+ENP, 316, 304L, 316L, LF2+ENP, 13Cr/Hard Cr, F51 • End Connection - Flange Ends/Butt Welding Ends

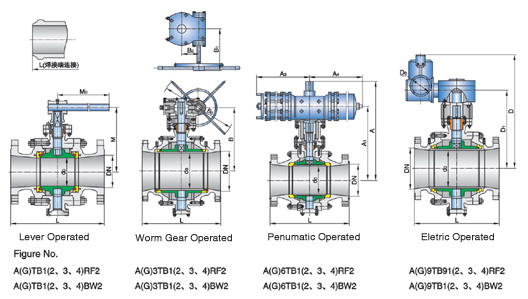

Main Outline Dimensions
PN10.0MPa Class600 mm |
DN | L | d | Handwheel | Worm Gear/Lever | Penumatic | Eletric | kg |
mm | in | RF | WE | RJ | M | M0 | B | B0 | B1 | B2 | A | A1 | A3 | A4 | D | D1 | D0 | RF | WE |
50 | 2 | 292 | 292 | 295 | 49 | 107 | 400 | - | - | - | - | 234 | 174 | 148 | 257 | - | - | - | 35 | 29 |
65 | 21/2 | 330 | 330 | 333 | 62 | 125 | 650 | - | - | - | - | 333 | 248 | 287 | 287 | - | - | - | 38 | 31 |
80 | 3 | 356 | 356 | 359 | 74 | 152 | 650 | - | - | - | - | 343 | 258 | 287 | 287 | - | - | - | 55 | 45 |
100 | 4 | 432 | 432 | 435 | 100 | 178 | 1050 | - | - | - | - | 407 | 322 | 287 | 287 | - | - | - | 102 | 78 |
125 | 5 | 508 | 508 | - | 125 | - | - | - | - | - | - | 500 | 395 | 378 | 378 | - | - | - | 160 | 120 |
150 | 6 | 559 | 559 | 562 | 150 | - | - | 389 | 400 | 200 | 108 | 562 | 457 | 378 | 378 | 522 | 337 | 508 | 232 | 182 |
200 | 8 | 660 | 660 | 664 | 201 | - | - | 449 | 600 | 330 | 144 | 725 | 595 | 530 | 530 | 606 | 421 | 508 | 390 | 310 |
250 | 10 | 787 | 787 | 791 | 252 | - | - | 497 | 600 | 330 | 144 | 760 | 630 | 530 | 530 | 684 | 482 | 508 | 710 | 590 |
300 | 12 | 838 | 838 | 841 | 303 | - | - | 550 | 800 | 370 | 220 | 893 | 728 | 680 | 680 | 751 | 549 | 508 | 960 | 790 |
350 | 14 | 889 | 889 | 892 | 334 | - | - | 582 | 800 | 370 | 220 | 1048 | 883 | 1455 | 1455 | 784 | 582 | 305 | 1700 | 1490 |
400 | 16 | 991 | 991 | 994 | 385 | - | - | 687 | 800 | 370 | 220 | 1319 | 1154 | 1455 | 1455 | 960 | 687 | 305 | 1970 | 1720 |
450 | 18 | 1092 | 1092 | 1095 | 436 | - | - | 730 | 800 | 515 | 279 | 13845 | 1224 | 1665 | 1665 | 1003 | 730 | 305 | 2180 | 1830 |
500 | 20 | 1194 | 1194 | 1200 | 487 | - | - | 780 | 800 | 515 | 279 | 1459 | 1294 | 1665 | 1665 | 1045 | 772 | 305 | 3250 | 2770 |
600 | 24 | 1397 | 1397 | 1407 | 589 | - | - | 995 | 800 | 515 | 279 | 1075 | 915 | 1665 | 1665 | 1328 | 995 | 305 | 4880 | 4030 |
650 | 26 | 1448 | 1448 | 1461 | 633 | - | - | 1038 | 800 | 515 | 279 | 1249 | 1089 | 1960 | 1960 | 1375 | 1071 | 305 | 5830 | 4840 |
700 | 28 | 1549 | 1549 | 1562 | 684 | - | - | 1088 | 800 | 570 | 368 | 1140 | 980 | 1960 | 1960 | 1459 | 1155 | 305 | 6700 | 5610 |
750 | 30 | 1651 | 1651 | 1664 | 735 | - | - | 1157 | 800 | 570 | 368 | - | - | - | - | 1661 | 1211 | 305 | 7450 | 6210 |
For dimension of size above 30", please contact SHITONG
