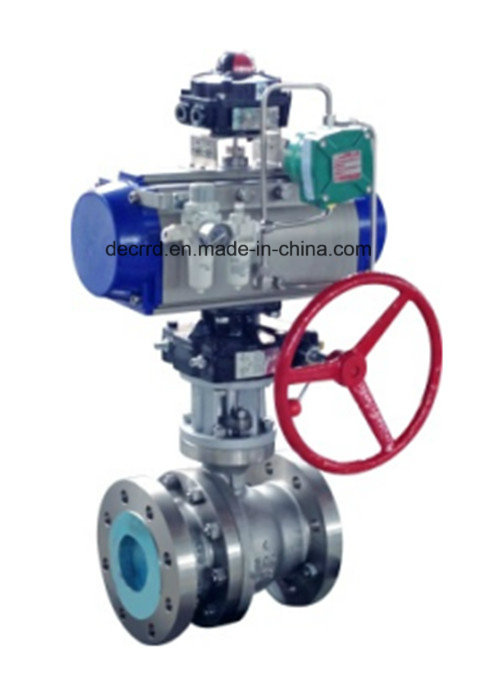

API High Performance"O" Shut-off Ball Valve
| Price: |
US $ 500-60000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
deca-1 |
| Type Of Connection: |
Flanged |
| Rated Travel: |
0~90ºC |
| Packing: |
PTFE |
| Valve Body: |
Wcb ,CF8, CF8m |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Water Industrial Usage |
| Function: |
Regulating |
Product Description
The O type shut -of ball valve is kind of quater-turn on -off valve.It is mainly used for shut-off contorl of media The ball valve of this series adopts round hole in the ball When opended It is diectly connected to the body flow channel. featured by high flow capacity.Compared With pluger valves.it has small structural sizes.light weight and the funcion of self-cleaning between plug and seat.Therefore,it is very suitable for viscous.fibrous media and those containing suspended solid particles .With low heat expansion impact due to temperature. and good sealing performance.It is widely applied in the systems of such industries as petrochemical industry.metallurgy.chemical fiber.pulp&paper.medicine.hydroelectric station etc.to meet the needs of remote control of process parameters such as flow pressure.tempertaure and liquid level of all gases.liquids or corrosive gases and liquid media.
body main technical parmaneters
| body type | two-piece,three-piece |
| Nominal diameter | DN15~500(NPS1/2~24) |
| Nominal pressure | PN 1.6~4.0Mpa(Clsaa150~600) |
| Type of connection | flanged |
| Material | A216-WCB, A351-CF8, A351-CF8M, A351-CF3,
A351-CF3M, A217-WC6, A217-WC9 |
| Bonnet: standard type | -20~250ºC |
| high temperature type | 250~525ºC |
| Packing | PTFE, flexible graphite, nickel-based wire reinforced flexible graphite |

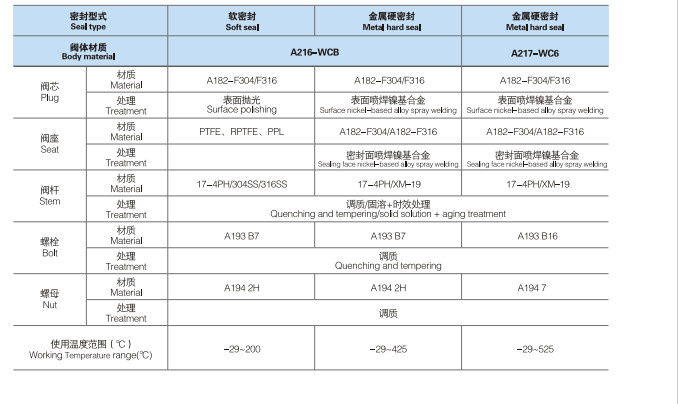

Trim main technical parmaneters
Outline dimensions: See table 12 for details.
| Plug type | O straight-through type |
| Plug material | A182-F304, A182-F316 |
| Seat material/soft seal: | PTFE, RPTFE, PPL |
| hard seal | :A182-F304, A182-F316 |
| Flow characteristic | quick opening |
| Rated Cv value: | See table 4 for details. |
| Rated travel | 0~90ºC |
| Seat Leakage class/soft seal | ANSI B16.104 class VI |
| Hard seal | ANSI B16.104 class V(hard seal class VI for special orders) |
| treatment for body | plug.ball.seat.stem etc |
Zhejiang DECA Control Valve Meter Co., Ltd., a High-tech Enterprise in Zhejiang Province, specializes in designing, developing, producing and selling control valves, including control valves, gate valves, ball valves, butterfly valves and other special valves. Our company is a first-tier supplier of SINOPEC, an approved material supplier of CNPC, an approved supplier of CNOOC, an approved material and equipment supplier of CNAF, an approved supplier of CHEMCHINA, and a network member of National Chemical Automation Design Center.

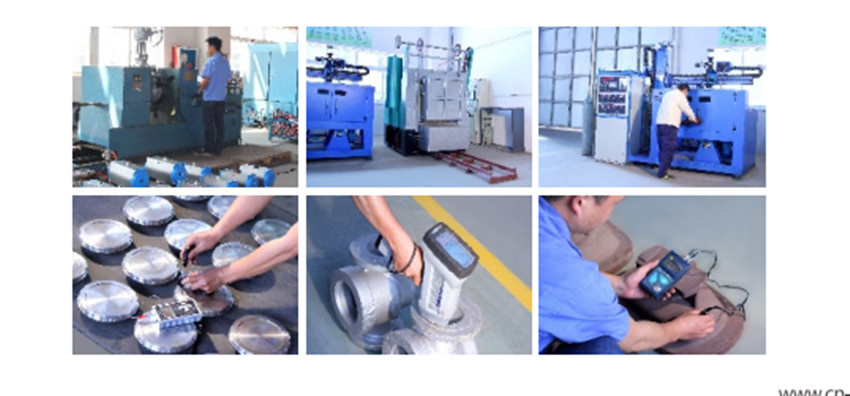

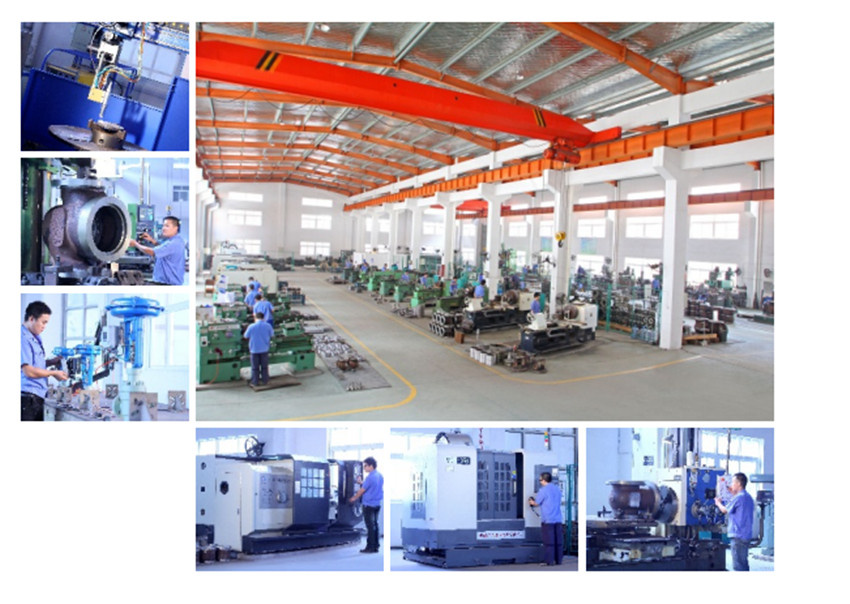

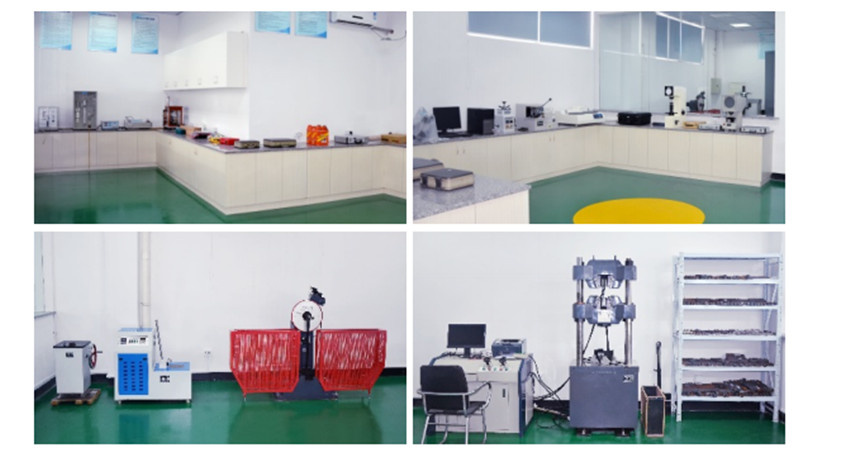

Located in Juyu Town Industrial Park, Wencheng County, Wenzhou City, our company now has a plant area of 19, 000 m2 and a construction area of 20, 000 m2. With perfect control valve production, machining, inspection and testing equipment, we have established the CAD design center and physical & chemical inspection center to effectively ensure product quality and improve production efficiency. In addition, we have a powerful technical team, as well as a skilled and efficient management team. Over the years, on the basis of introducing advanced technologies from abroad, we have kept enterprising, pioneering and innovating to successively develop a series of new control valves that represent international advanced level.
