API Stainless Steel 3PC Ball Valve with ISO5211 Mounting Pad
| Price: |
US $ 19.5-22/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Q41F-16P |
| Certification: |
ISO;Ts;Ce |
| Type Of Way: |
2 Way |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Environmental Protection;Textile;Ship.etc |
| Function: |
on-off Valve |
Product Description
Product Description

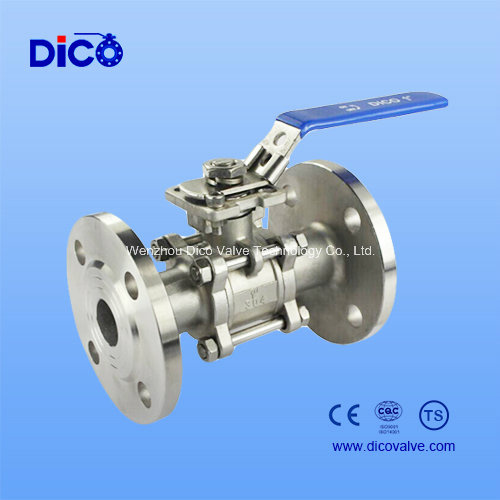

3PC Flange Stainless Steel API Ball Valve with ISO5211 Mounting Pad with locking deviceProduct Feature: 1. Floating ball, full bore or reduce bore. 2. ISO5211 mounting pad for easy automation. 3. Blow-out proof stem design. 4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition). 5. Fire-proof and anti-static design if need. 6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
SIZE UNIT:mm| SIZE | SIZE | L-PN16 | L-150LB | L-300LB | L-10K | L-PN40 | E | H | |
| DN15 | 1/2" | 130 | 108 | 140 | 108 | 115 | 132 | 72 | |
| DN20 | 3/4" | 140 | 117 | 152 | 117 | 120 | 132 | 72 | |
| DN25 | 1" | 150 | 127 | 165 | 127 | 125 | 170 | 88 | |
| DN32 | 1-1/4" | 165 | 140 | 178 | 140 | 130 | 170 | 92 | |
| DN40 | 1-1/2" | 180 | 165 | 190 | 165 | 140 | 230 | 125 | |
| DN50 | 2" | 230 | 178 | 216 | 178 | 150 | 230 | 136 | |
| DN65 | 2-1/2" | 250 | 190 | 241 | 190 | 170 | 230 | 155 | |
| DN80 | 3" | 290 | 203 | 283 | 203 | 180 | 300 | 163 | |
| DN100 | 4" | 310 | 229 | 305 | 229 | 190 | 300 | 178 | |
Technical Specification: 1. Design & Manufacture standard: API 6D, API 608, BS 5351. 2. Pressure & Temperature standard: ASME B16.34. 3. Face to face dimension standard: ASME B16.10. 4. Flange standard: ASME B16.5, ASME B16.47. 5. Test & Inspect standard: API 598, API 6D. | Product Name | 2PC Stainless Steel Flange Ball Valve 150LB 300LB 600LB |
| 1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC |
| 2. Size | 1/2''~10'' ( DN15~DN250) |
| 3. Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~600LB |
| 6. Connection Ends | Flange(RF/RTJ) |
| 7. Working Temp. | -196ºC~450ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |

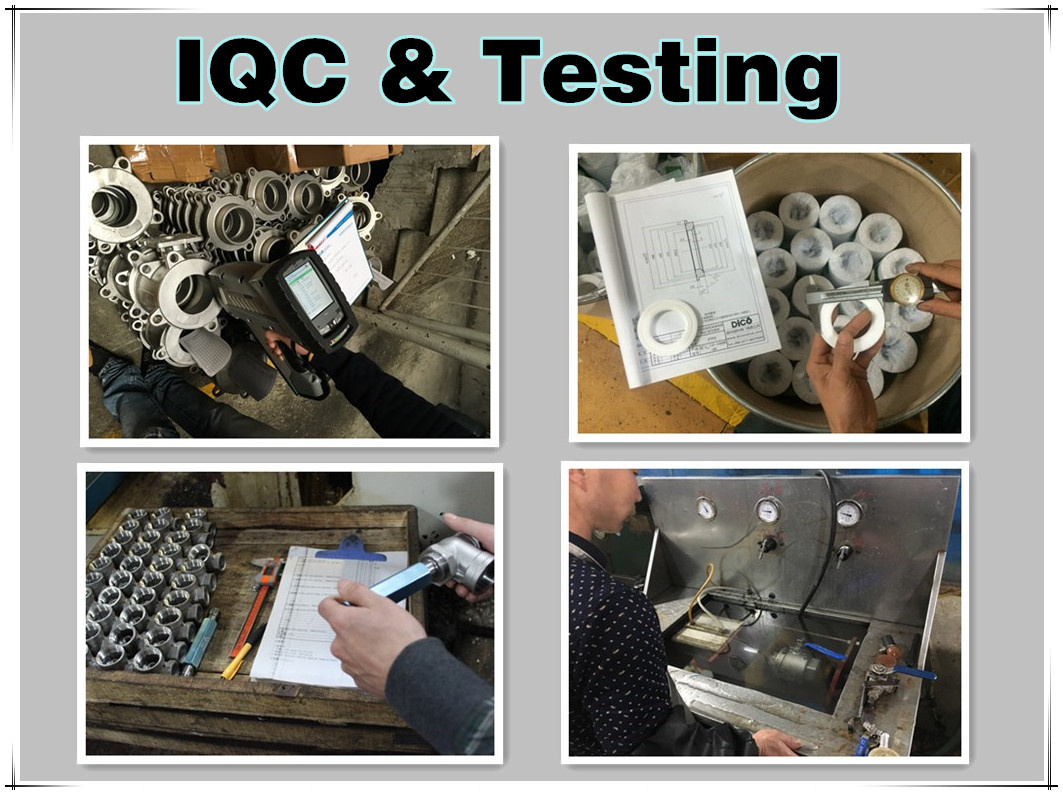

| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| | 30% prepayment, 70% balance paid before shipping or against copy of BL |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM/ODM is applicable |

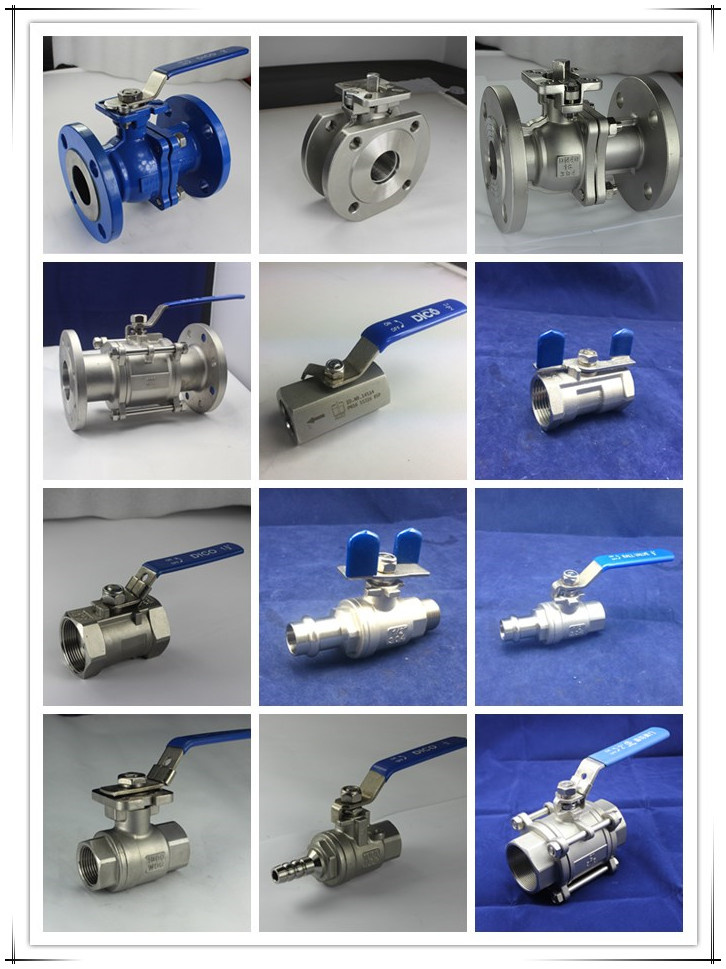

| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
Package

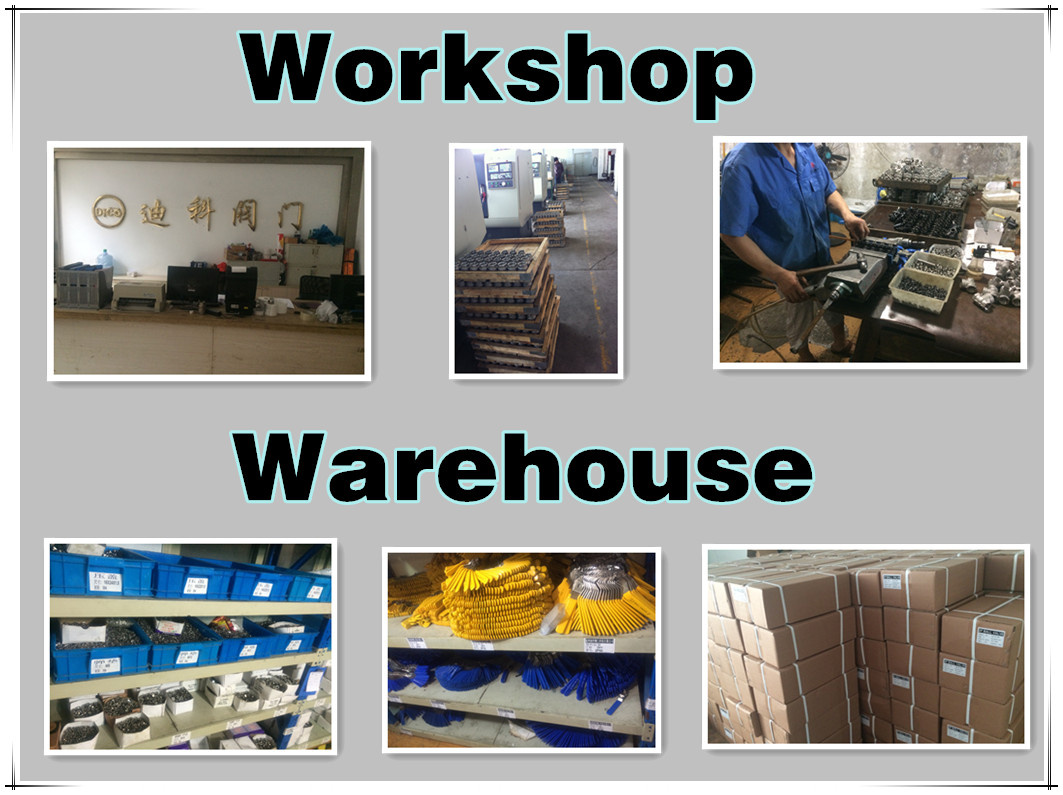

FAQQ:Why choose us ?A: we are a manufacturer, we have been manufacturing ball valve 15 years . Q. what is your payment term? A: T/T 30% down payment, balance to be paid before shipment. or L/C. Q:Can we print our logo on your products?A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc. Q: what is your main market?A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe Q: Can I get samples from your factory?A: Yes, Samples can be provided. Q: If products have some quality problem, how would you deal with?A: We will responsible for all the quality problems. Q:How about your capacity?A:As you know,we have 100staffs,own 50 CNC machines,and five person in charge of quality inspection. So please believe us we can deliver valves as your order.
Wenzhou Dico Valve Technology Co., Ltd, (Wenzhou Sente valve Co., Ltd); Established in 2005 and situated in wenzhou China, which called Chinese valve city. Dico Valve is a professional plant integrating R&D, production, sales and service of valves and has abundant strengths and plentiful production experience with a staff of over 50 involving several senior managers and engineers. DICO has obtained certifications of ISO 9001, API6D, CE, TS and so on.
The product category, materials applied and executive standards mainly produced in DICO company is listed below:
1. Category: Thread ball valve, Gate valve, Globe valve, ISO5211 Mounting pad flange ball valve etc;
2. Executive standards: ISO, API, DIN, BS, JIS, GB and so on;
3. Materials: WCB(A105), LCB(LF2), C5(F5), WC6(F11), CF8(F304), CF8M(F316), CF3(304L), CF3M(316L) and so on;
4. Diameter: 1/4"-6"(DN6-DN150);
5. Pressure: CLASS 150~CLASS 800(PN16-PN64);
6. Applicable temperature: -30º C~300º C;
In recent years, the products are exported to the nations involving USA, Turkey, Brazil, France, Italy, India, Spain and so on, and widely applied and well accepted by vast users in domestic and foreign fields like petroleum, oil refinery, chemicals, power station, boiler, metallurgy, power system control set and so on.
Our persistent management tenet is based on continuous exploitation, strict quality control, favorable price and complete service. Sincerely welcome to vast new and old clients to visit and cooperate with a view to commonly developing a brilliant tomorrow.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
