| Prod Model: |
2 3/8" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Petroleum Drilling Tool & Accessory |
| Rig Type: |
AC Electric Trailer Rig |
| Drilling Depth: |
5000m |
| Tractor Hoist Type: |
Wheeled Tractor Hoist |
| Offshore Unit Type: |
Semi-Submersible Drilling Rig |
| Drill Bit Size: |
12 1/4 Inch |
| Drill Bit Blade: |
6 |
| Transmission System: |
Mechanical |
| Power Type: |
Electric |
| Length Range: |
R2 |
| Certification: |
ISO |
| Usage: |
Well Drilling Machinery |
Product Description

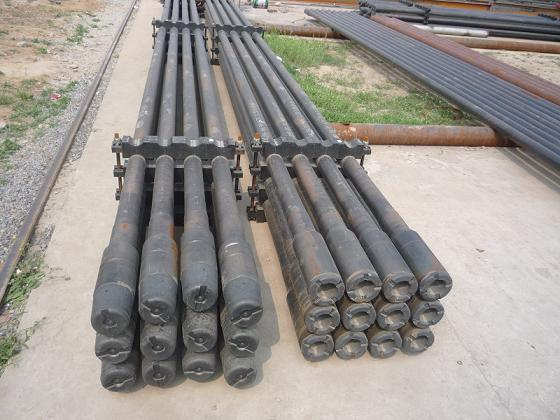

API drill pipe for oilfield
1)Drill pipe OD: 2 3/8", 2 7/8", 3 1/2", 4", 4 1/2", 5", 5 1/2"
2)API drilling pipe Steel Grade: E75, X95, G105, S135
3)Type of end finish: EU-external upset,
IEU-internal & external upset
4)All seamless steel drill pipes are made according to API 5 Drill pipe standards.
5)We can provide seamlesssteel pipe according to customers' requirements.
6)Wall thickness: 7 - 12.7 mm or 2 3/8"-5 1/2"
7)length: 5.49-12.5m
Regarding the Drill Pipe, the OD from 2 3/8" to 5 1/2" and steel grade from E75 to S135. Mainly used in oil and gas exploration and development process of deep well, horizaontal well and extended reach well. With the Hardbading and Internal Coating.
Hardbanding:
Avoid drill pipe wear and prolong life
Avoid friction caused by thernal cracking failure of drilling joints.
The wear-resisting coefficient has reduced performance with wear casing.
Harbanding Type:
Arnco-100XT
Arnco-200XT
Arnco-300XT
AMRMACO M
TCS 8000
BoTn 3000
BoTn 1000
Spec
| Weight
| Flat-end Weight
| External Diameter D
| Wall Thickness t
| Grade
| Upset Type
|
lb/ft
| Kg/m
| inch
| mm
| inch
| mm
|
2-3/8″
| 6.65
| 6.27
| 9.33
| 2.375
| 60.3
| 0.280
| 7.11
| E,X,G,S
| Upset
|
2-7/8″
| 10.4
| 9.72
| 14.47
| 2.875
| 73.0
| 0.362
| 9.19
| E,X,G,S
| Upset
|
3-1/2″
| 13.3
| 12.32
| 18.34
| 3.500
| 88.9
| 0.368
| 9.35
| E,X,G,S
| Upset
|
3-1/2″
| 15.5
| 14.64
| 21.79
| 3.500
| 88.9
| 0.449
| 11.4
| E,X,G,S
| Upset
|
4″
| 14.0
| 12.95
| 19.27
| 4.000
| 101.6
| 0.330
| 8.38
| E,X,G,S
| Int Upset
|
4-1/2″
| 16.6
| 15.00
| 22.32
| 4.500
| 114.3
| 0.337
| 8.56
| E,X,G,S
| Int-Ext Upset
|
4-1/2″
| 20.0
| 18.71
| 27.84
| 4.500
| 114.3
| 0.430
| 10.92
| E,X,G,S
| Int-Ext Upset
|
5″
| 19.5
| 17.95
| 26.70
| 5.000
| 127.0
| 0.362
| 9.19
| E,X,G,S
| Int-Ext Upset
|
5″
| 25.6
| 24.05
| 35.80
| 5.000
| 127.0
| 0.500
| 12.7
| E,X,G,S
| Int-Ext Upset
|
5-1/2″
| 21.9
| 19.83
| 29.52
| 5.500
| 139.7
| 0.361
| 9.17
| E,X,G,S
| Int-Ext Upset
|
5-1/2″
| 24.7
| 22.56
| 33.57
| 5.500
| 139.7
| 0.415
| 10.54
| E,X,G,S
| Int-Ext Upset
|
Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories like bow spring centralizer, solid rigid centralizer, float equipment, cementing plug etc.
We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT, 6A, 10D, 11AX, 11E, ISO 14001 and 9001.
With 10 years exporting experience, we have exported to more than 30 countries such as America, Canada, Russia, Venezuela, Columbia, Thailand, Indonesia, UAE, Saudi Arabia, Kazakhstan etc.
