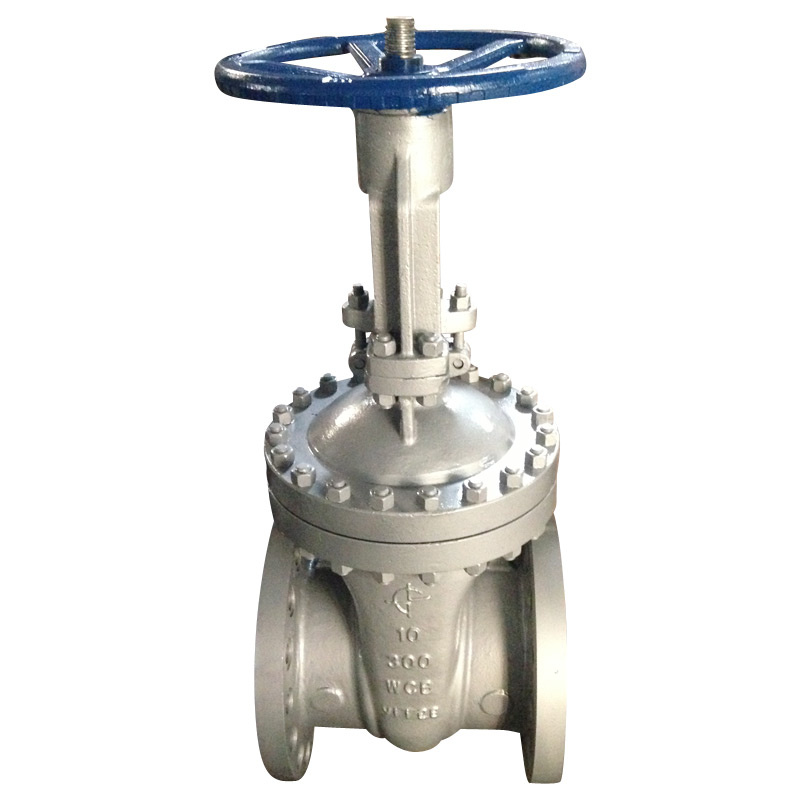

API Wcb Flanged Gate Valve

API Wcb Flanged Gate Valve
Price: US $ 23.9-24.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: Z41H-150#
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"---24"
Temperature: Not More Than 425 Degree
Medium: Water Gas Oil and Other Corrosie Liquids
Delievery Time: Normall According to The Ordered Qty
Warranty: 12 Monthes
Payment Term: 30% Should Be Paid in Advance, Other 70# Should Be
Connect: RF Flange
Materia:L: Wcb Stainless Steel
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Material: Wcb Forged Steel, Stainless Steel
Pressure: 150#--900#

Product Description

API  Flanged Gate Valve

Z41H-150#

Description:
1.Size:1/2"---24"

2.Pressure:150#.300#.600#.900#

3.Working Temperature: not more than 425 degree

4.Design standard: ANSI B16.5

5.Medium: water treament, oil ,steam, gas producing line,

6.Connect Type:Flanged RF

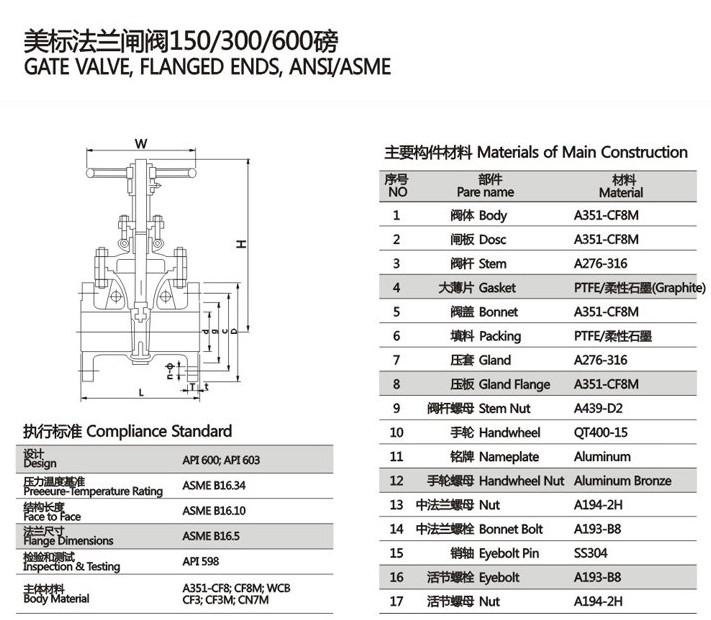

Material

1.Valve body material: WCB, Stainless Steel

2.Disc: ASTM A216 WCB  SS304  SS316

3.Seal: SSD507Mo, D577

4.Stem:1Cr13 , F6a

5.Bonnet:ASTM A216 WCB

6.Yoke nut: Zcual10Fe3 , ASTM A439 D-2

7.Hand Wheel : Malleable Cast Iron . DI WCB


Application: This kind of valve is usng the disc to cut off the medium in the producing line, it is widely used in the control system , has the "easy to operate , easy to repair " , the somple structure ,and good casting technology .

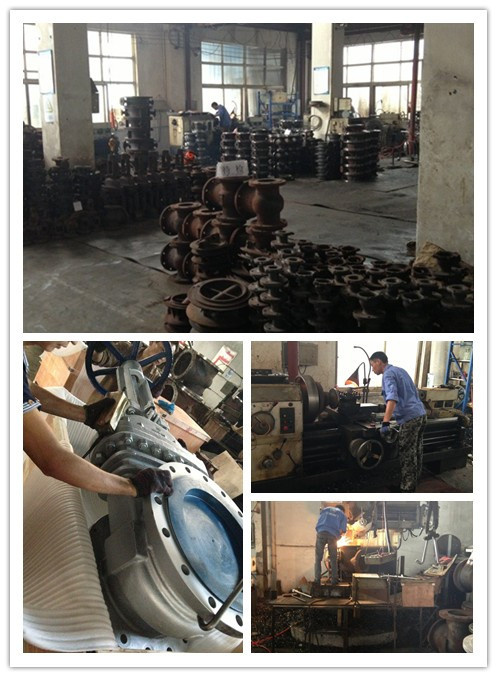

Wenzhou Jinliang Valve Co., Ltd.Is located in the enjoyment of the "China valve village " reputation of being known as the Zhejiang Wenzhou, the factory is located in Longwan District, in the Dushan Industrial zone, is a company specializing in the production, development, sales.

As one of the valve enterprises, mainly engaged in the production of valve products are:Butterfly valve.Gate Valve.Globe Valve, Ball valve.Check valve.The electric valve and a series of product specifications.

Factory has always been adhering to the " quality first, customer first, integrity management " principle, the implementation of total quality management based on, at competitive prices to meet your needs.

We sincerely welcome new and old customers come, calls, letter ordering negotiations.Let us in mutually beneficial cooperation, create success.
