| Prod Model: |
SY-DB-6311 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Material: |
Diamond, Alloy Steel |
| Finishing: |
Ti-Coated |
| Advantage: |
Quality and Price |
| Diameter(mm): |
300 - 800 |
| Segment Size(mm): |
40X3.0/3.2X10(12)~40X6.0X10(12) |
| Certification: |
BV, SGS, ISO9001:2008 |
| Characteristic: |
High Tension & Efficiency |
| Grade: |
a-Grade |
| Delivery Detail: |
7 - 15 Days |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Graininess: |
Success Formula for Stone Concrete Cutting |
| Thickness: |
2.2-4.5mm |
| Kind: |
Arix Saw Blade |
| Brand: |
Sunny Tools |
| Saw Blade External Diameter: |
350mm 400mm 450mm |
| Specification: |
350mm 400mm 450mm |

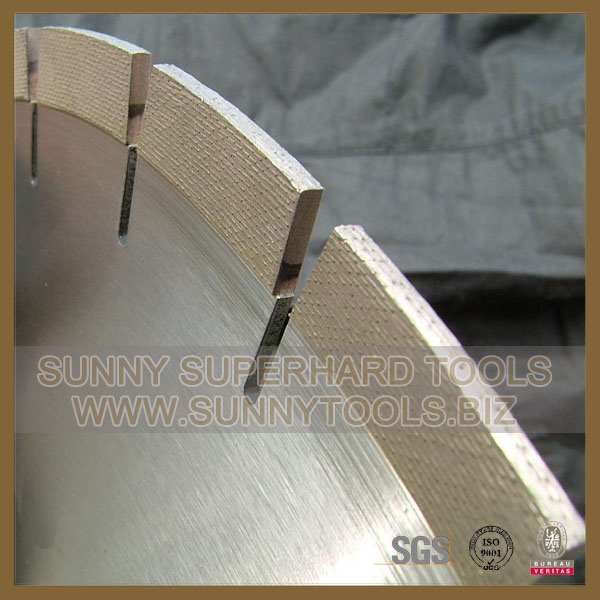

Product Description
DESCRIPTION
1. Faster cutting: the cutting speed increases by 20%-30%.
2. Longer lifetime: the cutting lifetime is extended by 30%-50%
3. Lower noise: the noise lever reduces by 10%-20% during cutting
4. Less resistance: evenly distributed segment keep equably cutting, economization of power consumption
FEATURE
1. Arix Technology is to place diamond grits precisely in three dimensional patterns and to deliver the best performance of diamond tools.
2. Control the space among diamond grits, wide or narrow, as you want, see picture.
3. Especially good performance in cutting granites, quartz, concretes, walls, masonry.
SPECIFICATION
Specification |
Inch |
Core Thickness
mm |
Segment Size
mm |
Segment Number
pc |
φ300 |
12" |
2.2/2.4 |
40x3.0/3.2x10(12) |
21 |
φ350 |
14" |
2.2/2.4 |
40x3.0/3.2x10(12) |
24 |
φ400 |
16" |
2.6/2.8 |
40x3.4/3.6/3.8x10(12) |
28 |
φ450 |
18" |
2.8/3.0 |
40x4.0/4.2x10(12) |
32 |
φ500 |
20" |
2.8/3.0 |
40x4.0/4.2x10(12) |
36 |
φ600 |
24" |
3.6 |
40x4.6/4.8x10(12) |
42 |
φ700 |
28" |
4.0 |
40x5.2/5.5x10(12) |
42 |
φ800 |
32" |
4.5 |
40x6.0x10(12) |
46/57 |
Other specification can be ordered by customer
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
