| Prod Model: |
WSDB-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
for Cutting Various Cermaic, Porcelain, Tiles |
| Slot: |
Fish Hook (Laser Cut) |
| Welding Method: |
High Frequency Silver Brazed |
| Size: |
200-400mm |
| Working Condition: |
Wet Use Only |
| Machinery: |
Laser Infrared Ray Cutting Machine |
| Quality Available: |
Premium, Medium, Standard, Economic |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
Product Description

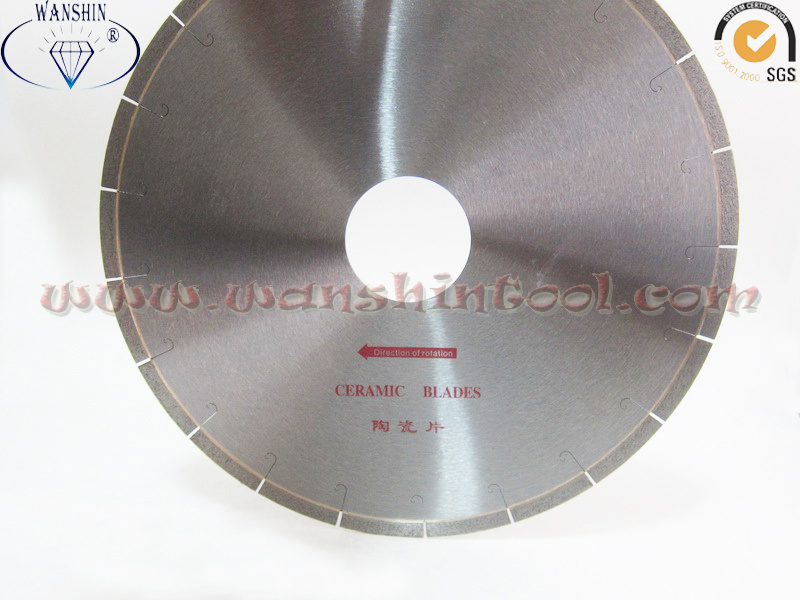

Diamond Saw Blade for cutting Ceramic, Porcelain
Feature:
Fast cutting speed, straight&smooth edge, no edge chipping problem
Notes during the cutting process:
1. During the installation period, please calibrate the flange plate, regulate the axis
2. Better to use laser infrared ray cutting machine, then the effects of cutting will be perfect
3. Please use water when cutting the ceramics, it can't be used in dry condition
4. Please keep low speed when just beginning, ajust the speed slowly till stable
5. We can adopt unique formula for different hardness ceramics.
Diameter
(mm) |
Inner hole
(mm) |
Segment length
(mm) |
Segment thickness
(mm) |
Segment height
(mm) |
Segment No.
(PCS) |
|
200 |
50/60 |
44/42 |
2.2/2.4 |
7.5 |
17 |
|
250 |
50/60 |
46/43 |
2.2/2.4 |
7.5 |
17 |
|
300 |
50/60 |
43/41 |
2.2/2.4/2.6 |
7.5 |
21 |
|
350 |
50/60 |
43/41 |
2.6 |
7.5 |
25 |
|
400 |
50/60 |
43/41 |
3.1 |
7.5 |
28 |
Wanshin Diamond Tool Co., Ltd is a professional manufacturer and exporter of various types of diamond tools. Our company is located in the city of Nan' An_the biggest stone base in China.
With over 20 years experience in the researching and manufacturing of stone tools, over 5 years in the vacuum brazed diamond tools, our products are widely accepted by many customers all over the world. Our main products include the following series:
1. Cutting tools: Diamond saw blade, diamond segments, diamond gang saw, diamond wire saws, diamond drill bits, construction cutting saw blades, etc;
2. Vacuum Brazed Diamond Tools: Such as vacuum brazed drill bits for tiles, porcelain, ceramics;
3. Stone Engraving Tools
4. Polishing&Grinding Tools: Such as diamond polishing pads, diamond cup wheels, metal grinding discs, resin grinding discs, concrete floor polishing pads, etc;
5. Electroplated Diamond Tools: Such as wet drill bits, CBN plated diamond wheels, grinding pins, etc
All of our products are inspected under a strict quality control system before it goes to customers' Hands.
Now our products are exported USA, UK, Germany, Australia, Iran, Peru, Mexico, Brazil, South Africa, Cyprus, Egypt, Poland, etc.
Our principle is helping you get the best solutions for your limitations in the processing of stones and many other materials. We sincerely welcome to you to join us, we can supply you the constantly good quality products, the best after sale service.
