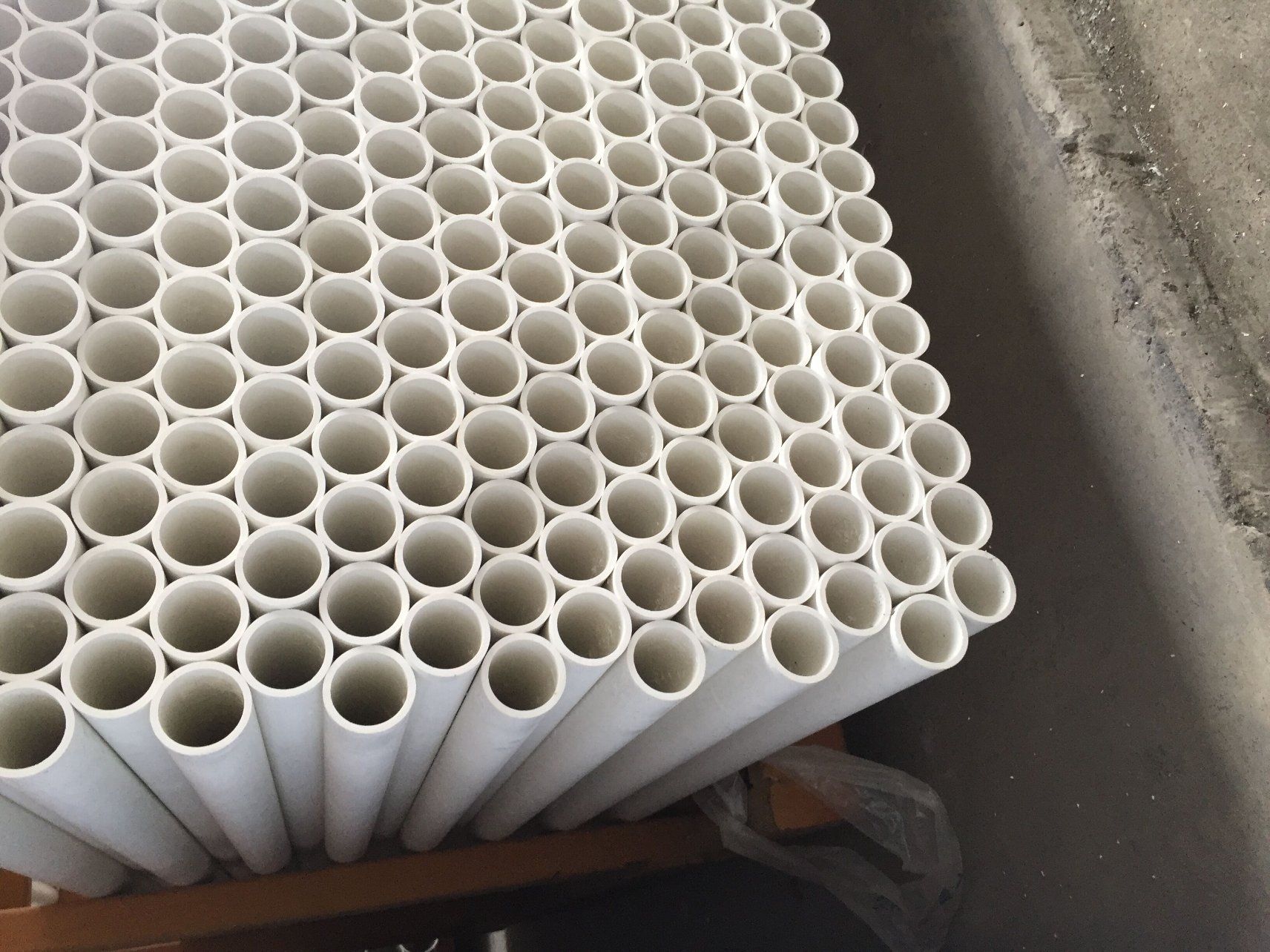

ASTM D1785 Sch40 PVC-U Potable Water Pipes and BS3505 Pressure Pipes for Cold Potable Water
| Price: |
Negotiable/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1/2'' to 8'' |
| Material: |
Plastic |
| Connection: |
Welding |
Product Description
We have been producing the following plastic pipes and fittings for 22 years:
1.UPVC electric conduits and fittings ( Chinese Standards, British Standards EN50086 ,DIN standard, Australian Standards AS/NZ2053, AS61386.1.2015, ASTM schedule 40 & 80)
2.UPVC cable trunkings or ductings and fittings (over 70 sizes for different countries)
3.UPVC flexible pipes (UPVC corrugated pipes,Chinese standards,AS/NZ2053)
4.UPVC bends (Chinese GB,AS/NZ2053, AS61386.1.2015).
5.UPVC communication pipes (AS/NZ2053, AS61386.1.2015)6.UPVC drainage/waste water pipes (Chinese GB,ASTM Schedule ,BS4514/5255 ,AS1254PVC stormwater, surface water series and AS1260 DWV PVC fittings);7.UPVC pressure water pipes and fittings (drinking water, ASTM D1785,ASTM D2466 Schedule 40 and Sch 80, ISO 4422.2 EN standard, )
Contact us for our E-catalogues, pricelists, sample photos or samples,etc.
We also build the moulds by ourselves (injection parts, extrusion parts) for the pipes, trunkings and fittings.
D 1785 - 06 TABLE 1 Outside Diameters and Tolerances for PVC Plastic Pipe Schedules 40, 80, and 120, in. (mm) | | | | | Tolerances | | |
| | | | | |
| | | | | Maximum Out-of-Roundness (maximum minus minimum |
| | | | | diameter) | |
| Nominal Pipe Size | Outside Diameter | | | |
| Average | Schedule 40 sizes 31⁄2 in. and | Schedule 40 sizes 3 in. and |
| | | | over; Schedule 80 sizes 8 in. | less; |
| | | | |
| | | | | and over | Schedule 80 sizes 6 in. and |
| | | | | | less; |
| | | | | | Schedule 120 sizes all |
| | | | | | | |
| 1⁄8 | 0.405 | (10.29) | 60.004 (60.10) | . . . | 0.016 | (0.41) |
| 1⁄4 | 0.540 | (13.72) | 60.004 (60.10) | . . . | 0.016 | (0.41) |
| 3⁄8 | 0.675 | (17.14) | 60.004 (60.10) | . . . | 0.016 | (0.41) |
| 1⁄2 | 0.840 | (21.34) | 60.004 (60.10) | . . . | 0.016 | (0.41) |
| 3⁄4 | 1.050 | (26.67) | 60.004 (60.10) | . . . | 0.020 | (0.51) |
| 1 | 1.315 | (33.40) | 60.005 (60.13) | . . . | 0.020 (0.51) |
| 11⁄4 | 1.660 | (42.16) | 60.005 (60.13) | . . . | 0.024 (0.61) |
| 11⁄2 | 1.900 | (48.26) | 60.006 (60.15) | . . . | 0.024 (0.61) |
| 2 | 2.375 | (60.32) | 60.006 (60.15) | . . . | 0.024 (0.61) |
| 21⁄2 | 2.875 | (73.02) | 60.007 (60.18) | . . . | 0.030 (0.76) |
| 3 | 3.500 | (88.90) | 60.008 (60.20) | . . . | 0.030 (0.76) |
| 31⁄2 | 4.000 | (101.60) | 60.008 (60.20) | 0.100 (2.54) | 0.030 (0.76) |
| 4 | 4.500 (114.30) | 60.009 (60.23) | 0.100 (2.54) | 0.030 (0.76) |
| 5 | 5.563 | (141.30) | 60.010 (60.25) | 0.100 (2.54) | 0.060 (1.52) |
| 6 | 6.625 | (168.28) | 60.011 (60.28) | 0.100 (2.54) | 0.070 (1.78) |
| 8 | 8.625 | (219.08) | 60.015 (60.38) | 0.150 (3.81) | 0.090 (2.29) |
| 10 | 10.750 | (273.05) | 60.015 (60.38) | 0.150 (3.81) | 0.100 (2.54) |
| 12 | 12.750 | (323.85) | 60.015 (60.38) | 0.150 (3.81) | 0.120 (3.05) |
| 14 | 14.000 (355.60 | 60.015 (60.38) | 0.200 (5.08) | . . . |
| 16 | 16.000 | (406.40) | 60.019 (60.48) | 0.320 (8.13) | . . . |
| 18 | 18.000 | (457.20) | 60.019 (60.48) | 0.360 (9.14) | . . . |
| 20 | 20.000 | (508.00) | 60.023 (60.58) | 0.400 (10.2) | . . . |
| 24 | 24.000 | (609.60) | 60.031 (60.79) | 0.480 (12.2) | . . . |
| | | | | | | |
TABLE 2 Wall Thicknesses and Tolerances for PVC Plastic Pipe, Schedules 40, 80, and 120,A,B in. (mm) | | | | | | Wall ThicknessA | | | |
| Nominal Pipe | | | | | | | | | |
| | Schedule 40 | | Schedule 80 | | Schedule 120 |
| Size | | | |
| | | | | | | | | |
| | Minimum | Tolerance | Minimum | Tolerance | Minimum | Tolerance |
| | | | | | | | | |
| 1⁄8 | 0.068 | (1.73) | +0.020 (+0.51) | 0.095 | (2.41) | +0.020 (+0.51) | . . . | . . . |
| 1⁄4 | 0.088 | (2.24) | +0.020 (+0.51) | 0.119 (3.02) | +0.020 (+0.51) | . . . | . . . |
| 3⁄8 | 0.091 | (2.31) | +0.020 (+0.51) | 0.126 | (3.20) | +0.020 (+0.51) | . . . | . . . |
| 1⁄2 | 0.109 | (2.77) | +0.020 (+0.51) | 0.147 | (3.73) | +0.020 (+0.51) | 0.170 | (4.32) | +0.020 (+0.51) |
| 3⁄4 | 0.113 (2.87) | +0.020 (+0.51) | 0.154 | (3.91) | +0.020 (+0.51) | 0.170 | (4.32) | +0.020 (+0.51) |
| 1 | 0.133 | (3.38) | +0.020 (+0.51) | 0.179 | (4.55) | +0.021 (+0.53) | 0.200 | (5.08) | +0.024 (+0.61) |
| 11⁄4 | 0.140 | (3.56) | +0.020 (+0.51) | 0.191 | (4.85) | +0.023 (+0.58) | 0.215 | (5.46) | +0.026 (+0.66) |
| 11⁄2 | 0.145 | (3.68) | +0.020 (+0.51) | 0.200 | (5.08) | +0.024 (+0.61) | 0.225 | (5.72) | +0.027 (+0.68) |
| 2 | 0.154 | (3.91) | +0.020 (+0.51) | 0.218 | (5.54) | +0.026 (+0.66) | 0.250 | (6.35) | +0.030 (+0.76) |
| 21⁄2 | 0.203 | (5.16) | +0.024 (+0.61) | 0.276 | (7.01) | +0.033 (+0.84) | 0.300 | (7.62) | +0.036 (+0.91) |
| 3 | 0.216 | (5.49) | +0.026 (+0.66) | 0.300 | (7.62) | +0.036 (+0.91) | 0.350 | (8.89) | +0.042 (+1.07) |
| 31⁄2 | 0.226 | (5.74) | +0.027 (+0.68) | 0.318 | (8.08) | +0.038 (+0.96) | 0.350 | (8.89) | +0.042 (+1.07) |
| 4 | 0.237 | (6.02) | +0.028 (+0.71) | 0.337 | (8.56) | +0.040 (+1.02) | 0.437 (11.10) | +0.052 (+1.32) |
| 5 | 0.258 | (6.55) | +0.031 (+0.79) | 0.375 | (9.52) | +0.045 (+1.14) | 0.500 | (12.70) | +0.060 (+1.52) |
| 6 | 0.280 (7.11) | +0.034 (+0.86) | 0.432 | (10.97) | +0.052 (+1.32) | 0.562 | (14.27) | +0.067 (+1.70) |
| 8 | 0.322 | (8.18) | +0.039 (+0.99) | 0.500 | (12.70) | +0.060 (+1.52) | 0.718 | (18.24) | +0.086 (+2.18) |
| 10 | 0.365 | (9.27) | +0.044 (+1.12) | 0.593 | (15.06) | +0.071 (+1.80) | 0.843 | (21.41) | +0.101 (+2.56) |
| 12 | 0.406 | (10.31) | +0.049 (+1.24) | 0.687 | (17.45) | +0.082 (+2.08) | 1.000 | (25.40) | +0.120 (+3.05) |
| 14 | 0.437 (11.10) | +0.053 (+1.35) | 0.750 | (19.05) | +0.090 (+2.29) | . . . | . . . |
| 16 | 0.500 | (12.70) | +0.060 (+1.52) | 0.843 | (21.41) | +0.101 (+2.57) | . . . | . . . |
| 18 | 0.562 | (14.27) | +0.067 (+1.70) | 0.937 | (23.80) | +0.112 (+2.84) | . . . | . . . |
| 20 | 0.593 | (15.06) | +0.071 (+1.80) | 1.031 | (26.19) | +0.124 (+3.15) | . . . | . . . |
| 24 | 0.687 | (17.45) | +0.082 (+2.08) | 1.218 | (30.94) | +0.146 (+3.71) | . . . | . . . |
| | | | | | | | | | |
D 1785 - 06
TABLE 3 Sustained Pressure Test Conditions for Water at 73°F (23°C) for PVC Plastic Pipe, Schedule 40 | Nominal | | | Pressure Required for TestA | |
| PVC1120 | | | |
| Pipe | | | |
| Size | PVC1220 | PVC2116 | PVC2112 | PVC2110 |
| | PVC2120 | | | |
| | | | | | |
| in. | | | | psi | |
| | | | | |
| 1⁄8 | 1690 | 1360 | 1130 | 930 |
| 1⁄4 | 1640 | 1310 | 1090 | 900 |
| 3⁄8 | 1310 | 1050 | 870 | 720 |
| 1⁄2 | 1250 | 1000 | 840 | 690 |
| 3⁄4 | 1010 | 810 | 680 | 550 |
| 1 | 950 | 760 | 630 | 520 |
| 11⁄4 | 770 | 620 | 520 | 420 |
| 11⁄2 | 690 | 560 | 460 | 380 |
| 2 | 580 | 470 | 390 | 320 |
| 21⁄2 | 640 | 510 | 430 | 350 |
| 3 | 590 | 440 | 370 | 300 |
| 31⁄2 | 500 | 400 | 340 | 280 |
| 4 | 470 | 370 | 310 | 260 |
| 5 | 410 | 330 | 270 | 220 |
| 6 | 370 | 300 | 250 | 200 |
| 8 | 330 | 260 | 220 | 180 |
| 10 | 300 | 240 | 200 | 160 |
| 12 | 280 | 220 | 180 | 150 |
| 14 | 270 | 220 | 180 | 150 |
| 16 | 270 | 220 | 180 | 150 |
| 18 | 270 | 220 | 180 | 150 |
| 20 | 260 | 210 | 170 | 140 |
| 24 | 250 | 200 | 170 | 140 |
| | | | | | |
| in. | | | | MPa | |
| | | | | |
| 1⁄8 | 11.65 | 9.38 | 7.79 | 6.41 |
| 1⁄4 | 11.31 | 9.03 | 7.52 | 6.21 |
| 3⁄8 | 9.03 | 7.24 | 6.00 | 4.96 |
| 1⁄2 | 8.62 | 6.89 | 5.79 | 4.76 |
| 3⁄4 | 6.96 | 5.58 | 4.69 | 3.79 |
| 1 | 6.55 | 5.24 | 4.34 | 3.59 |
| 11⁄4 | 5.31 | 4.27 | 3.59 | 2.90 |
| 11⁄2 | 4.76 | 3.86 | 3.17 | 2.62 |
| 2 | 4.00 | 3.24 | 2.69 | 2.21 |
| 21⁄2 | 4.41 | 3.52 | 2.96 | 2.41 |
| 3 | 4.07 | 3.03 | 2.55 | 2.07 |
| 31⁄2 | 3.45 | 2.76 | 2.34 | 1.93 |
| 4 | 3.24 | 2.55 | 2.14 | 1.79 |
| 5 | 2.83 | 2.28 | 1.86 | 1.52 |
| 6 | 2.55 | 2.07 | 1.72 | 1.38 |
| 8 | 2.28 | 1.79 | 1.52 | 1.24 |
| 10 | 2.07 | 1.65 | 1.38 | 1.10 |
| 12 | 1.93 | 1.52 | 1.24 | 1.03 |
| 14 | 1.89 | 1.54 | 1.26 | 1.05 |
| 16 | 1.89 | 1.54 | 1.26 | 1.05 |
| 18 | 1.89 | 1.54 | 1.26 | 1.05 |
| 20 | 1.82 | 1.47 | 1.19 | 0.98 |
| 24 | 1.75 | 1.40 | 1.19 | 0.98 |
A The fiber stresses used to derive these test pressures are as follows: | | psi | MPa |
| PVC1120 | 4200 | 29.0 |
| PVC1220 | 4200 | 29.0 |
| PVC2120 | 4200 | 29.0 |
| PVC2116 | 3360 | 23.2 |
| PVC2112 | 2800 | 19.3 |
| PVC2110 | 2300 | 15.9 |
TABLE 4 Sustained Pressure Test Conditions for Water at 73°F (23°C) for PVC Plastic Pipe, Schedule 80 | Nominal | | | Pressure Required for TestA | |
| PVC1120 | | | |
| Pipe | | | |
| Size | PVC1220 | PVC2116 | PVC2112 | PVC2110 |
| | PVC2120 | | | |
| | | | | | |
| in. | | | | psi | |
| | | | | |
| 1⁄8 | 2570 | 2060 | 1720 | 1410 |
| 1⁄4 | 2370 | 1900 | 1580 | 1300 |
| 3⁄8 | 1930 | 1540 | 1290 | 1060 |
| 1⁄2 | 1780 | 1430 | 1190 | 980 |
| 3⁄4 | 1440 | 1160 | 960 | 790 |
| 1 | 1320 | 1060 | 880 | 720 |
| 11⁄4 | 1090 | 870 | 730 | 600 |
| 11⁄2 | 990 | 790 | 660 | 540 |
| 2 | 850 | 680 | 570 | 460 |
| 21⁄2 | 890 | 710 | 590 | 490 |
| 3 | 790 | 630 | 520 | 430 |
| 31⁄2 | 730 | 580 | 480 | 400 |
| 4 | 680 | 540 | 450 | 370 |
| 5 | 610 | 490 | 400 | 330 |
| 6 | 590 | 470 | 390 | 320 |
| 8 | 520 | 410 | 340 | 280 |
| 10 | 490 | 390 | 330 | 270 |
| 12 | 480 | 380 | 320 | 260 |
| 14 | 470 | 380 | 320 | 260 |
| 16 | 470 | 370 | 310 | 260 |
| 18 | 460 | 370 | 310 | 250 |
| 20 | 460 | 370 | 300 | 250 |
| 24 | 450 | 360 | 300 | 250 |
| | | | | | |
| in. | | | | MPa | |
| | | | | |
| 1⁄8 | 17.72 | 14.21 | 11.86 | 9.72 |
| 1⁄4 | 16.34 | 13.10 | 10.90 | 8.96 |
| 3⁄8 | 13.31 | 10.62 | 8.89 | 7.31 |
| 1⁄2 | 12.27 | 9.86 | 8.20 | 6.76 |
| 3⁄4 | 9.93 | 8.00 | 6.62 | 5.45 |
| 1 | 9.10 | 7.31 | 6.07 | 4.96 |
| 11⁄4 | 7.52 | 6.00 | 5.03 | 4.14 |
| 11⁄2 | 6.83 | 4.96 | 4.55 | 3.72 |
| 2 | 5.86 | 4.69 | 3.93 | 3.17 |
| 21⁄2 | 6.14 | 4.90 | 4.07 | 3.38 |
| 3 | 5.45 | 4.34 | 3.59 | 2.96 |
| 31⁄2 | 5.03 | 4.00 | 3.31 | 2.76 |
| 4 | 4.69 | 3.72 | 3.10 | 2.55 |
| 5 | 4.21 | 3.38 | 2.76 | 2.28 |
| 6 | 4.07 | 3.24 | 2.69 | 2.21 |
| 8 | 3.59 | 2.83 | 2.34 | 1.93 |
| 10 | 3.38 | 2.69 | 2.28 | 1.86 |
| 12 | 3.31 | 2.62 | 2.21 | 1.79 |
| 14 | 3.29 | 2.66 | 2.24 | 1.82 |
| 16 | 3.29 | 2.59 | 2.17 | 1.82 |
| 18 | 3.22 | 2.59 | 2.17 | 1.75 |
| 20 | 3.22 | 2.59 | 2.10 | 1.75 |
| 24 | 3.15 | 2.52 | 2.10 | 1.75 |
We are a specially-established company for export of our group factories'products. We are focusing on building materials, medical products. We are producers of UPVC/CPVC pipes and fittings, Foam UPVC boards and profiles.
We have sound and experienced export sales teams. We accept OEM and ODM orders. We have strong R & D departments at our factories, therefore, strong technical supports can be guaranteed.
We pay high attention to our credit, fame, product quality, prompt service, competitive prices, long term cooperation with our clients, etc.
We warmly welcome worldwide clients to visit our factories at their convenience.
Our Chief products:
I. Foam UPVC products
UPVC foam board or sheets(smooth and embossed);
UPVC foam profiles; (NEW)
UPVC foam wall hanging boards; (NEW)
ASA/UPVC heat insulation roofing tiles; (NEW)
UPVC heat insulation roofing tiles; (NEW)
WPC(Wood Plastic Composite) (NEW)
As for the foam, we have 2 types(free foam and Celuka).
Our products meet ASTM, UL standards. For the PVC foam board, our products share the same quality as the European companies. We have Free Foam and Celuka. Thickness is between 1mm and 30 mm. We have two series: With low lead(for Chinese and European markets) and without lead(for US and Canada markets). The standard sizes are 1220mmx2440mm, 1220mmx3050mm, 1560mmx2440mm, 1560mmx3050mm, 2050mmx3050mm, sizes can be adjustable according to your requirements(the maximum width is 2.05meters, length can be any).
Densities: Usually our density is between 0.55 and 0.65. It"s the same as American, Canadian and European companies. That is to say, 500-550kg per cubic meters.
Our quality is high, the prices are competitive. Our service is prompt.
This material has the following advantages:
1. Fire proof,
2. Anti Static,
3. Paintable,
4. Termite proof,
5. Water-proof,
6. No warping, no bending;
7. Environmentally-friendly,
8. No lead
9. Can be sawed, drilled like wood, but much better than wood,
10. Recycling,
11. With good UV stabilizers
II. TDP lamps
TDP lamp is a type of far infrared lamp. It is often called the Miracle Lamp, as it helps with pain relief and treats back pain, arthritis, shoulder pain, joint pain, etc. As an alternative medicine treatment. TDP lamps were invented by a group of Chinese scientists, headed by Mr. Gou Wenbin in 1985. TDP lamps create mineral infrared waves that treat numerous ailments, a few common ones being back pain, shoulder pain, joint pain and arthritis.
III. UPVC and CPVC products
UPVC electric conduit ( Chinese Standards, British Standards, UL651/ASTM Schedule 40, AS2053);
UPVC cable trunkings and fittings;
CPVC pipes (ASTM Schedule 40, 80);
UPVC drainage/waste water pipes (Chinese GB, DIN, BS, AS1260, ASTM schedule 40);
UPVC drinking water pipes; (ASTM Schedule 40/80, DIN, BS)
UPVC flexible/corrugated pipes/conduits (Chinese GB and AS/NZS2053)
UPVC bends (Chinese GB and AS2053)
