| Prod Model: |
COP84 dth hammer |
| Sizes: |
8 Inch |
| Bit Diameter: |
195mm-254mm |
| Outer Diameter: |
180mm |
| Product Name: |
Cop84 DTH Hammer |
| Top Sub Thread: |
API 4 1/2" Reg |
| Air Pressure: |
10-25 Bar |
| Weight: |
188kgs |
| Length: |
1492 |
| Material: |
High Quality Special Steel |
| Exporting Countries: |
France, Canada, Spain, Australia, etc |
Product Description
About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
8" DTH hammer specifications:
Model: DHD380, COP84, SD8, QL80
| DHD380
COP84 | SD8 | QL80 |
| Length(less bit) | 1492mm | 1463mm | 1465mm |
| Weight (less bit) | 188.0kg | 192.0kg | 182.00kg |
| External diameter | 180mm | 180mm | 185mm |
| Bits shank | DHD380
COP84 | SD8 | QL80 |
| Bits diameter | 200-279mm
7 7/8" - 11" |
200-279mm
7 7/8" - 11"
| 200-279mm
7 7/8" - 11" |
| Connection thread | API 4 1/2" Reg | API 4 1/2" Reg | API 4 1/2" Reg |
| Air pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
Other shank can be available:
3.5" hammer, shank: DHD3.5 / Bulroc BR3 / COP32 / QL30 / M30 /Mach303
4" hammer, IR DHD340A / SD4 / COP44 / QL40 / Bulroc BR4 / M40 / Mach44 shank
5" hammer, IR DHD350R / SD5 / COP54 / Bulroc BR5 / QL50 / M50 /Mach50 shank
6" hammer, IR DHD360 / SD6 / COP64 / Bulroc BR6 / QL60 / M60 shank
8" hammer, IR DHD380 / SD8 / COP84 /QL80 shank
10" hammer, SD10 / Numa100 shank
12" hammer, IR DHD1120 / SD12 / Numa120 / Numa125 shank
15" hammer, SD15 shank
We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

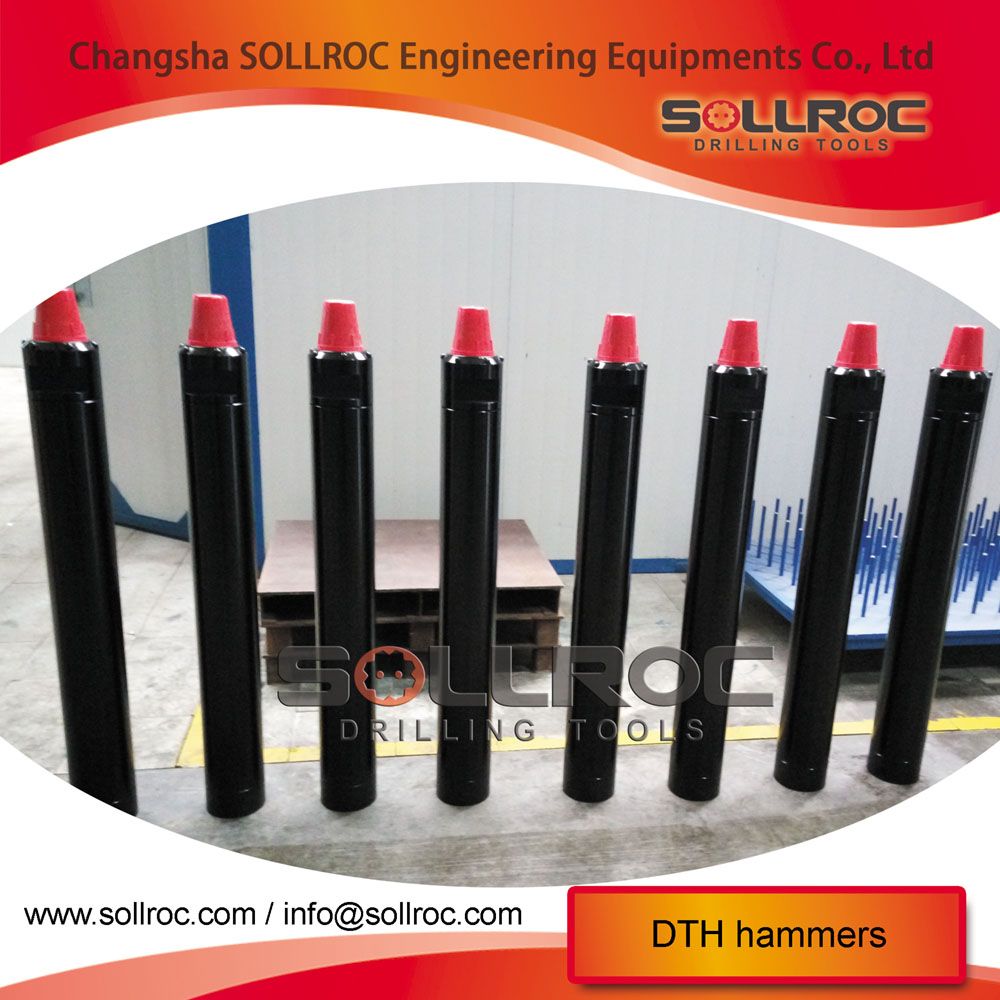

Product photos
Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally, Production time is 15 -25 days.
Transportation:
By air, By Express or By sea according to your requests.
Sollroc, with more 20 years of experience, is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
We are dedicated to offering our customers only premium quality products and services to enable them to achieve the highest possible productivity for their business and projects. If you are looking for the best, fastest and most productive drilling tools in the world, Sollroc should be your best choice and preference.
