| Prod Model: |
5mm |
| Material: |
Steel |
| Shape: |
Bow Shape |
Product Description
AUSTRALIAN STANDARD GRADE S DEE SHACKLE AS2741
Hot Dipped Galvanized.
Body Forged Carbon Steel, and Pin Forged Alloy Steel.
Proof load is 2.2 times Working Load Limit.

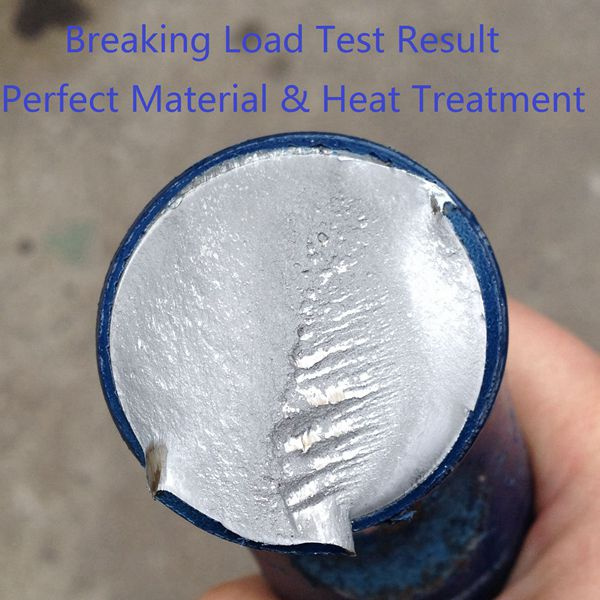

Ultimate Load is 6 times Working Load Limit.
| SIZE | D | d | B | H | SWL |
| | mm | mm | mm | mm | t |
| 6 | 6 | 8 | 12 | 29 | 0.5 |
| 8 | 8 | 10 | 13 | 31 | 0.75 |
| 10 | 10 | 11 | 17 | 37 | 1 |
| 11 | 11 | 13 | 18 | 43 | 1.5 |
| 13 | 13 | 16 | 21 | 48 | 2 |
| 16 | 16 | 19 | 27 | 61 | 3.2 |
| 19 | 19 | 22 | 32 | 72 | 4.7 |
| 22 | 22 | 25 | 37 | 84 | 6.5 |
| 25 | 25 | 29 | 43 | 95 | 8.5 |
| 29 | 29 | 32 | 46 | 108 | 9.5 |
| 32 | 32 | 35 | 52 | 119 | 12 |
| 35 | 35 | 38 | 57 | 133 | 13.5 |
| 38 | 38 | 41 | 60 | 146 | 17 |
| 44 | 44 | 51 | 73 | 178 | 25 |
| 51 | 51 | 57 | 83 | 197 | 35 |
Zhengzhou Shuanglian Metal Products Ltd. was established in 2003. Mainly engaged in metal parts machining and metal mold manufacturing, the main products are: Auto parts, valve parts, prosthetic parts and metal molds. More than 90% of products exported to the United States, Europe and other regions.
Our factory has 60 employees, 8 engineers, more than 30 CNC machines and 2000 square meter building. We have specialized production workshops, such as Machining workshop, polishing workshop, welding workshop & assembling workshop, to ensure production line ongoing efficiently and orderly. We continue introducing advanced manufacturing equipment & technology.
Our mission statement, "Survival is based on the development of quality products, growth depends on providing honest services" has been the same since the factory was founded. Our management (ISO9001: 2009 certified) ensures we employ the latest science and manufacturing technology as well as ensuring that our staff has the up-to-date, professional comprehensive skills training required for quality manufacturing and testing equipment operation.
