| Prod Model: |
Aluminum Alloy CNC Parts 104 |
| Product Name: |
Aluminum Alloy CNC Parts 104 |
| Machining Material: |
Aluminum Alloy |
| Application Industry: |
Automation, Aerospace, Medical |
| Quality Control: |
100% Full Inspection |
| Processing: |
CNC Milling, Drilling, Anodized |
| Tolerance: |
High Precision:+/-0.005mm |
| Quality Certificate: |
ISO9001:2008; SGS; RoHS |
| Surface Treatment: |
Anodized |
| Delivery Time: |
8-15 Working Days |
| CNC Parts Customized: |
Accept |
Product Description

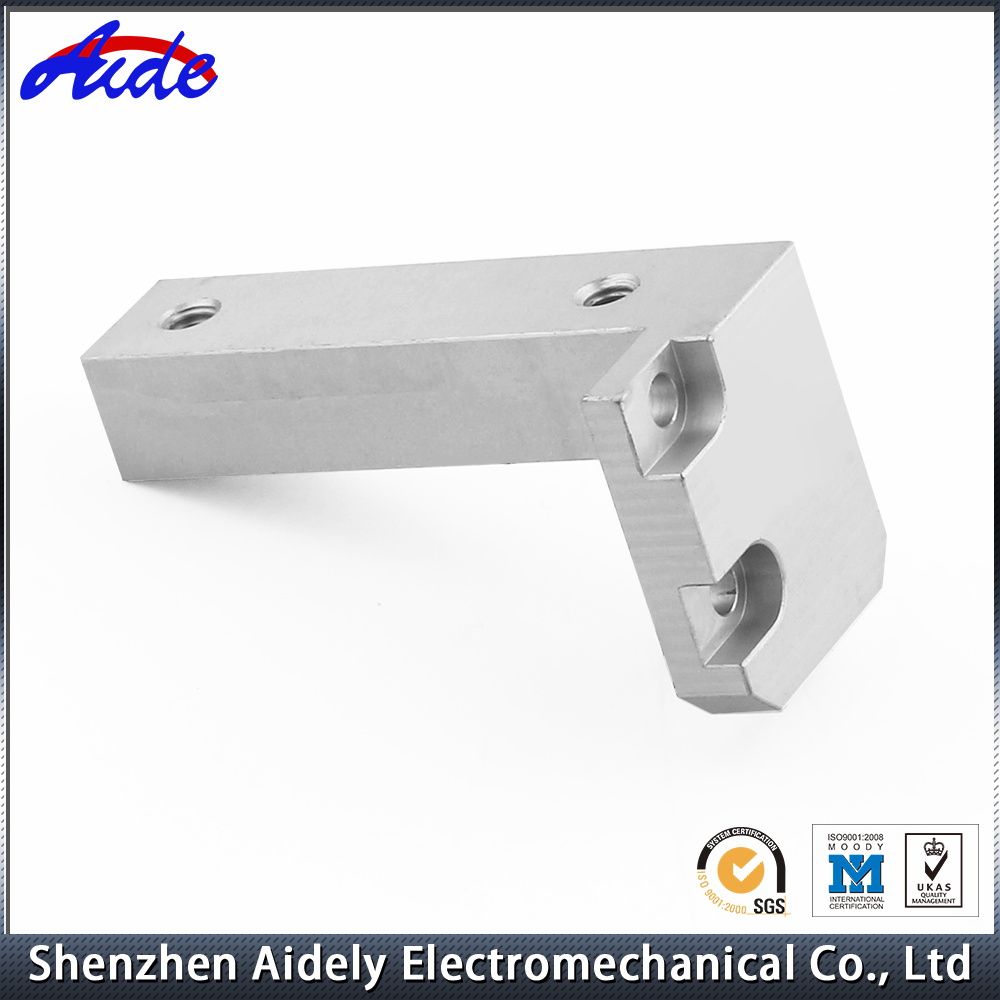

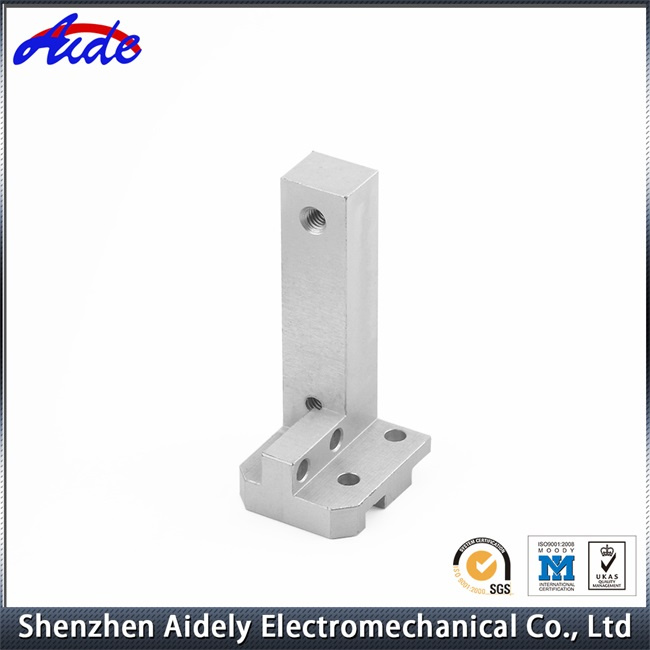

Auto accessory sheet metal central machinery part stamping
CNC Parts Specification:
Product Name
| Aluminum Alloy CNC Parts 104 |
| Item | CNC machining parts, precision CNC parts, CNC turning parts, CNC milling parts,Metal parts. CNC parts, CNC machinery parts, Mechanical components, Auto parts, Metal parts, |

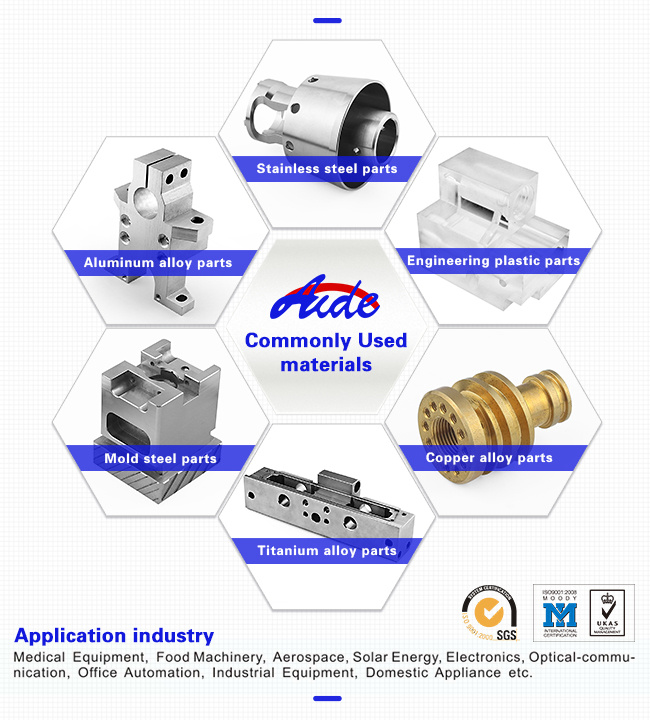

| Material | Die casting parts, Metal stamping parts, Sheet metal fabrication.
Aluminum,Stainless steel, Brass, Copper, Carbon steel, Plastic (POM,PVC,PEEK,PU etc)
Alloy steel, Tiantium, Iron, spring steel, Bronze.
|
| Surface treatment | Anodized, Passivation, heat treatment, painting, Power coating, Black Oxide, Silver/Gold plating
Electrolytic polishing, Nitrided, Phosphating, Sandblasting, Nickel/Zinc/Chrome /TiCN plated. |
| Application Industry | Aerospace, Automotive, Medical, telecommunications, electronic, military, packing
Sensors, Optical instruments, computers,Motorcycles etc.
|
| Processing method | CNC machining, CNC turning, 3/4/5 axis CNC milling, wire-cutting, EDM, grinding.
Drilling, Tapping, welding, bending,die casting, stamping and etc. |
CNC Milling Equipment List: | | Model | Machine Brand | Travel Dist.(mm) | Accuracy(mm) | Max Spindle Speed |
| CNC Milling 5 Axis | VARIAXIS J-500/5X | Mazak | 350(X)*560(Y)*510(Z)*360°(C) | 0.005 | 12000rpm |
| CNC Milling 4 Axis | VTC-160AN | Mazak | 560(X)*410(Y)*510(Z)*360°(C) | 0.005 | 12000rpm |
| SUPER-VF2 | Haas | 760(X)*420(Y)*510(Z)*360°(C) | 0.005 | 12000rpm |
| CNC Milling 3 Axis | AF-1400 | Awea | 1400(X)*800(Y)*700(Z) | 0.005 | 12000rpm |
| VTC-200CN | Mazak | 1250(X)*620(Y)*600(Z) | 0.005 | 12000rpm |
CNC Conventional Equipment List: | Model | Machine Type | Machine Brand | Max Travel Dist.(mm) | Accuracy(mm) | QTY |
| 6125/6132/6136/6150 | Turing | Shenyang/Guangzhou/Jinan | ¢500*750 | 0.015 | 8 |
| 3VA | Milling | Joint/Jande | 1270*254*350 | 0.01 | 13 |
| HF618S/DFG-250M/KGS-306AH | Surface grinder | Jiande/Beijin | 1000*600 | 0.001 | 5 |
| HFC1808 | Centerless grinding | Jangsu | ¢1-50 | 0.002 | 1 |
| MG1420F | ID/OD grinder | Beijing Second MC | ¢200*500 | 0.003 | 1 |

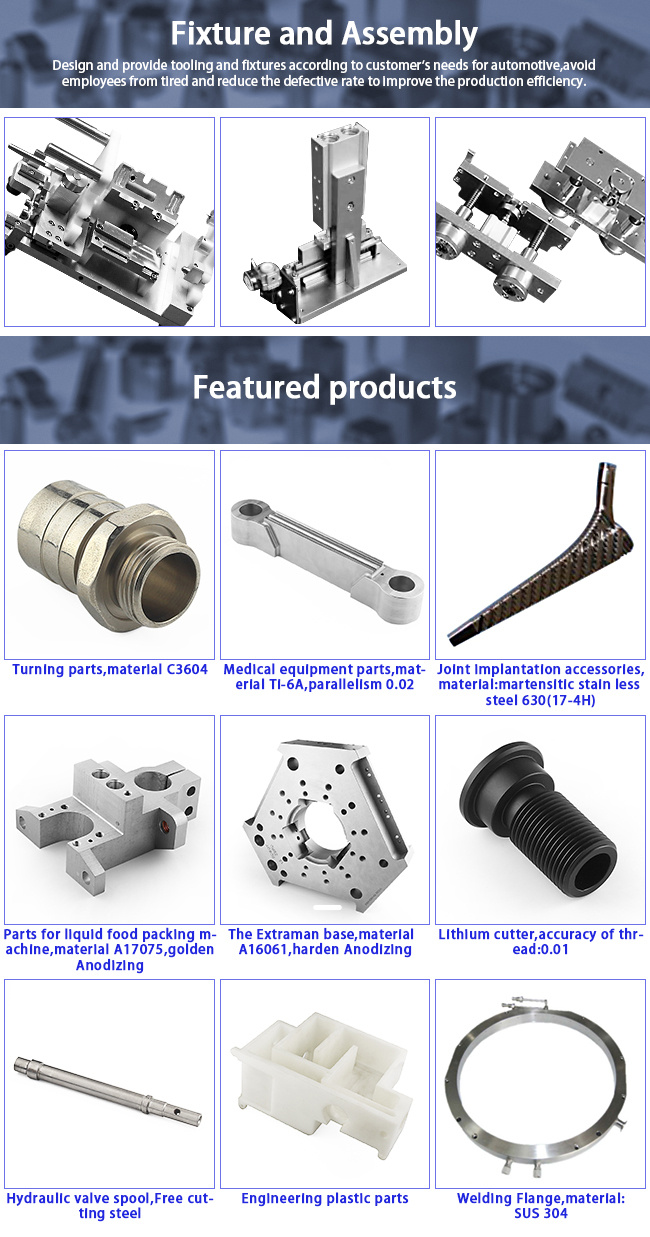

CNC Parts Main Features:Electronic pressing assembly fixture
Designed by Aidely according to customer's requirement
1. We offer a variety of assembly and test services for the manufacturing industries.
2. With vertical integration in precision machining, superior Supply Chain Management tools, guarantees you the highest quality and quickest turnaround time.
3. Our program managers stay in constant communication with customers to ensure a smooth transition during build.
4. We are ready to accommodate any of your requirements.
5. MFG Engineering Services for Assembly Builds

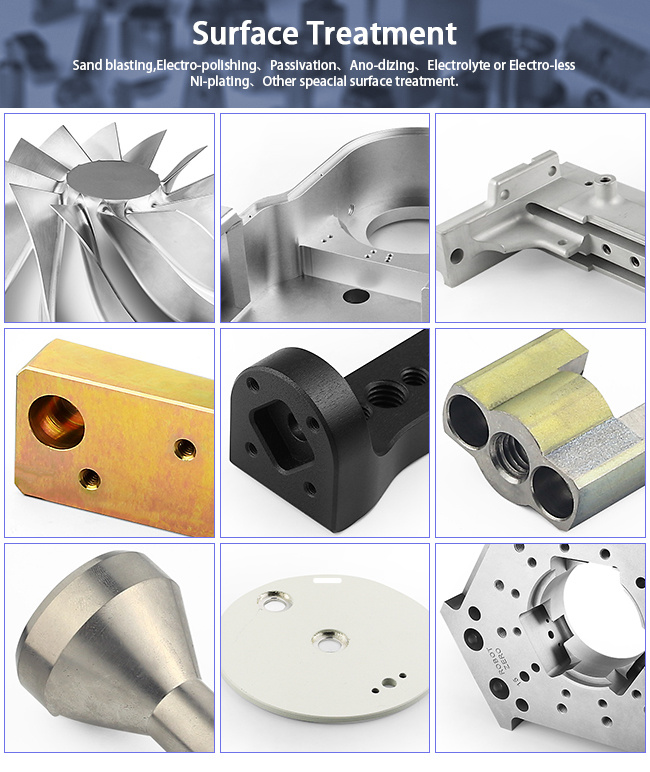

6.We have done different type of material surface treatment:
A: Stainless steel: electro polishing, chemical polishing, passivation, and chrome.
B: Aluminum alloy: Sandblasting, ordinary and hard anodizing, passivation, painting and dusting of true color, black, gray and red, etc.
C: Carbon and alloy steel: nigrescence, zinc, chromium, nickel plating, electroless nickel, phosphating, painting and dusting and so on.
CNC Parts Applications:
Automobile,Solar Energy, Electronics, Optical-communication, Medical Equipment Office Automation,Domestic Appliance etc.
Description :
A. the surface appearance requirements can be reached by anodized processing with imported aluminum base material and strict process parameters control.
B. It is rotated by four axes to eight different angles to finish 16 holes positions and form a complex cavity. Relative position demands are higher. After the completion, the lateral holes should be blocked with 7 MPa pressure for testing.
C. After the oxidation, more than one hole with H7 precision of aperture should be guaranteed.
D. Our ultimate goal is to provide seamless transition of your prototypes to the mass production phase
E. With vertical integration in precision machining, superior Supply Chain Management tools, guarantees you the highest quality and quickest turnaround time.
Our Company:

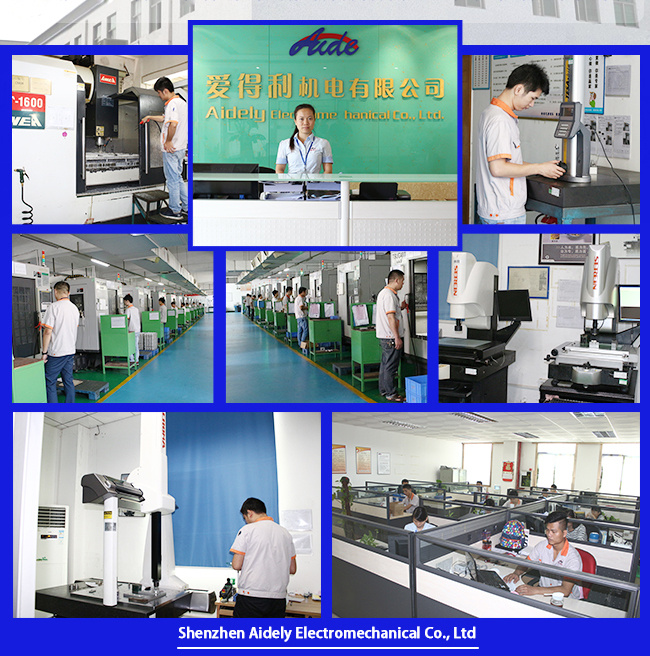

Founded in 2000, Shenzhen Aidely Electromechanical Co., Ltd. is a manufacturer of precision machinery components and fixtures for industries such as solar energy, electronics, optical-communication, medical equipment and office automation. Today, we have a 5, 000 square-meter workshop and over 250 employees, most of whom are highly-skilled technicians. We have 100 sets of high-precision tools and instruments in the company, including CNC working centers, CNC lathes, EDM machines, high-precision ID/od grinding machines, Swiss-made high-precision height gage, and coordinate measuring machine(CMM).
A shenzhen- based private company engaged in science and technology, shenzhen aidely is ISO 9001: 2008 certified through the renowned moody international group. We aim at integrity, quality, efficiency and professionalism. We are committed to meeting the strictest requirements of our customers by reasonable pricing, fine quality, on-time delivery, and excellent service. Your enquiries and visit are always welcome. We look forward to serving you.
Packaging & Delivery:
Packaging Detail: According to customer's request
Delivery Detail: 15 working days
FAQ:
1.Are you a manufacturer?
---Yes, we are. Warmly welcome to visit our factory at any time.

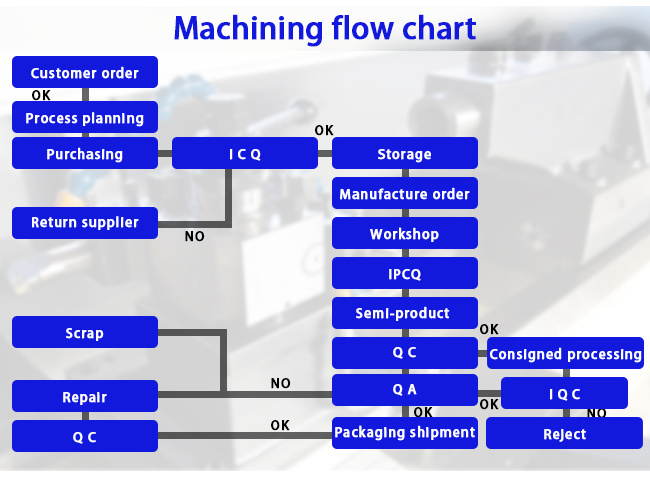

2.How does the ADL control the quality?
---During processing, the operating machine worker inspect the each sizes by themselves.
---After finished the first whole part, will show to QA for full inspection.
---Before shipment, the QA will inspect according to ISO sampling inspection standard for mass production.
3.How to handle the complains?
---If happen any complaints after got the goods, pls show us photos and detail compliants points, we will check with the production department and QC depart. Immediately and give solving solution with 6 hours. If need re-make, we will arrange re-make urgently and ship you new replacement with 5 days. Aidely will bear all the cost (including shipping cost).
4.What's the payment term?
---100% T/T in advance normally; 50% deposit, 50% balance by T/T before shipment when order amount over 5000USD.
5.What's the delivery time?
---Normal, 5-7 working days for sample. 12-30 working days for mass production.
--If any urgent parts, we can provide preferential processing and control the delivery time as you required.
6.What is the standard of package?
---Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
7.Can we get some sample?
---Sample can be provided, the clients will bear the shipping cost. The Sample cost is about 50-100 USD for each part, and it will be refund after order the mass production.
