Auto Electric Welding Bending Cutting 3in1 Plastic Sheet Machinery
| Price: |
US $ 6500-7500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WBZ-100 |
| Color: |
Customize |
| Thickness: |
3-30mm |
| Length: |
2000-6000mm |
| Material: |
PVC,PP,PE,PVDF,HDPE |
Product Description
1.Product

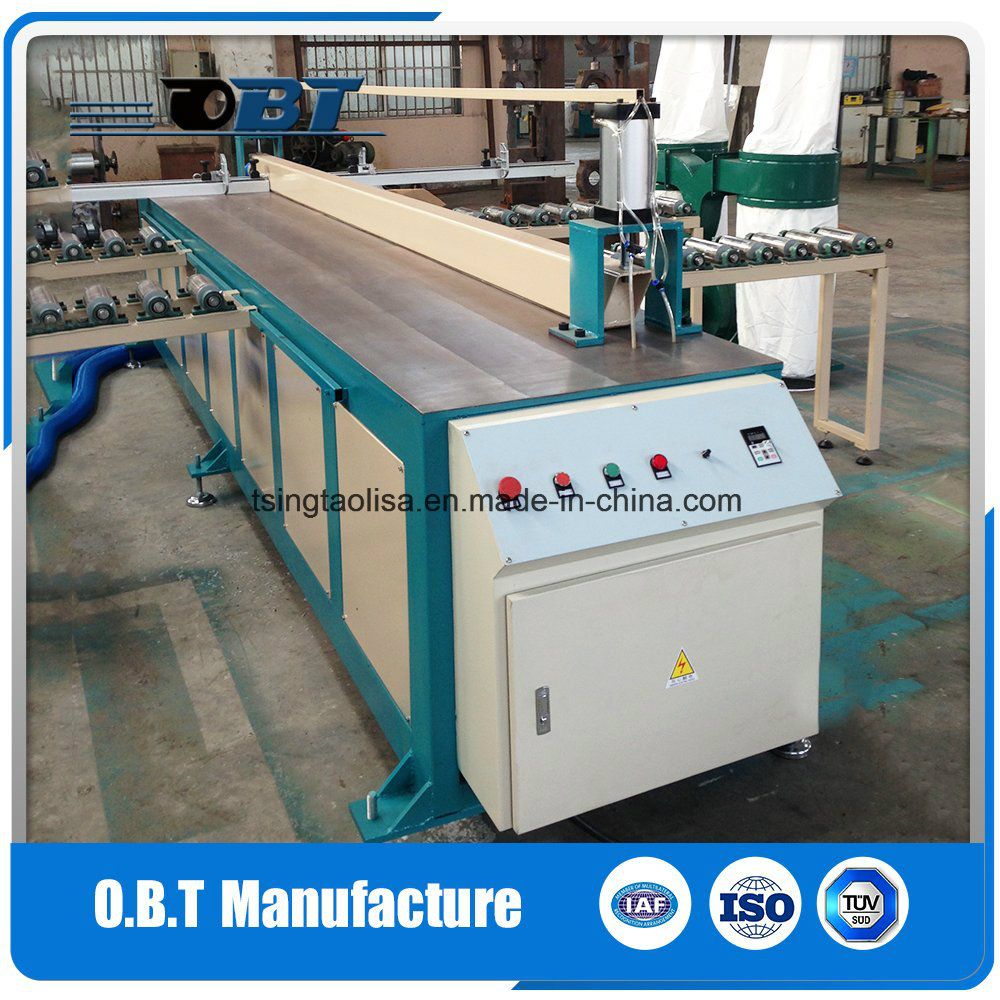

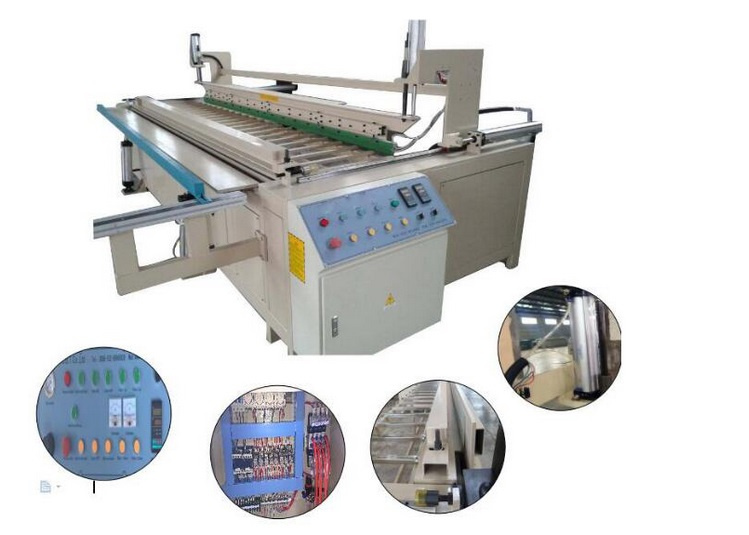

Auto Electric Welding Bending Cutting 3in1 Plastic Sheet Machinery 2.Picture
3.Technical Specifications Automatic plastic board welding and bending all-in-one machine |
| Model | OBT-PZ3000 | OBT-PZ4000 |
| Processing thickness(mm) | 25-30 | 25-30 |
| Processing length(mm) | 3000 | 4000 |
| Bending angle(°) | 0-100 | 0-100 |
| Roll circle diameter min(mm) | 500 | 500 |
| Air pressure(kg.f/cm2) | 4-10 | 4-10 |
| The rated voltage(V) | 380 | 380 |
| Bending heating power | 9kw | 12kw |
| Welding heating power | 6kw | 8kw |
| Drum institutions motor power | 1.5kw | 1.5kw |
| Length*Width*Height(mm) | 3950*1100*1100 | 5000*1100*1200 |
| Control system: Press-button control or touch screen control elected. |
| Material of heater:imported aluminum heater, teflon coated. |
| Suitable for material:PP, PE, HDPE, PVDF, PVC, PPN |
| Application: Plating equipment, environmental equipment, chemical containers, sewage treating pipe, ventilation systems and so on. |
2.Press button control makes the operation easy and convenient.
3.The working panel's material is Q345 manganese, which's featured as non-being heated distortion; The platen's material is aluminum, and for each platen there're two air cylinders providing the power, ensuring the compressive stress is very strong.
4.The heating pipe is inserted through the heating knife, so it's easy and convenient to replace the heating
elements. The material of heating knife is imported grade aluminum, with teflon coated. It has the advantage of

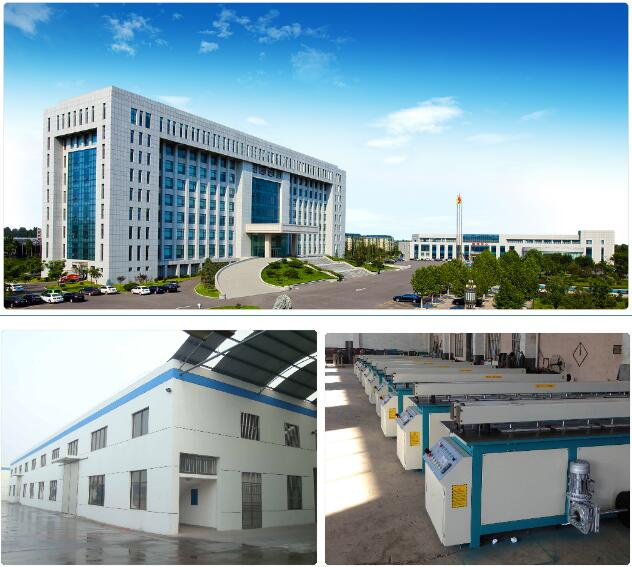

non-being heated distortion and non-stick. 5.Company informationQingdao O.B.T Manufacture Co., Ltd. is a professional manufacturer and exporter with over 18 years of
experience in the manufacturing of plastic welding&bending equipments.
All products are designed and built according to International standards and directives. Since the very beginning, quality and technology innovation are OBT's milestones, and time after time, this philosophy is always more
recognized by the global market.
OBT's strong points are its ideas to design and produce accurate, efficient, versatile, and easy-to-use welding&bending machines. Products range includes butt fusion, fast bending, extrusion equipments and panel saw. OBT is also providing production lines for PP/PE/PVC sheet, hollow wall winding tube, plastic rod etc.
Excellent geographical location and convenient transportation guarantee our fast delivery and prompt shipment;
Excellent technology team and strict quality inspection make sure of top -quality quality with best prices for you. Based on these advantages, we sincerely hope to cooperate with the customers all over the world for mutual
development and benefits.
6.Perfect Package
7.Our advantage
1)One-stop Shopping
We focus on plastic welding/bending industry for over 18 years and we can produce equipments range includes butt fusion, fast bending, extrusion equipments and panel saw. OBT is also providing production lines for PP/PE/PVC sheet, hollow wall winding tube, plastic rod etc.
2) Reliable Quality
With most-to-up technology and top designers from Germany we successfully desing and manufacture for customers, and our equipments are certified by SGS, BV, TüV.
3)Technical assistance
We have professional designers and engineers to meet your special requirements. Meanwhile, we'd like to provide training for our customers.
4.)Best logistics
We guarantee shipment within 10 days after receiving the deposit. In addition, we offer multiple ways of transportation for your choice and to-door service if you need.
5)Completed supplement of replacement parts
As long as you purchased equipments from us, we would provide any replacement part of your equipment at any time you need.
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service
