| Prod Model: |
hg-df-6 |
| Capacity: |
750 Kg- 1000kg |
| Warranty: |
1 Year |
| Payment Term: |
T/T, L/C |
| Loading Port: |
Shanghai |
| Color: |
Yellow |
| Clutch: |
Sliding Ring Gear |
| Water Proof: |
Yes |
| Type: |
Electric Winch |
| Driven Type: |
AC |
| Carrying Capacity: |
Middle-Level |
| Tonnage: |
1T |
| Running Mode: |
Stationary |
| Feature: |
Antiseptic |
| Standard: |
National Standards |
Product Description
auto power electric wire rope winch
Electric winch Introduction:Drum transmission structure: Planet gears transmission. Coupling leads the drum directly. Easy to replace rejected wire rope or change the rotation direction of wire rope.
Wire rope fixing: Add one PT screw drum, more safe than normal wire rope fixing, make sure no escape of wire rope form drum.
Brke mechanism: Electriomagnetism brake. Select wearable brake slice. It will brake automaticlly when out of power, and control the drop distance of heavy loads, safe and reliable.
Gear box: Made of ductile cast iron FCD-45# steel, durable and nonbreakable.
Dviving gear: Made of high quality steel, heat treatment and high precision process. It has the features of wearable, low noise, high driving efficiency and good paerformance.
Manchine fixture: Standard channel steel welded. It's conventient used for building sites, storage and port etc.
Special motor: Isulated B. With the features of big start torque, small inertia, lower temperature rise. Work for long time.
Peremeters of Electric Winch: | Model | HD-500 | HD-750 | HD-1000 |
| Load rated(kg) | 500 | 750 | 1000 |
| Speed(m/min) | 1 | 13.5 |
| Motor(V) | 2.2 × 4 | 3 × 4 | 4 × 4 |
| Voltage(V) | Three phase 220/380/415/440/480 |
| Frequency(Hz) | 50/60 |
| Lifting Height(m) | 58 |
| Steel Cable(mm × m) | diameter 9 × 60 | diameter 11 × 60 |
| N.W.(kg) | 136 | 149 | 156 |
| Work Level | M3 |

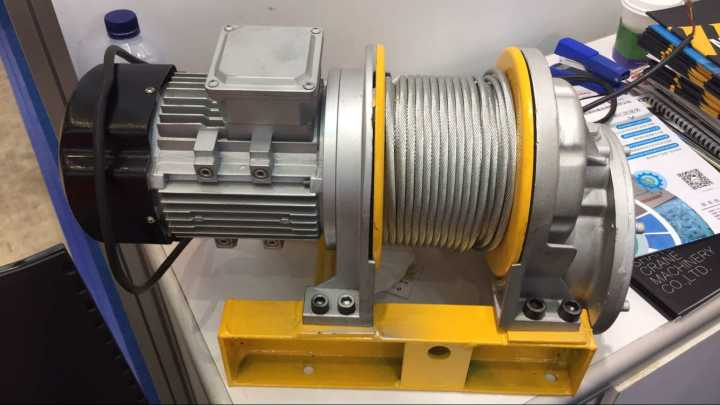

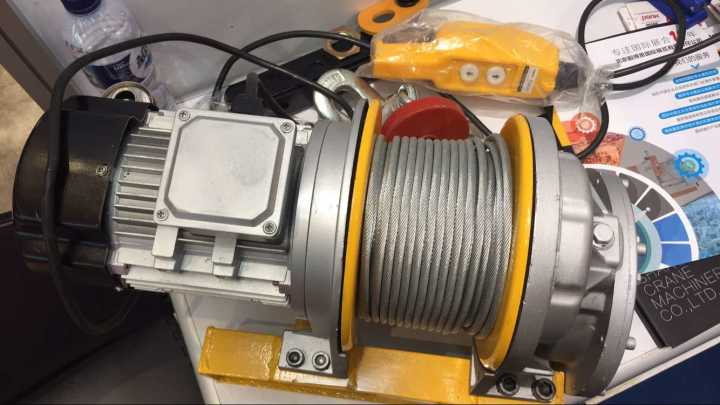

Pics View:
Warehouse show
Shanghai Yiying Crane Machinery Co., Ltd. was established in 1992, specializing in designing and manufacturing of manual chain hoist, lever hoist, electric hoists and other lifting products.
The company has been taking efforts in designing, manufacturing, sales and services nearly 20 years. Now it becomes one of the most excellent manufacturer of crane around the world. The company has total capital 50 million RMB, covers 100000 square meters, building area 75000 square meters with modern processing center, assembling center and testing center. The company has its own designing and developing ability of new product, and whole set of production equipment of lifting machinery. The sales volume reaches more than 200, 000 sets per year.
We always guarantee our design and quality following the step of times and enhance the share of international market, so the company has completely achieved quality system, such as ISO9001 and CE.
The company has been exported to almost 50 countries and regions, including Europe/ USA/Australia/Southeast Asia/South Africa, etc.
Under the principle of "QUALITY DERIVES FROM PROFESSION" Shanghai Yiying Crane Machinery Co., Ltd. Sincerely welcome all our friends from domestic and abroad to build business relationship with us!
