| Prod Model: |
JXC-400GA |
| Colour: |
White |
| Max. Cutting Depth: |
180mm |
| Blade Diameter: |
400-500mm |
| Rotating Speed: |
3600r/Min |
| No. Of Blade: |
1PCS |
| Water Tank Volume: |
40L |
| Working Mode: |
Automatic |
| Weight: |
140kgs |
| Blade Replacement: |
Quick Install |
| Engine: |
Honda Gx390 13HP |
| Type: |
Road Cutting Machine |
| Condition: |
New |
| Mixing Method: |
Non |
| Product Capacity: |
100-180mm Cutting Depth |
Product Description

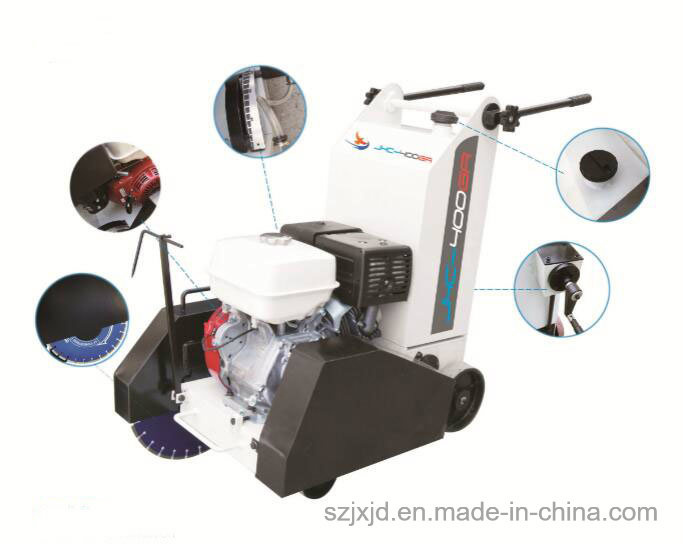

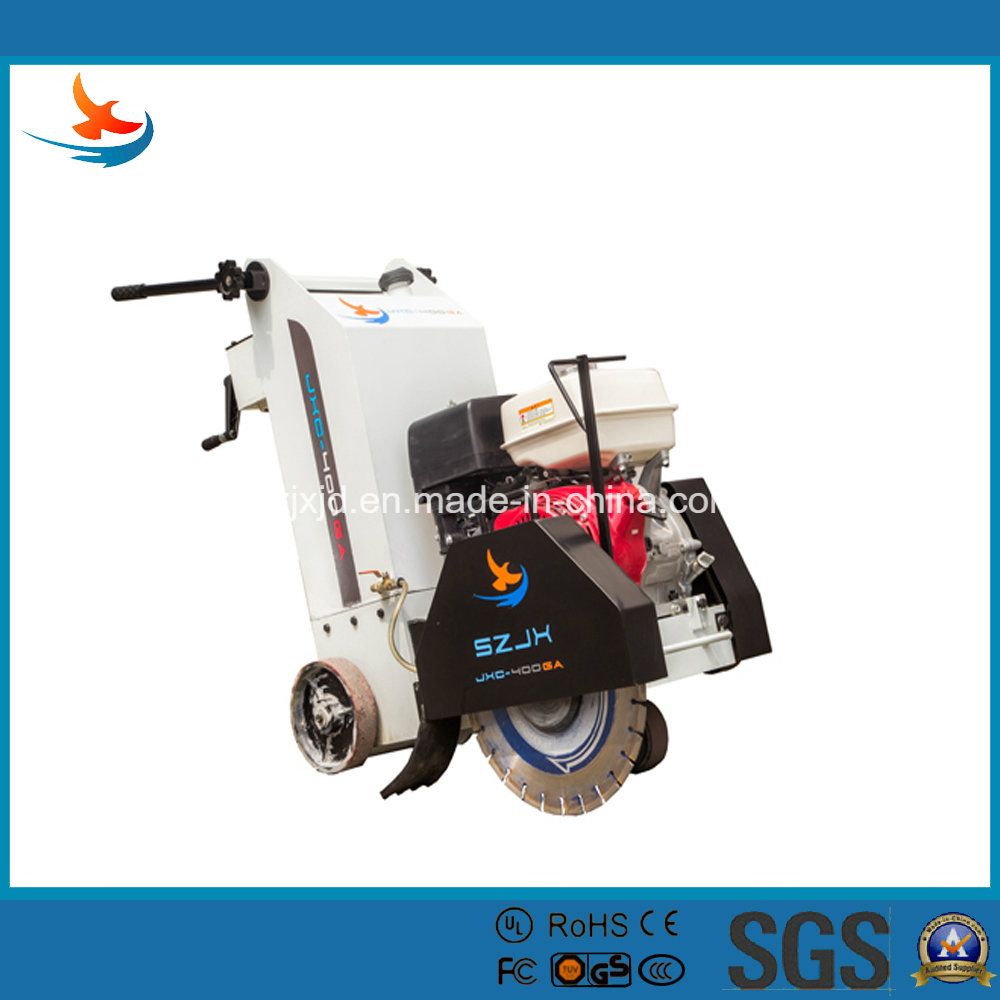

Auto-Working Concrete Cutting Saw on Concrete and Asphalt Road Plaza Stretching Grooving with Honda Gx390 13HP (JXC-400GA)1. JinXiang Auto-Working Cutting Machine Show:Jinxiang Machinery and electrics focus on small and medium-sized road maintenance machinery, specializing in high grade concrete and asphalt scarifying machine and cutting machine. We are committed to provide "Most Cost-effective Road Maintenance Machinery". We have professional technical team and the internationalization of production pattern to service customer and supply best road maintenance solutions.

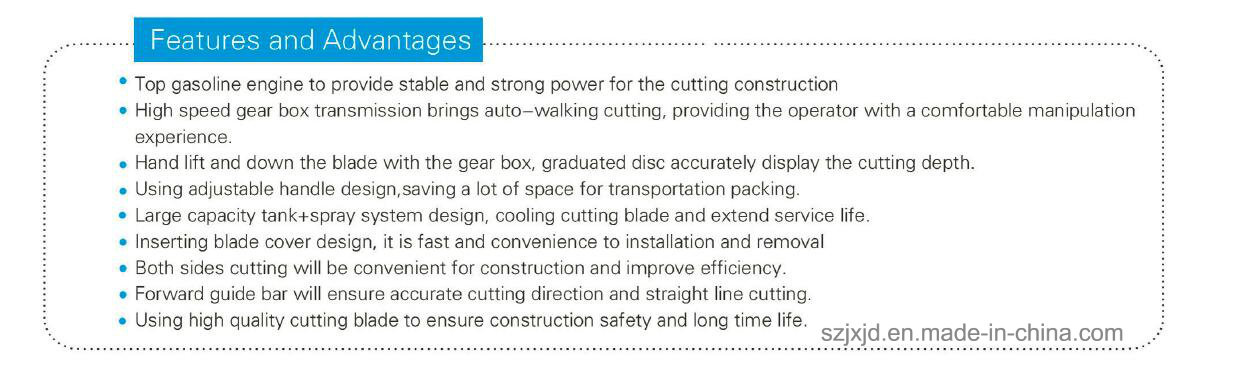

2. Why Choose JinXiang Auto-Working Scarifying Machine?

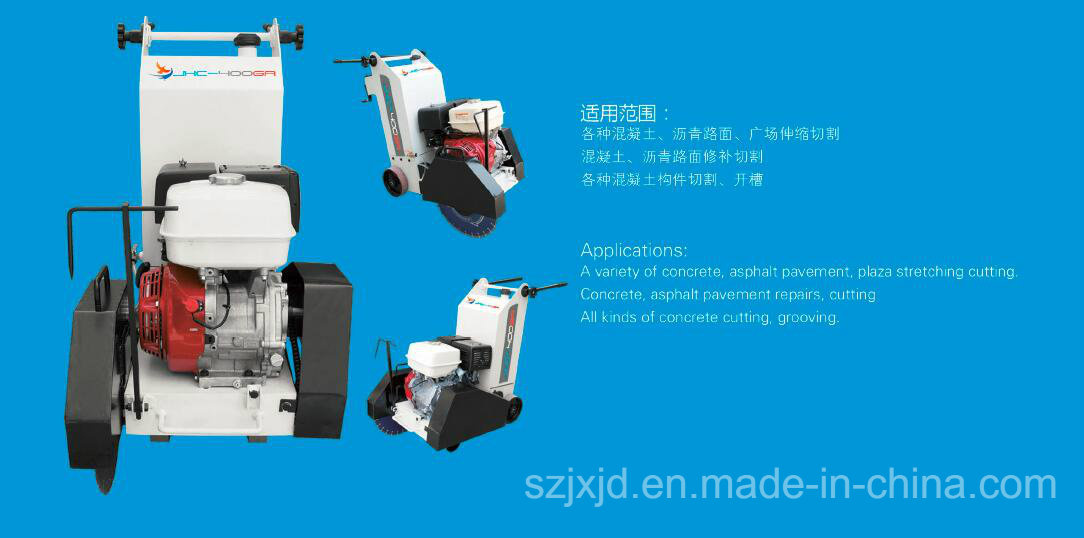

3. What's JinXiang Auto-Working Cutting Machine used for? Our products are widely used in
- A variety of concrete,asphalt pavement,plaze stretching cutting;
- Cutting for concrete,asphalt pavement repair project;
- All kings of concrete cutting and grooving ;
- Other fields.
4. Specification of JinXiang Auto-Working Cutting Machine(JXC-400 Series) | Model | JXC-400GA | JXC-400EA | JXC-400DA |
| Engine Model | HONDA GX390 13HP | 7.5KW Siemens Motor | Diesel Engine 186FA |
| Cutting Depth | 100-180mm | 100-180mm | 100-180mm |
| Blade Diameter | 400-500mm | 400-500mm | 400-500mm |
| Rotating Speed(r/min) | 3600r/min | 3600r/min | 3600r/min |
| Water Tank Volume(L) | 40L | 40L | 40L |
| Dimension(mm) | 1060*570*830mm | 1060*570*830mm | 1060*570*830mm |
| Shipping Size(mm) | 1070*580*840mm | 1070*580*840mm | 1070*580*840mm |
| Operating Weight(KG) | 140KGS | 150KGS | 150KGS |
| Shipping Weight(KG) | 145KGS | 155KGS | 155KGS |
| Package | Iron Frame+Carton | Iron Frame+Carton | Iron Frame+Carton |
5. ShippingWe have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.6. PaymentIf you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc. 7. Contact UsSuizhou Jinxiang Machinery and Electrics Co., Ltd.
Add: Ji Liang Road, Economic and Technological Development Zone,Suizhou, Hubei, China
Contact: Jordan
SuiZhou Jinxiang Machinery and Electrics Co., Ltd. Was established in 2012, which is located in
Suizhou City, Hubei Province. We have two factories in Suizhou and Changzhou. Changzhou factory is close to two economic centers Shanghai and Nanjing, within two hours can reach Shanghai port and Shanghai Pudong International Airport.
Jinxiang Machinery and electrics focus on small and medium-sized road maintenance machinery, specializing in high grade concrete and asphalt scarifying machine and cutting machine. We are committed to provide "Most Cost-effective Road Maintenance Machinery". We have professional technical team and the internationalization of production pattern to service customer and supply best road maintenance solutions.
