Automatic Alloy Wheel Repair Diamond Cutting CNC Lathe Wheel Polishing Equipment Awr28h

Automatic Alloy Wheel Repair Diamond Cutting CNC Lathe Wheel Polishing Equipment Awr28h
Price: US $ 14000-16000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: AWR28H
Oversea Service: Offer Oversea Service
Cutter: Special Diamond Cutter
Probe: Touch Ruby Probe
Cutting Effect: Rainbow Line Effect or Cutting Line
Optimized Software: Designed for Optimize Program
Controller: CNC or PC
Clamping Form: 3 Jaws Chuck
Machine Type: Flat Bed Machine
Voltage: 3 Phase 380 or Your Request Voltage
Motor Power: 5.5kw
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Automatic alloy wheel repair diamond cutting cnc lathe wheel polishing equipment AWR28H
A.Standard configuration

  1. Diamond  Cutter  1 set;
  2. 3-Jaws Chuck(With Special Soft Jaws)

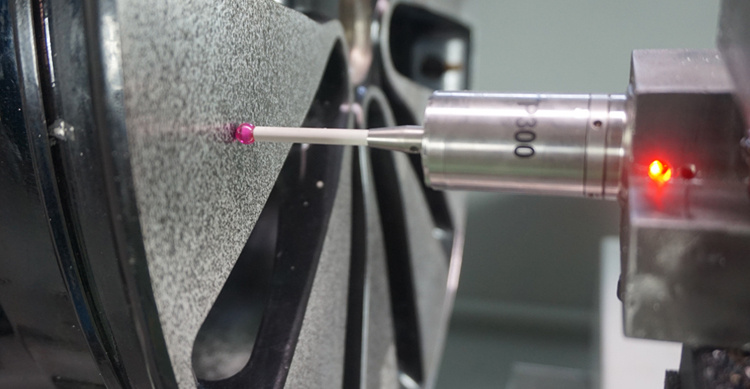

  3. Pioneer Sensing Probe  TP300;
  4. Taiwan SYNTEC CNC Control
  5. Manual Quick Change Toolpost,Four-station;
  6. Work Lighting System;
  7. Automatic Lubrication System;
  8. Cooling System;
  9. Full Enclose(Security Guard Door);
  10. Tools&Tool Box
  11. Specific Digital Optimization Software;
  12. Training Video CD;


B.Specification List


ITEMS
AWR28H
Max. swig over bed (mm)(inch)Φ770 (30')
Max. Size of alloy wheel (inch)            Φ720 (28')
Adjustable stroke of carrier in X direction  100mm
Cross slide travel (mm)390
Width of the rail (mm)300
Length of the rail (mm)1300
Size of the three-jaw chuck (inch)12'
Range of spindle speed (RPM)50~2000
Spindle speed controlAutomatic
Spindle bore  (mm)Φ82
Taper of spindle bore1:20(Φ90)
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long    0.001mm,
(X) cross   0.001mm
Moving speed of post(Z) long     8m/min,
(X) cross    6m/min
Motor power7.5KW
Mchine base(cast iron base)Whole
Machine size(L×W×H) (mm³)2140 ×1600×1860
Package size2300×1750×2100
Net weight2600kgs

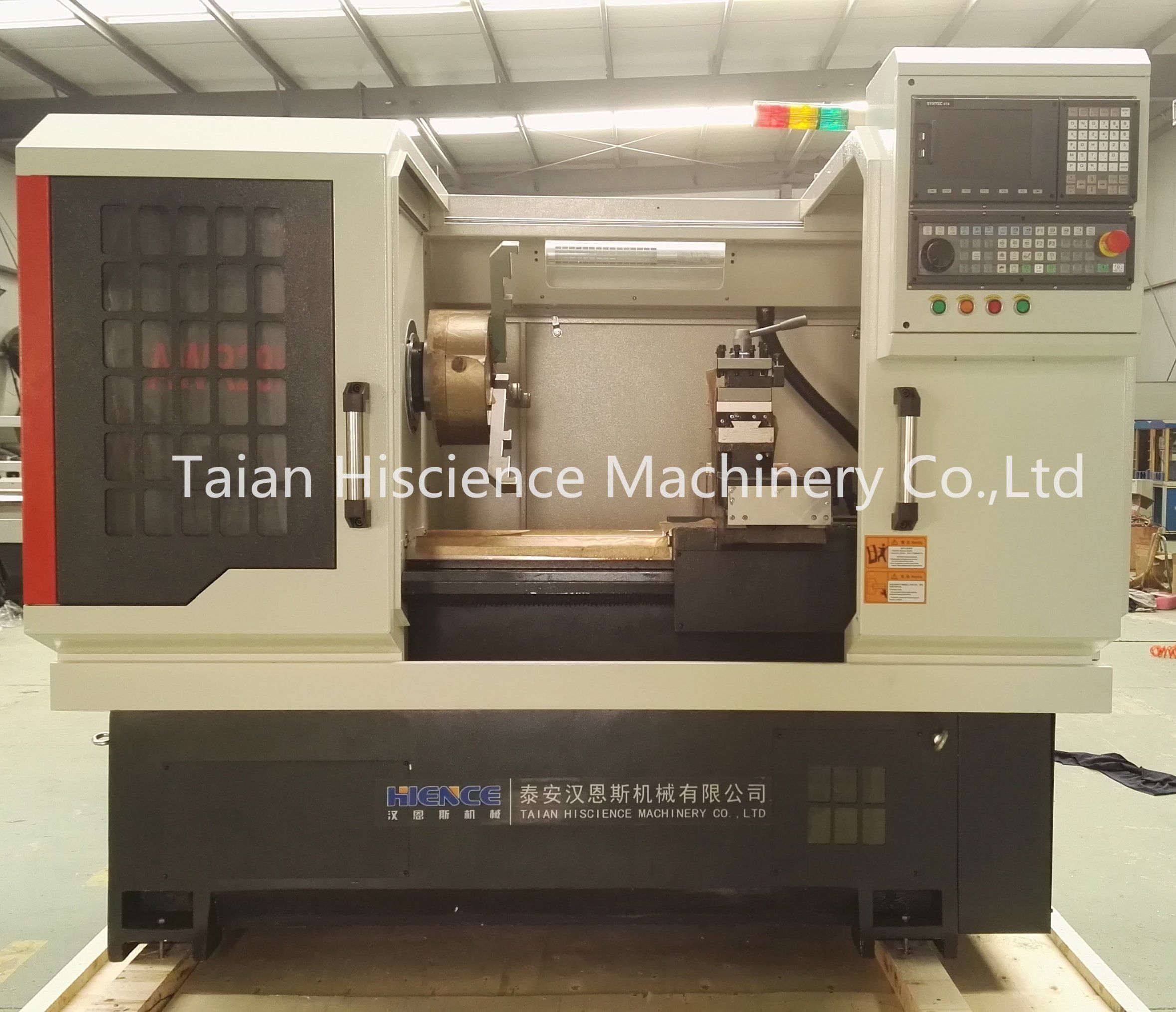

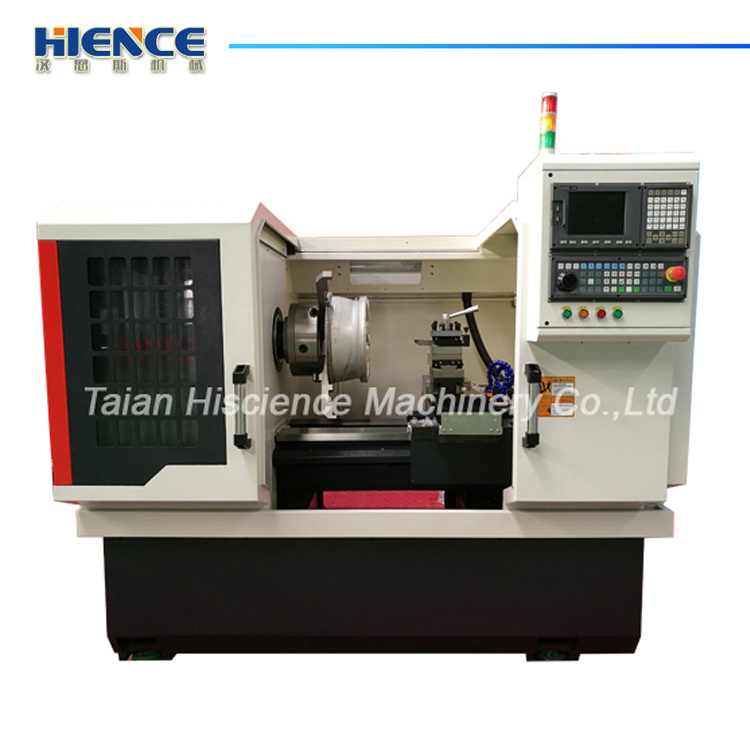

C.Pictures of AWR28H





D.Buyer Show

Company Information

FAQ:
1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair or refurbishment. PC machine adopt 17'' muti-function touch screen industrial PC, can opereate easier and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer's request. It is no problem for most of wheel size 22'', and can up to 32''.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7)Q:What is your service for the machine.
A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.


Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
