Automatic Blade Saw for Wood Cutting

Name: Automatic Blade Saw for Wood Cutting
Brand: tool-buy.com
SKU: 724824342
Availability: InStock
Rating: 4.9 (150 reviews)

Price:	US $ 4500-5900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Jinhua Powerful Woodworking Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	MJ154
Votage:	380V/Customized
Motor:	3 Phase
Cutter:	Single
Certificate:	Ce
Quality:	Top
Weight:	1300kg
Machine Dimension:	210012501480mm
Working Thickness:	10-125mm
Type:	Rip Saw
Layout:	Vertical
Controlling Mode:	Hydraulic Semi-automatic
Automatic Grade:	Automatic
Precision:	High Precision
Certification:	SGS

Product Description

Production Description:

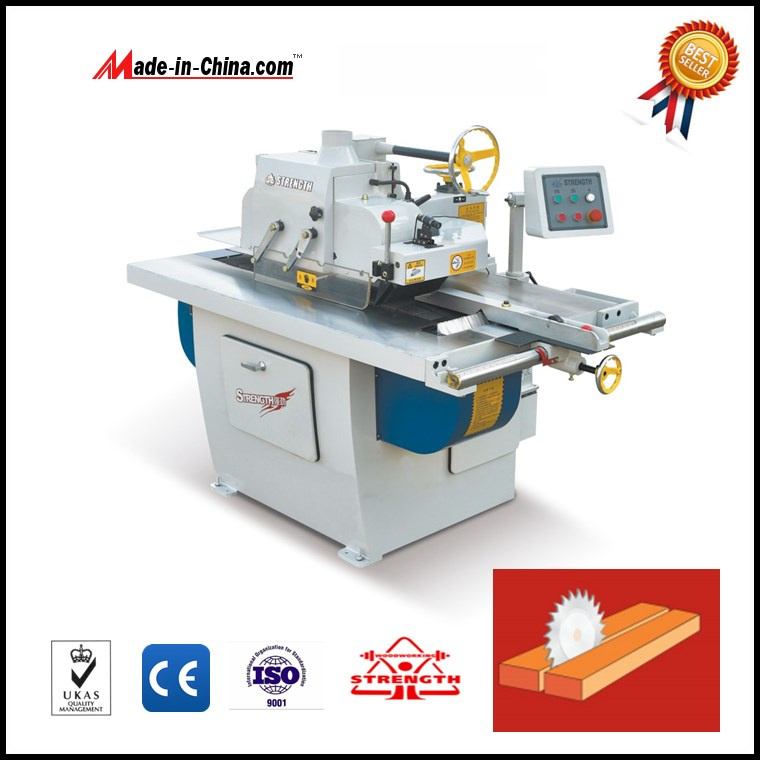

Woodworking single straight rip saw
Model:MJ153/MJ154

Main technical data	MJ153A	MJ153D	MJ153C	MJ154
Max. working thickness	85mm	85mm	85mm	125mm
Min. working length	120mm	200mm	200mm	220mm
Saw blade and fuselage distance	460mm	460mm	365mm	610mm
Saw spindle aperture	Φ30mm	Φ30mm	Φ30mm	Φ30mm
Saw blade diameter And working thickness	Φ250(10-60)mm Φ305(10-85)mm	Φ250(10-60)mm Φ305(10-85)mm	Φ250(10-60)mm Φ305(10-85)mm	Φ305(10-80)mm Φ400(10-125)mm
Spindle speed	3500r/min	3800r/min	3500r/min	3500r/min
Feeding speed	13,17,21,23m/min	15,20,25,31m/min	13,17,21,23m/min	13,17,21,23m/min
Saw blade motor	5,5-7.5kw	7.5kw	5,5-7.5kw	11kw
Feeding motor	0.75kw	1.5kw	0.75kw	0.75kw
Chip removal diameter	Φ100mm	Φ100mm	Φ100mm	Φ100mm
Machine dimension	202413371480mm	178511001415mm	173010501380mm	220013501550mm
Machine weight	1000kg	1000kg	950kg	1450kg

Wood rip saw main features:

1, Good stability and cushioning effect as the machine processing for case iron.

2, Best intensity and high precision as main spindles using special steel with good processing.

3, Easy structure and convenient maintain as using roller feeding system.

4, Best endurance as special processing for workbench.

5, High sensitive and safety as using French Schneider electric system with protection.

6, Smooth feeding and less maintain.

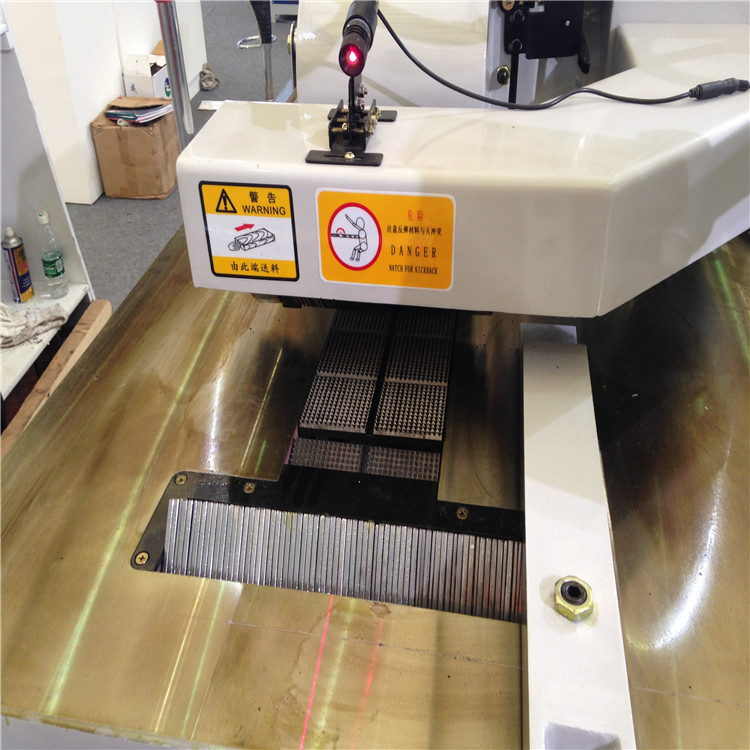

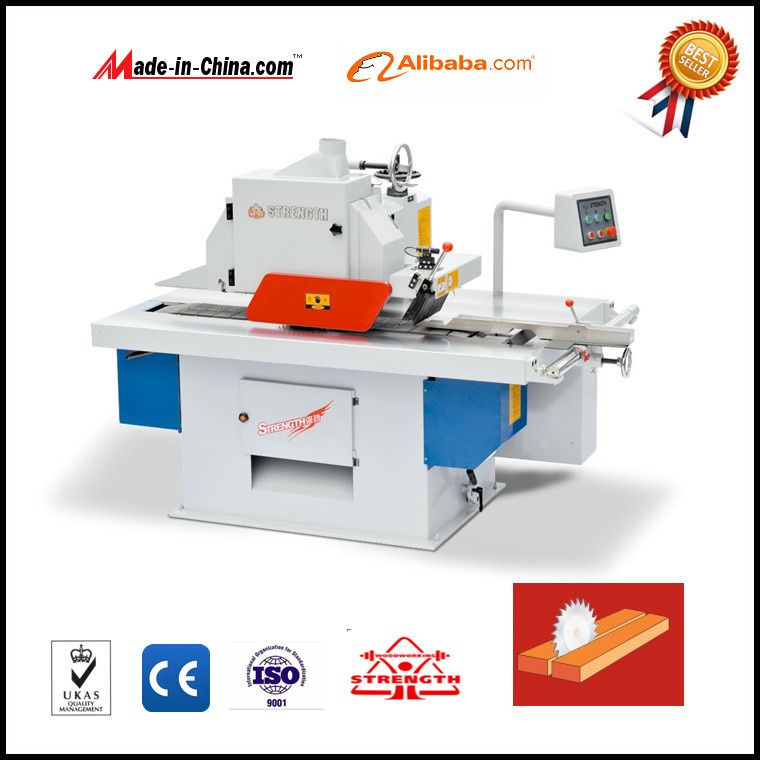

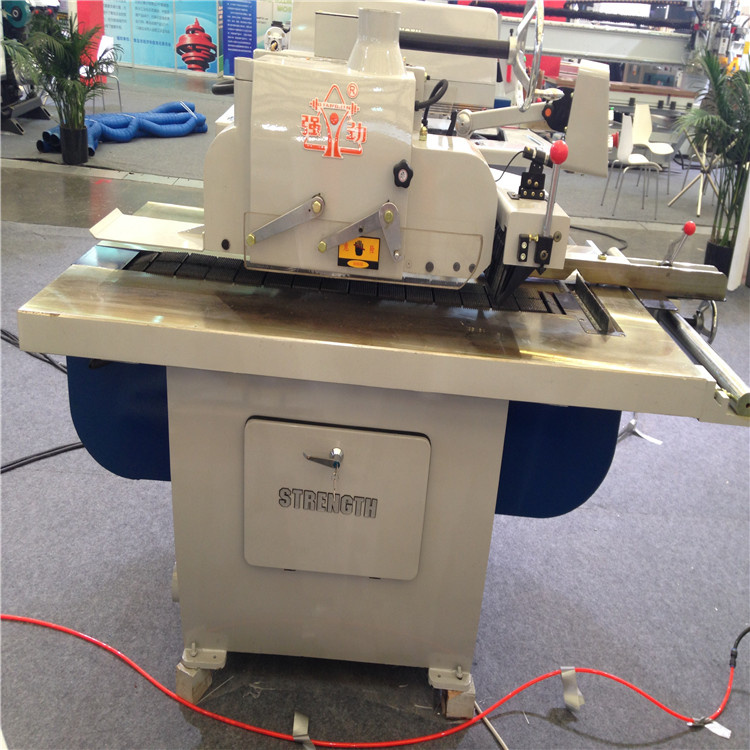

Machine photos:

Functions

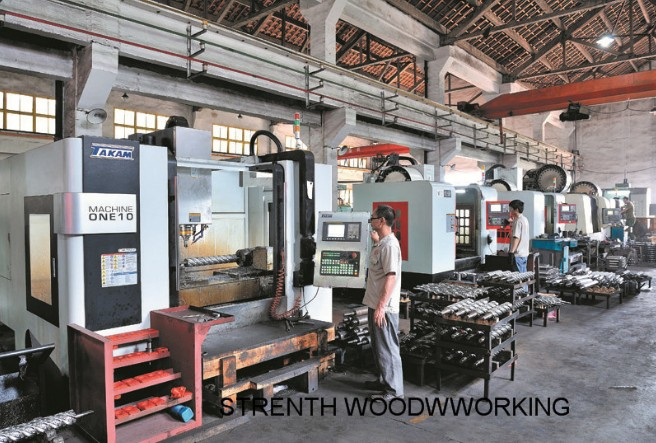

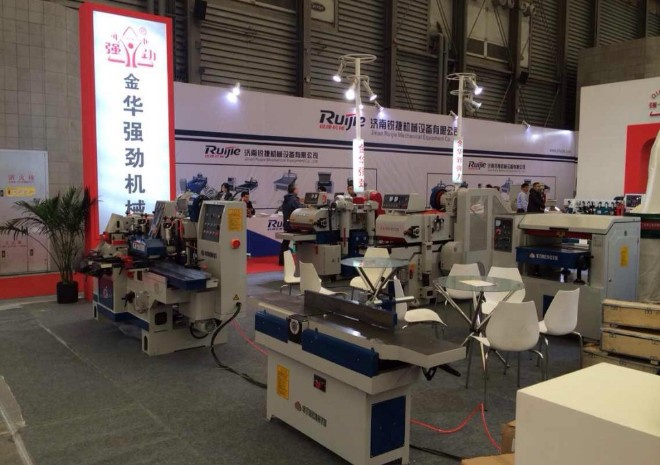

Company information:

We are the manufacturer for woodworking machines 40 years with good quality and best price

Our main machines as below:

1, Wood Jointer 300mm, 400mm

2, Auto Jointer 300mm, 400mm and 500mm

3, Thickness Planer 400mm, 500mm, 630mm, 830mm

4, Auto Thickness Planer 500mm ,630mm,1000mm,1300mm

5, Double Side Thickness Planer 430mm and 630mm

6, Four sided moulder planer 150mm,180mm,230mm,300mm

7, Single rip saw machine 360mm and 460mm

8, Single rip saw with edge trimming 460mm, 660mm

9, Multi rip saw machine

10, Log multi rip saw machine

11,Horizontal band saw machine

FAQ
Q: What is your leading time?
A: Within 7 days for motor 3 phase, 380V, 50Hz, 10-20 days if the motor is different.
Q: Where is your loading port?
A: Shanghai or Ningbo. etc, China port
Q: What are your payment term?
A: 30% deposit and balance T/T before shipment.
Q: What's your warranty time?
A: 12 months for machining parts and 6 months for electronic parts.
Q: Can you do the OEM or ODM?
A: Our brand is STRENGTH, but we can make us your brand and color.

Our contact information:
Jinhua POWERFUL(STRENGTH)Woodworking Machinery Co., Ltd

Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.

"manufacture high quality products, create value for consumers" is our target.

"quality first, consumer foremost" is our tenet

We always embrace the market principle of "satisfy the consumer"

We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "

We are looking forward to cooperating with you!

We are the manufacturer for woodworking machinery 40 years with good quality and best price.

Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.

Your right supplier!
