Prod Model: hlt12
Products: Automatic CNC Thread Machine for Seamless Cylinder
Application: for Seamless Cylinder Tank
Material Of Cylinder: 34CrMo4
Customized: Acceptable
Packag: Standard Seaworthy Package
Payment Term: T/T

Product Description

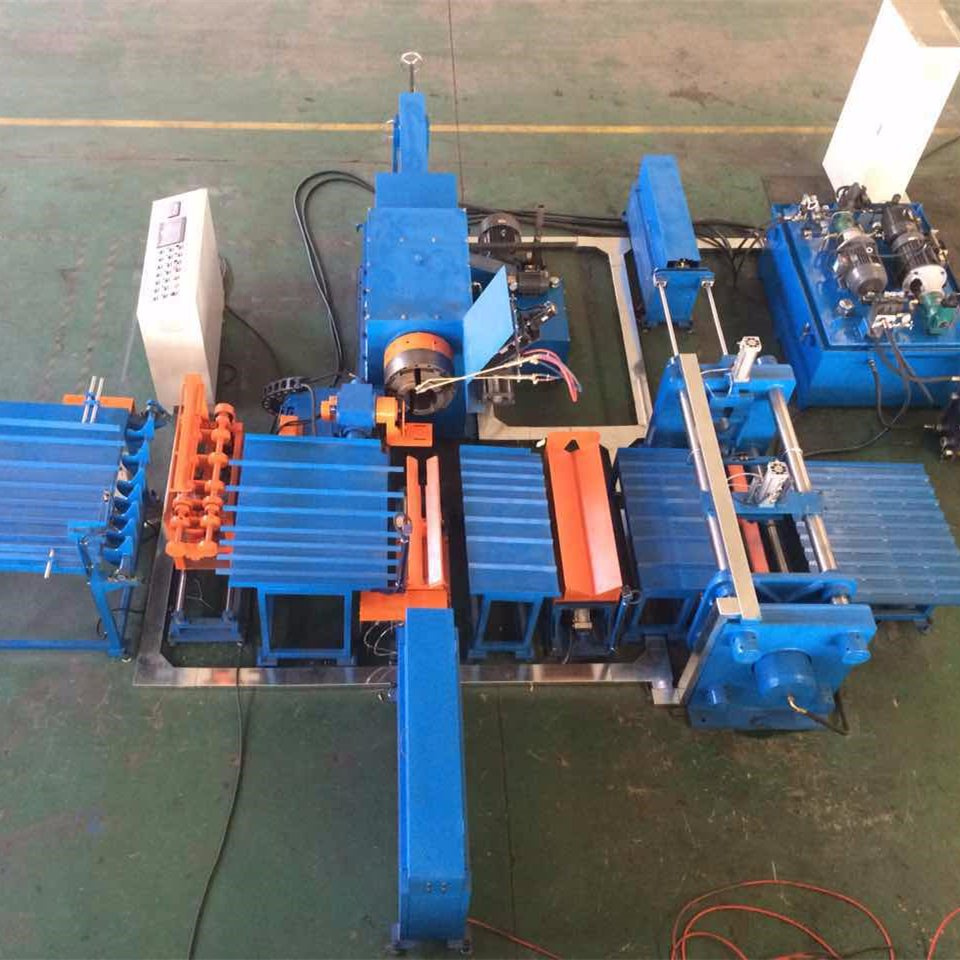

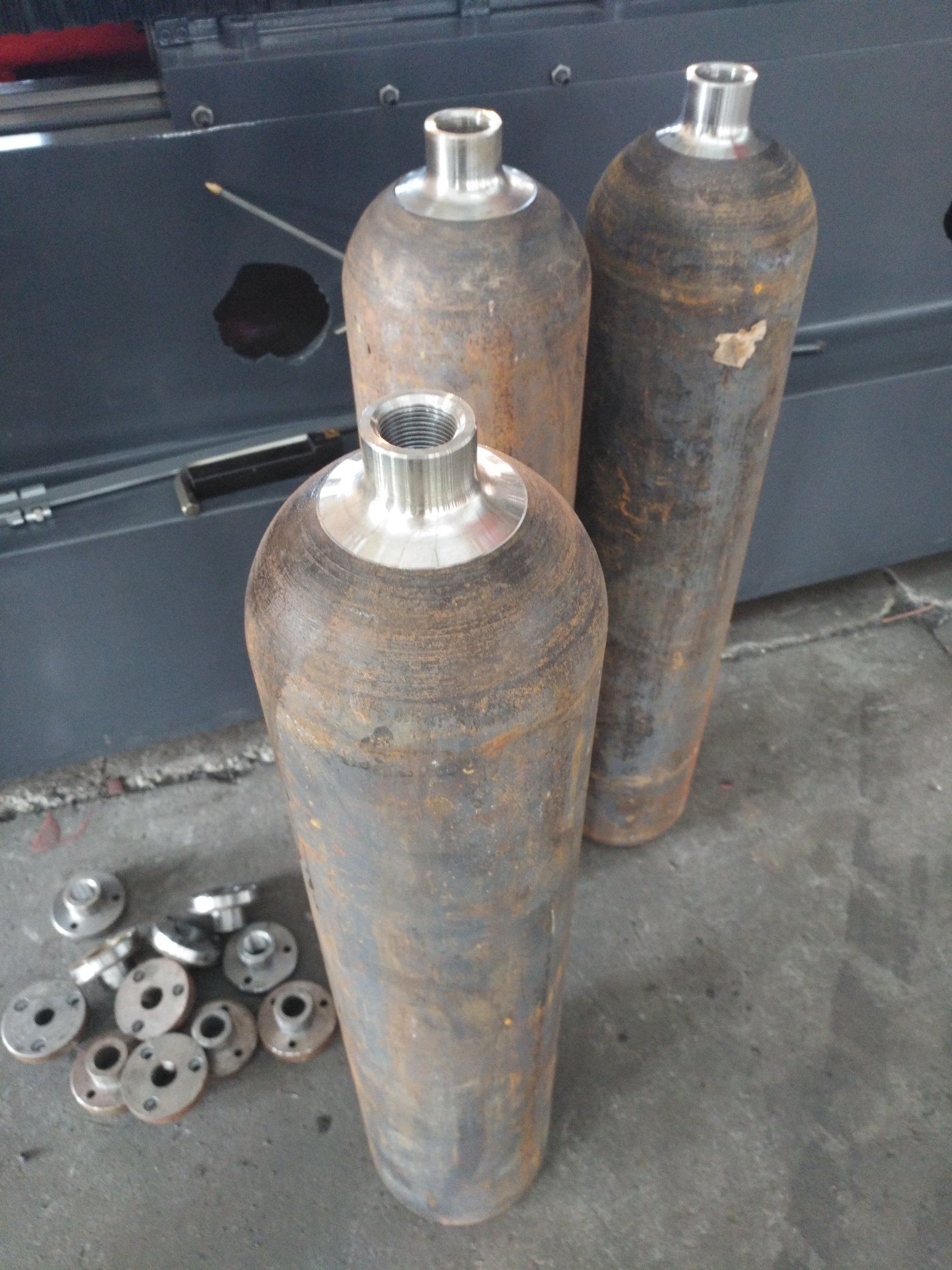

automatic CNC thread machine for seamless cylinder






  1. Name of the equipment: Gas Cylinder Thread CNC Machine
2.Quantity: 1 set
3.The main specifications and technical requirements of the equipment:

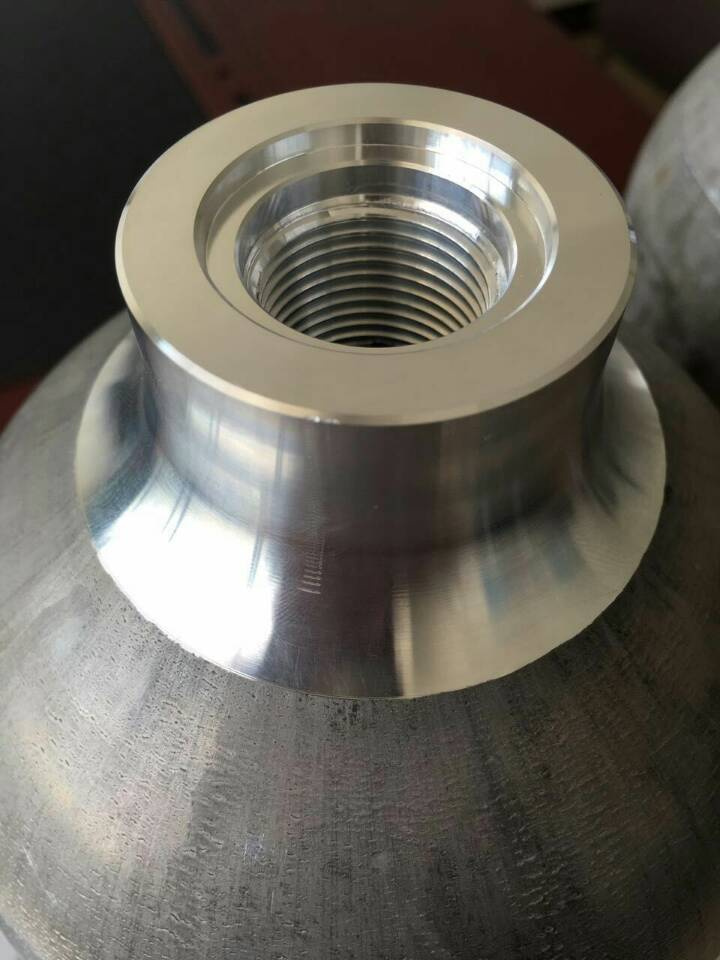

Meet the standard of technology for firefighting gas cylinder bottleneck thread process
The efficiency: 100 seconds/piece (According to the requirements of Buyer's standard bottleneck and PZ27.8 thread process, not include the time of feeding and blanking, not include the time of punching)
  1. Parameter of the workpiece:
The maximum outer diameter size range of the workpiece: φ89-φ180mm
Diameter range of the bottleneck for the workpiece: φ30-φ40mm
The maximum weight of the workpiece: 30Kg
The length range of the workpiece: 400-1100mm
The material of the workpiece: Alloy steel gas cylinder, carbon steel gas cylinder
5.Numerical control system: FANUC system 0i-TF- (5) two-axis servo control
6.This machine uses single-casting to ensure the rigidity and the form of 45 degree inclined guide
7. Main engine:
A.Stroke: Z axis:400MM  X axis: 170MM
B.Main motor power: 5.5KW(Frequency conversion)
C.Fast moving speed: Z axis: X 8M/MIN axis: 8M/MIN
D.Knife rest: Hongda Brand
E.The maximum clamp workpiece: φ180
F.Maximum speed of spindle: 500-1000r/min
G.The top of the tail slide adopts hydraulic clamping function.  Manual centralized lubricating device.
  1. Workpiece clamping positioning adopts front cambered surface positioning, using the 90 degree positioning bowl to positioning, the back side using back positioning bowl to tighten.
  2. Guide configuration centralize lubricating device automatically.
  3. Electric box components using high-quality electrical components from global brand---Schneider.
  4. Processing place with full enclosed protective covers
  5. Main components of the equipment:
12.1 Lathe bed part
12.2 Spindle box part
12.3 Tail part
12.4 Hydraulic system
12.5 Cooling device: using atomization cooling(increasing water cooling)
12.6 Scrap collection
12.7 Control system and electrical system
  1. Technical documents(see attachment)
Supplier need to provide related technical documentation for the equipment. List of technical documents and provided time
will follow the implementation of the agreement between the parties.
  1. Working environment for the equipment
14.1 AC power supply: 380V±15%;three-phase five wire system.
14.2Ambient temperature:-5ºC~50ºC
14.3 Maximum humidity: 85%
14.4 Compressed air pressure: 0.6-0.7MPa  Consumption:0.15cubic/min


No.Seamless cylinder production line
1Cutting machine
2Cylinder Bottom Closed Machine
3Bottom Leak Testing Machine
4Cylinder Head-Shut Machine
5Cylinder Automative Drilling Machine
6hardening and tempering production line
7Threaded Screw Machine
8Gantry-type external testing machine (including dryer)
9inner shot blasting machine
10Outer shot blasting machine
11 Coding Machine
12Rivet collar machine
13Rivet bottom machine
14Spraying line
15Valve mounting machine
16Cylinder Air Leakage Testing Machine

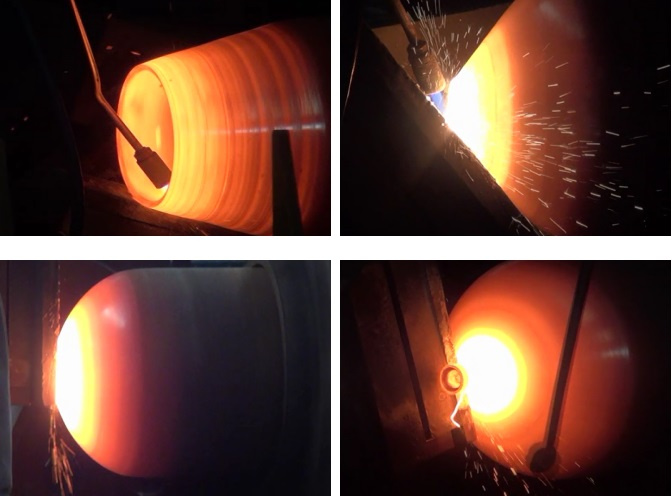

Hot spinning machine




Processing




Cutting machine

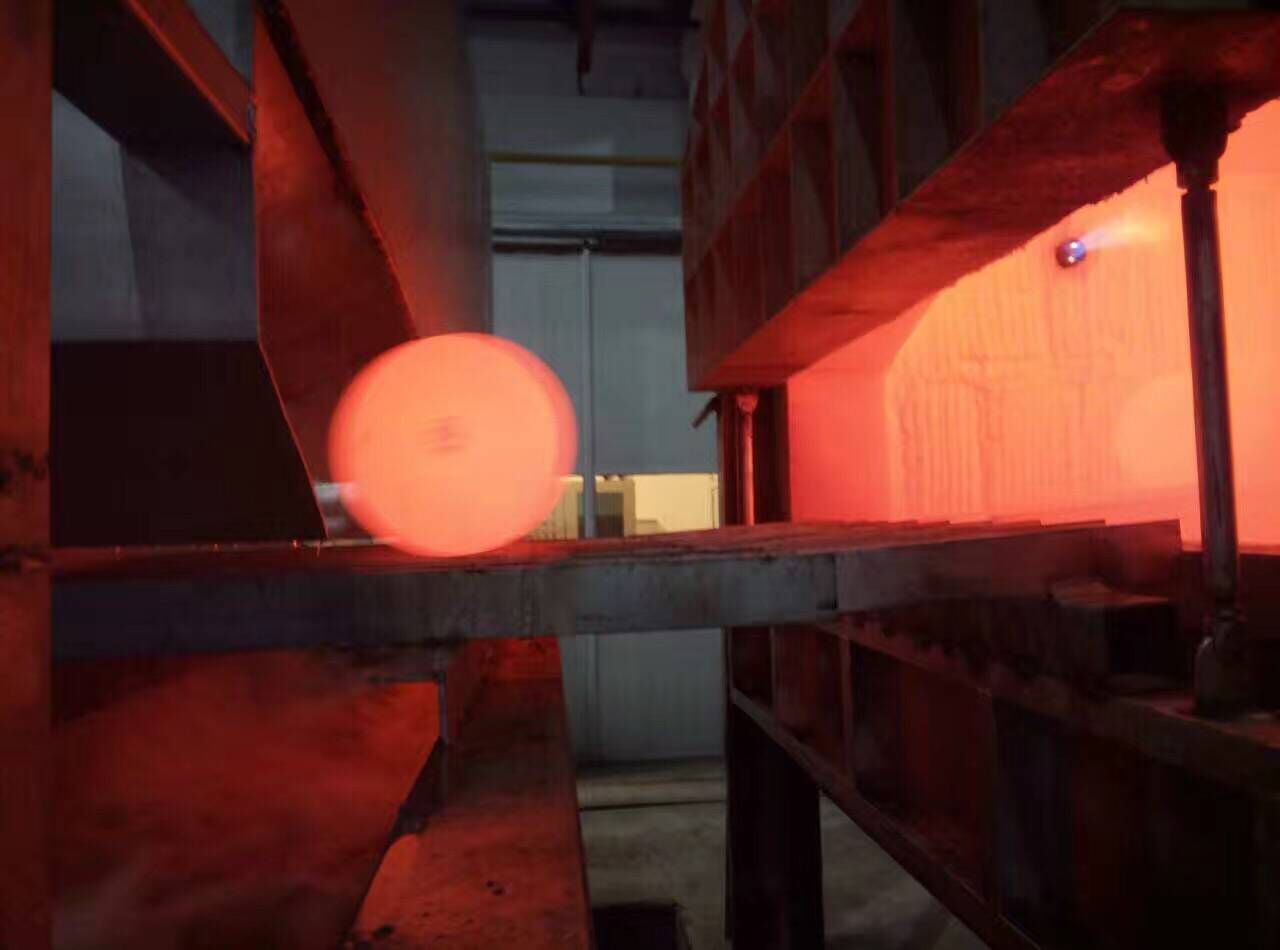

Furnace



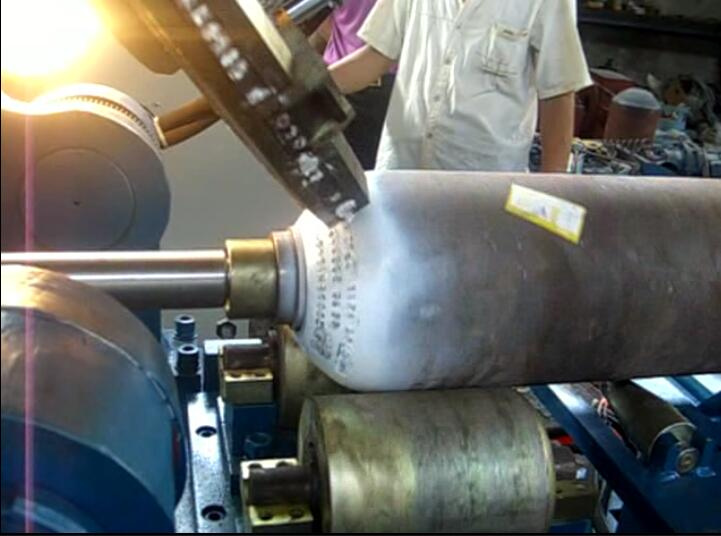

Coding Machine





Longterm Machinery Technologies are leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders. The whole process from blanking and body forming line, full automatic welding line, heat treatment, full automatic hydrostatic testing line, powder coating and finishing line.

Especially we have the best and automatic welding line from automatic trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers, but output is 2000PCS per 8hrs.

We have been focused on cylinder welding technology since 30 years ago. During last 30 years, we keep improving our technologies on welding(TIG, MAG, MIG, SAW)and make a lot of improvement from SAW welding to MIG welding on LPG gas cylinder. Our equipment are widely used Aerospace, Petrochemical, Pressure Vessels, etc...We generated big profit by saving cost and improving welding quality on welding for our customers from all over the world, America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...

I. Production Line of LPG Gas Cylinder

Including circumferential seam welding machine

Longtitudinal seam welding machine

Hydraulic leakage test

Automatic trimming machine

Valve seat welding machine

Foot ring welding machine

Protection enclosure welding machine

End dish shaping machine

Annealing furnace

Shot blasting machine

Sandblast machine

2. Production line for Solar Water Tank

Including pressurized and non-pressurized solar water tank manufacturing line

The main equipment are as follows:

Circumferential seam welding machine

Longitudinal seam welding machine

Pipe fitting welding machine

Hole punching machine

Grooving machine

3. Production line for Steel Drum Manufacturing Line

Sheet rolling machine

Spot welding machine

Longitudinal seam welding machine

Grooving machine

Leakage testing machine

Flanging machine

Sealing machine

4. CNG Tank & Fire Extinguishier Spinning machine
