Product Description

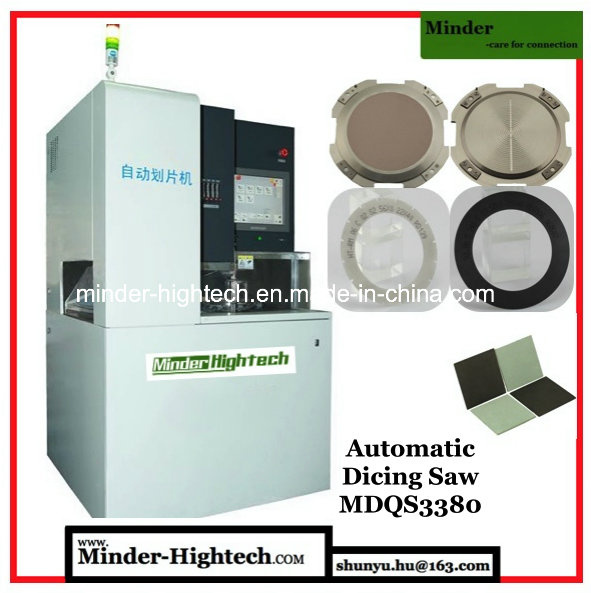

AUTOMATIC Dicing Saw 8inch MDQS3380
Application:
IC,LED,Solar cell,optical glass,optical fibre.
Ceramic, silicon wafer, QFN,BGA,PCB,GaAs,GaP.
Quarts,Lithium tantalum, sensitive resistor materials.
Principle and character:
>MDQS3260 for 6" or 245*164mm MDQS3380 for 8" or 260*260mm sq. and MDZD36120 for 12" workpiece.
>Automatically cutting, automatic alignment, automatic focus, automatic kerf check, and other image recognition functions.
>Placed on and removed from the chuck table by hand.
>Easy of use, it provided a Graphical User Interface(GUI) system by LCD touch screen.
>Real-time display the process status.
>With bridge shape structure can reduce the vibration and improve stability and cut quality.
>Shaft lock for easier blade changing.
>High quality component like spindle as well as guide screw etc.
>Customize fully automatic dicing saw(including unloading from cassette and unloading to cassette).
Specification:
| | MDQS3260 | MDQS3380 | MDZD36120 |
Workpiece size | mm | 6'' or 156*156mm | 8'' or 260*260 | 8'' or 12'' 300*300 |
X-axis | cutting range(mm) | 245 | 260 | 300 |
| cutting speed(mm/s) | 0.01-400 | 0.01-500 | 0.1-600 |
Y-axis | cutting range(mm) | 165 | 260 | 300 |
| single error(mm) | 0.003 | 0.002 | 0.003 |
| total error(mm) | 0.005/160 | 0.003/260 | 0.003/200 |
Z-axis | Max.stroke(mm) | 20 | 30 | 20 |
| blade size(mm) | d50-d63.4 | d50-d63.4 | d50-d58 |
| repeatability(mm) | 0.003 | 0.002 | 0.002 |
θ- axis | rotating angle(deg) | 320 | 380 | 380 |
Spindle | output(kW) | 1.5 | 1.8 | 1.8 |
| speed(rpm) | 3000-60000 | 0-60000 | 6000-60000 |
Align system | magnification | 150X | 150X | 150X |
| display | 15'' touch screen | 17'' touch screen | 17'' touch screen |
Power | | AC 3*380V+-10% |
Air source | pressure(MPa) | 0.5-0.8 |
| consumption(L/min) | 300 |
Water | cutting area(L/min) | 3 |
| main spindle cutting (L/min) | 1.5 |
Dimension | mm | 602*888*2060 | 1080*1040*1900 | 1080*1040*1990 |
Weight | kg | 550 | 990 | 1020 |

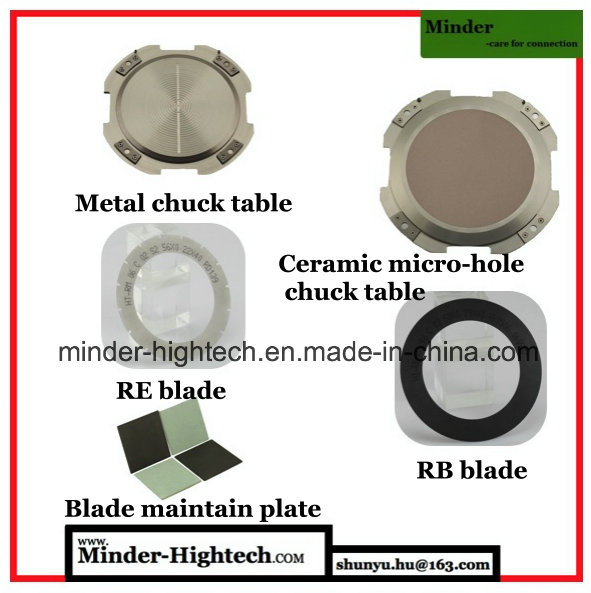

Accessary: ceramic/metal chuck table, blade,blade maintain plate....
----------------------------------------------------------------------------------------------------------------------------------------
