| Prod Model: |
HHB-3000B |
| Model: |
Hhb-3000b |
| Bits: |
#4 |
| Weight(Kg): |
0.32 |
| Power Type: |
Alternating Current Power Supply |
| Total Length: |
215mm |
| Rated Speed: |
1150rpm |
| Power: |
48W |
| Place Of Origin: |
Shenzhen China |
| Torque Range: |
3.0~8.0kgf.Cm |
| Rotation: |
Double |
| Type: |
Precision Screwdriver |
| Screw Head Type: |
Phillips |
| Structure: |
Straight Type |
| Handle Color: |
Blue |
| Brand: |
Hhb |
Product Description

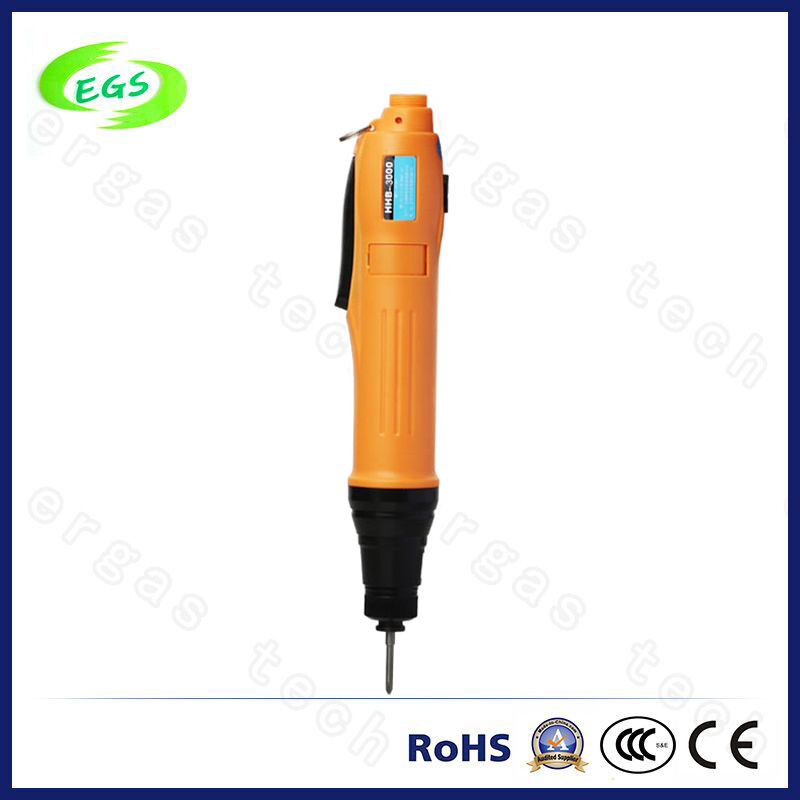

Automatic Electric Screwdriver, New Tech Electrical Power Tool From China
1. It is automatic Electric screwdriver. When the torque is locked, the clutch will automatically trip,the motor power will be automatically off and the electric screwdriver will stop running.
2. Brushless aerospace-graded motor is used and produces no dust, low noise and durability. Maintenance is not necessary.
3. It can be connected to the intelligent counter through the smart counter detection which reflects the lock with screw fastening and the number to improve the finished product quality.
4. Non-contact switch is used to provide a durable life in which there is no necessity to replace the item often.
5. It enables to connect with external PLC system to humanize the production process and can avoid any unnecessary screw fastening mistakes by calculating the fastened screw numbers with computer.
6. Torque adjustment is easy and convenient step-less adjustment by rotating the torque adjustment ring to the left or to the right.Speed can also be adjusted to High (Hi) or Low (Lo).
7. It can be used for laptops,itegrated substrates,mobile phones,digital cameras and other products assembly operations.
8. Certification: CE,CCC,ROHS and ISO9001:2008.
Specification of Fast Speed Electric Screwdriver HHB-3000B :
| Model | HHB-3000B | HHB-4000B | HHB-4500B |
| Input Voltage | DC 30V |
| Measuring range | (kgf.cm) | 0.3-3.0 | 1.0-5.0 | 3.0-8 |
| (Lbf.in) | 2.0-20.0 | 0.87-4.3 | 2.6-9.2 |
| (N.m) | 0.03-0.3 | 0.1-0.5 | 0.3-0.8 |
| Torque accuracy | ±3 |
| Torque adjustment | Stepless adjustment |
| No load speed (r.p.m) ±10% | HI | 700 | 700 | 700 |
| LO | 1150 | 1150 | 1150 |

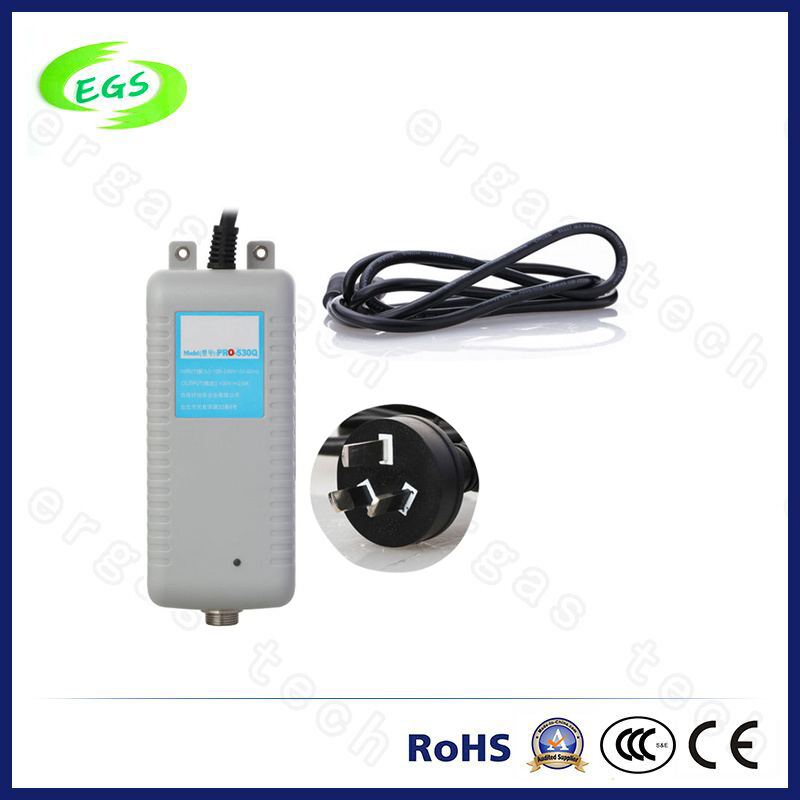

| Applicable power adapter | HHB PRO-530Q |
| Rated Power | 48W |
| Diameter of Screw (mm) | Machine screw | 1.0-2.2 | 1.0-2.6 | 2.0-3.0 |
| Tapping screw | 1.0-2.0 | 1.0-2.3 | 2.0-2.6 |
| Net Weight | 320g |
| Applicable signal controller | HHB-BS-A/HHB-BS-B/HHB-BS-C |
| Applicable screwdriver rack | HHB-K2 |
| Applicable screw bit | 5mm Diameter |
Picture show:
