| Prod Model: |
HHB-BS3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shenzhen, China |
| Torque Force(Kgf.Cm): |
0.5-5.0 |
| Brand Name: |
Hhb |
| Power Type: |
Alternating Current Power Supply |
| Weight(Kg): |
0.5 |
| Rated Speed(mm): |
1150 |
| Rotating: |
Two Side |
| Total Length(mm): |
205 |
| Application To The Power Supply: |
PRO-530q |
| Input Voltage: |
20-30dcv |
| Type: |
Multifuctional Screwdriver |
| Voltage: |
AC High Voltage |
| Power Supply Voltage: |
110V |
| Automation: |
Fully Automatic |
| Power Source: |
Electricity |
Product Description
Automatic Electric Screwdriver of 0.05/0.5N.m Torque, New Tech Electrical Power Tool
electric screwdriver,torque electric screwdriver,brushless motor screwdriver,automatic electric screwdriver
Specification:| Model | HHB-BS2000 | HHB-BS3000 | HHB-BS4000 | HHB-BS6000 | HHB-BS6500 | HHB-BS6800 |
| Input Voltage | DC 30V |
| Measuring range | (kgf.cm) | 0.3-2.0 | 0.5-5.0 | 1.0-12 | 2.0-16 | 4.0-20 | 5.0-25 |
| (N.m) | 0.03-0.2 | 0.05-0.5 | 0.1-1.2 | 0.2-1.6 | 0.4-2.0 | 0.49-2.5 |
| Torque accuracy | ±3 |
| Torque adjustment | Stepless adjustment |
| No load speed (r.p.m)±10% | HI | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| LO | 650 | 650 | 650 | 650 | 650 | 650 |
Notes befor you buy:
1.High-performance low-voltage brushless motor is used and produces no dust,low noise and durability. 2. Torque output of brushless motor will be more stable, suitable for high-precision industries and 5C industries.
3. Ergonomic size ,high temperature durable,weak vibration , good grip,new appearance,light weight easy to operate for a long time without fatigue , improve efficiency.
4High precision of the torque , with step-less torque adjustment,simple operation,it can be generally used for electrical and electronic lightening products.
The step to use:
1. When install screwdriver bit, the first step is to reducty the adapter sleeve of screwdriver , then insert the bit aligned with the U-shaped groove, loosen the adapter sleeveand let it automatically resets and the bit has been stucked. 2. Then insert the cord plug into 220V outlet.
3. Adjust the reversing switch to the desired position. (Up to reverse, down for the forward direction.)
4. Turn regulating sleeve to the desired torque position. (Clockwise adjust the torsion increase, counterclockwise to adjust the torsion reduction.)
5. Press the button to start the motor, tight or demolite the screws. When the screwdriver is tigh to reach the torque setting, the clutch will automatically slip and screwdriver bit stops rotating. Release the bottom, the motor stops working, the job is completed.
6. Fully automatic series products, when the torsion reaching the setting, the motor will automatically stop working, can effectively protect the workpiece.

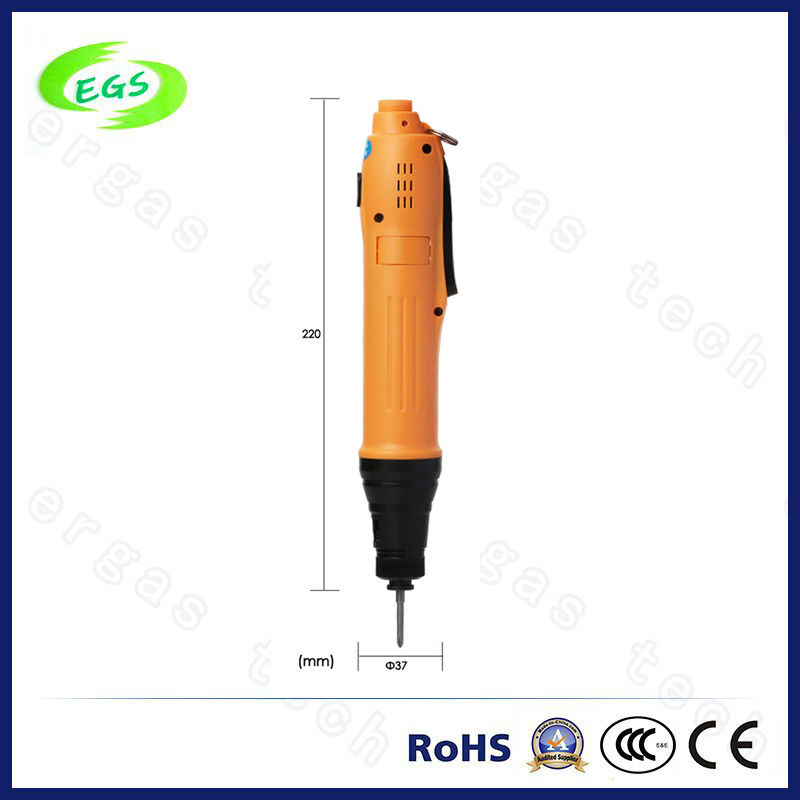

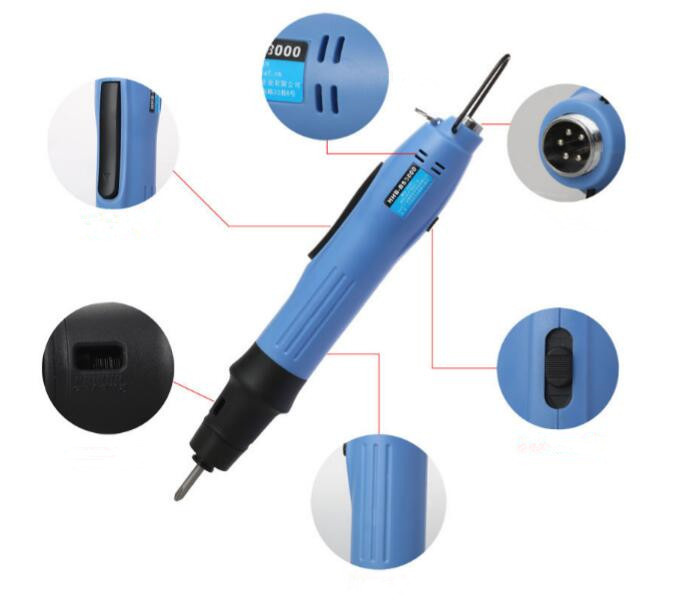

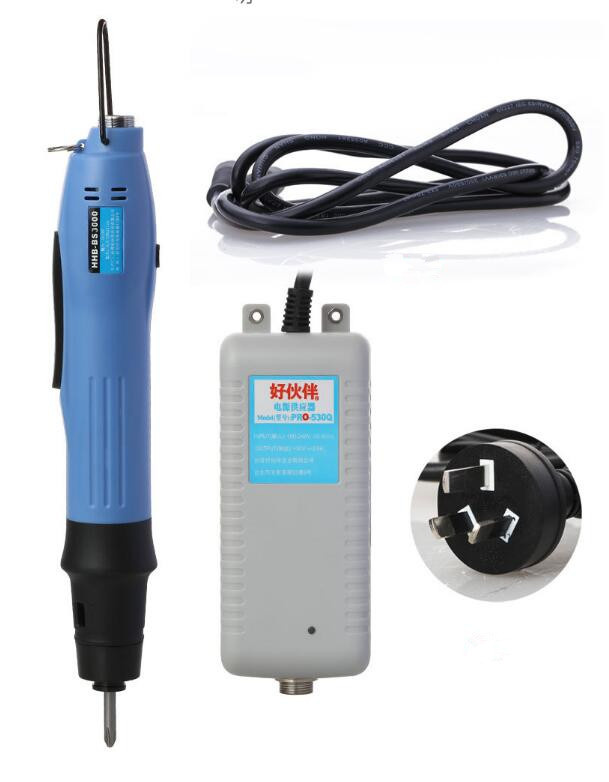

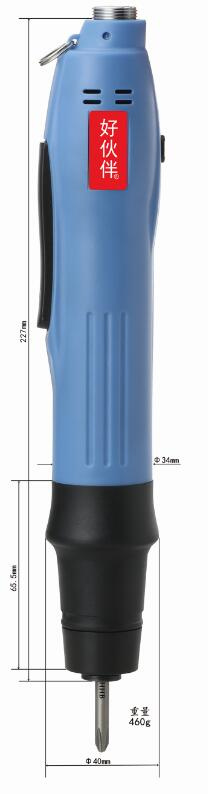

Product pictures show:
FAQS: 1. Do your machines get any certificates?
Yes, CE for EU market, FDA for USA market.
2. What's the guarantee, in case the machine breaks down?
2 years' quality warranty. If machine breaks down, generally speaking, our technician will figure out what problem it is based on clients' feedback. Parts (excluding the consumable parts) shall be replaced for free If there is any problems during warranty period.
3. How to pay to you ?
30% deposit, 70% balance paid before delivery by T/T is prefer; small amount with PayPal is also acceptable.
4. How long is the delivery time?
For standard machine, it would be 3 - 5days. For non-standard/customized machines according to clients' specific requirements, It would be 15days.
5. Do you arrange shipment for the machines?
FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
6. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
7. How is the packing?
3 Layers package -- (Water-proof plastic film+ Foam board protection + Solid seaworthy wood box)
