Prod Model: |
CK-250S |
Name: |
Automatic Film Shrink Packing Machine |
Function: |
Packing Popsicle, Ice Lolly, Biscuit |
Material: |
Stainless Steel |
N.W: |
600kgs |
Warranty: |
12 Months |
Automatic Grade: |
Semi-Automatic |
Application: |
Dairy Products |
Driven Type: |
Electric |
Material Type: |
Solid |
Packaging Type: |
Cartons |
Packaging Material: |
Plastic |
Product Description
Production information:

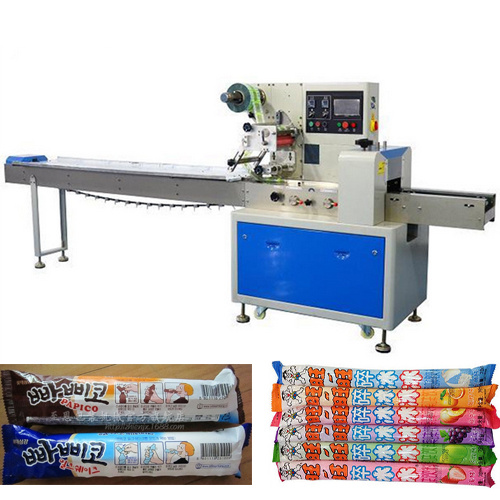

automatic film shrink packing machine
Model | CK-250S |
Power | 220V 50/60Hz |
Install Power | 2.4KVA |
Function | Packing popsicle, ice lolly, biscuit |
Material | Stainless steel |
Dimension | 3770*670*1450mm |
N.W | 600kg |
Certificated | CE |
Payment mode | T/T, Western Union, Paypal, L/C |
We also have popsicle machine, popsicle bags and wood sticks |
Function Description:
1. The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine GMP health requirements.
2. Controlled by dual frequency conversion, the cutting of bag length is following the length setting, saving time and film.
3. High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand, the cutting position is accuracy, and the seal is firm and beautiful.
4. Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
5. Machine can be turned off by position; fault is self-diagnosed and displayed clearly.
6. Counting automatically, the packaging production's counting is accuracy.
7. Machine design and convey system is simple. The machine is convenient to maintain.
8. The machine can be equipped with gas charging device and production date code system according to client's packaging requirements.
Scope of application:Suitable for regular products like popsicle, moon cake, biscuit, bread, candy, medicine, daily article, toothbrush, hardware, carton, tray etc.
Technical Specifications:
Model | CK-250S |
Single knife | Bag size: L (120-290) ×W (30-100) × H (3-35) mm |
Speed: 100 bags/min |
Double knife | Bag size: L (60-145) × W (30-100)× H (3-35) mm |
Speed: 200 bags/min |
Thickness of film | 30-70 um |
Width of film | ≤220 mm |
Dimension of film roll | outer diameter ≤300 mm inner diameter ≤75mm |
Power requirement | 220V, 50HZ, 2.75KW |
Machine size | L 3900* W 850* H 1500 |
Machine Weight | 550KG |
Optional device | printer, gas charging device, feeder, tidier |
Spare part with machine:
heater bar : 2pcs
Hex driver : 1set,
Solid-state relay : 1 pcs,
Adjustable wrench : 1pcs
Cutter : 2pcs
Screwdriver : 2 pcs
Our service:
1. Guarantee Time: 12 month
2. Professional production of ice cream machine since 2001
3. Direct manufactures
4. Extra spare parts are attached with order for stock accessories
5. Specialized after-sales team offer technology support
6. Annual international seminar for technology update and after sales service experience exchange
7. The punctual delivery of goods, quality and quantity guaranteed
8. Fast delivery and good quality control team to ensure timely delivery.
