Prod Model: |
JR24-24-8 |
Bottle Material: |
Glass Bottle |
Cap Type: |
Aluminum Cap |
Filling Medium: |
Carbonated Drinks or Alcohol |
Factory Scale: |
150,000 Square Meters |
Type: |
Volumetric Filling Machine |
Automatic Grade: |
Automatic |
Material Type: |
Liquid |
Filling Valve Head: |
Multi-Head |
Feed Cylinder Structure: |
Multi-Room Feeding |
Dosing Device: |
Capacity Cup |
Filling Principle: |
Pressure |
Packaging Container Lifting Structure: |
Pneumatic Lifting |
Structure: |
Rotary |
Packaging Type: |
Bottle |
Packaging Material: |
Glass Bottle |
Product Description
30 years focus makes best machines !
Factory established : 1987
Factory scale: 150,000 square meters
Employee quantity: 260

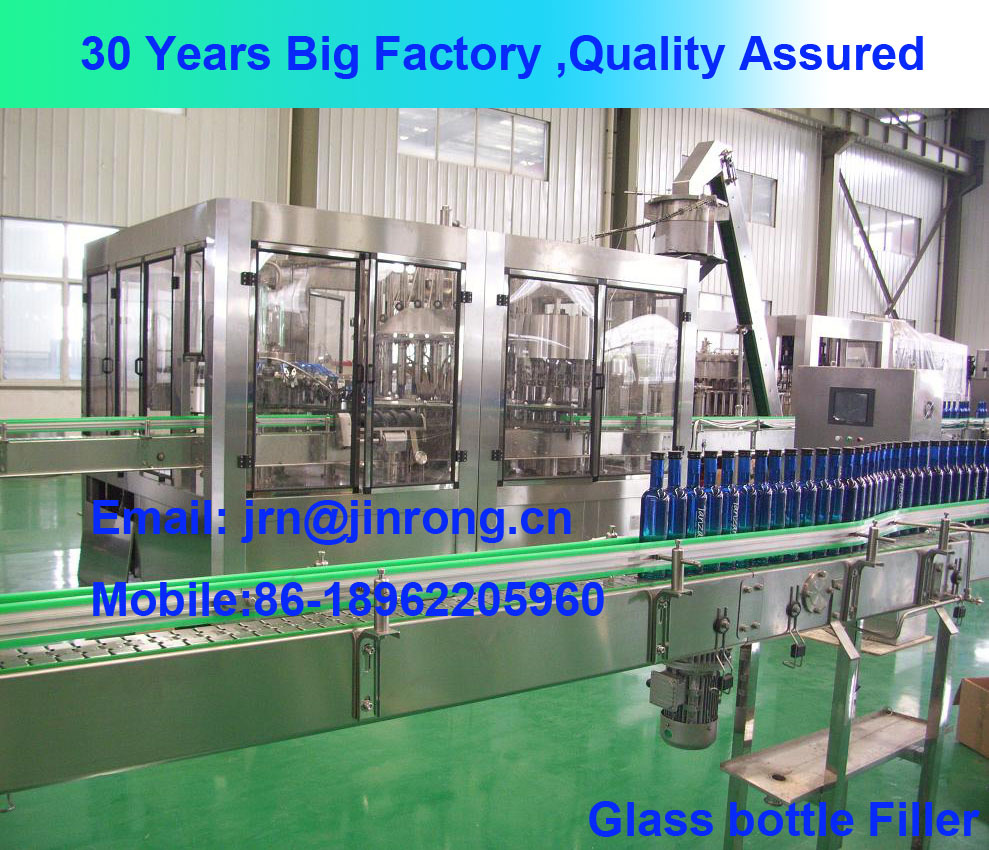

Machine information:
Filling medium: carbonated water
Capacity: 5000~36000bph
Bottle size: 0.2~3L
Bottle material: glass bottle
cap type: aluminium cap
Different models with different capacities as following
Model | Stable Capacity | Overall dimenstion | Power | Weight |
JR18-18-6D | 5000bph | 2800*2050*2200 | 4kw | 5500kg |
JR24-24-8D | 8000bph | 3100*2250*2800 | 4kw | 7000kg |
JR32-32-10D | 10000BPH | 3600*2900*2900 | 5.5kw | 8500kg |
JR40-40-10D | 13000BPH | 4250*3250*2900 | 7.5kw | 1000kg |
JR50-50-12D | 16000BPH | 5200*3700*3000 | 11kw | 14000kg |
JR60-60-15D | 20000BPH | 6300*4400*3000 | 11kw | 17000kg |
JR72-72-16D | 26000BPH | 6900*4950*3000 | 11kw | 18000kg |
JR80-80-18D | 30000BPH | 7600*5100*3000 | 15kw | 20000kg |
JR100-100-20D | 36000BPH | 9800*6600*3000 | 18.5kw | 24000kg |
Electrical and pneumatic parts Items | Products Name | Brand |
1 | Frequency converter | Siemens |
2 | PLC | Siemens |
3 | Circuit breaker | Siemens |
4 | Circuit contactor | Siemens |
5 | Thermal relay | Siemens |
6 | Proximity switch | AUTONICS |
7 | Fiber switch | AUTONICS |
8 | Touch screen: | Kinco/Siemens |
9 | Pneumatic components | AIRTAC/FESTO |
10 | Stainless Steel | POSCO |
Company Main Products:
1.mineral water/pure water filling production line
2.carbonated drinks filling production line
3.juice(with/without pulp) filling production line
4.Bottle blowing machine
5.water treatment, packaging machinery etc.
30 Years Big factory, Quality Assured !
Jiangsu Jinrong Machine Co., Ltd is the member enterprise of Chinese Packaging the scenic Along Yangtse River Economy & Technology Zone, Zhangjiagang City. The company occupies more 100, 000 square meters of land with 60, 000 square meters of modern standard houses and 90 million RMB Yuan of fixed assets. The company is a comprehensive special manufacture of beverage packaging machinery composed of research, development and production. The company has invested all its forces into the new technilogical area of veverage packaging machinery all the time for above 20 years since its foundation. The newest technologies of beverage packing machinery have been respectively introduced form from Germany and Italy.
We have come to form and boast specific advantages over market competitions with the scientific progressive conceptions of rapid introduction, more improvements, and ceaseless innovations. We have produced our goods mature technique and first quality. The products are marketed not only inland, but South Africa, Vietnam, Philippiness. Pakistan, Malaysia, Canada and etc, we have created many excellent achievements and won good reputation from our extensive customers and established a stable position in the industry. We warmly welcome clients from home and abroad to honor us with full enthusiasm and sincere cooperative attituade and business idea of mutual benefit all the times.
