Automatic Machine Straightener Feeder with Nc Servo Feeder Use in Hardware Manufacturers
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
MAC4-1300F |
| Stock Width(mm): |
70-1300 |
| Stock Thickness(mm): |
0.6-6.0 |
| Line Speed(M/Min): |
16-24 |
| Coil Weight(Kg): |
5000-10000 |
Product Description
Welcome OEM & ODM

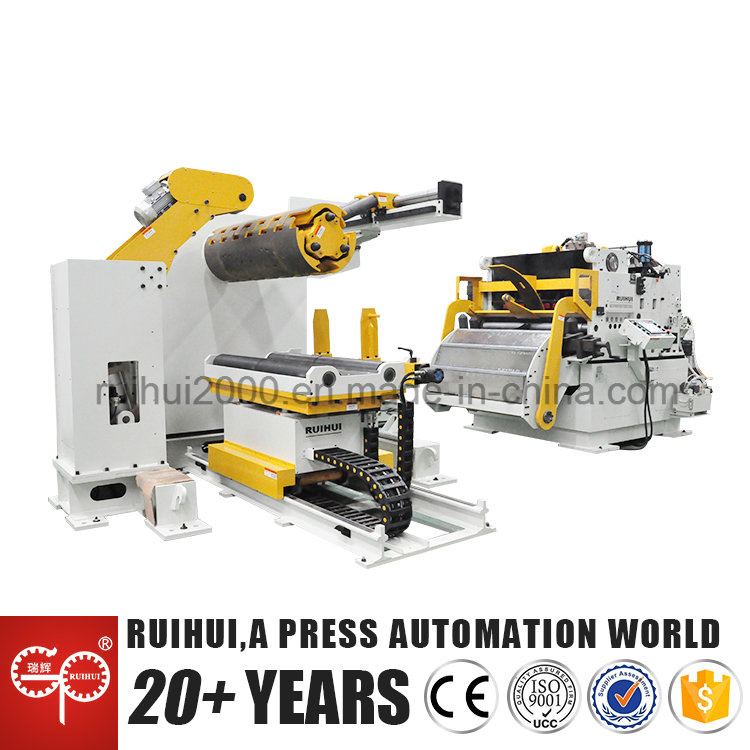

Automatic feeding material system roller straightening machine NC servo straightener feeder
Features:
This series nandles material form 600mm to 1,600mm wide and up to 6.0mm thick. The 11 work rolls offer an extraordinary level of flatness to the materials. The HL series featured that adapting all rolls driven with universal joint (MAC4-F) and strengthen body flame for straightening high tension materials. A straightener port opening mechanism has been added. allowing for improved maintenance and cleaning the rolls. The HL series underwent a new model for meeting the demand of both productivity and efficiency in pressroom.1.Easy Access to Work Rolls The work rolls on the HL can be opened to a maximum of 20 degrees,making roll cleaning much easier,The machine was designed to allow easy access to the inside structure for improved maintenance.2.Coil Material Entry Support Assembly Save Man Power Increase Safety, Easily move the material into pinch rollers. Specification:| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | MAC4-1600F |
| Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | 70~1600 |
| Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | 10000 |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | 1400 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ~500* |
| Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | 16~24 |
| WorkRollNumber(piece) | upper6/lower5 | upper6/lower5 | upper6/lower5 | upper6/lower5 | upper6/lower5 |
| Feed Roll number(set) | 1 | 1 | 1 | 1 | 1 |
| Main Motor | AC7.5 | AC11.0 | AC11.0 | AC22.0 | AC22.0 |
| Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
| Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | 11 |
| Power(v) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | 0.49 |
*In Case Feeding length is 500mm or longer,MASTER CONTROL Funlion(Option)must be provide.Straigtening Performance(For High tention materials):| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | MAC4-1600F |
| Stock Thickness(mm) | 2.3 | 255 | 252 | 250 | 246 | 242 |
| 2.5 | 232 | 230 | 228 | 225 | 222 |
| 2.8 | 205 | 203 | 202 | 199 | 196 |
| 3.2 | 177 | 175 | 174 | 171 | 168 |
| 4.0 | 138 | 136 | 135 | 133 | 130 |
| 4.5 | 120 | 119 | 118 | 116 | 114 |
| 5.0 | 106 | 105 | 104 | 103 | 100 |
| 6.0 | 81 | 81 | 81 | 81 | 81 |
*The above flgures are the material having yield strength of 600N/mm2 max.
Q1:What kinds of machines do you have?Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener Feeder,Transfer systems,Press Feeding Line., etcQ2:Is your equipment standard or customized?Both, we can OEM & ODM with customers.Q3:What are your equipments certification?All our items are coming with CE certifications.Q4:How did your company's quality system work?"QUALITY IS OUR CULTURE" Our quality is not the best in the world, and the price is not the cheapest. But we can provide you excellent products to defeat your competitors.Q5:How long is the warranty period of the machine?We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.Q6: Is it possible to be a foreign agent and distributor?If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.Q7:What's your payment?T/T,D/P,L/C,Western Union., etcQ8:What's the delivery?"TIME IS GOLD" for you and for us, so we have professional team work and production line can make nice quality in short time.
RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less. Customer case Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning. hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after. Why choose us?1st,We have a high level of technical research and development team;2nd,We can provide the design and planning of the whole plant to realize the turnkey project;3rd, our philosophy: quality is the social responsibility;4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;5th,We have a highly effective after-sales service team and get customer approval.
RUIHUI founded in 2000, the technology of automation periphery is from Japan. Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy, and investment less.
Customer case
Manufacturing industry; The United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.
And other household appliances manufacturers; Such as GREE, Haier, Midea, Chigo Air conditioning.
Hardware manufacturers; Such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.
RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder, multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.
At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
Why choose us?
1st, We have a high level of technical research and development team;
2ND, We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: Quality is the social responsibility;
4th, our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th, We have a highly effective after-sales service team and get customer approval.
