| Prod Model: |
QZJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Side: |
Left or Right Made to Customer Request |
| Classification: |
Double-blade Cutter |
| Driven Type: |
Electric |
| Blade Material: |
Steel |
| Computerized: |
Computerized |
Product Description

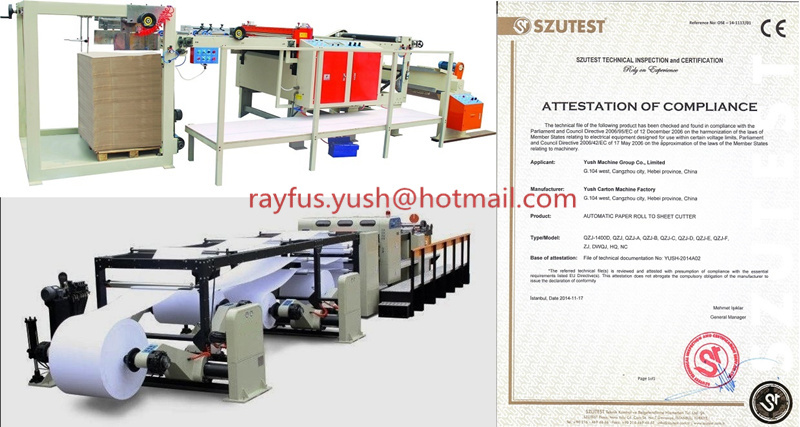

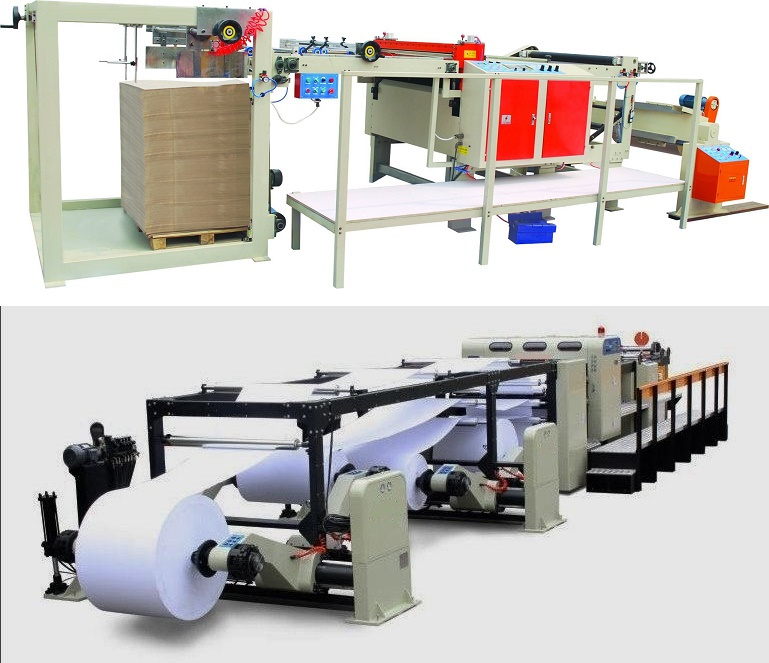

Automatic Paper Roll to Sheet Cutter
1) QZJ-B Automatic High-speed Paper Roll to Sheet Cutter adopts servo-motor to control cutting length. It is equipped with photoelectric tracing correction system, could also do high-precision cross-cutting, automatically collect and stack the finished products.
2) Transmission system adopts pneumatic system, hydraulic system, photoelectric sensor, etc. Centralized control. The material feeding system adopts hydraulic lifting device. This machine integrates photo, electric, hydraulic, pneumatic, etc. Together, easy to operate, high-precision cut, stable and low noise. Frequency adjust motor speed, auto counting, alarm stopping, tension with digital display.
3) This machine is suitable for sheeting large reel materials, such as paper, paper plastic complex material, colorful printed complex material, etc. It is widely used for application in the industry of paper processing & printing package.
| Model | QZJ-B | QZJ-F |
| Roll Quantity | Single roll | 1~4 rolls |
| Paper Thickness | 80~400gsm | 60~1000gsm |
| Max Paper Roll Width | 1100~1600mm | 1100~1900mm |
| Max Paper Roll Diameter | 1400mm | 1500mm |
| Slitting Knives | none | 2~3 knives |
| Cutting Length | 200~1200mm | 400~1500mm |
| Cutting Precision | ±0.3mm | ±0.2mm |
| Counting | without | with counting & inserting |
| Max Stacking Height | 1200mm | 1200mm |
| Design Speed | 100m/min | 300m/min |
Yush Machine Group Co., Ltd. is a professional enterprise specializing in the R&D, production, sales and service of complete manufacturing equipments of carton and paper box. We are proud to say that we own about 100 sets of modernized processing equipments and more than 30 core technical personnel, ensuring that we are capable to offer customers packing equipments with reasonable design and top-notch quality as well as improving our competitiveness among counterparts.
Recently we pay more attention to the high-tech R&D as well as the manufacturing to cater to the modern development of international packing industry and meet the demands of national and overseas markets. The company has invested heavily in the building of R&D center and after-sale service team. The company has been expanding the workshop and increasing the product types, which has achieved zero inventory of products and no complaint from customer.
On the premise of keeping the quality and service of products, we lay great stress on credibility and always stick to the principle of "credibility first and customer-oriented". In the interest of our customers, we shall offer top-quality products and services to all of them. At present we have won the trust of carton manufacturing enterprises with the prompt delivery and stable quality.
Sincerely welcome you to join our customer list and we shall repay you with the top-notch products and perfect services.
