| Prod Model: |
AH-BLT300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V/50Hz |
| Power: |
1700W |
| Air Pressure: |
0.8MPa |
| Gas Source Gas: |
70L/Min |
| The Maximum Bag Size (L*W): |
200*160mm |
| Packing Maximum Speed: |
1500bags/H |
| Package Measurement: |
50-300g |
| Dimension: |
1100*1000*2100mm |
| Weight: |
380kg |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Paste |
| Filling Valve Head: |
Single-Head |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Dosing Device: |
Plunger |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bags or Pouches |
Product Description

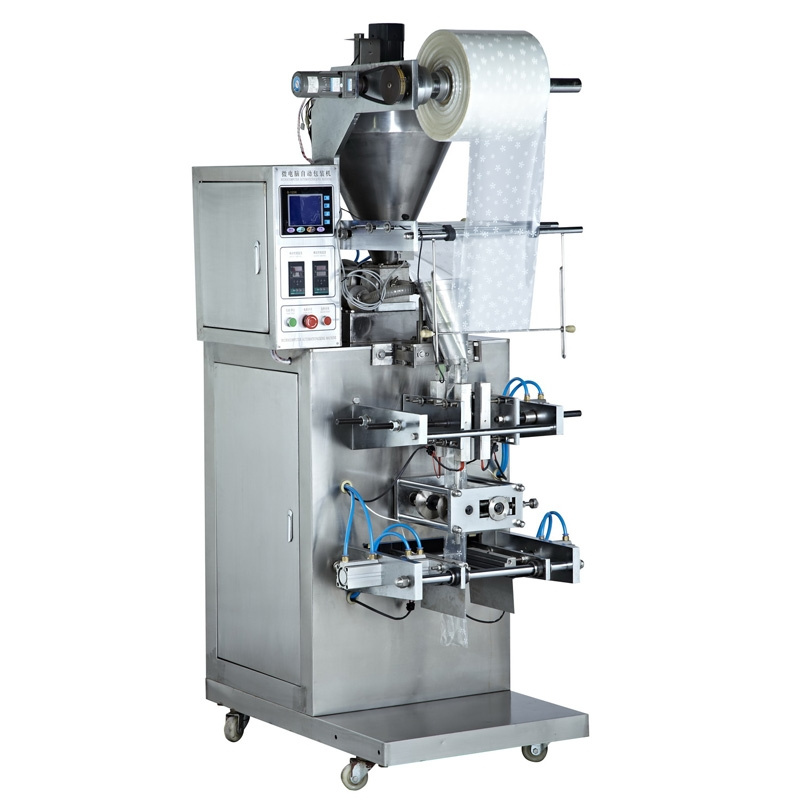

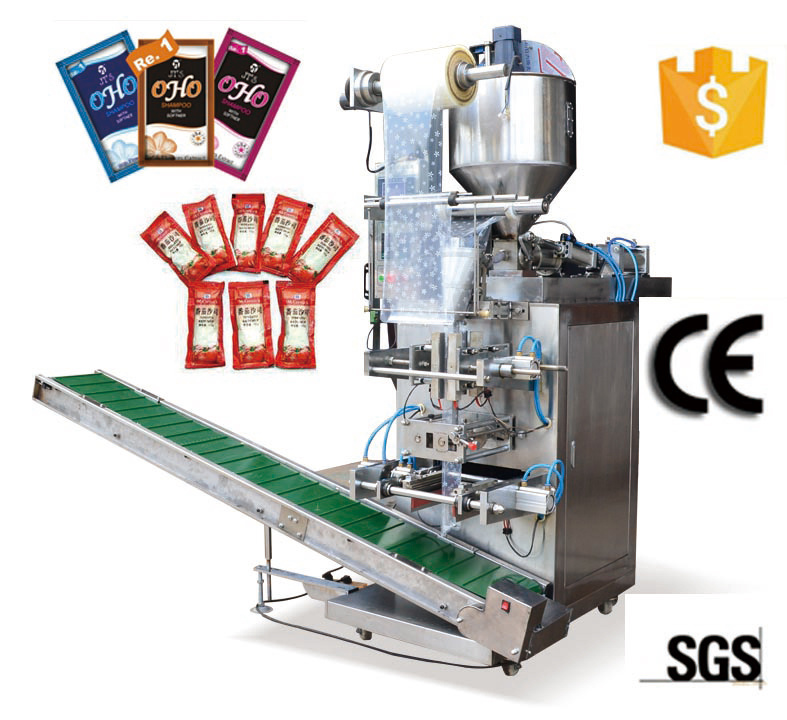

AH-BLT-G500 automatic semi-fluid packing machine uses measureing pump feeding and electonic control feeding, it has fast packing, stepless speed control, well-sealing ect. Technical features, widely suitable for drink, mdicine, chemical industry liquid and paste packing.
Features:
Back sealing, three-side sealing, four-side sealing packing method.
The packing data and adjustment can be displayed on the screen.
The user can directly operate it on it.
Assembled with a photoelectric controller to ensure that its packing bag figure are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
The body and the parts touching the material are made of stainless steel.
Suitable Material:
It is applicable for packing the semi-fluid like hairdressing water, hair conditioner, lotion, soy sauce, cough syrup, agricultural chemicals, wine, sauce, cheese, peanut butter, ketchup, bean paste and chilli sauce etc.
The machine needs an air compressor to promote it to work better. The machine can pack fruit juice with pulp.
Particulars:
² It has pneumatic transmission system with a reliable operation being ensured. A computer with an easy operation and adjustment being provided controls it, the performance is stable, and the quality is reliable.
² Staples adjusting of the packaging speed.
² Adopting proper bag length controlling technology, the bag length can be adjustable stepless, precise length, convenient adjustment.
² Solving the problems of draw bench and drip to ensure the tight sealing, improving the quality of the packages.
² Intelligent temperature controller, constant sealing temperature ensures the sealing quality.
² Realizing three side sealing, four side sealing and making flatness bags and bags without changing parts.
² Safe and credible photoelectric detecting, giving complete trademark pattern.
² Filling rang is step less adjustable within the certain scope.
² Lot number being automatically printed on the bag, and can leave a little gap for tearing and convenient use.
² The machine is made of stainless steel sanitation with good appearance, suitable to food, medicine and chemical industry.
² Thanks for your choice to our machine; Your satisfaction is our permanent aim. We are not the best, but trying to be the best. Please read this instruction before using.
| model | AH-BLT-100 | AH-BLT-300 | AH-BLT-500 |
| gas source gas | 60L/Min | 70L/Min | 80L/Min |
| packing speed | 2100bags/h | 1500bags/h | 1200bags/h |
| power(kw/v) | 1.3/220 | 1.5/220 | 1.7/220 |
| size of bag(L*W) | 150*120 | 200*160 | 260*190 |
| dimension(MM) | 1000/800/1700 | 1100/1000/2100 | 1200/1100/2300 |
| weight(kg) | 300 | 380 | 430 |
Ruian Onfocus Machinery Co., Ltd. Was established in October 1999, (formerly named Zhejiang Angrui Machine Co., Ltd. ) which has been located in No. 1 of Qingbo Industrial zone, Jinhu street, Ruian city, (the location was close to Ruian City Stadium, only one thousand meters from Ruian highway exit). It is well-located and easy of access.
Ruian Onfocus Machinery Co., Ltd. Ltd. Is the manufacturer as well as known an exporter with combination of design, production of and sales of automatic food packaging machines and packaging lines. We sell machines all over the world among 40 countries (especially in developing countries). Our main products are automatic liquid packaging machines, automatic particles packing machines, automatic powder packing machines, automatic body butter packaging machines, which are designed and developed horizontal packing machine with superior material compatibility, by replacing the filling head and be applied simultaneously in liquid, particles, powder materials packaging.
These years Onfocus Machinery dedicated in people-oriented, good business faith, well products quality and after-sale service guaranteed. We wholeheartedly welcome new and old customer (dealers) at home and abroad to discuss business, mutual-benefits and development!
