| Prod Model: |
DP25-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Thickness: |
0.5-4mm |
| Material Max. Width: |
2m |
| Lwd Of Mesh Opening: |
150mm |
| Distance Of Feeding: |
0-4mm |
| Stroke: |
60 Times/Min |
| Payment: |
30%T/T, 70%T/T Balance |
| Motor: |
15kw |
| After-Service: |
Engineers Is Available for Installation Overseas |
| Net Weight: |
12 Ton |
| Product Name: |
Perforated Expanded Metal Mesh Making Machine |
| Material: |
Low Carbon Steel Plate |
| Application: |
Cages |
| Hole Shape: |
Diamond |
| Usage: |
Protection |
| Weave Characteristic: |
Stamping |
| Surface Treatment: |
Galvanized |
| Stamping Expanded Metal Mesh Category: |
Expanded Metal Mesh |
| Galvanized Surface Treatment: |
Cold-galvanizing |
| Hot-galvanize Technique: |
Wire Annealing |
| Specifications: |
Mesh |
| Weight: |
Heave-weight |
Product Description

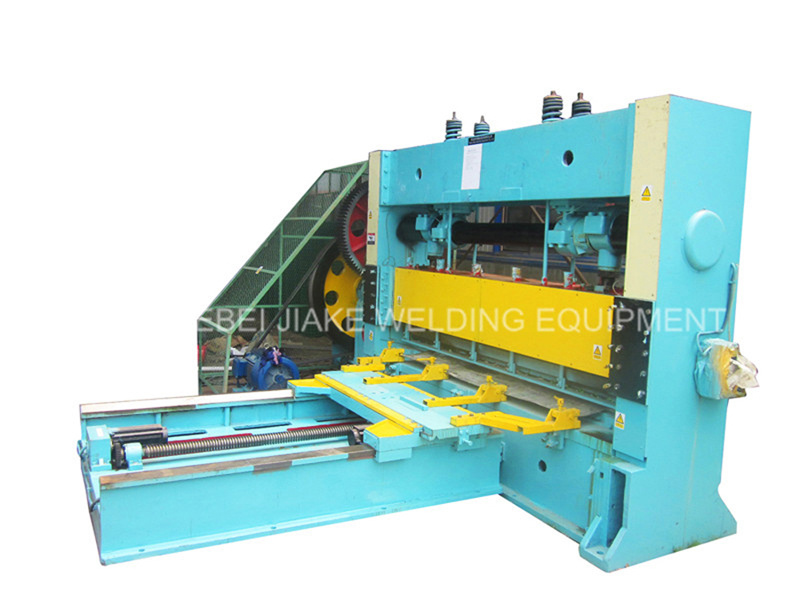

Automatic perforated expanded metal mesh making machineAdvantagesHigh production
PLC controller
Touch screen
Easy operationApplication
The metal mesh is extensively in making-ship, mining industry, transportation, oil industry,
construction, hardware, window and door, machine, protection, etc. Raw material can be low-carbon steel plate, stainless steal plate, aluminum plate, copper
plate, etc.Technical Specification| Model | DP25-6.3 | DP25-16 | DP25-25 |
| Material thickness | 0.1-1mm | 0.2mm-1mm | 0.3mm-1.5mm |
| Material max. width | 500mm | 1m | 1250mm |
| Stroke per minute | 180times/min | 25mm | 150times/min |
| LWD of mesh opening | 20mm | 0-1.2mm | 30mm |
| Distance of feed | 0-1.2mm | 150times/min | 0-1.2mm |
| Motor | 2.2kw | 3kw | 4kw |
| Overall dimension | 1090×710×1450mm | 1740×1400×1500mm | 1940×1600×2010mm |
| Net weight | 0.95T | 2T | 3T |
| Model | DP25-63 A | DP25-63 B | DP25-100 |
| Material thickness | 0.5mm-2.5mm | 0.5mm-3.0mm | 0.5mm-4mm |
| Material max. width | 2000mm | 2000mm | 2000mm |
| Stroke per minute | 70 times/min | 45times/min | 60times/min |
| LWD of mesh opening | 100mm | 150mm | 150mm |
| Distance of feed | 0-4mm | 0-4mm | 0-4mm |
| Motor | 11kw | 11kw | 15kw |
| Overall dimension | 3600mm×2500mm×3000mm |
| Net weight | 10T | 10T | 12T |

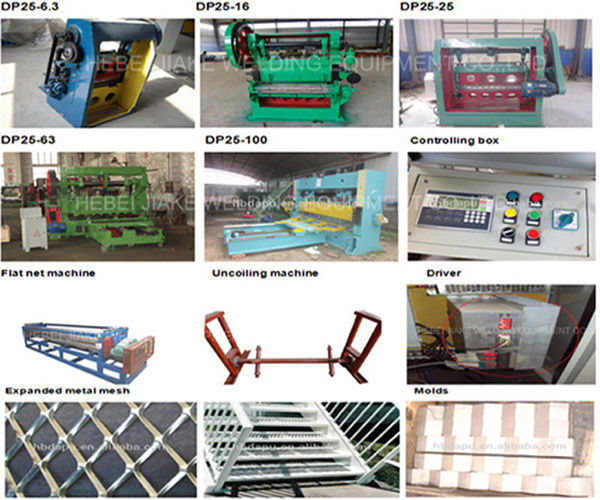

Picrures
Company InformationHebei Jiake Co.,LTD, found in 1999, is engaged in manufacturing wire mesh machinery;
Win CE Certificate in 2009;
Our machinery mainly includes: wire mesh weaving machine; wire mesh welding machine.
Nail making machine, Steel fiber machine,
Wire drawing machine, Wire straightening and cutting machine,
Barbed wire machine, Razor barbed wire machine,
Chain link fence machine, Crimped wire mesh machine,
Expanded metal mesh machine, Grassland fence machine,
Hexagonal wire netting machine, Gabion mesh machine,
Ribbed rolling wire machine, PVC coated wire machineGlobal MarketOur market covers five continents:
Asia: Philippines, Vietnam, Malaysia, Bangladesh, India, KZ, Singapore, etc.
Middle East: Iran, Egypt, Saudi Arabian, UAE, Iraq, Turkey, etc.
Australia: Vanuatu, New Zealand, Australia, etc.
America: US, Canada, Mexico, Uruguay, Peru, Chile, Brazil, Argentina, etc.
Africa: Sudan, Ethiopia, Algeria, South Africa, Tunis, Botswana, etc.
Europe: Romania, France, Spain, etc.
Complete ServiceOur engineers are available to install and maintain machine overseas.
Warranty period: 12 months (but no longer than 18 months)
OEM support.
Fast delivery.
Door to Door service or 24-hour email service.
