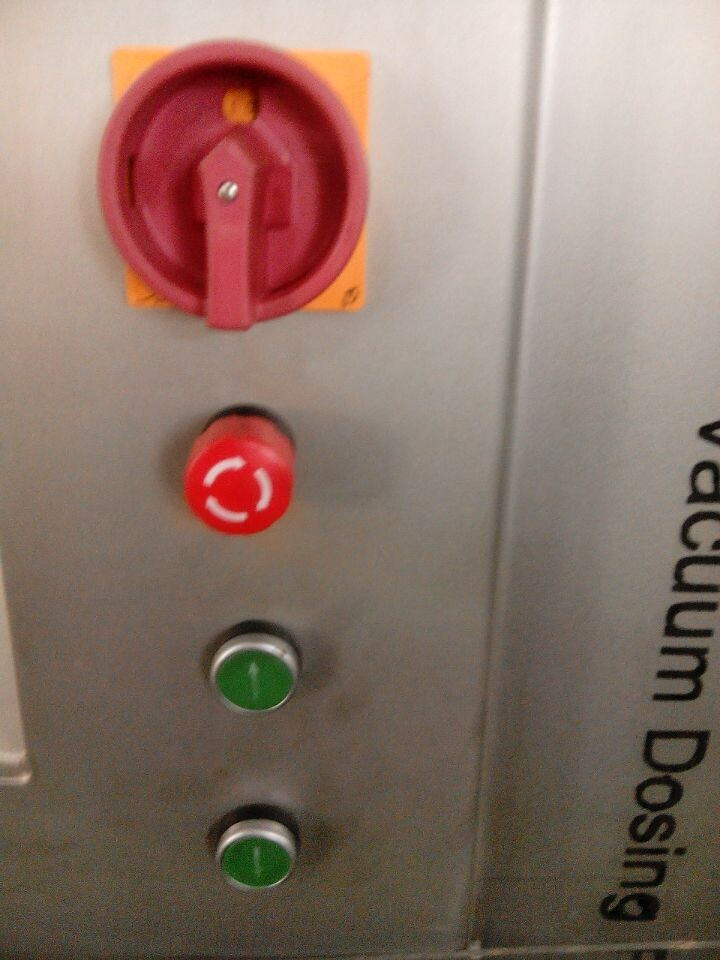

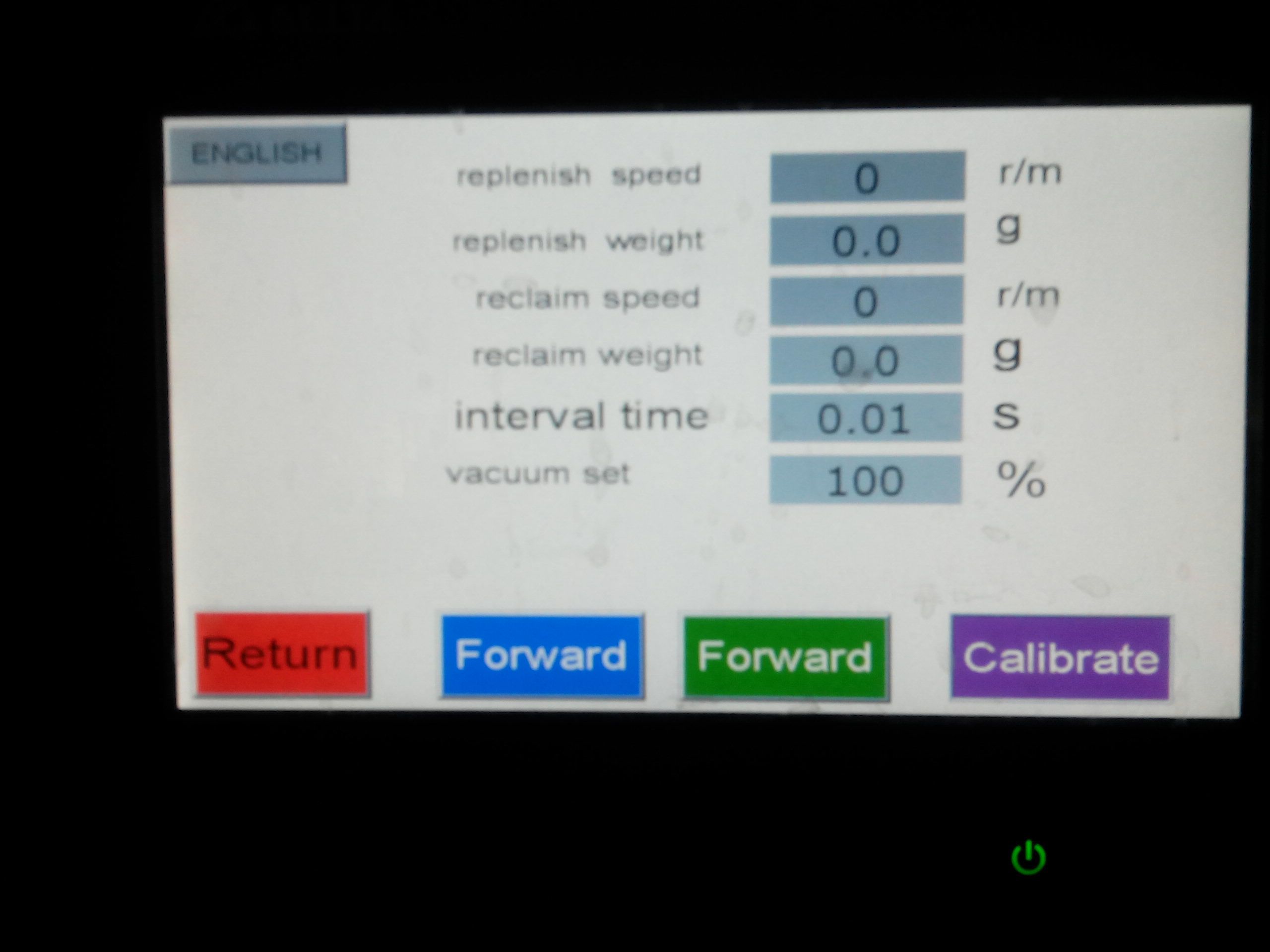

Features: ♦ Integrated circuit control ♦process by pressing button ♦Using pneumatic principle ♦precise quantitative ♦compatible with all kinds of dual clipper from our factory
model
Quantitative range (g)
Air pressure (Mpa)
Filling and twisting speed (time/min)
Quantitative deviation (minced meat) (g)
Hooper volume (L)
Voltage (V)
Weight (kg)
Size (mm)
DG-Q01
25-450 50-1000
0.5-0.8
40
±5
68
220
120
620x620x1600
DG-Q02
25-450 50-1000
0.5-0.8
55
±5
68
220
145
825x930x1700
DG-Q03
50-1000
0.5-0.8
40
±5
110
220
150
750x750x1685
DG-Q04
50-1000
0.5-0.8
40
±5
110
220
175
750x750x1685
Packaging & Shipping
package: wooden case
Terms of payment: T/T50% payment in advance,50% balance will be paid in 7 days before shipment
Terms of delivery:FOBTianjin, China
Time of delivery: 5 to20weeks after receiving your50% advance payment.
Our Services
offer purchasing scheme accroding to specified product
The guarantee period:Mechanical parts isOne year from deliver,electric parts is half an year.
after-sale service: engineers available to service machinery overseas.
Company Information
Yuanchang Food Mechanism & Technology Co.,Ltd specilized in sausage equipment line since 1986, have many years of experience,fessional workers and high precision machining center ensure the good quality of machine. Some machine was created by Yuanchang and got patent.

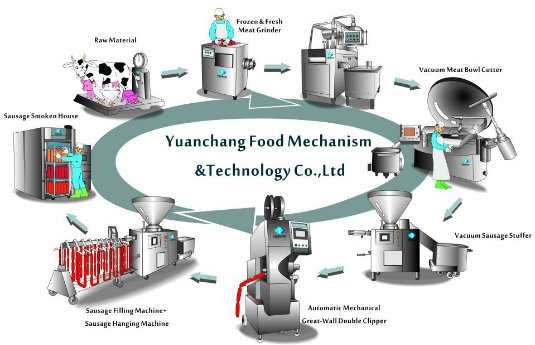

Machines we offer: frozen meat slicer, frozen meat block cutter, meat dicing machine, meat grinder, meat tumbler, saline injector, diced meat mixer, vacuum bowl cutter,automatic pneumatic sauasge filler machine , automatic double clipper, sausage hanging machine, smoking oven, rib cutting machine, active and tenderizing machine, high speed twisiting machine, sausage link cutting machine, double channel sausage binding machine, sausage slicerslicing and shredding machine, band saw machine, additives preparatory maker, mannul clipper, elevator, hopper trolley and so on

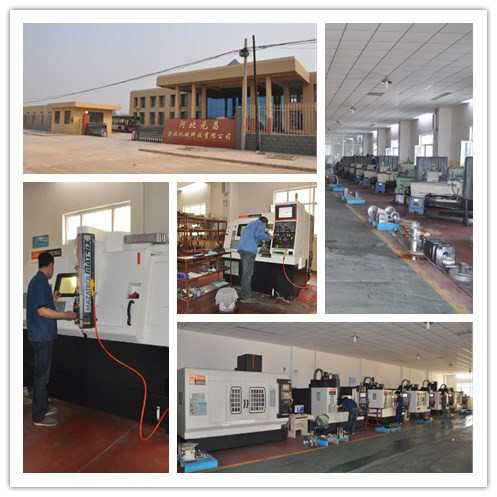

The factory:
OUR SUCCESS DEPENDS ON THE SUCCESS OF OUR CUSTOMERS".
Yuanchang Food Mechanism & Technology Co., Ltd., established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.
We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China s meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine s movement. Designing different requirements of the machinery will be possible.
Our product includes: Quantitative Vacuum Sausage Stuffer filler, Automatic Sausages Double clipper, Vacuum Bowl, Cutter Chopper, Vacuum Meat Mixer, Fumigating Smoking oven Smokehouse, Rolling & kneading Machine/Vacuum tumbler, New type Brine Saline injector, Frozen-Meat Grinder Mincer, Frozen meat loaf and Slice cutter Machine, Meat Tenderizer Machine, Lifter/Elevator, Hopper Trolley etc.
With over 30 years' experience, we have market in more than 80 countries, such as Indonesia, Thailand, India, Turkey, Saudi Arabia, the UK, Norway, Sweden, the USA, Canada, Australia, Brazil, Paraguay, South Africa, Congo, Tanzania, Egypt, Benin, Algeria, Tahiti, Korea, Colombia, etc
If you are interested in something, please don't hesitate to contact us, we will provide you with a price quotation and catalog for your reference.
