Automatic Servo Core Veneer Composer Partical Board Block Making Panel Saw Machine

Automatic Servo Core Veneer Composer Partical Board Block Making Panel Saw Machine
Price: US $ 27500-32000/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: DCBJ-9
Driver: Servo Motor
L*W*H: 12000mm*2600mm*2500mm
Structure: Integral Steel Cutting
Transmission Speed: 0-35m/Minute Adjust
Working Efficiency: 300PCS/H
PLC Computer Module: Deldta PLC(Taiwan)/Siemens(Germany)
Total Weight: 5500kg
Total Power: 15.5kw/16.5kw
Service Voltage: 380V
Working Thickness: 1.0mm-3.6mm
Certification: BV

Product Description


Main applications
  the machine is mainly used for the production of three-ply board, sandwich panel, LVL, floor substrate, furniture panel, building film faced plywood, container board, melamine plywood, blockboard etc, and it can also be used for the horizontal splicing of rotary cut core veneer with the thickness of 1.2-3.6mm. This changes the traditional manual decking technology and makes plywoood decking unitized and automatic. The used of the machine save lots of core finishing worker, improve the quality of products and save labor costs.

Advantage:
1.One operator, no overlap and seamless, no break;
2. Save 70% of core finishing
3.Save 80% assembling workers
4.Save 50% puttying workers

working principle
   core veneer (1.2-3.6mm thickness) after dying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. with this machine, customized board of different sizes an be spliced.

Features
1.PLC control, unmanned operation, automatic process, laborsaving.
2.precise thickness checking, even thickness, mini polishing.
3.servo drive, effective overlap and joint control.
4.supported by German Festo, Danfoss, Taiwan Taida, Japanese Mitsubishi and other international to level brands.
5.high strengthened thread, improve product horizontal tensile force and flexibility, no break.

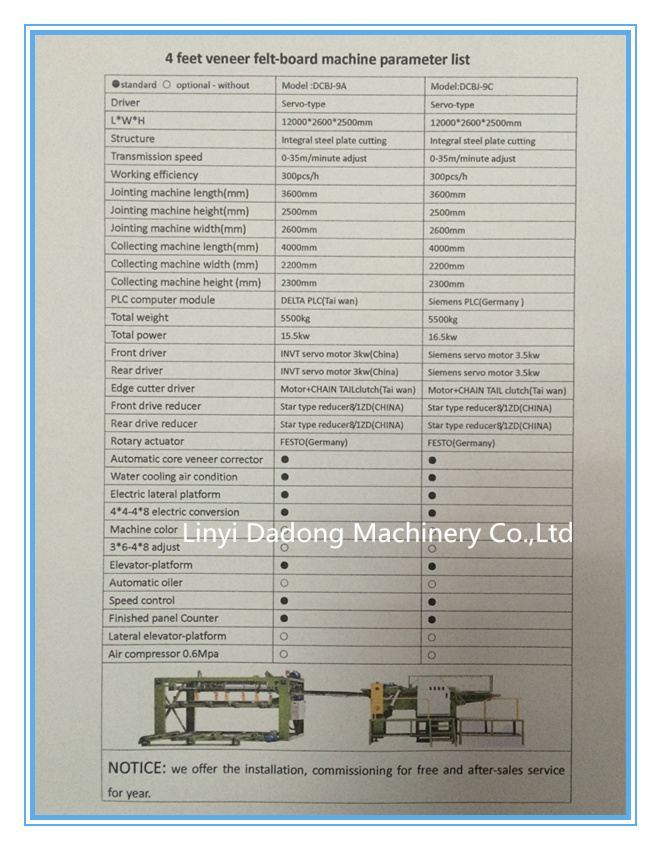

Product parameter



Shandong Linyi Dadong Machinery Co., Ltd., founded in 2009, is a collection of r &d, design, manufacture, sales, service as one of the new type of modern enterprise. Since its establishment, always follows the policy of people-oriented, science and technology first, reform and innovation. We bring new technology into products in time, make the products get rapid promotion and application. Our products adopt the advanced PLC control technology of industrial computer module. The electric equipment and spare parts we choose, are all well-known brands at home and abroad. For example, Festo, Delta, Omron, Siemens, Mitsubishi and so on. This makes our products more obvious efficiency and quality more stable.

We have a good after-sales service team. We always put the customers' needs as the standard of our service, timely solve difficult as soon as possible for the customer. We deeply know that only us were approved by the customer, can we have the market. So, if your products have any problems, you just need phone to us, then we will do the other things.
