Automatic Stone Bridge Saw in Cutting Slabs&Tiles&Counter Tops (HQ400/600/700)
| Price: |
US $ 15000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HQ400-600-700 |
| Max. Length Of Cutting (Table Size): |
3200*2000mm |
| Max. Cut Thick: |
110mm/180mm/230mm |
| Blade Tilt: |
0-45 Degree (Optional for Hq700) |
| Table Tilt: |
0-85 Degree |
| Table Rotate(Hq400/600): |
0-90 Degree |
| Table Rotate (Hq700): |
0-360 Degree |
| Type: |
CNC Cutting Machine |
| Usage: |
Quartz Sandstone |
| Application: |
Stone Industry |
| Source Voltage: |
220V |
| Automation: |
Automatic |
Product Description

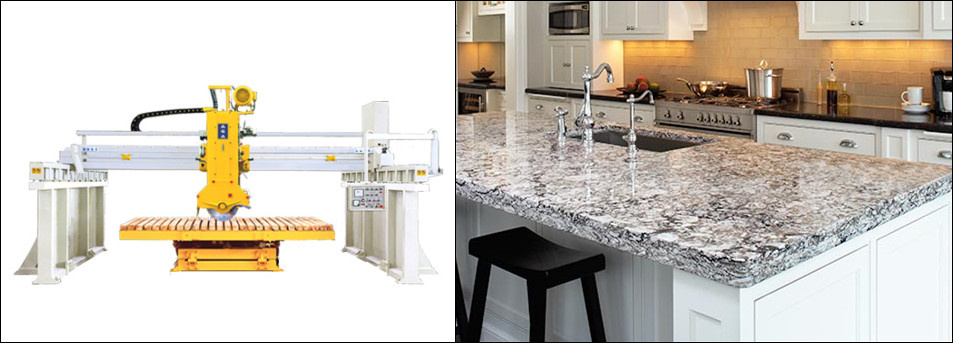

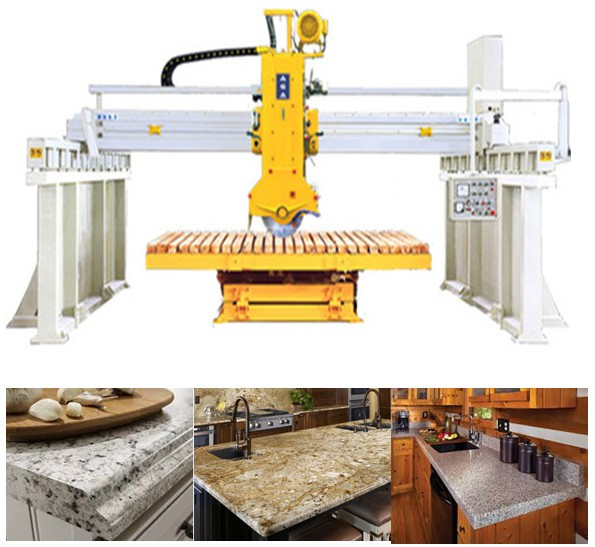

Automatic Bridge Saw Machine in Cutting Slabs&Tiles&Counter Tops&Vanity Tops
Machine model: HQ400/HQ600/HQ700
1) Cut granite, marble, quartz, sandstone, limestone and engineered stones.
2) Cut and fabricate slab, tiles, kitchen tops, counter tops, vanity top, etc.Working video:
HQ400/HQ600 video on http://youtu.be/9HcXYJilfO0
HQ700 video on http://youtu.be/MciWoGjgob0Bridge saw specification:| Model | HQ700 | HQ600 | HQ400 |
| Blade tilting 45° (Angle Cut Mitered) | Yes | N/A | N/A |
| Table Rotation 90° | Yes | Yes | Yes |
Table Rotation 0-360°
(stopping at each 45°) | Yes | Optional | Optional |
| Table tilting 0 - 85° | Yes | Yes | Yes |
| Power Of Spindle Motor | 18.5kw / 25 HP | 18.5kw / 25 HP | 15kw / 20 HP |
| Max Length of Cutting: (Table Size) | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" |
| Max Thick of Cutting: | 230 mm 9" | 180 mm 7" | 110 mm 4" |
| Steel Walls Included | Yes | Optional | Optional |
Machine functions introduction:

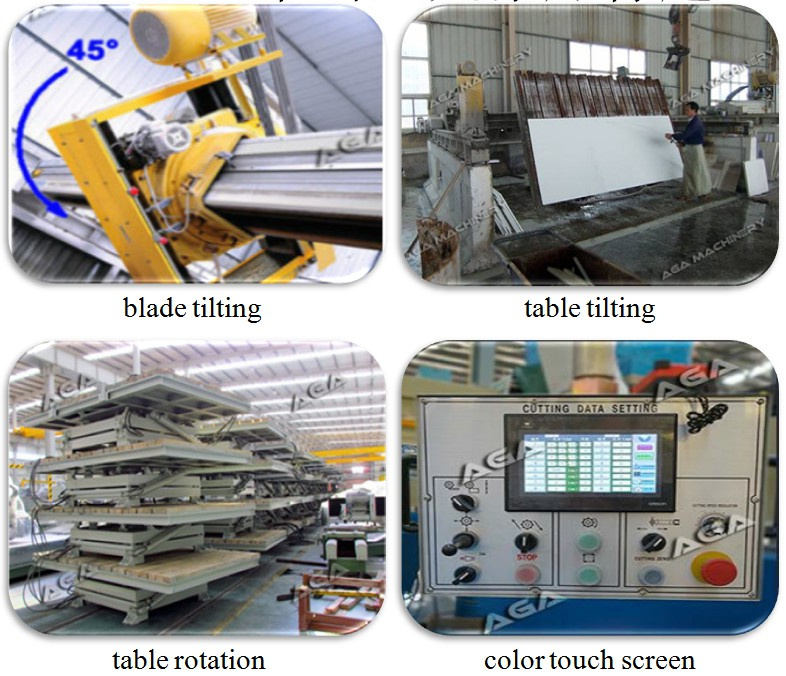

The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilting 0-45 degree automaticlly for miter cut is avaliable for model HQ700.
The table turns 0-90 degree horizontally and 0-360 degree stopped at any postion you want and also tilts 0-85 degree hydrauliclly for easy load of stone materials.
It is made with PLC control, electric system is simple and easy to operate. All functions are operated on the color control panel that it makes it user very friendly. Besides, wirless remote provides easy control of the brige saw.

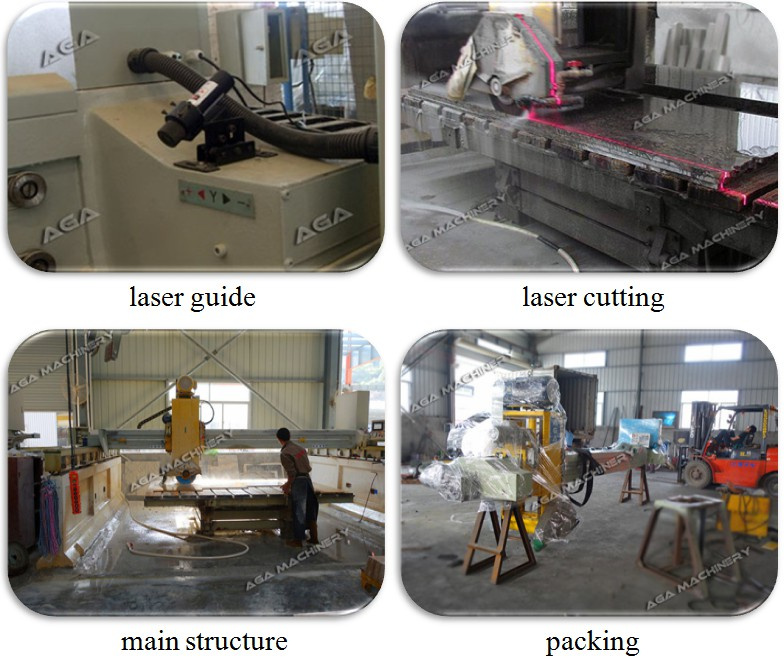

The bridge saw is a laser cutting machine with a laser guide, which gives precision cuts every time and makes precise cut in +/-0.2mm. Automatic water control saves every drop.
FAQ:
1) Payment:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
AGA Machienry:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.Contact information:
Please contact: Miss Kay
Mob: +8618259461172
Online communication: Whats*app/We*chat: +8618259461172

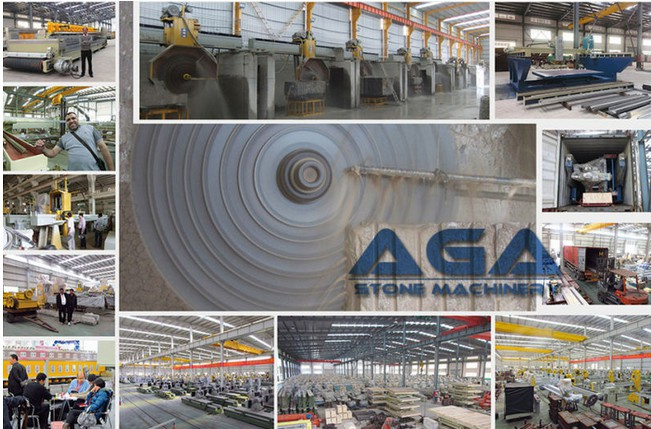

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.
