| Prod Model: |
XZQQ625A |
| Max. Cut Size(Lxw)): |
3200X2000mm |
| Max. Cut Thick: |
100mm |
| Max. Blade Size: |
500mm |
| Table Tilting: |
0-85degree |
| Spindle Motor: |
15kw |
| Power: |
by Electric |
| Type: |
Laser Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

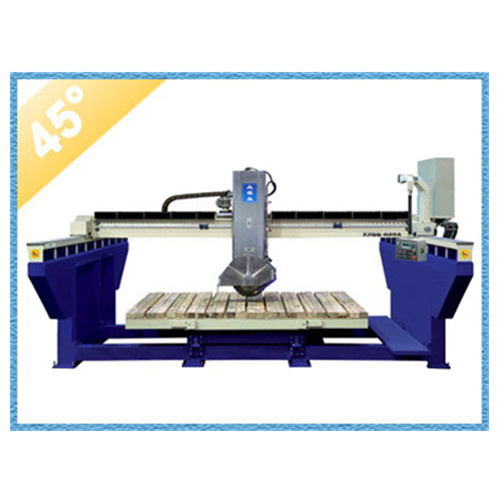

Automatic Bridge Saw for cutting granite marble stones.
1. ISO, CE Certification.
2. Good services and warranty.
3. High power and easily operation.
Basic Info:
A robust bridge saw monoblock applicable for cutting and fabricating slab, counter tops, vanity top, etc.
USA Standard Made with a powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H). The blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts. The table turns 0 - 360 degree automatically and also tilts 0 - 85 degree Hydraulic for easy load of material. This mono block bridge saw machine is computer control and with color Display Touch Screen. It is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation. All the functions are operated on the control panel that make it very user friendly. Operating language in English and size unit in Inch or mm. Automatic bridge saw is hot sale product in our company, we had sell many this product to all over the world especially American, Canada, Australian and so on.
Specification
| Blade size | 400 - 625 mm 16" - 25" |
| Cut length | 3200 mm 126" |
| Cut width | 2000 mm 78" |
| Cut thick | 170 mm 6.7" |
| Blade tilt | 0 - 45° |
| Table rotate | 0 - 360° |
| Table tilt | 0 - 85° |
| Spindle motor | 15 Kw 20 HP |
| Size (L×W×H) | 6×5×2.6 m 20'×16'×8.5' |
| Weight | 7200 Kg 16,000 Lbs |
